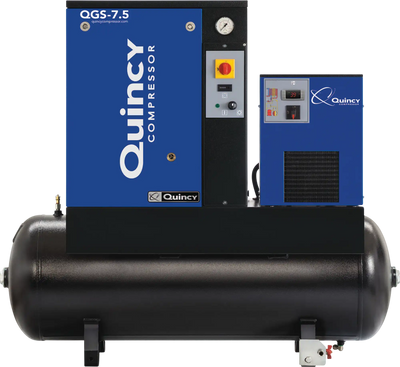

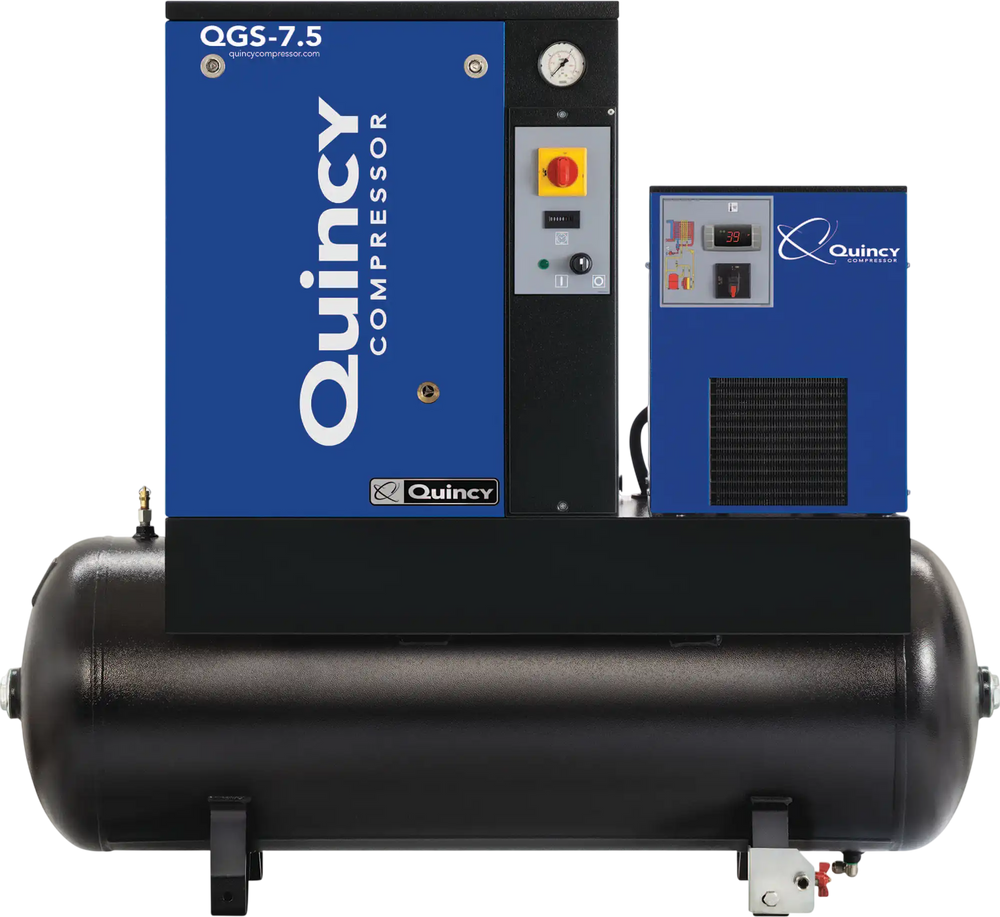

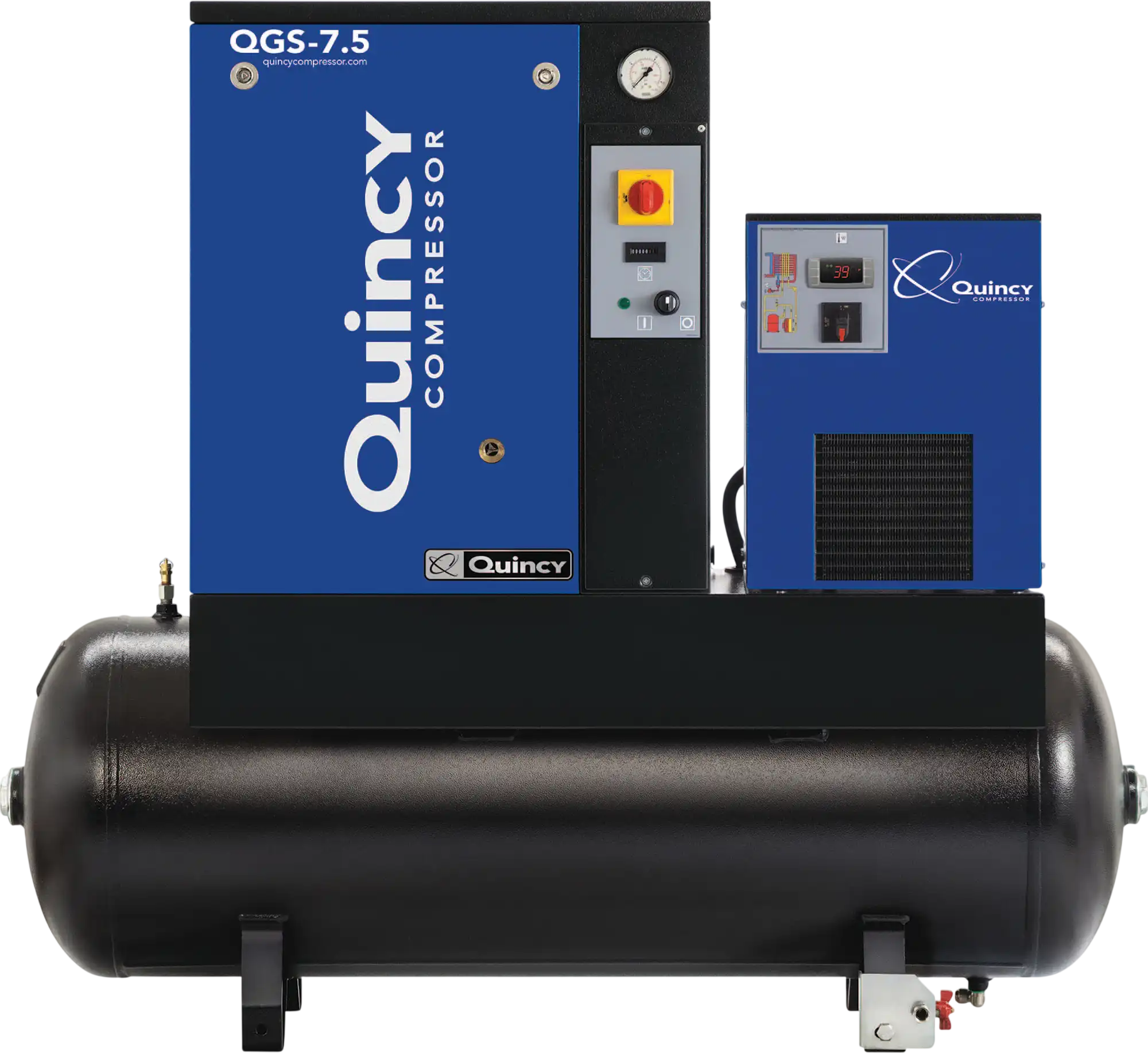

Quincy Compressor QGS Rotary Screw Compressor with Dryer 7.5 HP, 230 Volt Single Phase, 60 Gallon, 21.2 CFM New
Manufacturer: Quincy Compressor
SKU: 4152051929
QTY
or
(888) 999-1522
$ 13,299.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Quincy Compressor QGS Rotary Screw Compressor with Dryer 7.5 HP, 230 Volt Single Phase, 60 Gallon, 21.2 CFM New
Product Overview
The Quincy Compressor QGS rotary screw air compressor pairs a 7.5 HP, 230V single-phase motor with an integrated refrigerated air dryer and a 60-gallon horizontal ASME-certified tank. Designed for a 100% duty cycle, it provides continuous operation with a maximum pressure of 150 PSI. The dryer chills compressed air to condense and remove moisture, airborne dirt and oil, while low oil carryover helps protect connected tools. A low-sound canopy and 64 dBA sound level help reduce sound fatigue, and a footprint of less than 13 square feet offers installation flexibility. The oil-injected twin screw compressor also includes a TEFC motor, V-belt drive, simple start/stop control and factory-filled 8,000-hour premium synthetic fluid.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- High-efficiency intake filter
- TEFC electric motor (IP 55 wash down)
- Long life V-belt drive
- 1/2in. NPT discharge air connector
- Factory-filled 8,000-hour premium synthetic fluid
- 64 dBA for reduced sound fatigue in work area installations
- Designed for 100% duty cycle
- No transfer of vibration
- Low oil carryover protects tools
- Integrated refrigerated air dryer purifies compressed air by chilling it to condense and remove moisture, airborne dirt and oil
- ASME certified tank
- Simple, efficient start/stop control
- UL and cUL control panel compliant
- Fuse protected circuits
- Low sound canopy
- Less than 13 sq. ft. space required
- Turnkey solution: power in/air out
- Clean appearance with few connections
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 546.0 LB |
| Horsepower | 7.5 HP |
| Air Tank Size | 60 Gal |
| Volts | 230 |
| Max. PSI | 150 |
| Stage | 1 |
| Duty Cycle | 100 % |
| Motor Phase | 1 |
|---|---|
| Air Outlet Size | 1/2 in. NPT |
| Tank Orientation | Horizontal |
| Product Weight | 496.0000 lb |
| Dimensions L X W X H (in.) | 56.0 x 23.0 x 51.0 in |
Package Contents
(1) 7.5 HP, 230V, 1-phase oil-injected twin screw compressor with refrigerated air dryer, mounted on 60-gallon horizontal ASME tank
Warranty
This item comes with a 1 year limited warranty.
