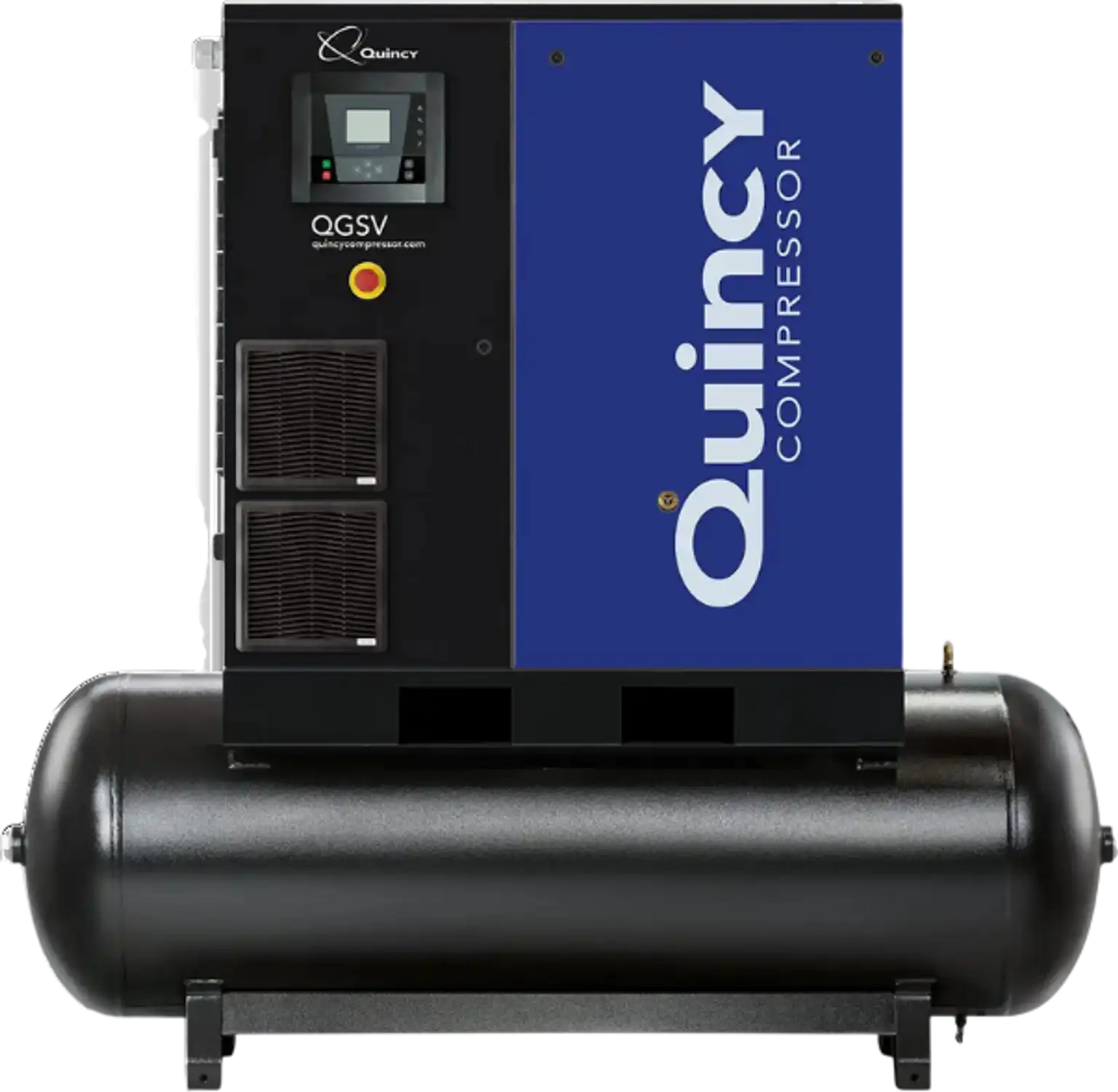

Quincy Compressor QGSV30 Variable Speed Rotary Screw Air Compressor 30 HP 120 Gal 460V 3-Phase 60 Hz New
Product Overview
The Quincy Compressor QGSV30 variable speed rotary screw air compressor pairs a 30 HP motor with a 120 Gal tank and operates on 460V, 3-phase power. It delivers 139.9 CFM at 100 PSI, while its advanced microprocessor controller automatically maintains the desired system pressure and adjusts air delivery to match demand. Variable speed technology and a direct drive transmission provide energy savings of up to 30%, with direct drive also helping reduce maintenance costs. A low-sound enclosure supports a specified noise level of 71 dB, and the IP55 TEFC high-frequency motor is designed for variable speed operation. The compressor can operate as a stand-alone machine or be networked for use as a trim machine.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Low Sound Enclosure
- Direct Drive Transmission for Energy Savings and Reduced Maintenance Cost
- Very Low Turndown Capacity
- Advanced Microprocessor Controller
- IP55 TEFC High Frequency Motors Designed for Variable Speed Use
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 1300.0 LB |
| Horsepower | 30 HP |
| Air Tank Size | 120 Gal |
| Volts | 460 |
| Max. PSI | 100 |
| Amps | 60 |
| Working Pressure | 100 PSI |
| Motor Phase | 3 |
| Air Outlet Size | 1 in. NPT |
|---|---|
| CFM At Max. PSI | 139.9 |
| Noise Level | 71 dB |
| Oil Required | Yes |
| Product Weight | 1202.0000 lb |
| Dimensions L X W X H (in.) | 77.0 x 33.0 x 74.0 in |
Package Contents
(1) Quincy Variable Speed Rotary Compressor Model# QGSV-30TM46
Warranty
This item comes with a 1 year limited warranty.
