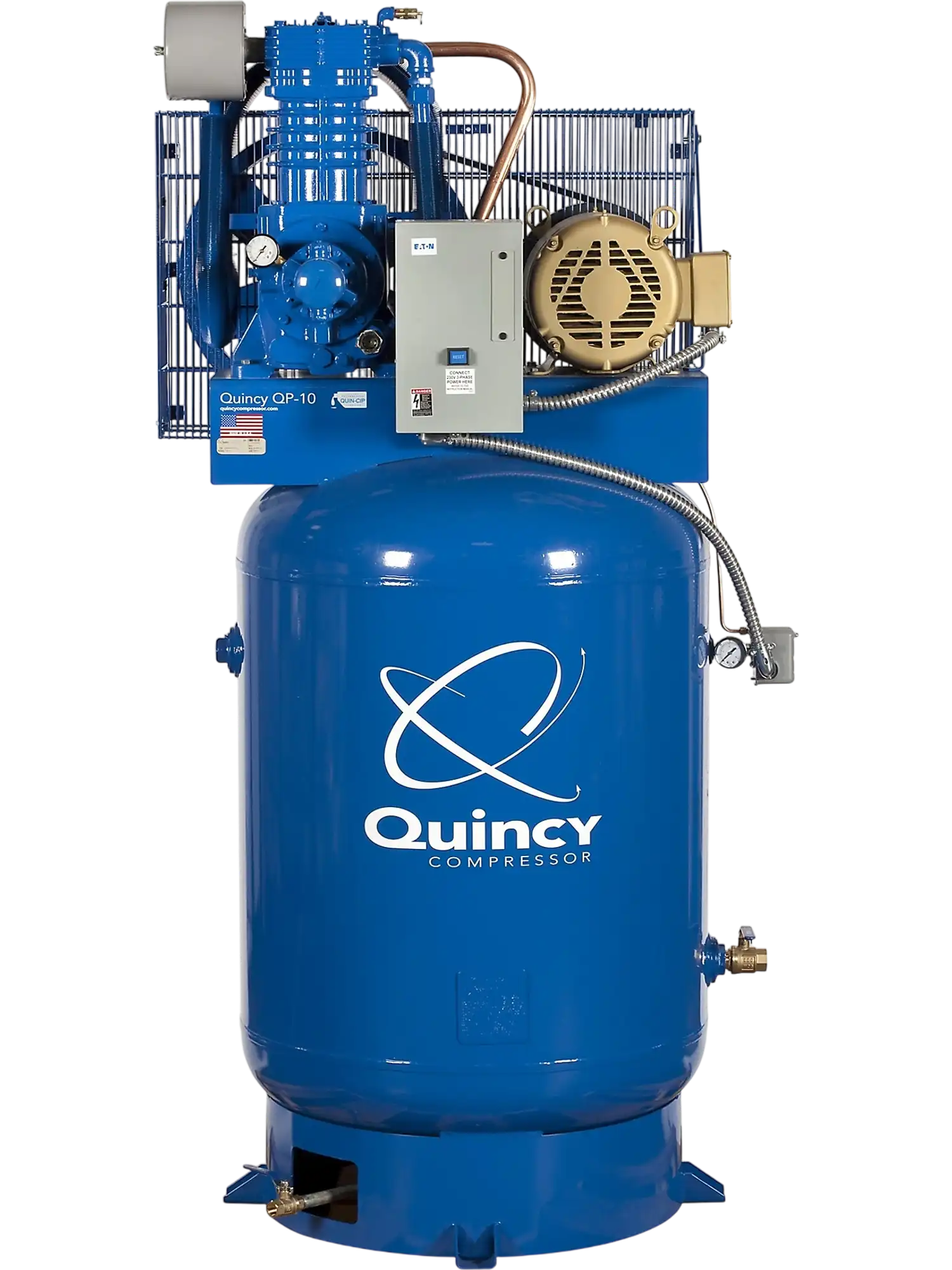

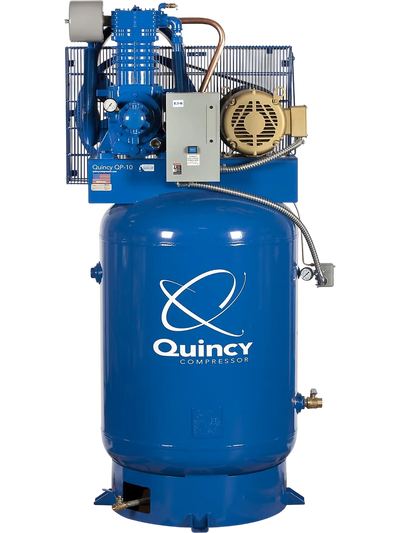

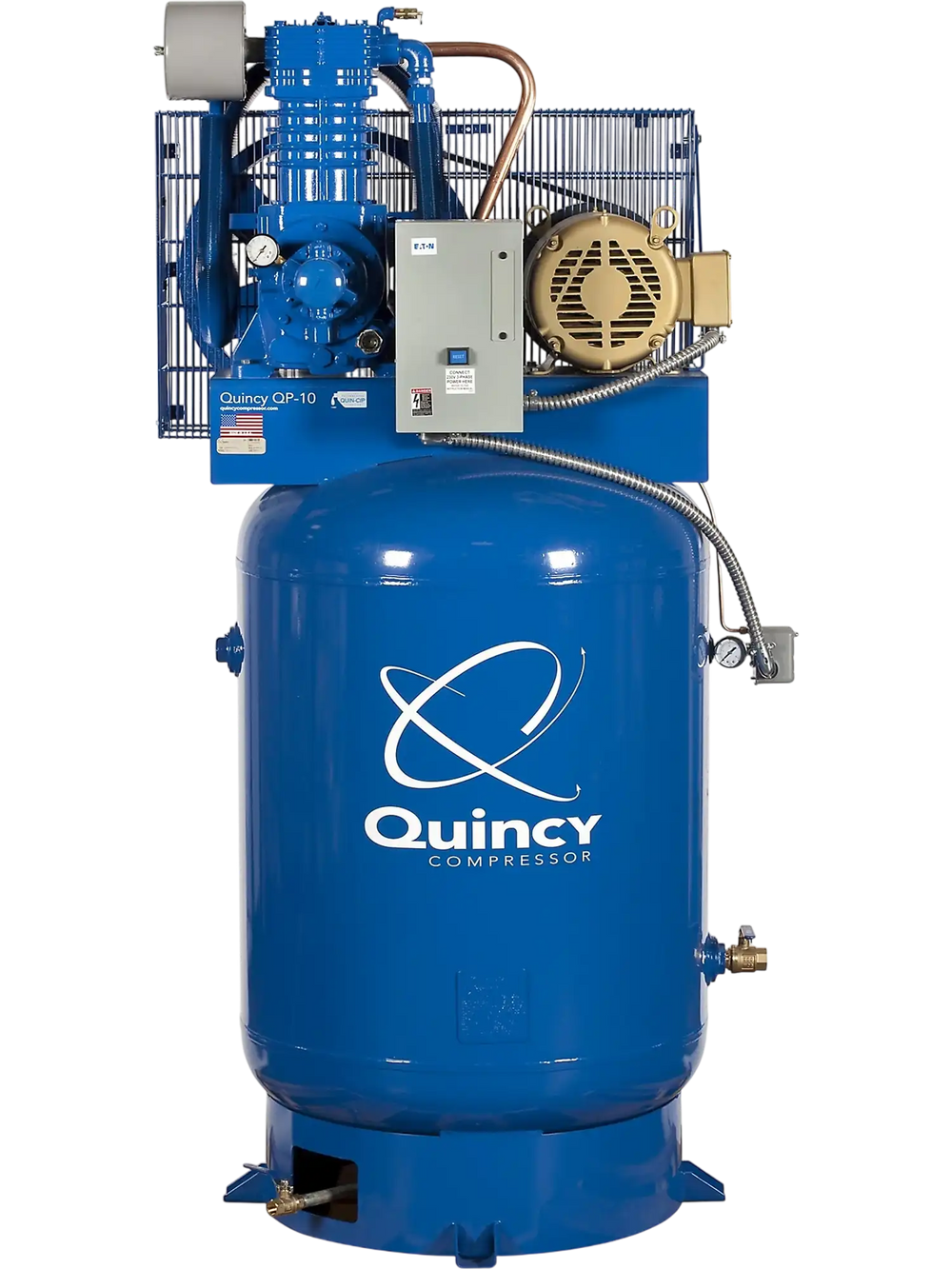

Quincy Compressor QP 2-Stage Air Compressor 10 HP 120-Gal. Tank 460V 3-Phase New
Product Overview
Built for demanding industrial applications, the Quincy Compressor QP two-stage air compressor pairs a 10 HP motor with a vertical 120-gallon ASME-certified tank. It operates on 460V three-phase power and delivers 37 CFM at 90 PSI or 36 CFM at its maximum pressure of 175 PSI. The cast iron pump uses full pressure lubrication to supply oil to critical surfaces, while a Gerotor oil pump and filter support consistent lubrication and lower operating temperatures. A 100% duty cycle supports continuous operation, and the pump carries a 60,000-hour life rating. A magnetic starter, belt drive, pressure gauge and manual tank drain round out the package.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
- High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
- Provides up to 15% longer pump life than traditional splash lubricated compressors
- Delivers 60,000+ hours of pump life
- Continuous 100% duty cycle operation
- Equipped with a powerful 10 HP electric motor with magnetic starter
- Pressure-lubricated QP 2-stage cast iron pump
- Belt drive
- ASME certified 120-gallon tank with manual tank drain
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 960.0 LB |
| Horsepower | 10 HP |
| Air Tank Size | 120 Gal |
| Volts | 460 |
| CFM At 90 PSI | 37 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 14 |
| Duty Cycle | 100 % |
| Motor RPM | 682 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 60,000 hr |
|---|---|
| Pump Material | Cast Iron |
| Air Outlet Size | 1 in. NPT |
| CFM At Max. PSI | 36 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Drain Type | Manual |
| Tank Orientation | Vertical |
| Product Weight | 900.0000 lb |
| Dimensions L X W X H (in.) | 49.0 x 34.0 x 78.0 in |
Package Contents
(1) Quincy QP 10-HP 120 Gallon Two-Stage Air Compressor (460V-3-Phase) Vertical PRO
Warranty
This item comes with a 1 year limited warranty.
