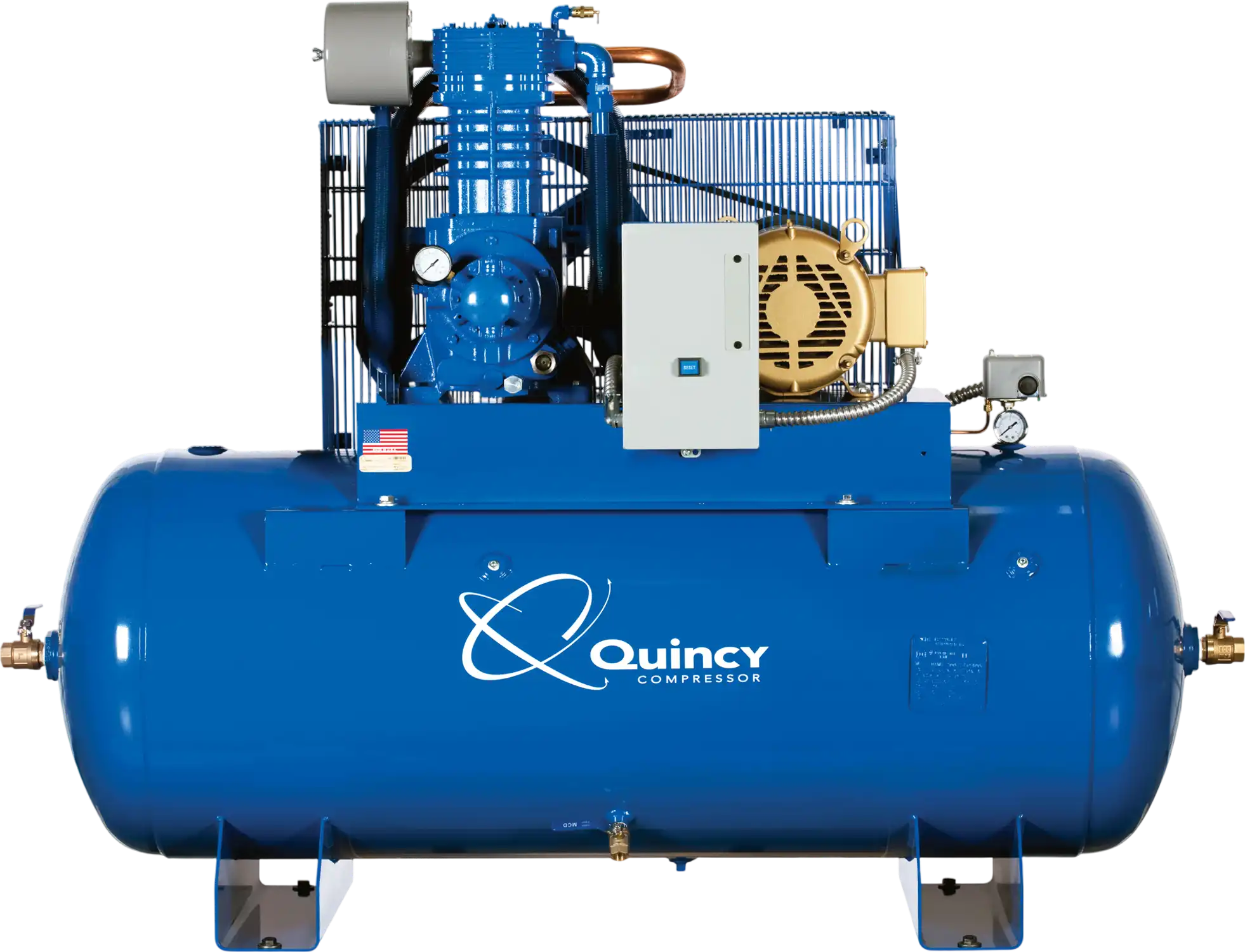

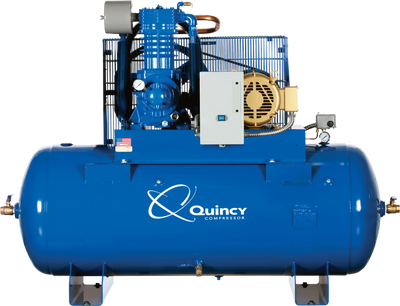

Quincy Compressor QP 2-Stage Air Compressor Max 10 HP, 120-Gal. Tank, 200V 3-Phase New
Manufacturer: Quincy Compressor
SKU: 2020040906
QTY
or
(888) 999-1522
$ 12,946.96
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Quincy Compressor QP 2-Stage Air Compressor Max 10 HP, 120-Gal. Tank, 200V 3-Phase New
Product Overview
The Quincy Compressor QP two-stage air compressor pairs a 10 HP, 200V three-phase motor with a 120-gallon horizontal tank for continuous operation at a 100% duty cycle. It delivers 37 CFM at 90 PSI and 36 CFM at its maximum pressure of 175 PSI. The cast iron pump features an aluminum head and full pressure lubrication to reduce wear on the crankshaft, bearings and connecting rods. A spin-on oil filter helps extend pump life, while low oil pressure shutdown provides protection. A mounted air-cooled aftercooler, electronic automatic tank drain and digital control panel with an hour meter and adjustable cut-in/cut-out pressures round out the package.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- QP compressor has a fully pressure-lubricated system for smooth, continuous operation
- Oil pump pressure-lubricates crankshaft, bearings and connecting rods up to the wrist pins
- Pressurized oil results in less wear on components
- Pressure-lubricated system provides up to 15% longer life than a splash-lubricated compressor
- Cast iron 2-stage pump with aluminum head
- Pump life up to 60,000+ hours
- Spin-on filter lengthens pump life and improves reliability
- Low oil pressure shutdown for protection

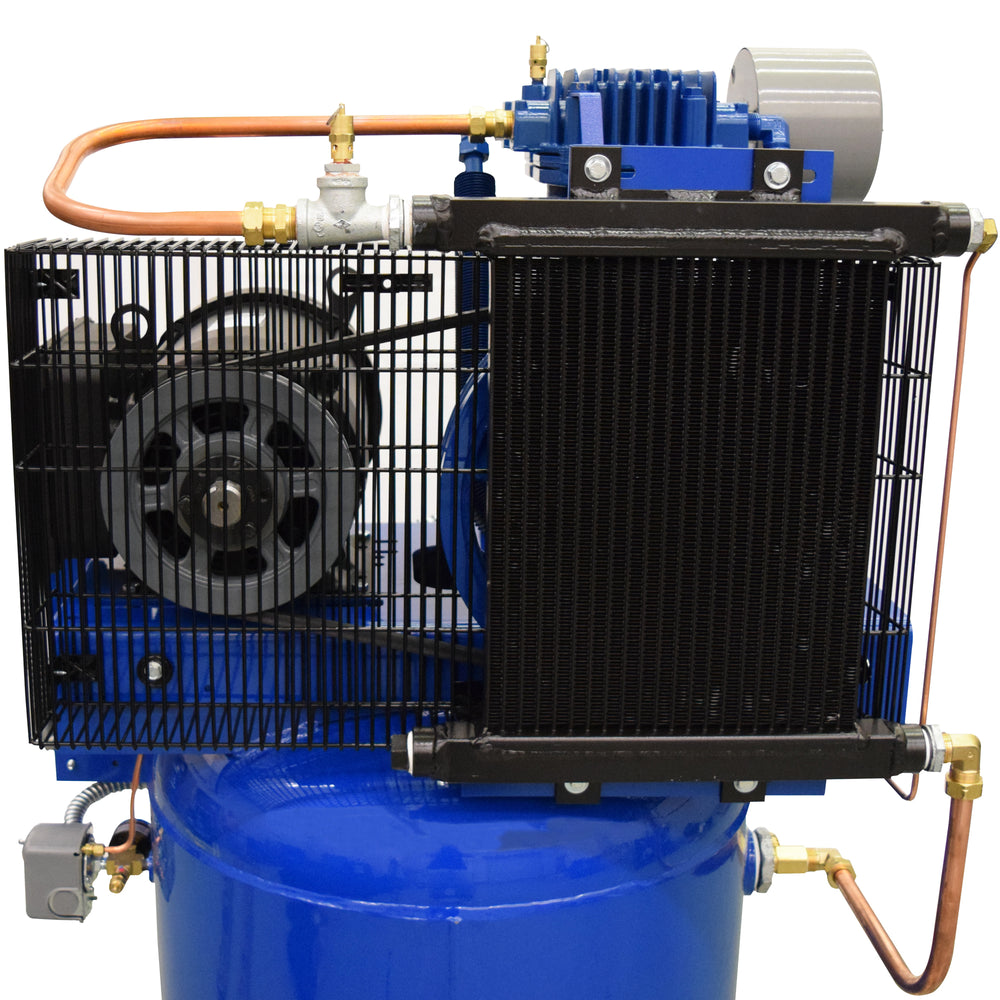

- Mounted air-cooled aftercooler

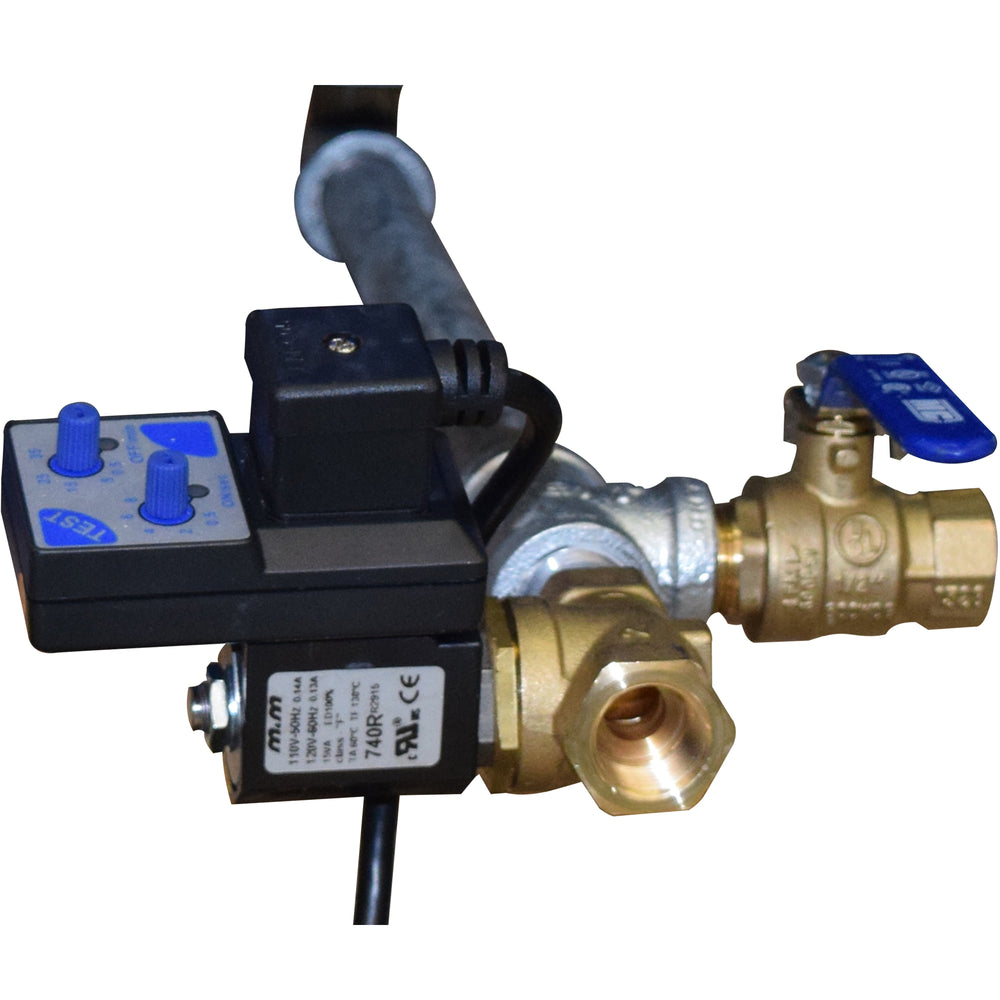

- Electronic automatic tank drain
- Digital control panel with hour meter and adjustable cut-in/cut-out pressures
- Continuous 100% duty cycle operation
- 120-gallon horizontal tank
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 960.0 LB |
| Horsepower | 10 HP |
| Air Tank Size | 120 Gal |
| Volts | 200 |
| CFM At 90 PSI | 37 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 32.2 |
| Duty Cycle | 100 % |
| Motor RPM | 682 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 60,000 hr |
|---|---|
| Pump Material | Cast Iron |
| Air Outlet Size | 1 in. NPT |
| CFM At Max. PSI | 36 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Drain Type | Automatic |
| Tank Orientation | Horizontal |
| Product Weight | 900.0000 lb |
| Dimensions L X W X H (in.) | 71.0 x 30.0 x 55.0 in |
Package Contents
(1) Quincy QP 10-HP 120 Gallon Two-Stage Air Compressor (200V-3-Phase) Horizontal MAX
Warranty
This item comes with a 1 year limited warranty.
