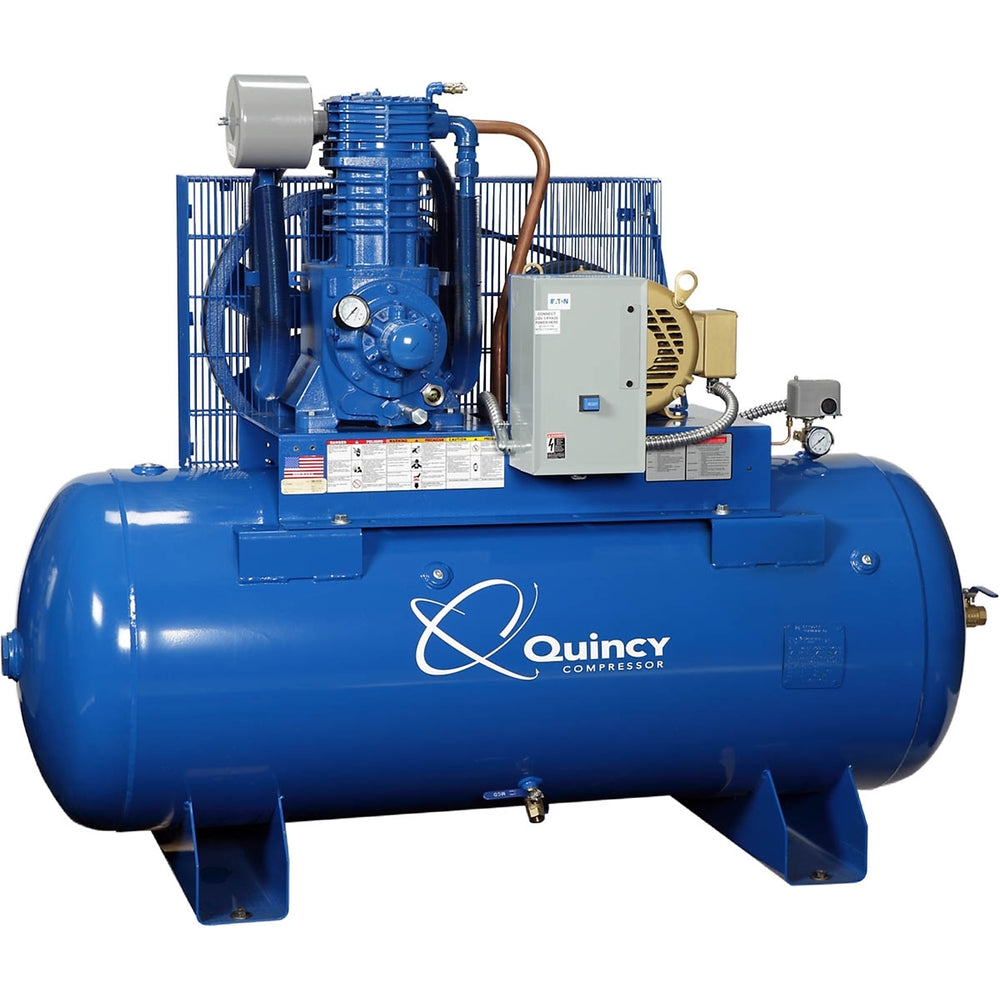

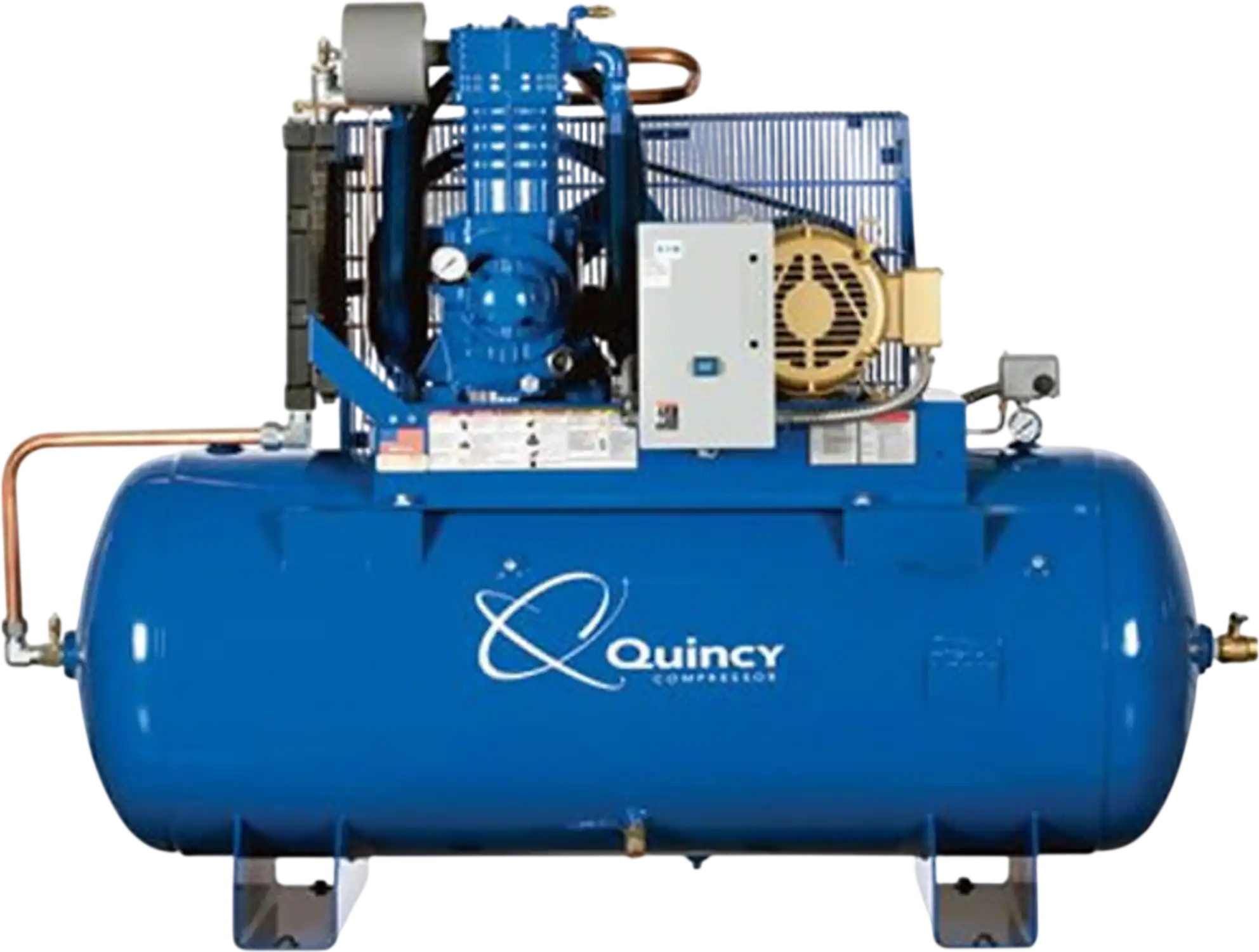

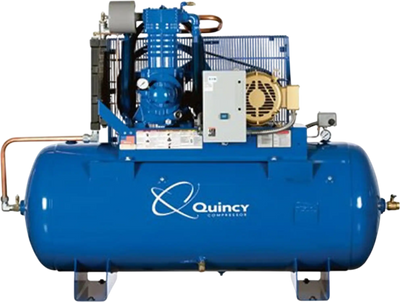

Quincy Compressor QP Air Compressor 10 HP, 120-Gal. Tank, 200V, 3-Phase, 2-Stage New
Product Overview
Built for demanding industrial applications, the Quincy Compressor QP two-stage air compressor pairs a 10 HP motor and magnetic starter with 200V, 3-phase power. It delivers 37 CFM at 90 PSI and 36 CFM at its maximum pressure of 175 PSI, with a 100% duty cycle for continuous operation. The cast iron pump uses full-pressure lubrication to supply oil to critical surfaces, while a Gerotor oil pump and filter support consistent lubrication and lower operating temperatures. Rated for 60,000 hours of pump life, the QP pump offers up to 15% longer life than traditional splash-lubricated pumps. An ASME-certified 120-gallon horizontal tank includes a manual drain, and a pressure gauge helps you monitor operating pressure.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
- High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
- Provides up to 15% longer pump life than traditional splash lubricated compressors
- Delivers 60,000+ hours of pump life
- Continuous 100% duty cycle operation
- Equipped with a powerful 10 HP electric motor with magnetic starter
- Pressure-lubricated QP 2-stage cast iron pump
- Belt drive
- ASME certified 120-gallon tank with manual tank drain
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 940.0 LB |
| Horsepower | 10 HP |
| Air Tank Size | 120 Gal |
| Volts | 200 |
| CFM At 90 PSI | 37 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 32.2 |
| Duty Cycle | 100 % |
| Motor RPM | 682 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 60,000 hr |
|---|---|
| Pump Material | Cast Iron |
| Air Outlet Size | 1 in. NPT |
| CFM At Max. PSI | 36 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Drain Type | Manual |
| Tank Orientation | Horizontal |
| Product Weight | 900.0000 lb |
| Dimensions L X W X H (in.) | 71.0 x 30.0 x 55.0 in |
Package Contents
(1) Quincy QP 10-HP 120 Gallon Two-Stage Air Compressor (200V-3-Phase) Horizontal PRO
Warranty
This item comes with a 1 year limited warranty.
