Quincy Compressor QP Air Compressor 10 HP, 120-Gal. Tank, 460V 3-Phase New
Product Overview
Built for continuous operation, this Quincy QP two-stage air compressor pairs a 10 HP motor with a 120-gal horizontal tank and runs on 460V three-phase power. It delivers 37 CFM at 90 PSI and 36 CFM at its maximum pressure of 175 PSI, with a 100% duty cycle. The cast iron pump features an aluminum head and full-pressure lubrication to reduce wear on the crankshaft, bearings and connecting rods. A spin-on oil filter supports pump reliability, while low oil pressure shutdown helps protect the compressor. A mounted air-cooled aftercooler, electronic automatic tank drain and digital control panel with an hour meter and adjustable cut-in/cut-out pressures round out the package.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- QP compressor has a fully pressure-lubricated system for smooth, continuous operation
- Oil pump pressure-lubricates crankshaft, bearings and connecting rods up to the wrist pins
- Pressurized oil results in less wear on components
- Pressure-lubricated system provides up to 15% longer life than a splash-lubricated compressor
- Cast iron 2-stage pump with aluminum head
- Pump life up to 60,000+ hours
- Spin-on filter lengthens pump life and improves reliability
- Low oil pressure shutdown for protection

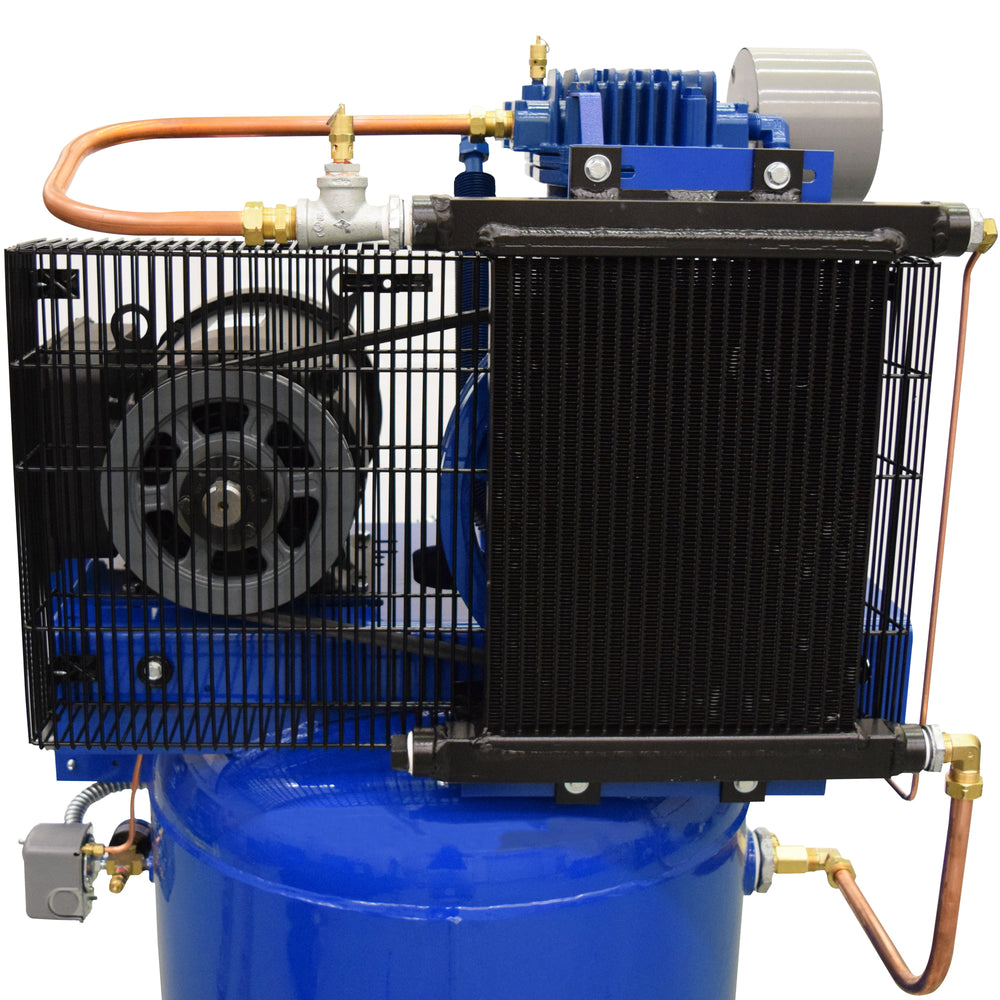

- Mounted air-cooled aftercooler

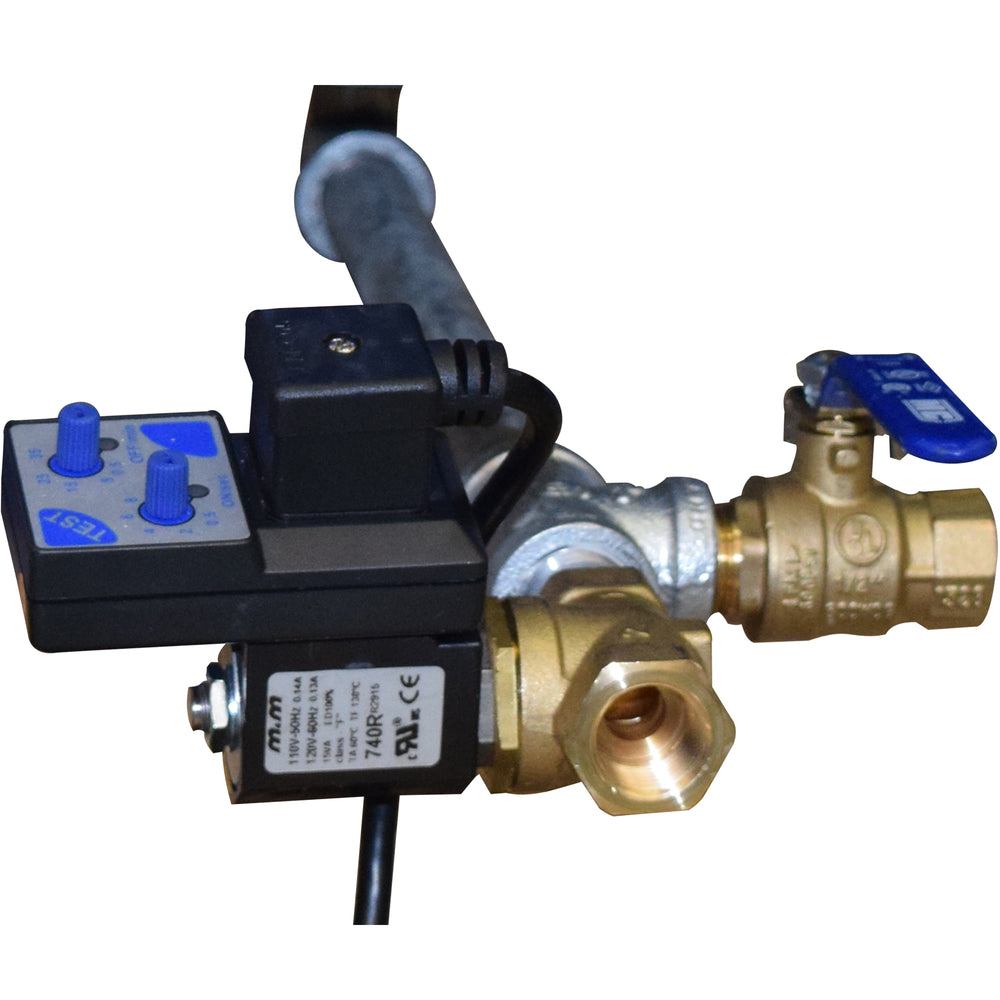

- Electronic automatic tank drain
- Digital control panel with hour meter and adjustable cut-in/cut-out pressures
- Continuous 100% duty cycle operation
- 120-gallon horizontal tank
- One-year limited warranty without warranty kit purchase. Purchase an extended warranty kit same time (same receipt) as your Quincy air compressor and it will double the warranty to 2 years and triple the pump warranty to 3 years (parts and labor).
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 960.0 LB |
| Horsepower | 10 HP |
| Air Tank Size | 120 Gal |
| Volts | 460 |
| CFM At 90 PSI | 37 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 14 |
| Duty Cycle | 100 % |
| Motor RPM | 682 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 60,000 hr |
|---|---|
| Pump Material | Cast Iron |
| Air Outlet Size | 1 in. NPT |
| CFM At Max. PSI | 36 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Drain Type | Automatic |
| Tank Orientation | Horizontal |
| Product Weight | 900.0000 lb |
| Dimensions L X W X H (in.) | 71.0 x 30.0 x 55.0 in |
Package Contents
(1) Quincy QP 10-HP 120 Gallon Two-Stage Air Compressor (460V-3-Phase) Horizontal MAX
Warranty
This item comes with a 1 year limited warranty.
