Quincy Compressor QP Air Compressor 10HP, 120-Gal. Tank, 230V, 3-Phase New
Manufacturer: Quincy Compressor
SKU: 2020040796
QTY
or
(888) 999-1522
$ 13,598.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

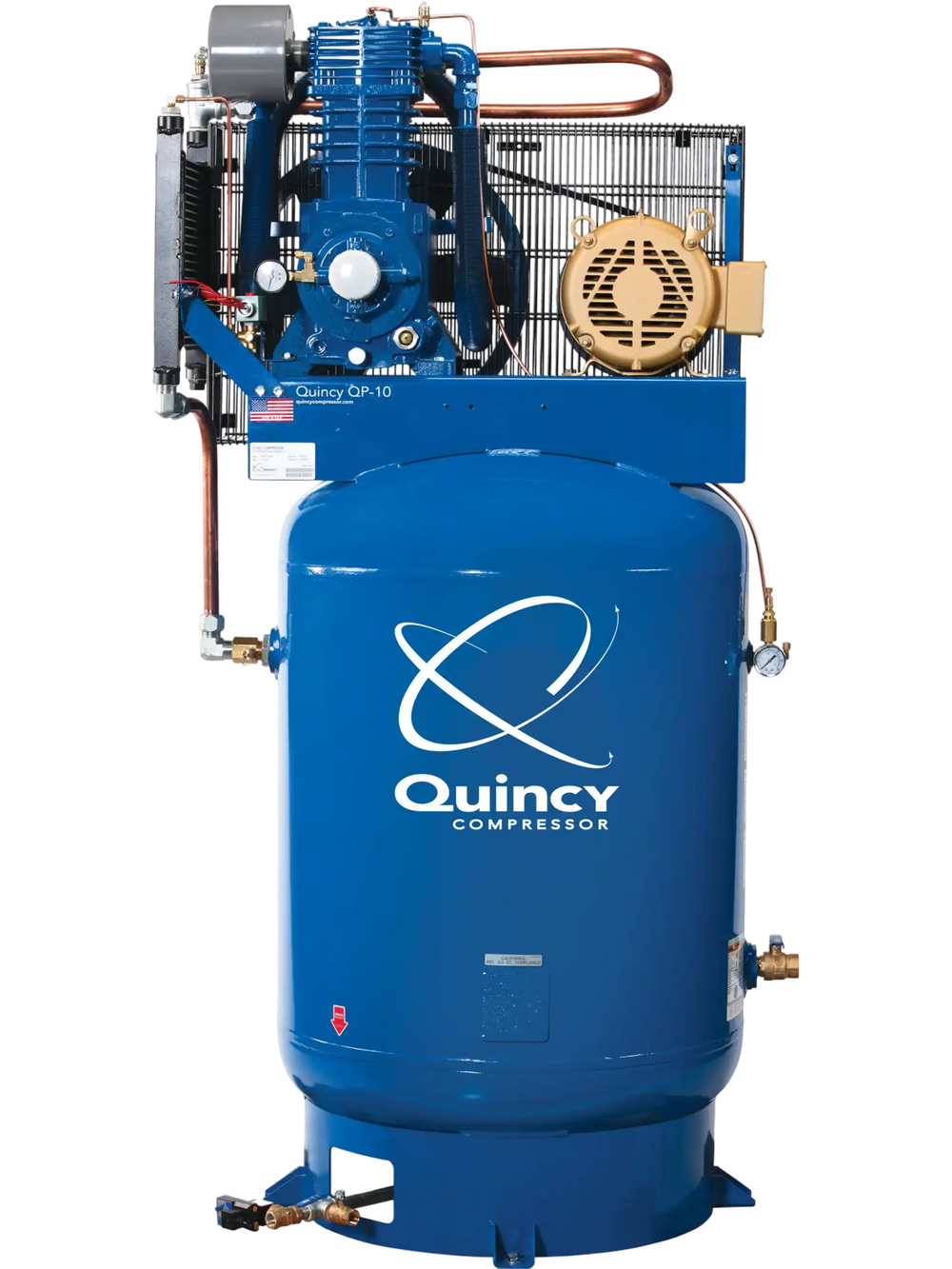

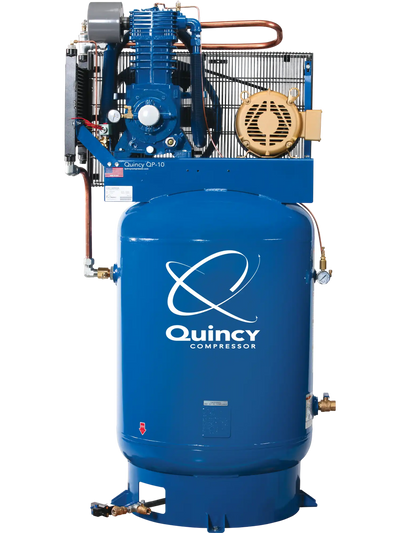

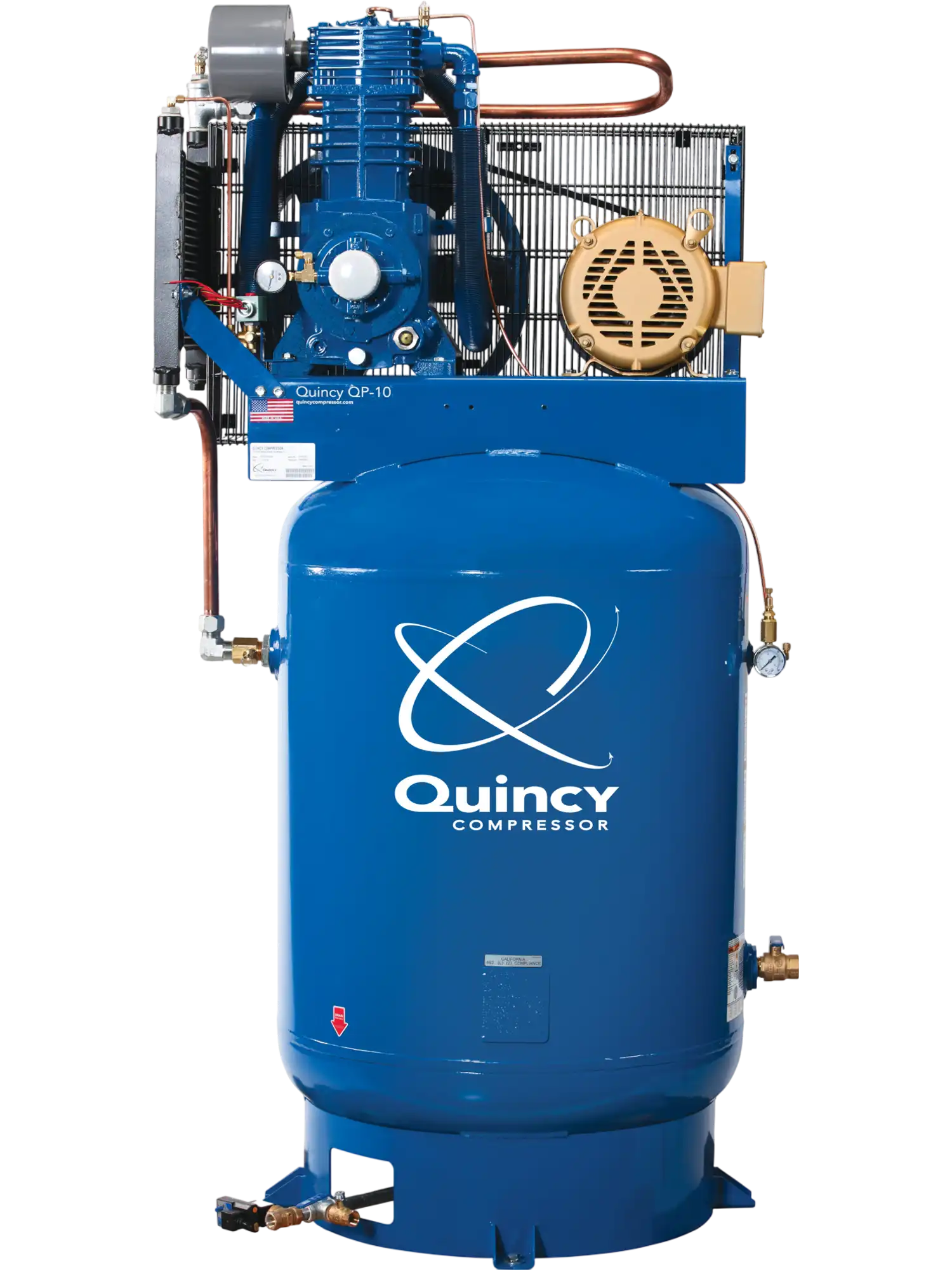

Quincy Compressor QP Air Compressor 10HP, 120-Gal. Tank, 230V, 3-Phase New
Product Overview
The Quincy Compressor QP air compressor pairs a 10 HP, 230V, 3-phase motor with a 120-gallon vertical tank for continuous, 100% duty cycle operation. Its two-stage cast iron pump delivers 37 CFM at 90 PSI and supports a working pressure range of 135–175 PSI. Full pressure lubrication supplies oil to the crankshaft, bearings and connecting rods up to the wrist pins to reduce component wear, while low oil pressure shutdown provides protection. A spin-on filter helps extend pump life and improve reliability, and a mounted air-cooled aftercooler and electronic automatic tank drain are included. The digital control panel features an hour meter and adjustable cut-in and cut-out pressures for monitoring use and setting operating pressures.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- QP compressor has a fully pressure-lubricated system for smooth, continuous operation
- Oil pump pressure-lubricates crankshaft, bearings and connecting rods up to the wrist pins
- Pressurized oil results in less wear on components
- Pressure-lubricated system provides up to 15% longer life than a splash-lubricated compressor
- Cast iron 2-stage pump with aluminum head
- Pump life up to 60,000+ hours
- Spin-on filter lengthens pump life and improves reliability
- Low oil pressure shutdown for protection

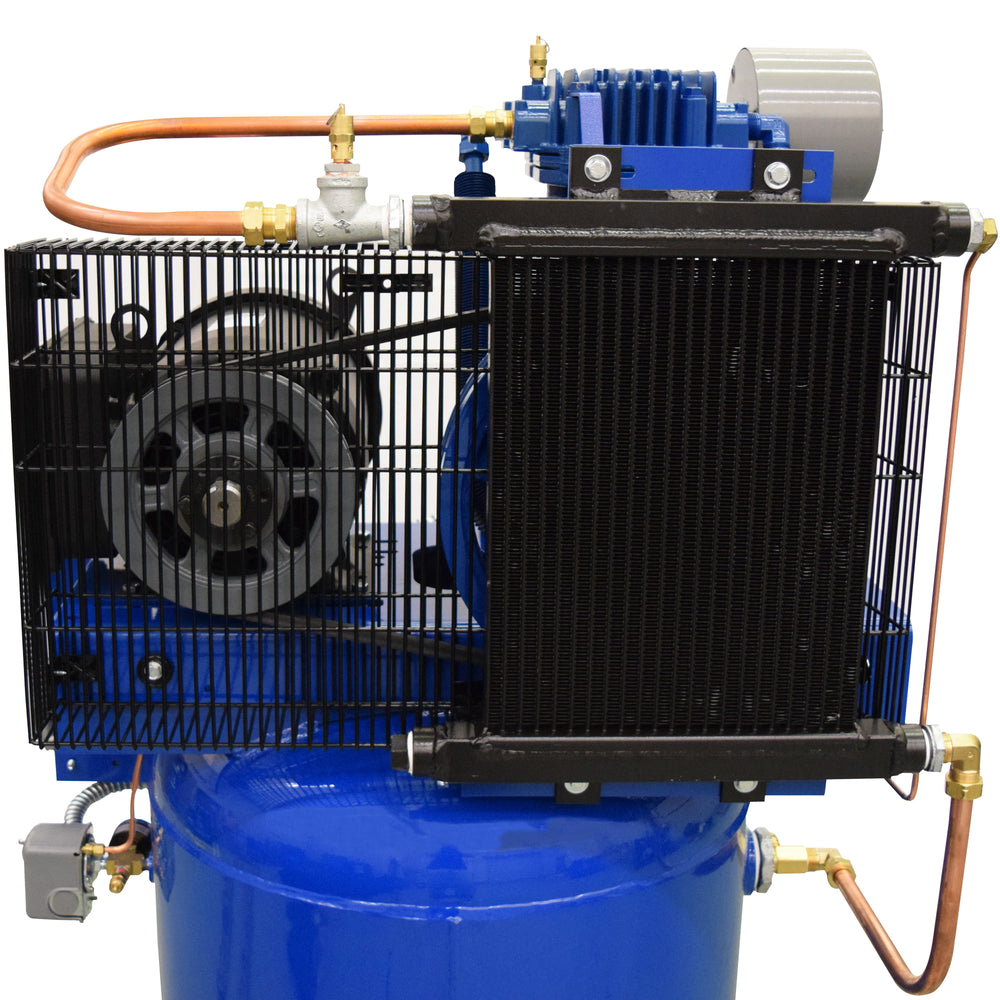

- Mounted air-cooled aftercooler

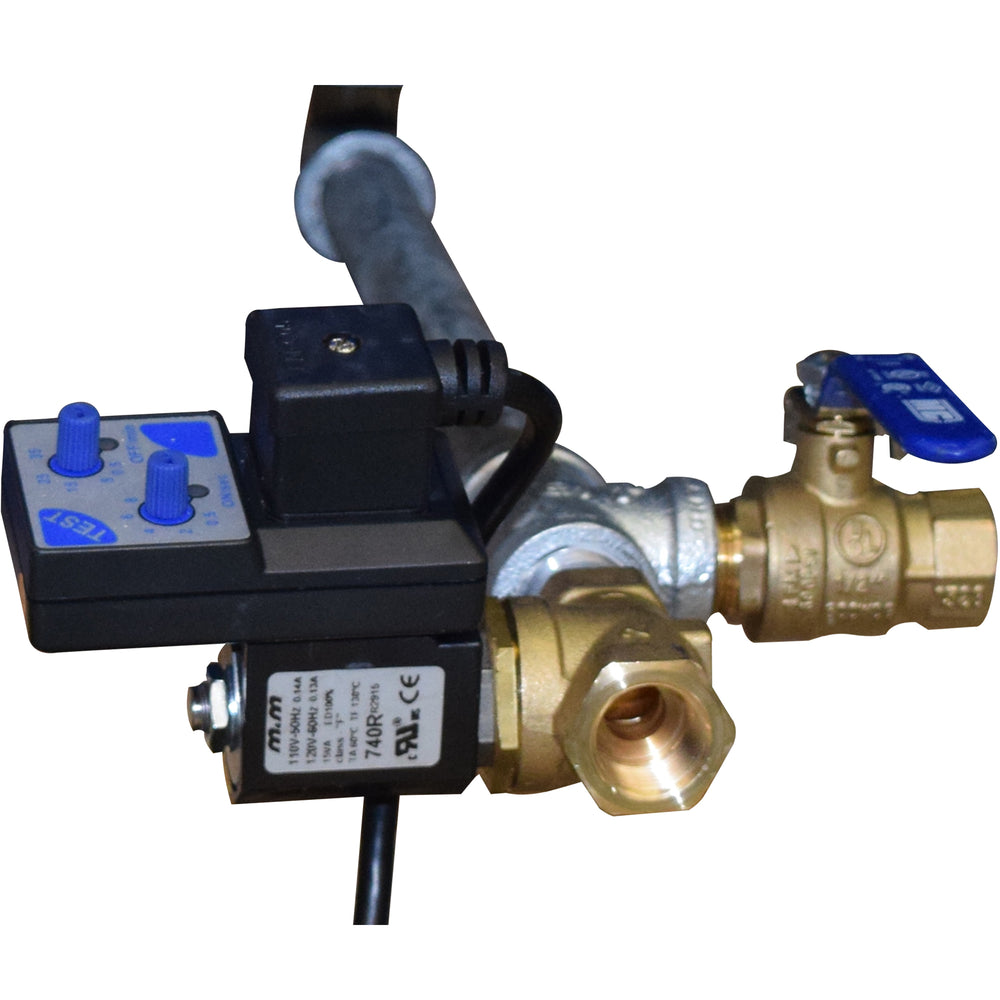

- Electronic automatic tank drain
- Digital control panel with hour meter and adjustable cut-in/cut-out pressures
- Continuous 100% duty cycle operation
- 120-gallon vertical tank
- Vibration isolator pads shipped loose
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 960.0 LB |
| Horsepower | 10 HP |
| Air Tank Size | 120 Gal |
| Volts | 230 |
| CFM At 90 PSI | 37 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 28 |
| Duty Cycle | 100 % |
| Motor RPM | 682 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 60,000 hr |
| Pump Material | Cast Iron |
| Air Outlet Size | 1 in. NPT |
|---|---|
| CFM At Max. PSI | 36 |
| Oil Required | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| After Cooler Included | Yes |
| Drain Type | Automatic |
| Tank Orientation | Vertical |
| Product Weight | 900.0000 lb |
| Dimensions L X W X H (in.) | 49.0 x 34.0 x 78.0 in |
Package Contents
(1) Quincy QP 10-HP 120 Gallon Two-Stage Air Compressor (230V-3-Phase) Vertical MAX
Warranty
This item comes with a 1 year limited warranty.
