Quincy Compressor QP Air Compressor 15 HP, 120-Gal. Tank, 230V, 3-Phase New
Manufacturer: Quincy Compressor
SKU: 2020040911
QTY
or
(888) 999-1522
$ 13,121.68
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

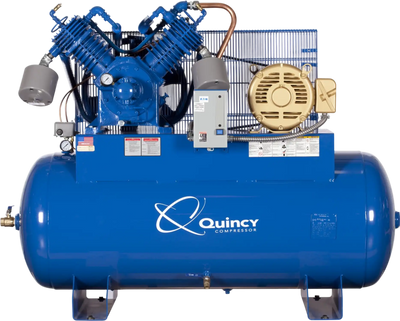

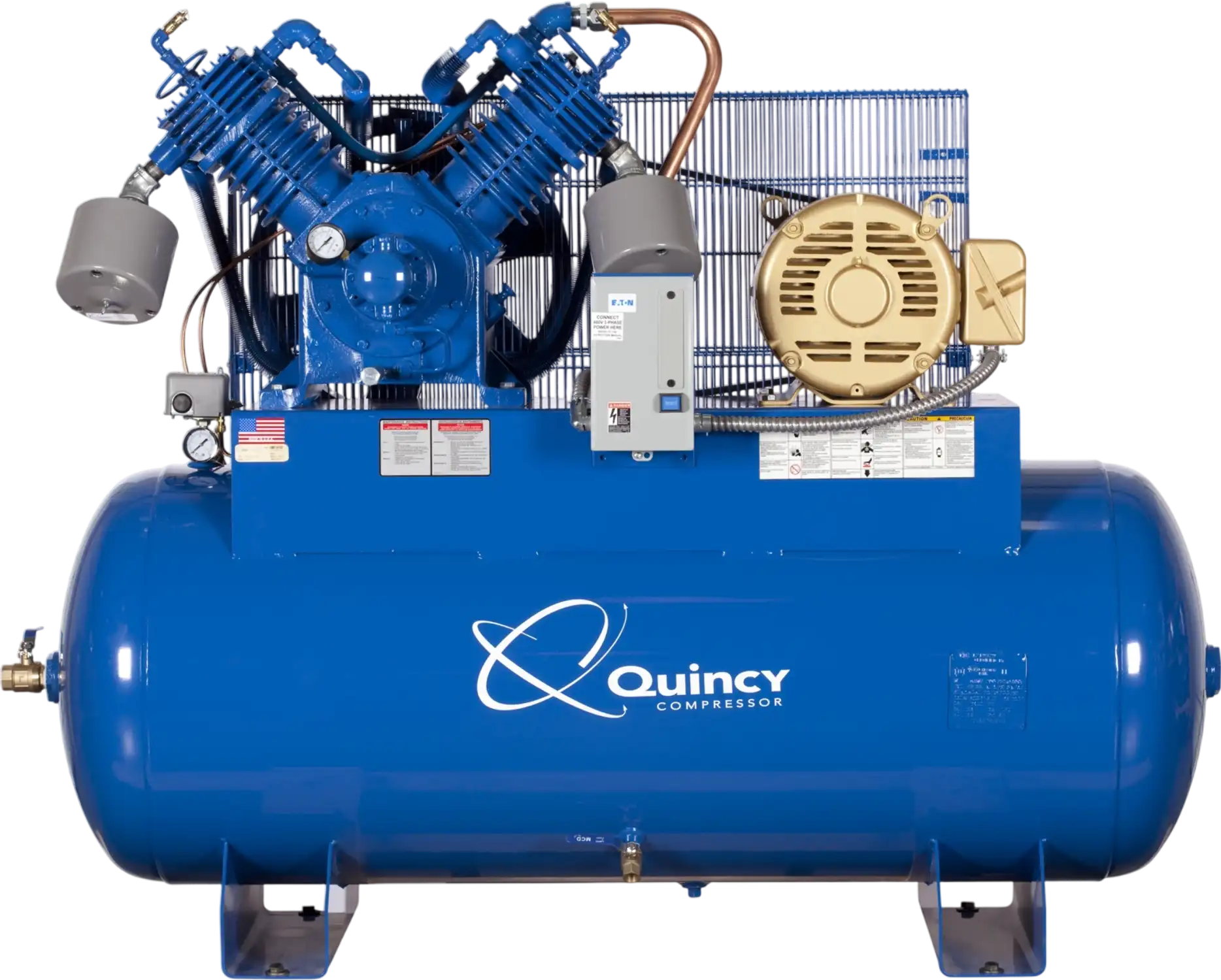

Quincy Compressor QP Air Compressor 15 HP, 120-Gal. Tank, 230V, 3-Phase New
Product Overview
Built for demanding industrial applications, the Quincy Compressor QP air compressor pairs a 15 HP electric motor with a pressure-lubricated, two-stage cast iron pump. It delivers 54.1 CFM at 90 PSI and 51 CFM at its maximum pressure of 175 PSI, with a 100% duty cycle for continuous operation. A Gerotor oil pump and oil filter provide consistent lubrication to critical surfaces, helping reduce operating temperatures and support long pump life. The horizontal, ASME-certified 120-gallon tank includes a manual drain, while a pressure gauge lets you monitor pressure. Designed for 230V, three-phase power, this belt-driven compressor comes equipped with a magnetic starter and a 1" NPT air outlet.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
- High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
- Provides up to 15% longer pump life than traditional splash lubricated compressors
- Delivers 60,000+ hours of pump life
- Continuous 100% duty cycle operation
- Equipped with a powerful 15 HP electric motor with magnetic starter
- Pressure-lubricated QP 2-stage cast iron pump
- Belt drive
- ASME certified 120-gallon tank with manual tank drain
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 1035.0 LB |
| Horsepower | 15 HP |
| Air Tank Size | 120 Gal |
| Volts | 230 |
| CFM At 90 PSI | 54.1 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 42 |
| Duty Cycle | 100 % |
| Motor RPM | 932 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 60,000 hr |
|---|---|
| Pump Material | Cast Iron |
| Air Outlet Size | 1 in. NPT |
| CFM At Max. PSI | 51 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Drain Type | Manual |
| Tank Orientation | Horizontal |
| Product Weight | 995.0000 lb |
| Dimensions L X W X H (in.) | 71.0 x 30.0 x 55.0 in |
Package Contents
(1) Quincy QP 15-HP 120 Gallon Two-Stage Air Compressor (230V-3-Phase) Horizontal PRO
Warranty
This item comes with a 1 year limited warranty.
