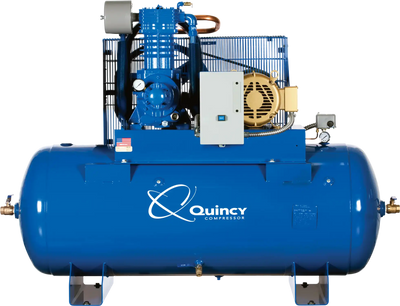

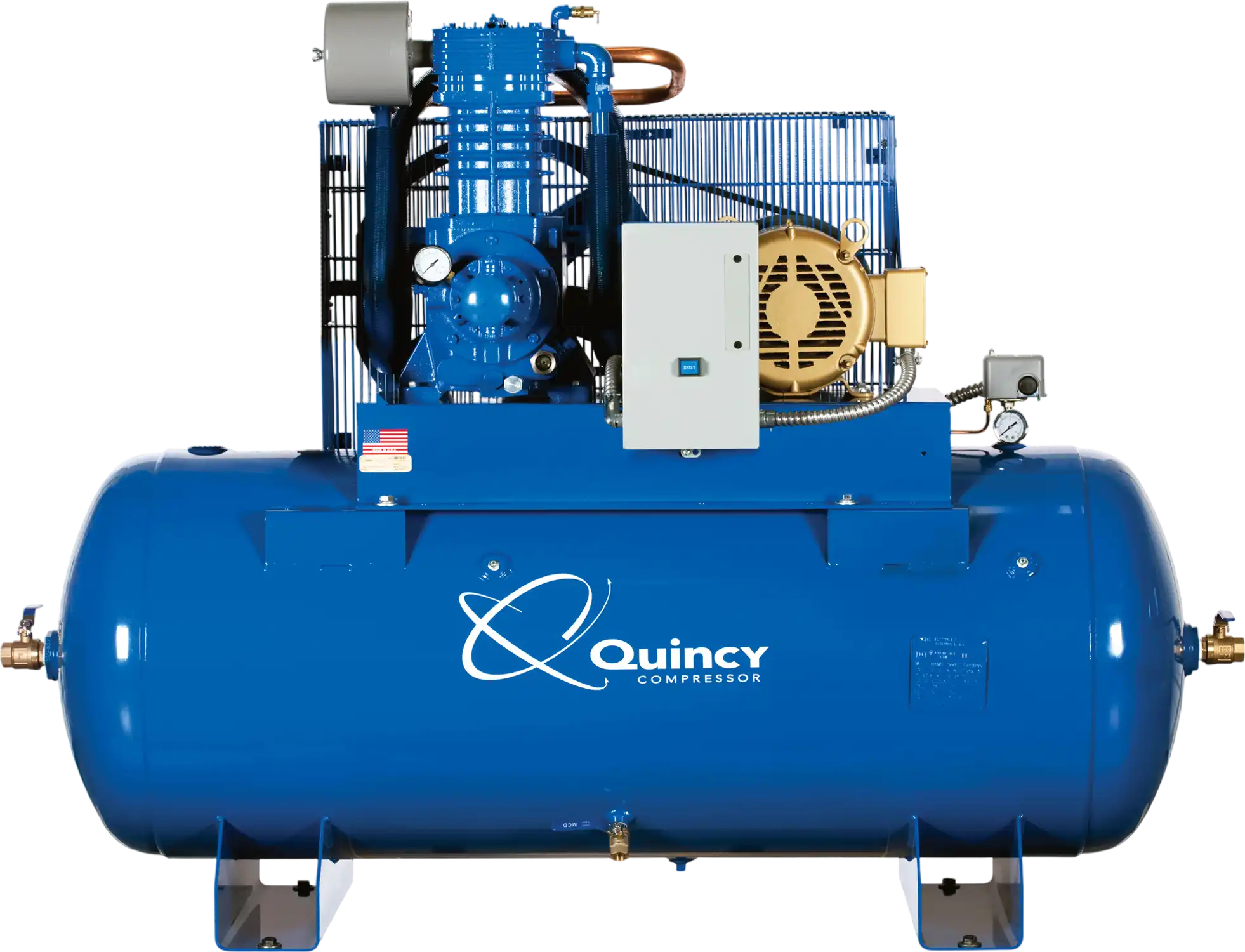

Quincy Compressor QP Air Compressor 5 HP, 80-Gal. Tank, 200V, 3-Phase New
Product Overview
The Quincy Compressor QP air compressor pairs a 5 HP motor with an 80-gallon horizontal tank and requires 200V, 3-phase power. Its two-stage pump delivers 18.1 CFM at 90 PSI and 17.4 CFM at the maximum pressure of 175 PSI, with a 100% duty cycle for continuous operation. Full pressure lubrication supplies oil to the crankshaft, bearings and connecting rods up to the wrist pins, helping reduce component wear. A cast iron pump with an aluminum head, a spin-on oil filter and low oil pressure shutdown support long-term reliability and pump protection. A mounted air-cooled aftercooler, electronic automatic tank drain and start/stop controls round out the equipment.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- QP compressor has a fully pressure-lubricated system for smooth, continuous operation
- Oil pump pressure-lubricates crankshaft, bearings and connecting rods up to the wrist pins
- Pressurized oil results in less wear on components
- Pressure-lubricated system provides up to 15% longer life than a splash-lubricated compressor
- Cast iron 2-stage pump with aluminum head
- Pump life up to 60,000+ hours
- Spin-on filter lengthens pump life and improves reliability
- Low oil pressure shutdown for protection
- Mounted air-cooled aftercooler
- Electronic automatic tank drain
- Start/stop control operation
- Continuous 100% duty cycle operation
- 80-gallon horizontal tank
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 710.0 LB |
| Horsepower | 5 HP |
| Air Tank Size | 80 Gal |
| Volts | 200 |
| CFM At 90 PSI | 18.1 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 17.5 |
| Duty Cycle | 100 % |
| Motor RPM | 658 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 60,000 hr |
|---|---|
| Pump Material | Cast Iron |
| Air Outlet Size | 3/4 in. NPT |
| CFM At Max. PSI | 17.4 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Drain Type | Automatic |
| Tank Orientation | Horizontal |
| Product Weight | 680.0000 lb |
| Dimensions L X W X H (in.) | 67.0 x 30.0 x 49.0 in |
Package Contents
(1) Quincy QP 5-HP 80 Gallon Two-Stage Air Compressor (200V-3-Phase) Horizontal MAX
Warranty
This item comes with a 1 year limited warranty.
