Quincy Compressor QP Pro Air Compressor 5 HP, 80-Gal. Vertical Tank, 2-Stage, 460V 3-Phase New
Manufacturer: Quincy Compressor
SKU: 2020040733
QTY
or
(888) 999-1522
$ 6,216.08
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

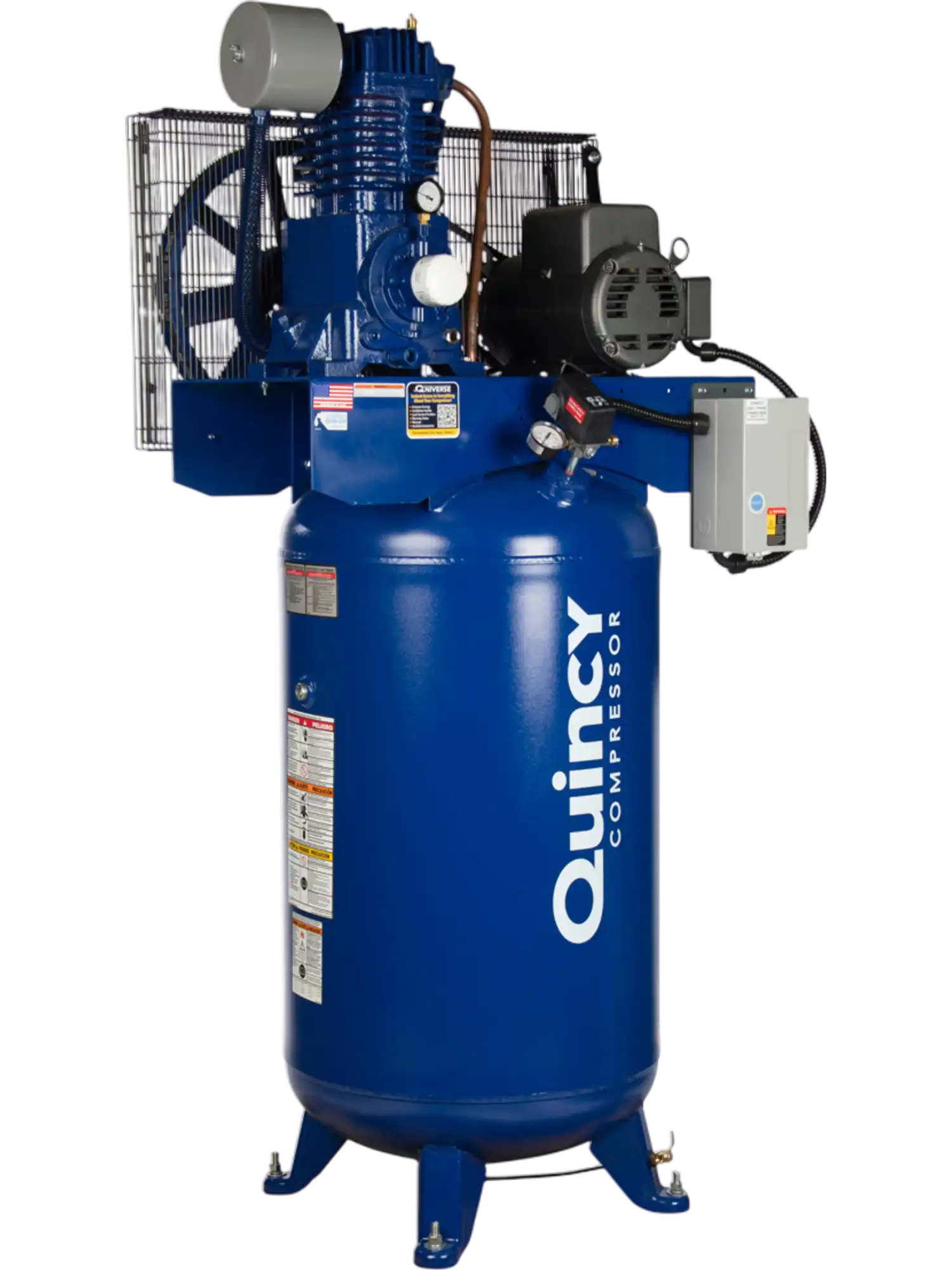

Quincy Compressor QP Pro Air Compressor 5 HP, 80-Gal. Vertical Tank, 2-Stage, 460V 3-Phase New
Product Overview
Built for demanding industrial applications, this Quincy Compressor QP Pro air compressor pairs a 5 HP motor with magnetic starter and an ASME-certified 80-gal. vertical tank. Its two-stage cast iron pump delivers 18.1 CFM at 90 PSI and 17.4 CFM at the maximum pressure of 175 PSI, with a 100% duty cycle for continuous operation. Full pressure lubrication supplies oil to critical moving surfaces, while a Gerotor oil pump and oil filter help maintain consistent lubrication, lower operating temperatures and effective filtration. The pump carries a 60,000-hour life rating and offers up to 15% longer life than traditional splash-lubricated compressors. This belt-driven unit requires 460V three-phase power and includes a pressure gauge, manual tank drain and one 3/4" NPT air outlet.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
- High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
- Provides up to 15% longer pump life than traditional splash lubricated compressors
- Delivers 60,000+ hours of pump life
- Continuous 100% duty cycle operation
- Equipped with a powerful 5 HP electric motor with magnetic starter
- Pressure-lubricated QP 2-stage cast iron pump
- Belt drive
- ASME certified 80-gallon tank with manual tank drain
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 730.0 LB |
| Horsepower | 5 HP |
| Air Tank Size | 80 Gal |
| Volts | 460 |
| CFM At 90 PSI | 18.1 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 7.6 |
| Duty Cycle | 100 % |
| Motor RPM | 658 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 60,000 hr |
|---|---|
| Pump Material | Cast Iron |
| Air Outlet Size | 3/4 in. NPT |
| CFM At Max. PSI | 17.4 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Drain Type | Manual |
| Tank Orientation | Vertical |
| Product Weight | 680.0000 lb |
| Dimensions L X W X H (in.) | 35.0 x 28.0 x 77.0 in |
Package Contents
(1) Quincy QP 5-HP 80 Gallon Two-Stage Air Compressor (460V-3-Phase) Vertical PRO
Warranty
This item comes with a 1 year limited warranty.
