Quincy Compressor QP Pro Air Compressor 7.5 HP, 80-Gal. Tank, 2-Stage, 230V, Single Phase New
Manufacturer: Quincy Compressor
SKU: 2020040845
QTY
or
(888) 999-1522
$ 7,122.96
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

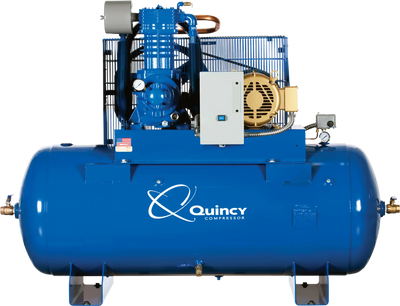

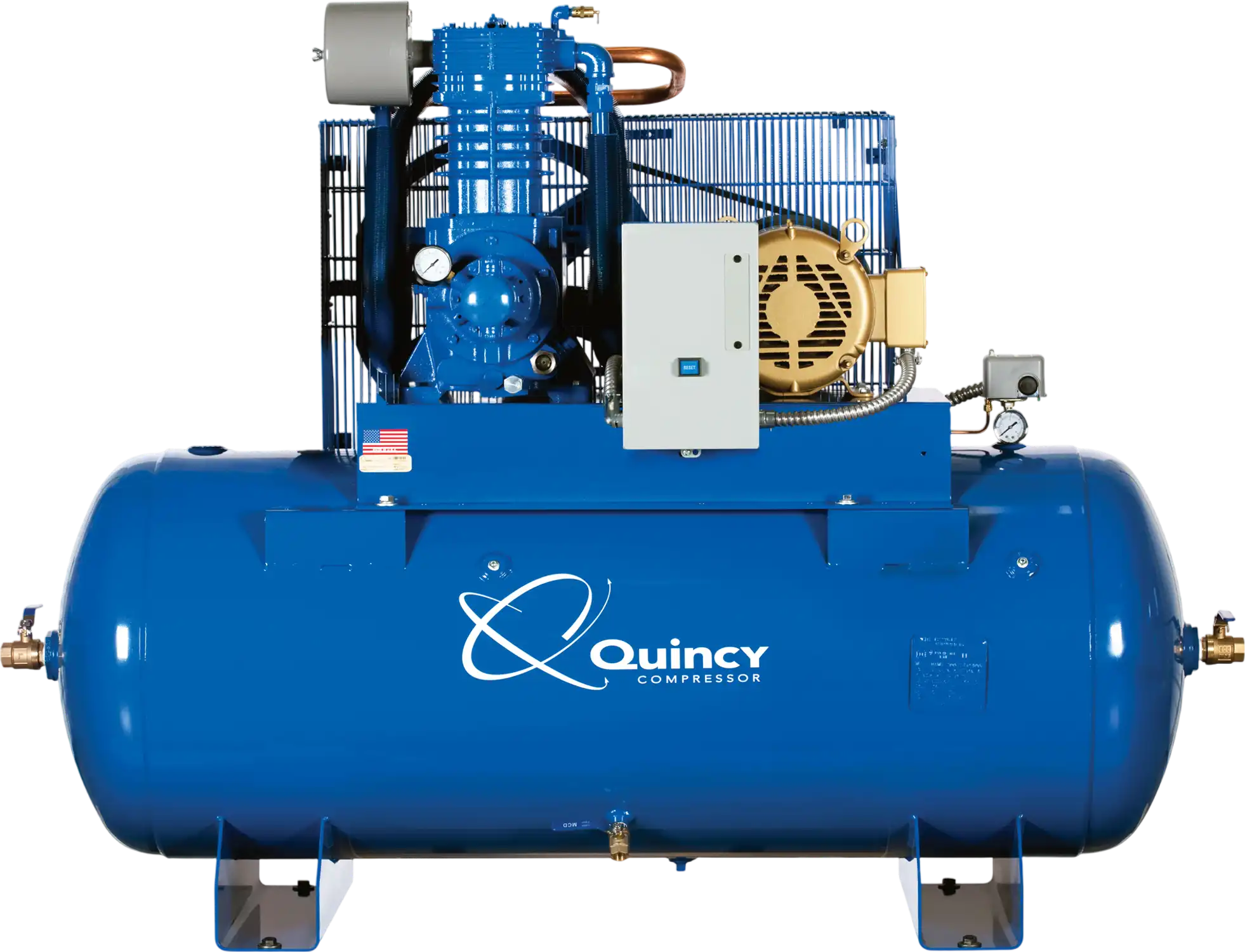

Quincy Compressor QP Pro Air Compressor 7.5 HP, 80-Gal. Tank, 2-Stage, 230V, Single Phase New
Product Overview
The Quincy Compressor QP Pro air compressor pairs a 7.5 HP electric motor with an 80-gallon horizontal tank for demanding compressed-air applications. Its two-stage cast iron pump delivers 24.4 CFM at 90 PSI and 23.6 CFM at the maximum pressure of 175 PSI. Full-pressure lubrication supplies oil to critical pump surfaces, supporting up to 15% longer pump life than traditional splash-lubricated compressors. A 100% duty cycle allows continuous operation, while the magnetic starter complements the 230V single-phase motor. The ASME-certified tank includes a manual drain, and a pressure gauge and single 3/4" NPT air outlet round out the setup.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- Full pressure lubricated system provides positive pressure lubrication to all critical surfaces of the pump
- Provides up to 15% longer pump life than traditional splash lubricated compressors
- Delivers 60,000+ hours of pump life
- Continuous 100% duty cycle operation
- Equipped with a powerful 7.5 HP electric motor with magnetic starter
- 2-stage cast iron pump
- Belt drive ASME certified tank with manual tank drain
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 750.0 LB |
| Horsepower | 7.5 HP |
| Air Tank Size | 80 Gal |
| Volts | 230 |
| CFM At 90 PSI | 24.4 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 40 |
| Duty Cycle | 100 % |
| Motor RPM | 896 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 1 |
| Pump Life | 60,000 hr |
|---|---|
| Pump Material | Cast Iron |
| Air Outlet Size | 3/4 in. NPT |
| CFM At Max. PSI | 23.6 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Drain Type | Manual |
| Tank Orientation | Horizontal |
| Product Weight | 720.0000 lb |
| Dimensions L X W X H (in.) | 67.0 x 30.0 x 49.0 in |
Package Contents
(1) Quincy QP 7.5-HP 80 Gallon Two-Stage Air Compressor (230V-1-Phase) Horizontal PRO
Warranty
This item comes with a 1 year limited warranty.
