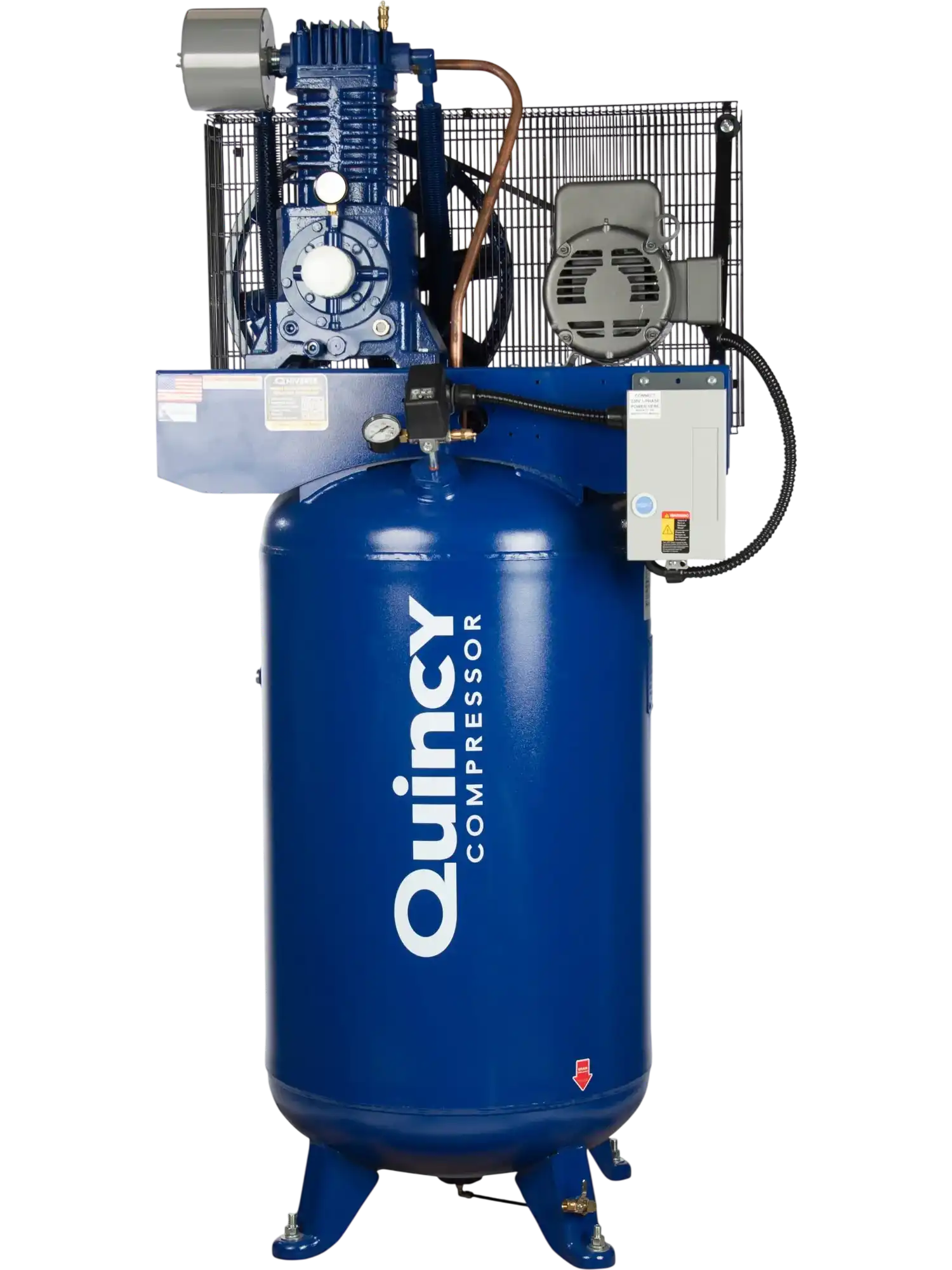

Quincy Compressor QP Two Stage Air Compressor 10 HP 35 CFM 120 gallon Vertical Pro Plus 460V 3 Phase New
Product Overview
The Quincy Compressor QP-10 two-stage piston air compressor delivers 35 CFM with 10 HP. Its tank-mounted configuration includes a 120-gallon vertical tank. Pressure lubrication uses an oil pump to supply lubrication. Cast iron construction is another defining feature of this compressor. This configuration comes in the Pro Plus package with automatic tank drain, overload protection, and low oil level shutdown. Specified for 460/3/60 electrical power.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Fully Pressure Lubricated Two-Stage
- Rifle-Drilled Crankshaft, and Connecting Rods
- Gerotor Positive Displacement Oil Pump
- Oil Filter and Pressure Gauge
- Cast-Iron Crankcase, Cylinders and Flywheel
- Stainless Steel Reed Valves with Valve Bumpers
- Ductile Iron, Double Throw Crankshaft
- Industrial Ball Bearings
- Two-Piece Aluminum Connecting Rods
- Fin and Tube Inter-Cooler
- Sight Level Oil Gauge
- Automotive Style Inlet Filter/Silencer
Specifications
| Configuration | Tank mount |
|---|---|
| Horsepower | 10 HP |
| Capacity | 35 CFM |
| Package | Pro Plus |
| Tank Size | 120 gallon |
| Tank Orientation | Vertical |
|---|---|
| Voltage | 460/3/60 |
Warranty
This item comes with a 1 year factory warranty.
