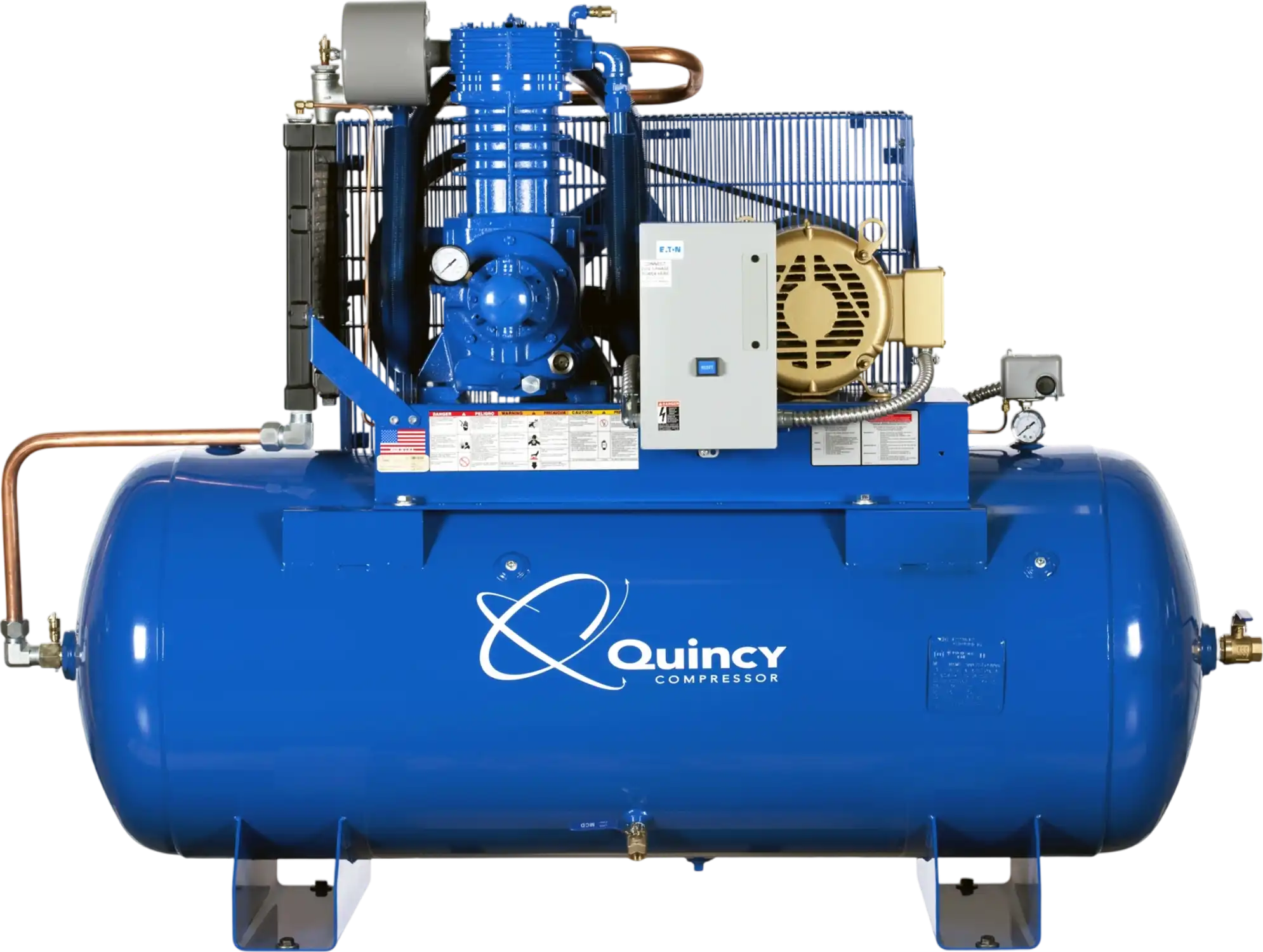

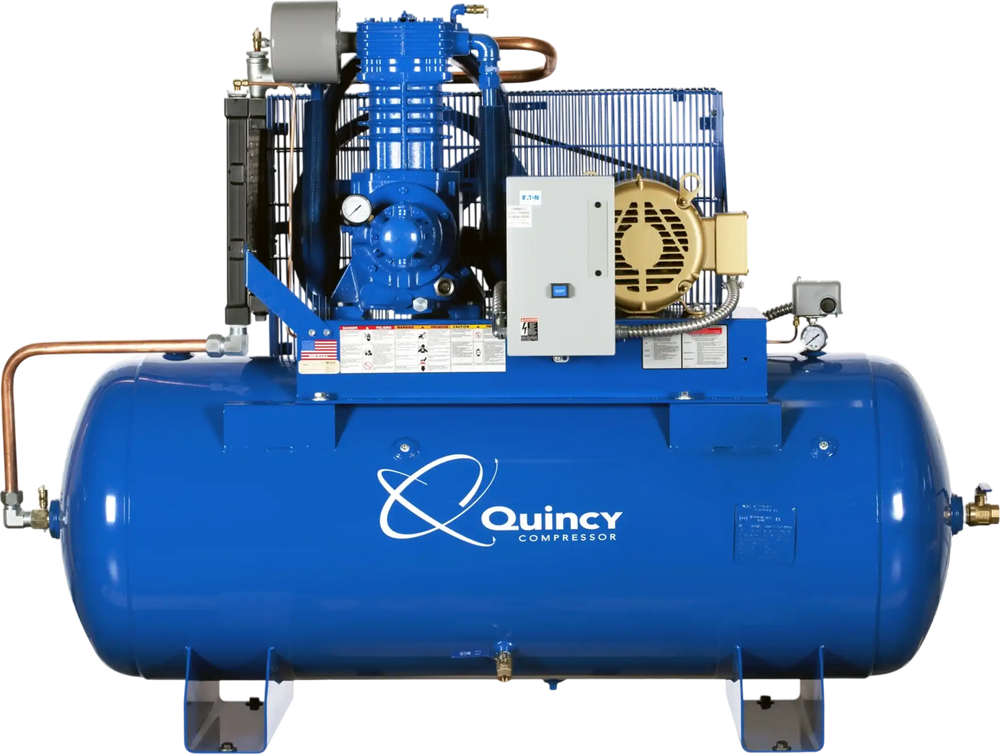

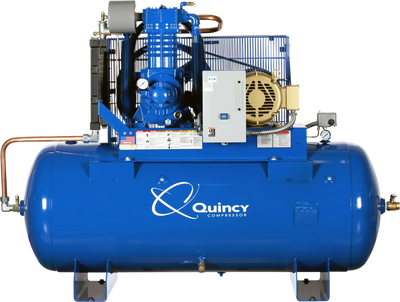

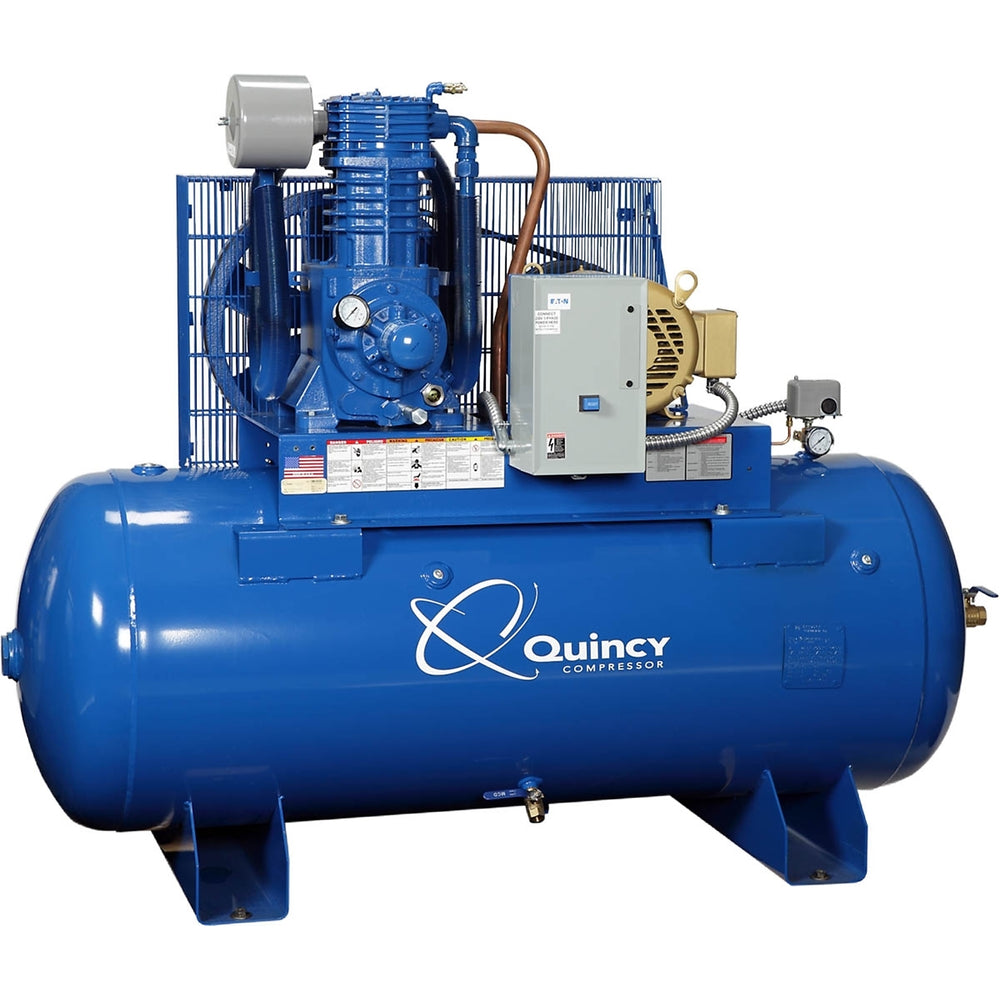

Quincy Compressor QP Two-Stage Air Compressor 10HP 120-Gal. Tank 460V 3-Phase New
Product Overview
Built for demanding industrial applications, this Quincy Compressor QP two-stage air compressor pairs a 10 HP electric motor and magnetic starter with 460V, three-phase power. Its pressure-lubricated cast iron pump uses a Gerotor oil pump and oil filter to keep critical components lubricated, support cooler operation and promote long service life. With a 100% duty cycle and a 60,000-hour pump life rating, it is designed for continuous operation. Air delivery reaches 37 CFM at 90 PSI and 36 CFM at the maximum pressure of 175 PSI. The horizontal, ASME-certified 120-gallon tank includes a manual drain, while a pressure gauge and single 1" NPT air outlet provide pressure monitoring and an air connection.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
- High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
- Provides up to 15% longer pump life than traditional splash lubricated compressors
- Delivers 60,000+ hours of pump life
- Continuous 100% duty cycle operation
- Equipped with a powerful 10 HP electric motor with magnetic starter
- Pressure-lubricated QP 2-stage cast iron pump
- Belt drive
- ASME certified 120-gallon tank with manual tank drain
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 940.0 LB |
| Horsepower | 10 HP |
| Air Tank Size | 120 Gal |
| Volts | 460 |
| CFM At 90 PSI | 37 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 14 |
| Duty Cycle | 100 % |
| Motor RPM | 682 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 60,000 hr |
|---|---|
| Pump Material | Cast Iron |
| Air Outlet Size | 1 in. NPT |
| CFM At Max. PSI | 36 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Drain Type | Manual |
| Tank Orientation | Horizontal |
| Product Weight | 900.0000 lb |
| Dimensions L X W X H (in.) | 71.0 x 30.0 x 55.0 in |
Package Contents
(1) Quincy QP 10-HP 120 Gallon Two-Stage Air Compressor (460V-3-Phase) Horizontal PRO
Warranty
This item comes with a 1 year limited warranty.
