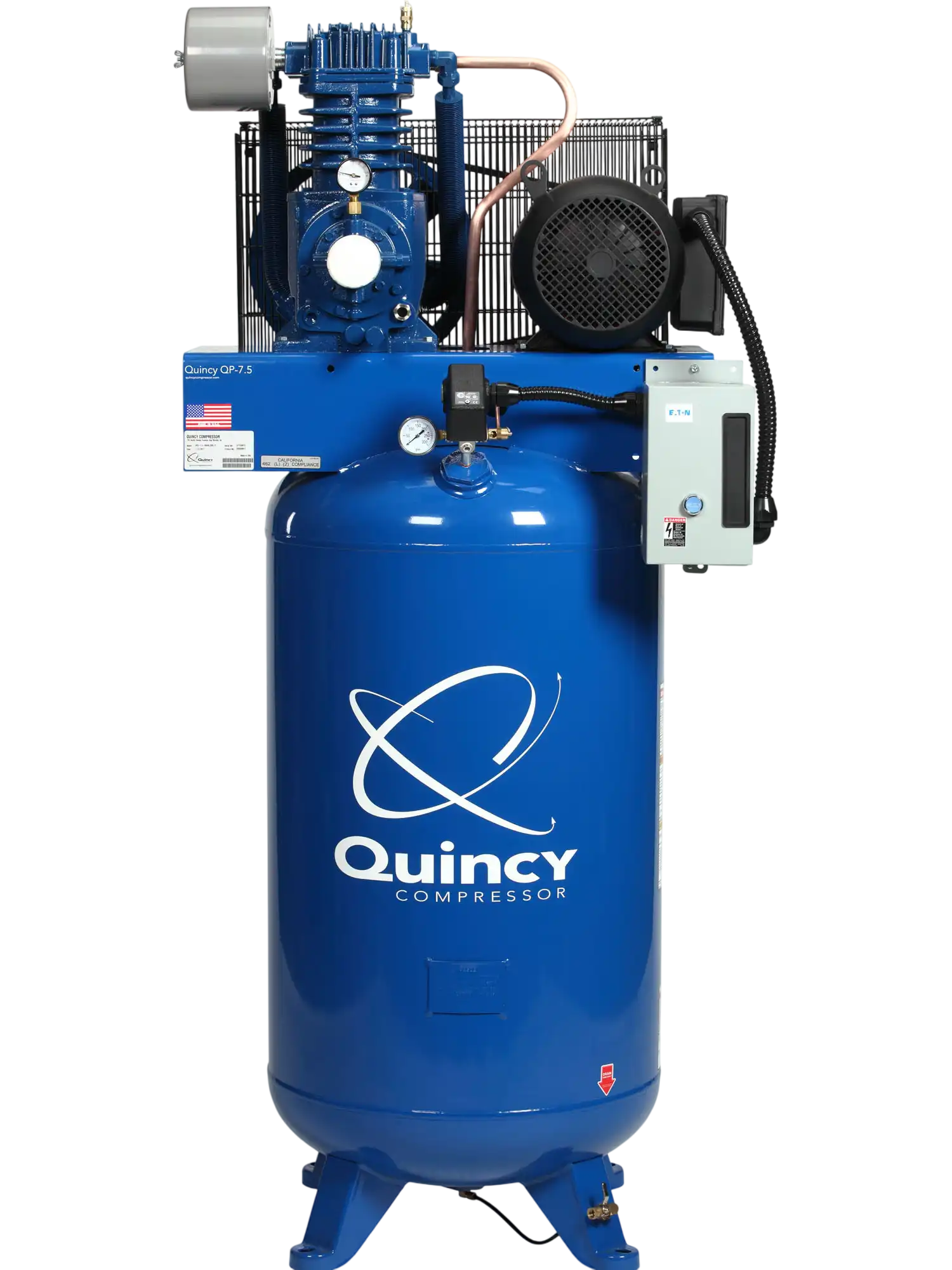

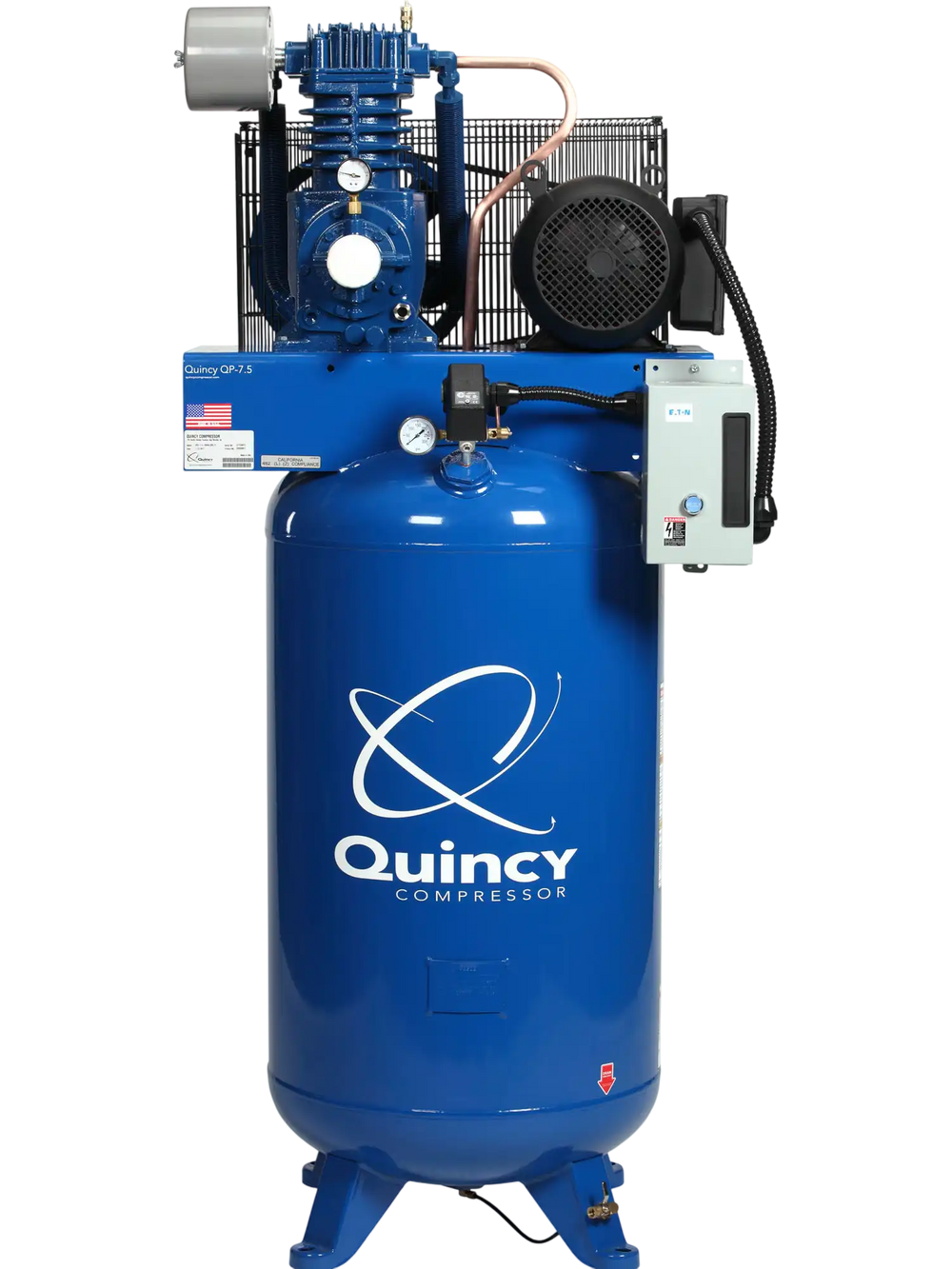

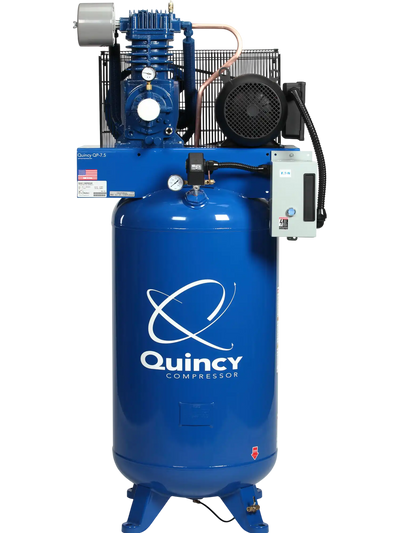

Quincy Compressor QP Two-Stage Air Compressor 7.5 HP 80-Gal. Tank 460V 3-Phase New
Manufacturer: Quincy Compressor
SKU: 2020040748
QTY
or
(888) 999-1522
$ 6,703.84
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Quincy Compressor QP Two-Stage Air Compressor 7.5 HP 80-Gal. Tank 460V 3-Phase New
Product Overview
The Quincy QP two-stage air compressor pairs a 7.5 HP electric motor with an 80-gal. vertical tank for demanding applications. Operating on 460V three-phase power, it delivers 24.4 CFM at 90 PSI and 23.6 CFM at its maximum pressure of 175 PSI. Its cast iron pump uses full-pressure lubrication to protect critical surfaces, with a rated pump life of 60,000 hours. A 100% duty cycle supports continuous operation, while the included magnetic starter equips the motor for use. The ASME-certified tank includes a manual drain, and a pressure gauge and 3/4" NPT air outlet round out the setup.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- Full pressure lubricated system provides positive pressure lubrication to all critical surfaces of the pump
- Provides up to 15% longer pump life than traditional splash lubricated compressors
- Delivers 60,000+ hours of pump life
- Continuous 100% duty cycle operation
- Equipped with a powerful 7.5 HP electric motor with magnetic starter
- 2-stage cast iron pump
- Belt drive ASME certified tank with manual tank drain
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 770.0 LB |
| Horsepower | 7.5 HP |
| Air Tank Size | 80 Gal |
| Volts | 460 |
| CFM At 90 PSI | 24.4 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 11 |
| Duty Cycle | 100 % |
| Motor RPM | 896 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 60,000 hr |
|---|---|
| Pump Material | Cast Iron |
| Air Outlet Size | 3/4 in. NPT |
| CFM At Max. PSI | 23.6 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Drain Type | Manual |
| Tank Orientation | Vertical |
| Product Weight | 720.0000 lb |
| Dimensions L X W X H (in.) | 35.0 x 28.0 x 77.0 in |
Package Contents
(1) Quincy QP 7.5-HP 80 Gallon Two-Stage Air Compressor (460V-3-Phase) Vertical PRO
Warranty
This item comes with a 1 year limited warranty.
