Quincy Compressor QPNC 530 Non-Cycling Refrigerated Air Dryer 530 CFM, 460 Volt, 3 Phase New
Manufacturer: Quincy Compressor
SKU: 4102005566
QTY
or
(888) 999-1522
$ 11,910.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

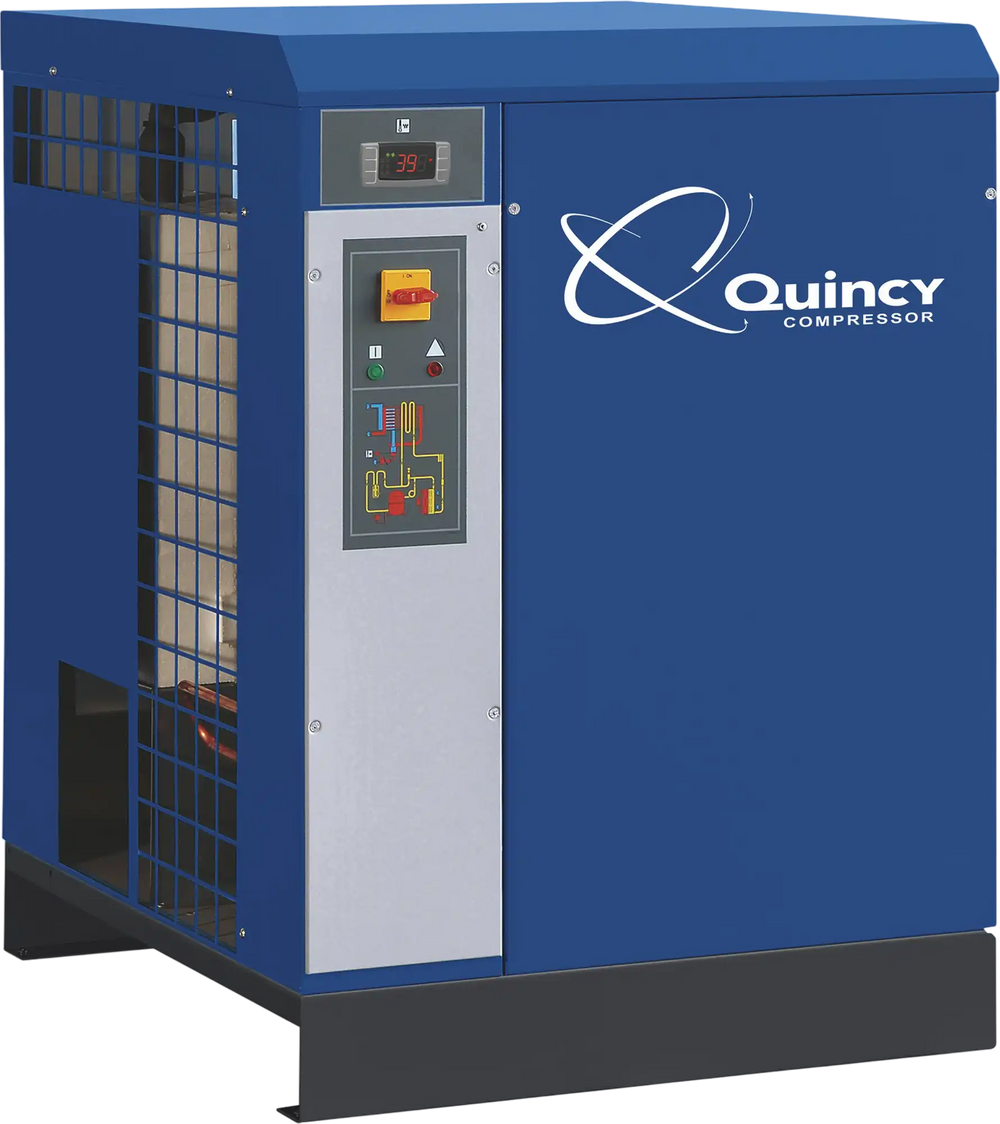

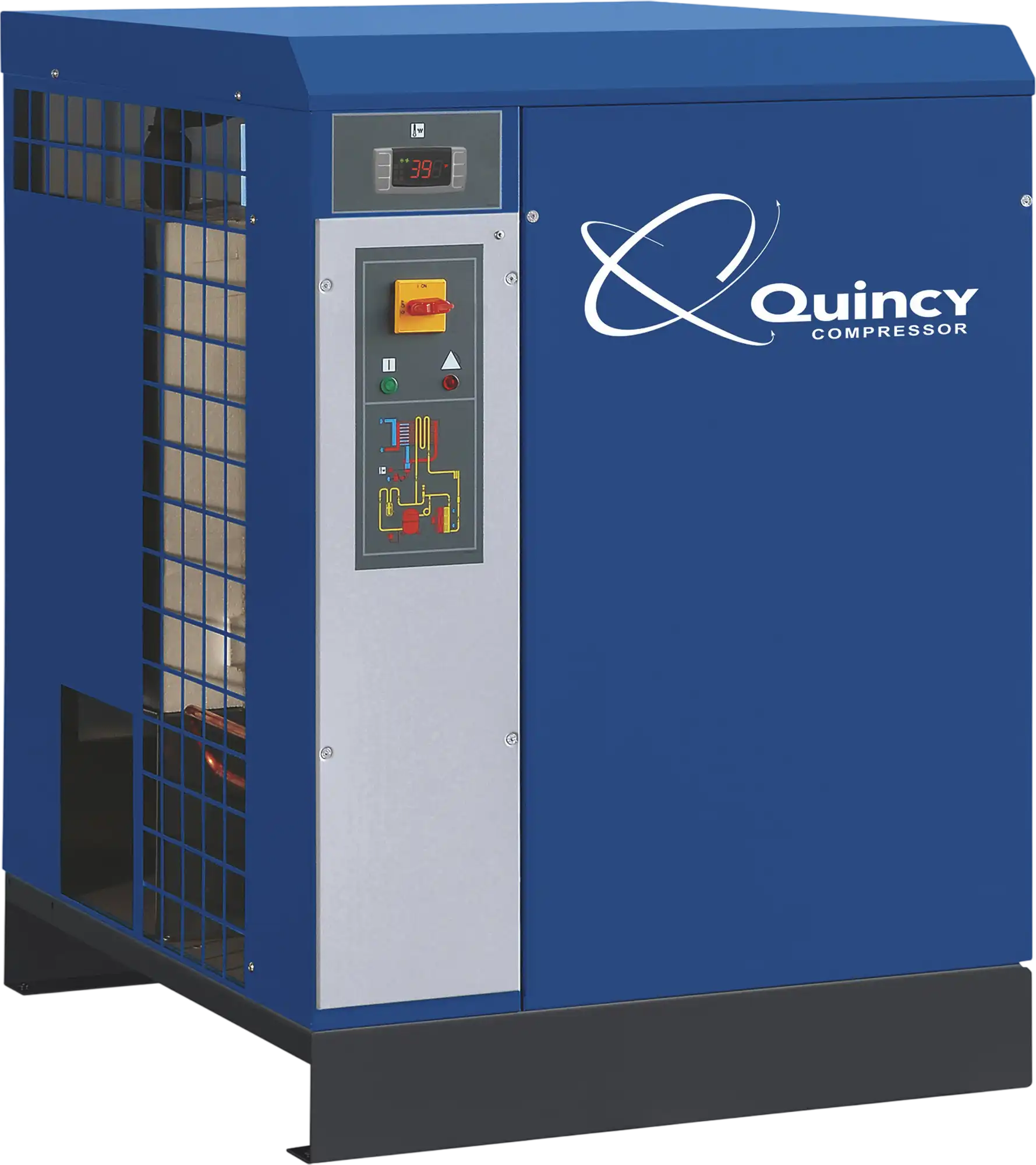

Quincy Compressor QPNC 530 Non-Cycling Refrigerated Air Dryer 530 CFM, 460 Volt, 3 Phase New
Product Overview
The Quincy Compressor QPNC 530 non-cycling refrigerated air dryer supplies clean compressed air to help plant equipment and processes operate efficiently and reliably. Rated for a maximum flow of 530 CFM, it runs on 460-volt, 3-phase power and has a maximum pressure rating of 203 PSIG. Its two-stage heat exchanger system maintains consistent dew points, with a specified pressure dew point of 39°F, while refrigeration controls help prevent freeze-ups. Run and Alarm indicator lights, an analyzer gauge, and a stop/start switch with lockout support straightforward monitoring and operation. This UL-listed dryer uses environmentally safe refrigerants with zero ozone depletion potential and is EPA/SNAP compliant.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Non-cycling refrigerated air dryer provides the cleanest compressed air
- Uses two-stage heat exchanger system to maintain consistent dew points
- High-quality components and controls prevent freeze-ups
- Run and Alarm indicator lights
- Analyzer gauge
- Stop/start switch with lockout
- Environmentally safe refrigerants, with no CFSs or HCFCs
- EPA/SNAP compliant
- Zero Ozone Depletion Potential (ODP)
- Qualifies for one LEED point
- Efficient, reliable and environmentally friendly air dryer
- +39°F pressure dew point
- 203 max PSIG
- 2.5in. NPT connection
- 3 phase
- UL listed
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 12 months parts/12months labor |
| Ship Weight | 390.0 LB |
| Max. Flow Rate | 530 cfm |
| Volts | 460 |
| Air Inlet Size | 2-1/2 in |
| Max. Temperature | 140 °F |
| Dew Point | 39 °F |
| Watts | 2,700 |
| Filter Type | Coalescing |
|---|---|
| Adjustable | Yes |
| Environmentally Friendly | Yes |
| Product Weight | 350.0000 lb |
| Dimensions L X W X H (in.) | 38.0 x 31.0 x 46.0 in |
Package Contents
(1) Non-cycling refrigerated air dryer
Warranty
This item comes with a 12 months parts/12months labor warranty.
