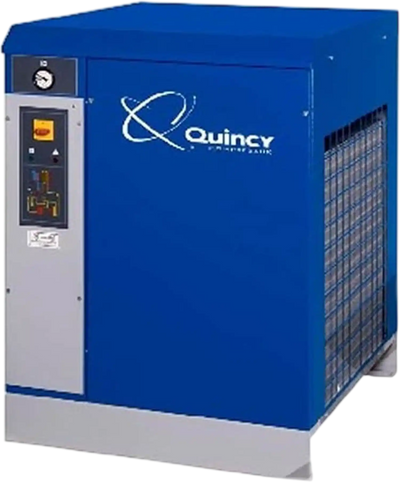

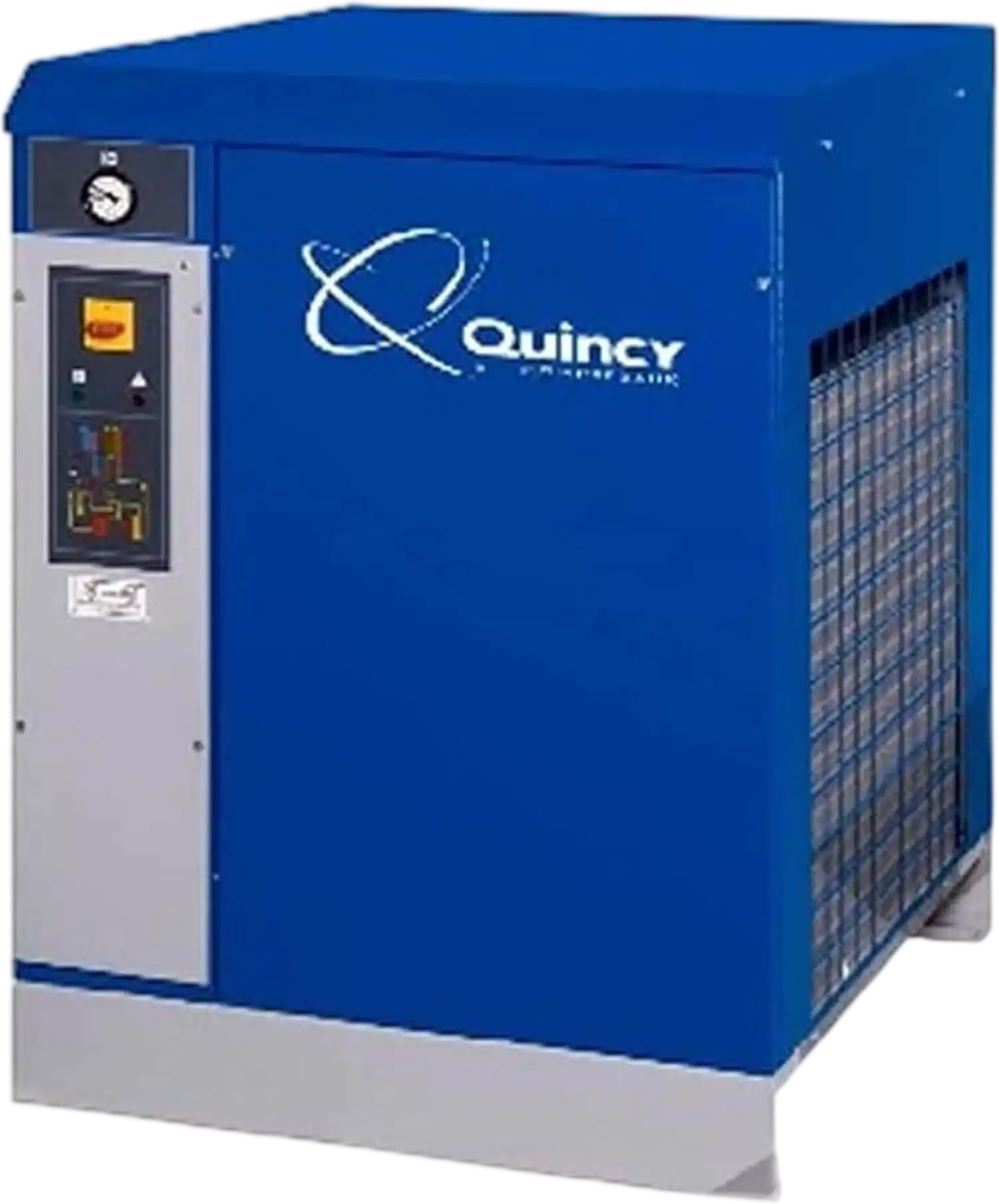

Quincy Compressor QPNC 636 Non-Cycling Refrigerated Air Dryer 2.5" 636 CFM 460V 3-Phase New
Product Overview
The Quincy Compressor QPNC 636 non-cycling refrigerated air dryer handles 636 CFM at 100 PSI and is best suited to small compressed air systems with fairly constant loads. It chills compressed air to condense moisture, then drains the condensate along with oil and dirt. A two-stage heat exchanger maintains consistent dew points and helps prevent freeze-ups, while an automatic zero-loss drain prevents contaminant buildup. The simple control panel includes run and alarm lights, an analyzer gauge, a start/stop switch with lockout, and a system flow diagram. Operating on 460V three-phase power, the dryer has 2.5" NPT-F inlet and outlet connections and a maximum pressure rating of 203 PSI.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Refrigerated Non-Cycling Dryer
- Best suited for small systems with fairly constant loads
- Purifies compressed air by chilling to condense moisture
- Condensate is drained, carrying oil & dirt away from the air
- 2-Stage Heat Exchanger
- Maintains consistent dew points
- Freeze-ups prevented & optimum performance maintained
- Automatic Zero Loss Drain
- Prevents build up of oil, dirt & moisture in compressed air
- The most energy efficient drain
- Environmentally Safe Refrigerant (R410A)
- No CFCs or HCFCs; zero ozone depletion potential (ODP)
- Provides higher performance & efficiency potential

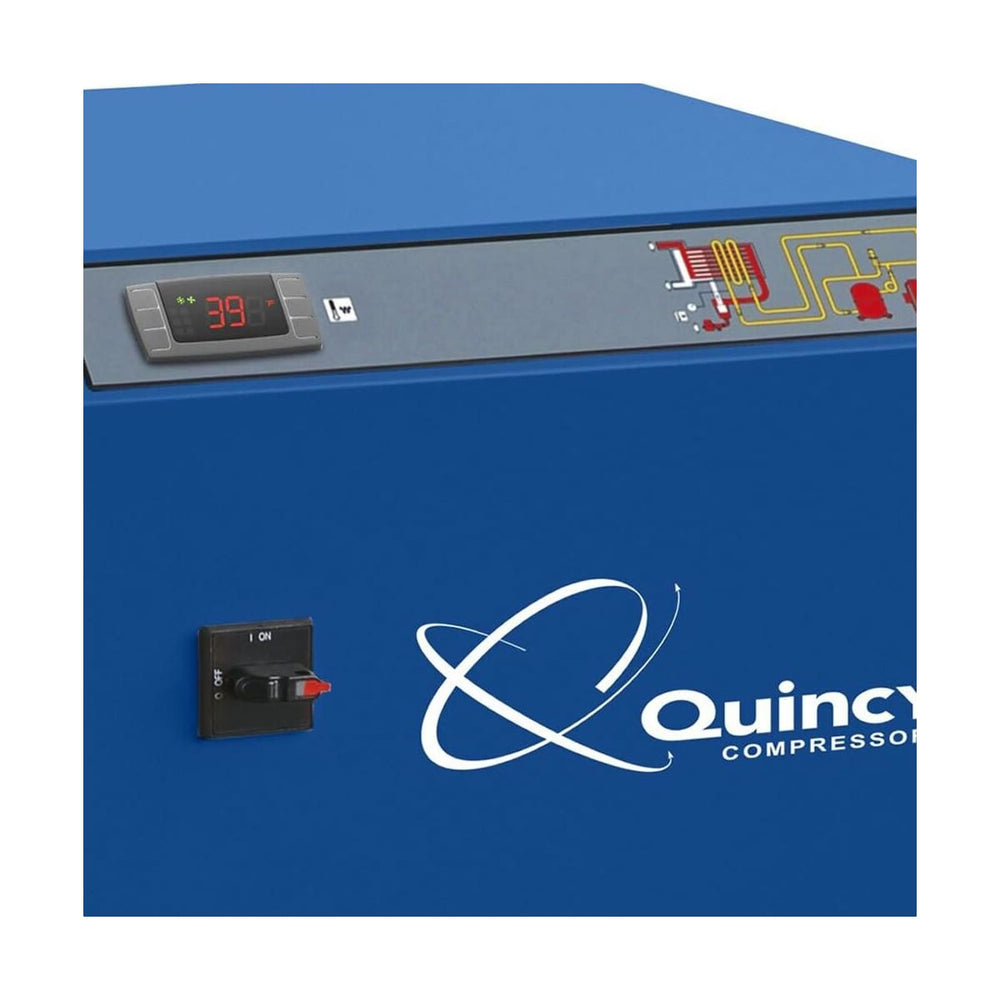

- Simple Control Panel
- Run & alarm lights, analyzer gauge, start/stop switch w/ lock out

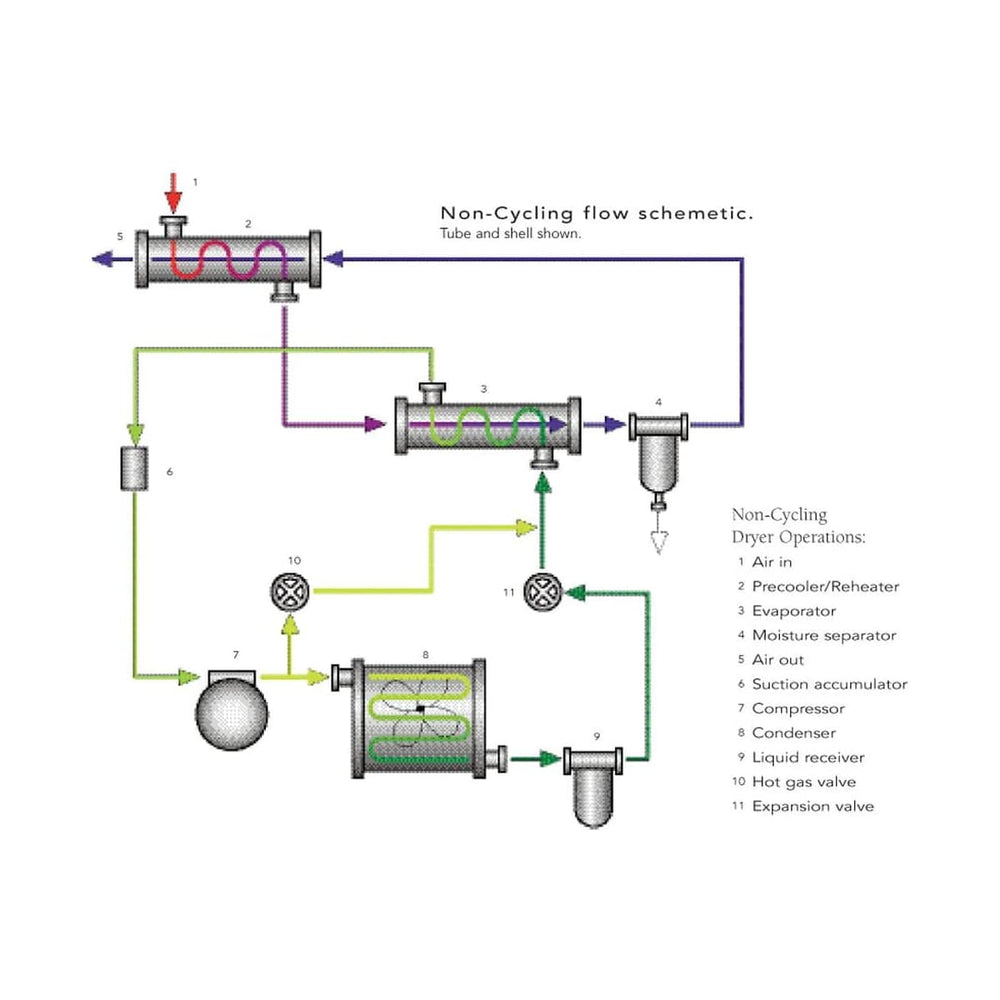

- Also shows a diagram of the system flow
- Versatile
- Handles 636 CFM at 100 PSI; 203 PSI maximum
- Uses 460V-3 phase power; 2.5" NPT-F connector in & out
Specifications
| Height | 38 in. |
|---|---|
| Length | 42 in. |
| Product Weight | 390 lbs. |
| Width | 32 in. |
| After Cooler Included | No |
| Air Dryer CFM | 636 CFM |
| Air Inlet Size | 2-1/2" |
| Air Outlet Size | 2-1/2" |
| Alarm Light | Yes |
| Automatic Drain Valve Included | Yes |
| High Temperature | No |
|---|---|
| Maximum Ambient Temperature | 115 °F |
| Maximum Inlet Temperature | 140 °F |
| Non-Cycling | Yes |
| Regenerative | No |
| Air Dryer Voltage | 460 V |
| Fuel Type | Electric |
Warranty
This item comes with a 1 year factory warranty.
