Quincy Compressor QPNC 750 Non-Cycling Refrigerated Air Dryer 750 CFM 3" NPT 460/3/60 New
Manufacturer: Quincy Compressor
SKU: 4102003050
QTY
or
(888) 999-1522
$ 17,865.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

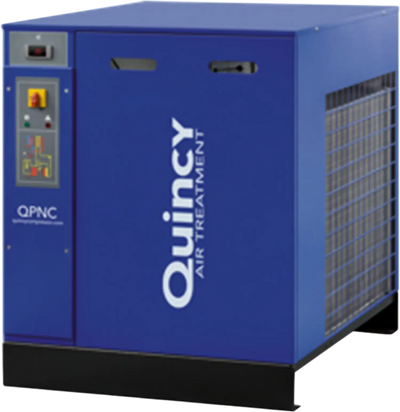

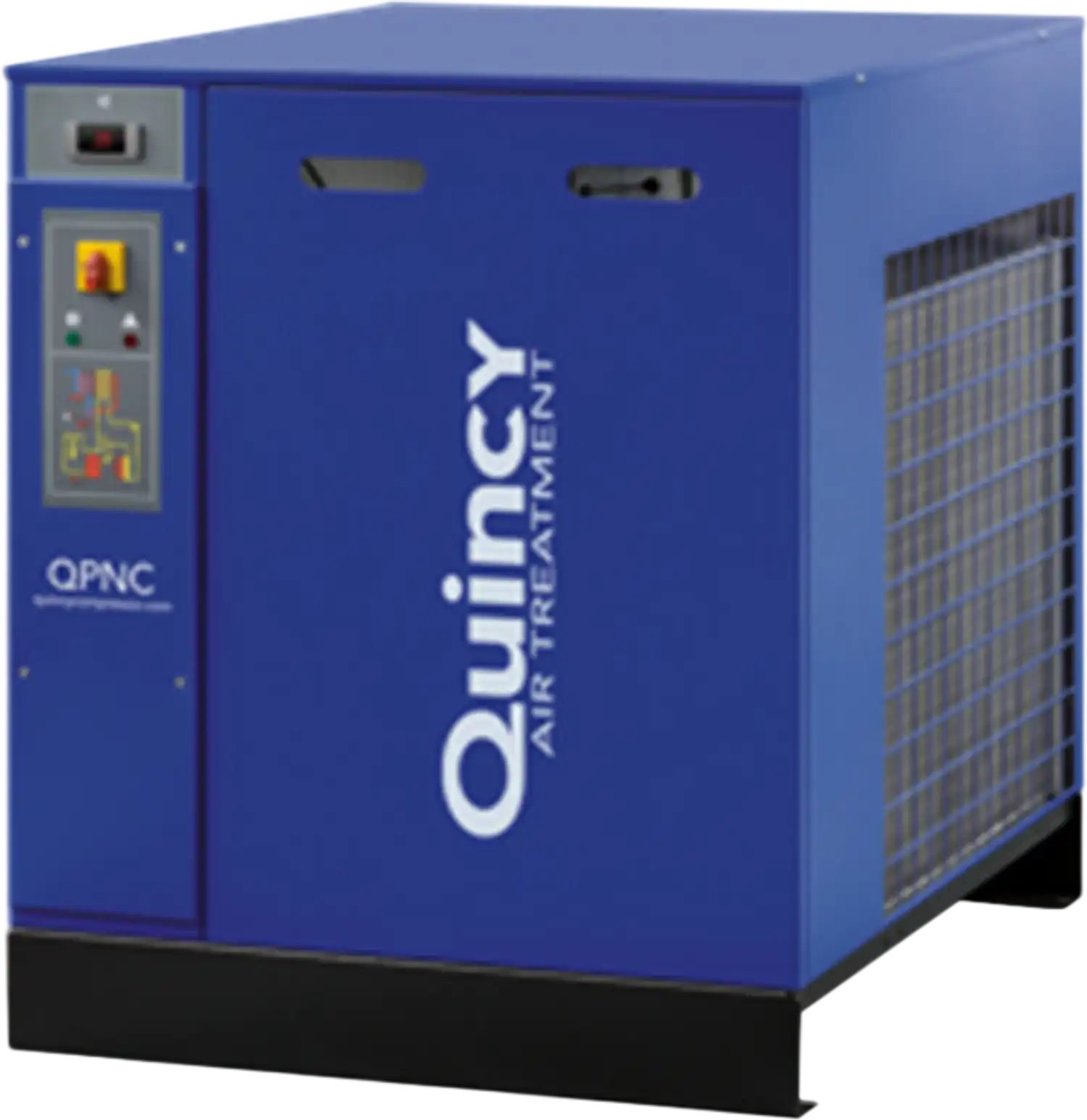

Quincy Compressor QPNC 750 Non-Cycling Refrigerated Air Dryer 750 CFM 3" NPT 460/3/60 New
Product Overview
The Quincy Compressor QPNC 750 non-cycling refrigerated air dryer provides 750 CFM capacity and is rated for use with 150 HP air compressors. It features 3" NPT connections, 460/3/60 electrical requirements and a maximum pressure rating of 188 PSI. A cold air module and two-stage heat exchanger system help maintain consistent dew points, while the dryer features low pressure drop and EPA/SNAP-compliant refrigerant. Five-step centrifugal separation, an integrated moisture separator and a Zero Loss condensate drain handle moisture separation and drainage. Refrigerant system flow, run and alarm indicator lights, an analyzer gauge and a stop/start switch with lockout provide operating information and control.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Low pressure drop
- Cold air module
- Five-step centrifugal separation
- EPA/SNAP compliant refrigerant
- Two-stage heat exchanger system to maintain consistent dew points
- Zero Loss condensate drain
- Refrigerant system flow, run and alarm indicator lights
- Analyzer gauge
- Stop and start switch with lock out
- Integrated moisture separator
Specifications
| Capacity | 750 CFM |
|---|---|
| Max Pressure Rating | 188 PSI |
| Electrical | 460/3/60 |
| Connection | 3" NPT |
| Rated for | 150 HP air compressors |
|---|
Warranty
This item comes with a 1 year factory warranty.
