Quincy Compressor QPNC Non-Cycling Refrigerated Air Dryer 354 CFM, 460V, 3-Phase New
Manufacturer: Quincy Compressor
SKU: 4102005564
QTY
or
(888) 999-1522
$ 8,635.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

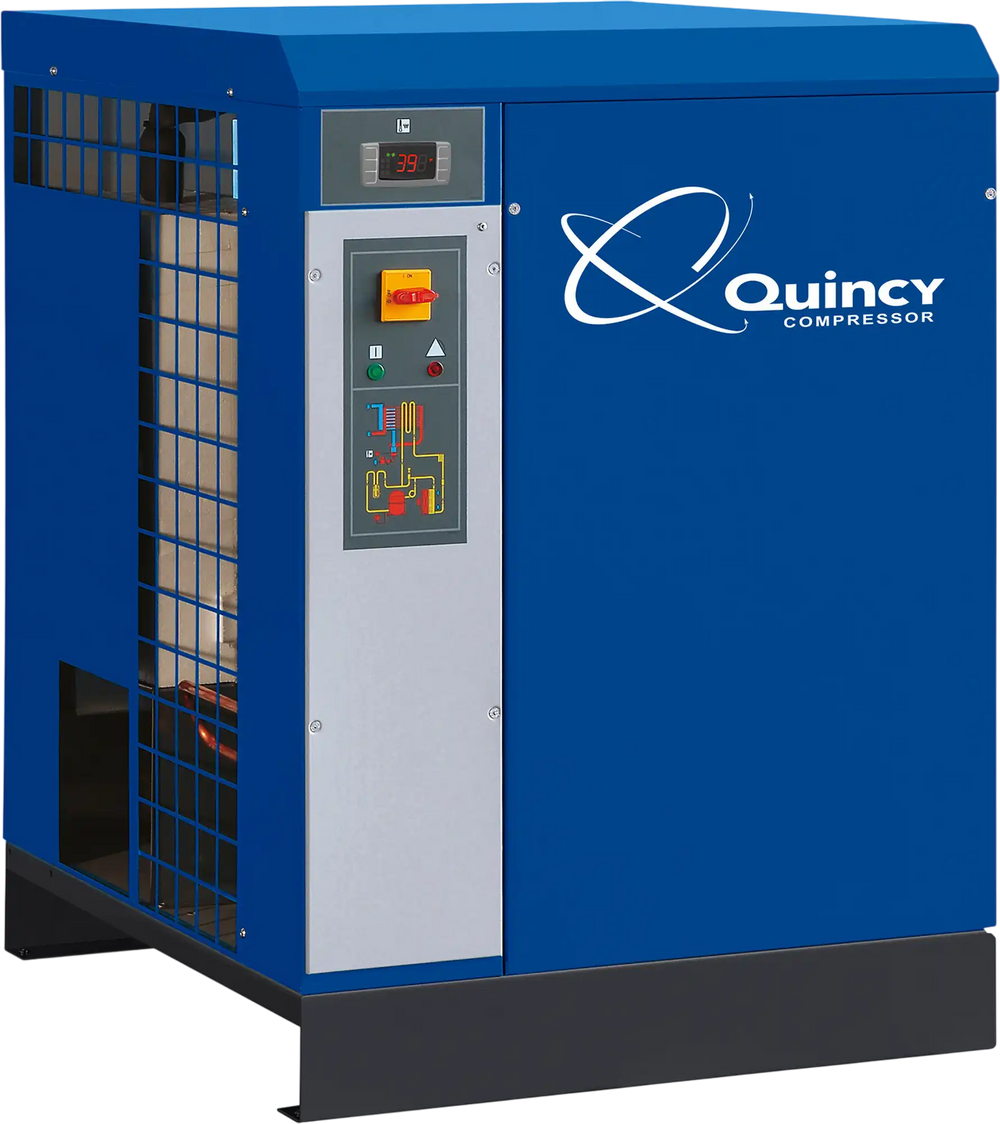

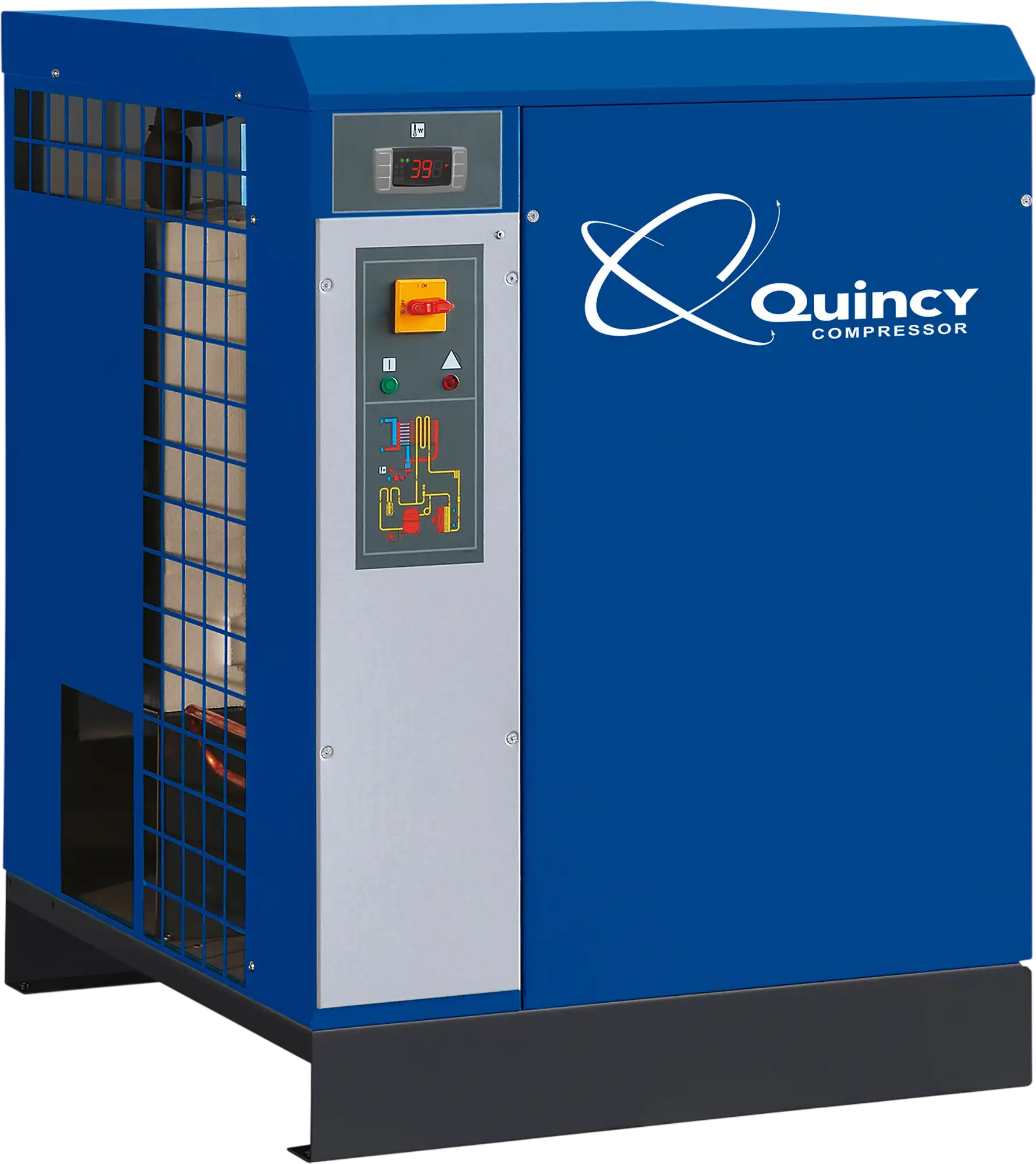

Quincy Compressor QPNC Non-Cycling Refrigerated Air Dryer 354 CFM, 460V, 3-Phase New
Product Overview
The Quincy Compressor QPNC 354 non-cycling refrigerated air dryer supplies clean compressed air to help plant equipment and processes operate efficiently and reliably. Its two-stage heat exchanger maintains consistent dew points, with a specified pressure dew point of 39°F and a maximum flow rate of 354 CFM. Designed for 460V, 3-phase power, it features a 2" NPT connection and handles pressures up to 203 PSIG. Refrigeration controls help prevent freeze-ups, while Run and Alarm indicator lights, an analyzer gauge, and a stop/start switch with lockout support operation and monitoring. UL listed and EPA/SNAP compliant, this dryer uses environmentally safe refrigerants with zero Ozone Depletion Potential and qualifies for one LEED point.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Non-cycling refrigerated air dryer provides the cleanest compressed air
- Uses two-stage heat exchanger system to maintain consistent dew points
- High-quality components and controls prevent freeze-ups
- Run and Alarm indicator lights
- Analyzer gauge
- Stop/start switch with lockout
- Environmentally safe refrigerants, with no CFSs or HCFCs
- EPA/SNAP compliant
- Zero Ozone Depletion Potential (ODP)
- Qualifies for one LEED point
- Efficient, reliable and environmentally friendly air dryer
- +39°F pressure dew point
- 203 max PSIG
- 2in. NPT connection
- 3 phase
- UL listed
Specifications
| Brand | Quincy Compressor |
|---|---|
| Ship Weight | 346.0 LB |
| Max. Flow Rate | 354 cfm |
| Volts | 460 |
| Air Inlet Size | 2 in |
| Max. Temperature | 140 °F |
| Dew Point | 39 °F |
| Watts | 1,700 |
| Filter Type | Coalescing |
| Adjustable | Yes |
|---|---|
| Environmentally Friendly | Yes |
| Product Weight | 336.0000 lb |
| Dimensions L X W X H (in.) | 38.0 x 31.0 x 46.0 in |
Package Contents
(1) Non-cycling refrigerated air dryer
Warranty
This item comes with a 1 year factory warranty.
