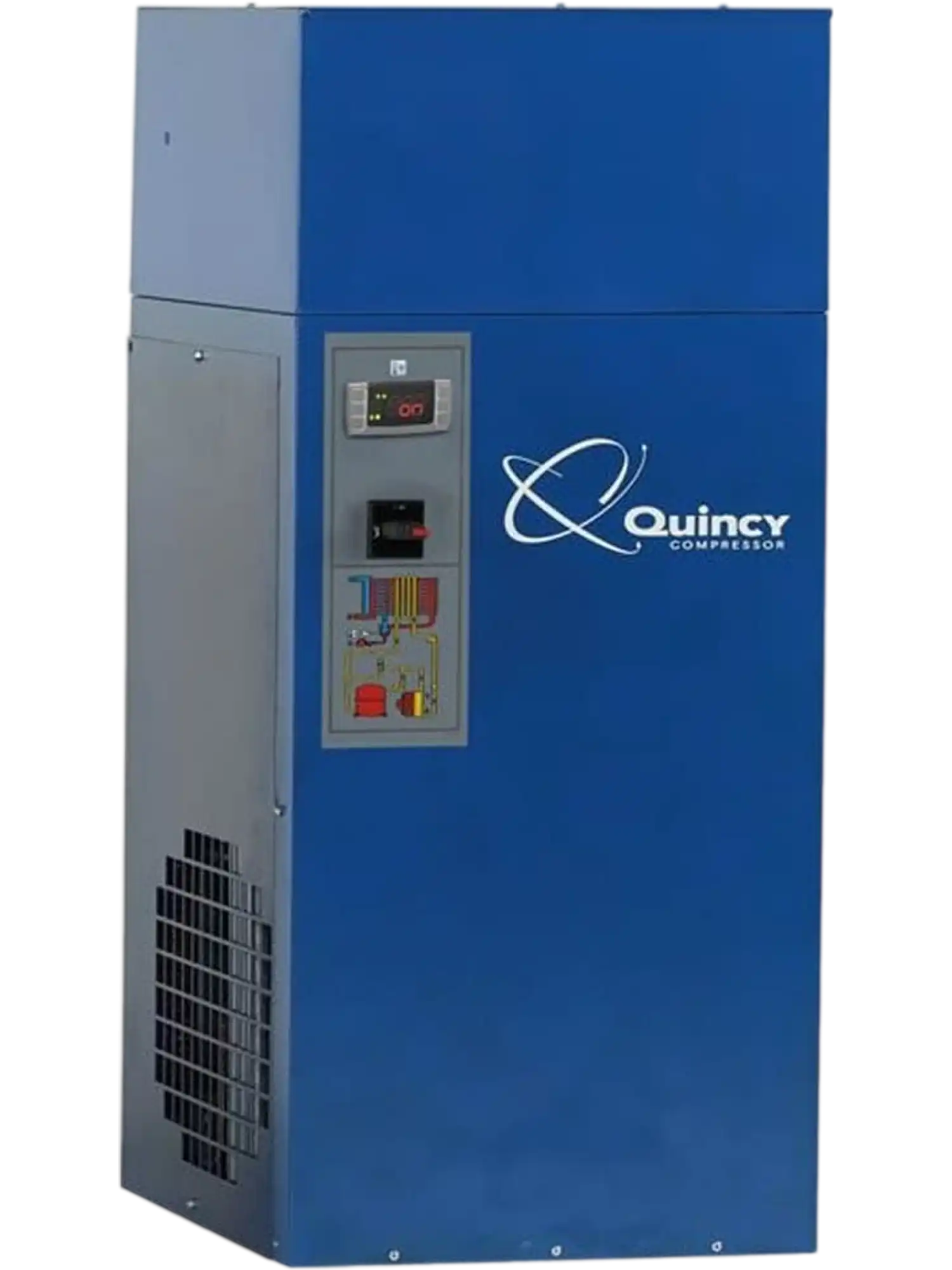

Quincy Compressor QRHT 125 Refrigerated Air Dryer 3/4" High Temperature Non-Cycling 125 CFM 115V 1-Phase New
Manufacturer: Quincy Compressor
SKU: 4102001909
QTY
or
(888) 999-1522
$ 8,250.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Quincy Compressor QRHT 125 Refrigerated Air Dryer 3/4" High Temperature Non-Cycling 125 CFM 115V 1-Phase New
Product Overview
The Quincy Compressor QRHT 125 is a commercial, high-temperature refrigerated air dryer with non-cycling operation and a capacity of 125 CFM at 100 PSI. Its integrated aftercooler, refrigerated dryer, moisture separator, Zero Loss drain and coalescing filter work together to remove water, oil and dirt from compressed air. Cleaner, drier air helps reduce operational downtime and finished-product defects, including fisheye paint splotches. Operating on 115V single-phase power, the dryer has a 3/4" NPT inlet, a 3/4" outlet and a maximum pressure rating of 232 PSI. It uses R134a refrigerant with no CFCs or HCFCs and zero ozone depletion potential.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- High Temperature Refrigerated Non-Cycling Dryer: Handles incoming air up to 108° F from compressors that don't have aftercoolers
- 3 In 1 Design: Eliminates water, oil and dirt from compressed air
- Clean, Dry, Filtered Compressed Air
- Aftercooler, refrigerated dryer, moisture separator,Zero Loss drain, & coalescing filter work in harmony
- Reduces Operational Down Time: Increases profitability & productivity
- Fewer Finished Product Defects
- Prevents "fisheye" paint splotches
- Eliminates air line purging; coalescing filter supplied
- Environmentally Safe Refrigerant (R134a)
- No CFCs or HCFCs; zero ozone depletion potential (ODP)
- Provides higher performance & efficiency potential
- Easy To Incorporate
- Uses 115V-1 phase power; handles 125 CFM at 100 PSI
- 3/4" NPT input; 232 maximum PSI
Specifications
| Height | 41 in. |
|---|---|
| Length | 22.6 in. |
| Product Weight | 236 lbs. |
| Width | 18.1 in. |
| After Cooler Included | Yes |
| Air Dryer CFM | 125 CFM |
| Air Inlet Size | 3/4" |
| Air Outlet Size | 3/4" |
| Alarm Light | No |
| Automatic Drain Valve Included | Yes |
| High Temperature | Yes |
| Maximum Ambient Temperature | 100 °F |
|---|---|
| Maximum Inlet Temperature | 180 °F |
| Non-Cycling | Yes |
| Regenerative | No |
| Air Dryer Voltage | 115 V |
| Fuel Type | Electric |
| Grade | Commercial |
Warranty
This item comes with a 1 year factory warranty.
