Quincy Compressor QT-10S Two Stage Piston Air Compressor 10 HP 120 Gallon Vertical Max 230V 1 Phase New
Manufacturer: Quincy Compressor
SKU: 2020040771
QTY
or
(888) 999-1522
$ 10,021.44
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

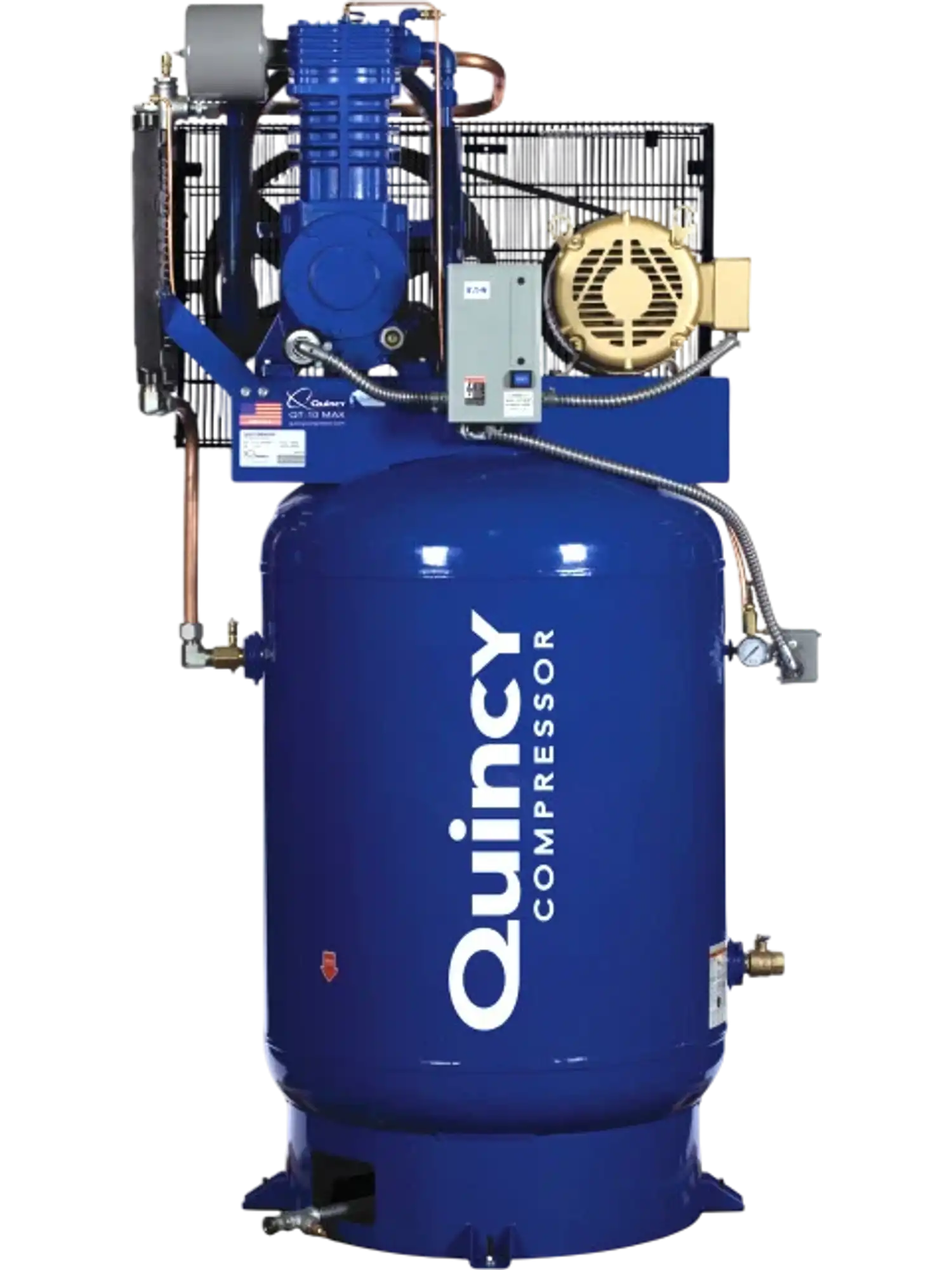

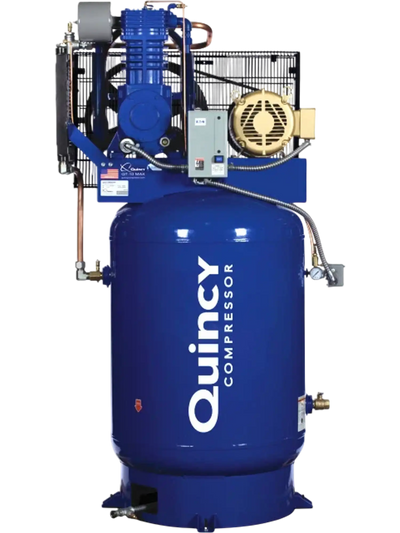

Quincy Compressor QT-10S Two Stage Piston Air Compressor 10 HP 120 Gallon Vertical Max 230V 1 Phase New
Product Overview
The Quincy Compressor QT-10S is a two-stage piston air compressor powered by a 10 HP motor. Its simplex configuration uses splash lubrication. With a capacity of 30 ACFM and a pressure rating of 175 PSI, it pairs substantial airflow with high-pressure capability. The 120-gallon tank has a vertical orientation and is specified for 230V, single-phase, 60Hz power. Supplied in the Max package, this compressor comes with automatic tank drain, overload protection, air cooled aftercooler, and low oil level shutdown.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Splash Lubricated
- Cast-iron Crankcase, Cylinders and Flywheel
- Stainless-Steel Reed Valves with Valve Bumpers
- Ductile Iron, Double Throw Crankshaft
- Industrial Ball Bearings
- Two-Piece Aluminum Connecting Rods
- Fin and Tube Intercooler
- Automotive Style Inlet Filter/Silencer
- Motor Overload Protection
- Automatic Tank Drain
- Dual Control on 10-15 HP
- Low Oil Level Shutdown
- ODP Slow Speed Motor
- Air Cooled Aftercooler
Specifications
| Configuration | Simplex |
|---|---|
| Horsepower | 10 HP |
| Capacity | 30 ACFM |
| Package | Max |
| Tank Size and Orientation | 120 gallon, vertical |
| Voltage | 230/1/60 |
|---|---|
| Pressure | 175 PSI |
Warranty
This item comes with a 1 year factory warranty.
