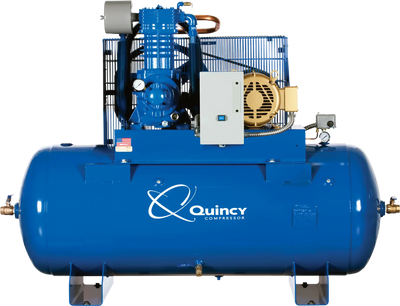

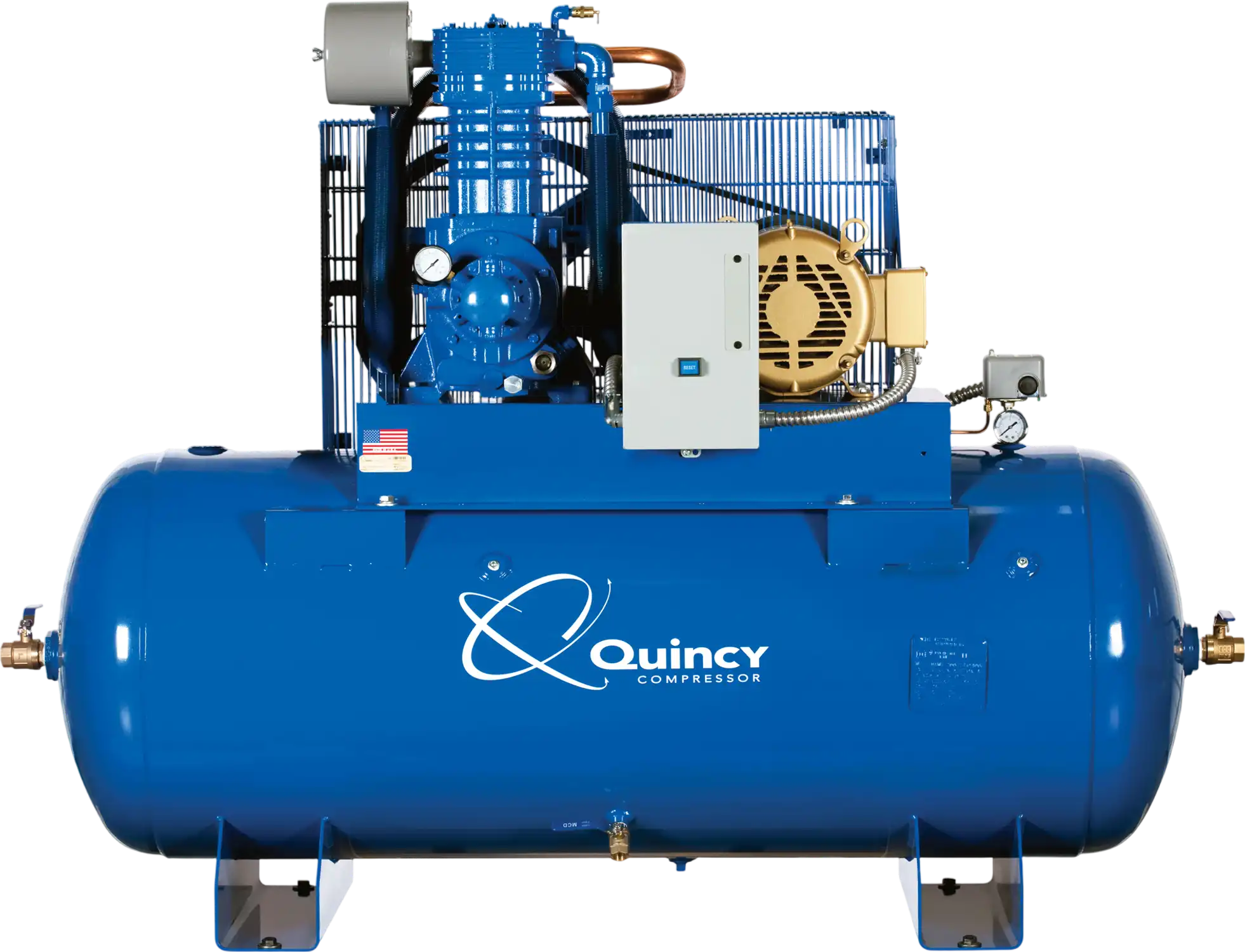

Quincy Compressor QT 2-Stage Air Compressor 5 HP, 80-Gal., 230V, 3-Phase New
Manufacturer: Quincy Compressor
SKU: 2020040811
QTY
or
(888) 999-1522
$ 6,687.20
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Quincy Compressor QT 2-Stage Air Compressor 5 HP, 80-Gal., 230V, 3-Phase New
Product Overview
The Quincy Compressor QT two-stage air compressor pairs a 5 HP industrial-duty motor with an 80-gal. horizontal tank and operates on 230V, 3-phase power. It delivers 18.1 CFM at 90 PSI and 17.4 CFM at its maximum pressure of 175 PSI, with a 100% duty cycle for continuous operation. The cast iron pump features splash lubrication and a 50,000-hour pump life rating. A finned tube intercooler, aluminum head and extra-capacity oil reservoir help manage heat during use. The MAX configuration includes an automatic tank drain, low oil shutdown and a heavy-duty aftercooler to simplify draining, protect against low oil levels and cool compressed air.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- Industrial-duty motor
- Industrial-duty general-purpose mounted and wired magnetic starter
- Less than 5 PPM oil carry-over (blow-by) rating
- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- Splash lubrication
- Low oil shutdown
- Heavy-duty aftercooler
- UL & CSA approval on all electrical components
- ASME-coded pressure relief valves and tanks
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 710.0 LB |
| Horsepower | 5 HP |
| Air Tank Size | 80 Gal |
| Volts | 230 |
| CFM At 90 PSI | 18.1 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 15.2 |
| Duty Cycle | 100 % |
| Motor RPM | 658 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
| Air Outlet Size | 3/4 in. NPT |
|---|---|
| CFM At Max. PSI | 17.4 |
| Oil Required | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| After Cooler Included | Yes |
| Drain Type | Automatic |
| Tank Orientation | Horizontal |
| Product Weight | 680.0000 lb |
| Dimensions L X W X H (in.) | 67.0 x 30.0 x 49.0 in |
Package Contents
(1) Quincy QT 5-HP 80 Gallon Two-Stage Air Compressor (230V-3-Phase) Horizontal MAX
Warranty
This item comes with a 1 year limited warranty.
