Quincy Compressor QT-5 Two Stage Piston Air Compressor 5 HP 80 Gallon Vertical 200V 3 Phase New
Manufacturer: Quincy Compressor
SKU: 2020040705
QTY
or
(888) 999-1522
$ 5,152.16
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

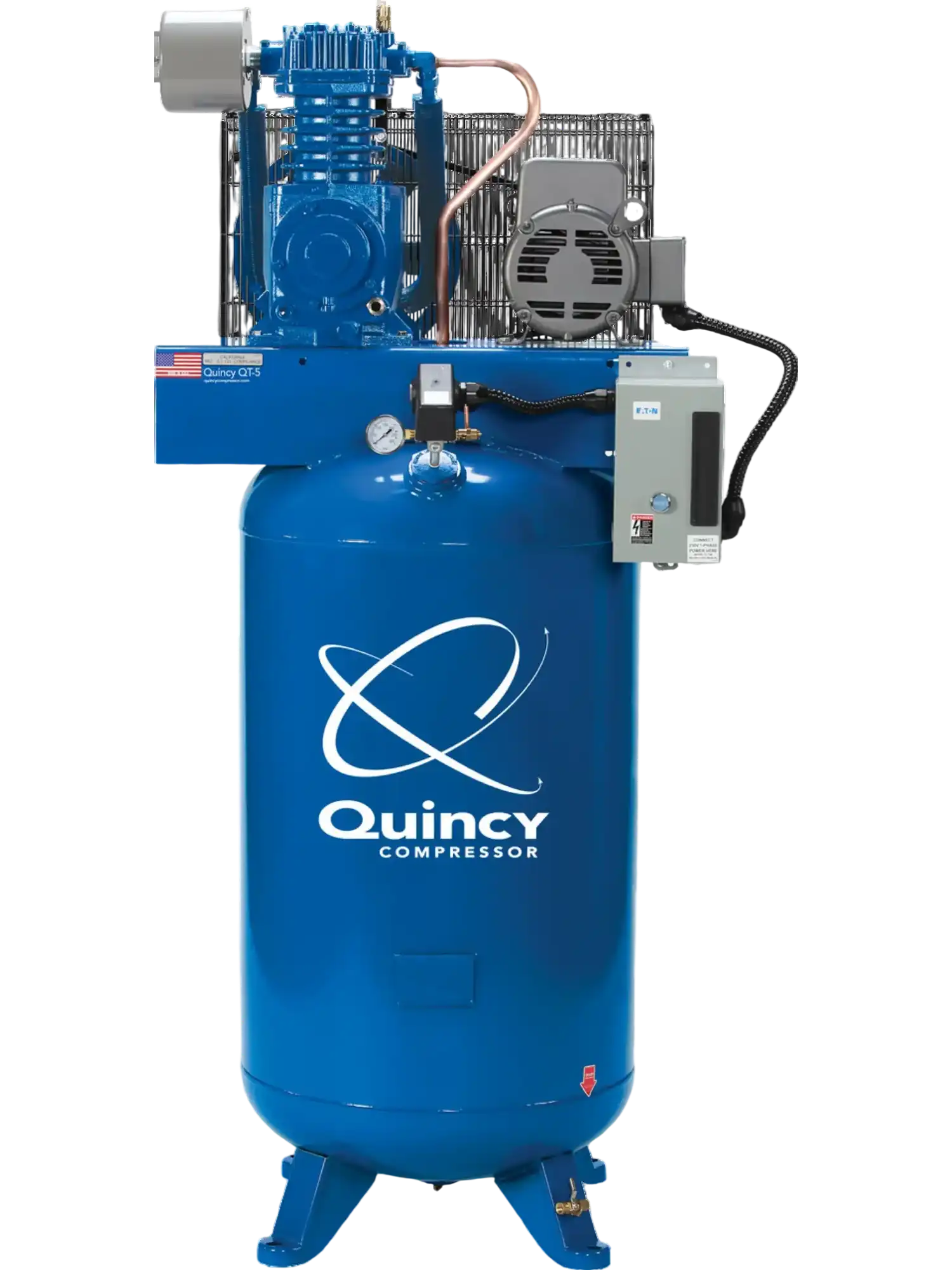

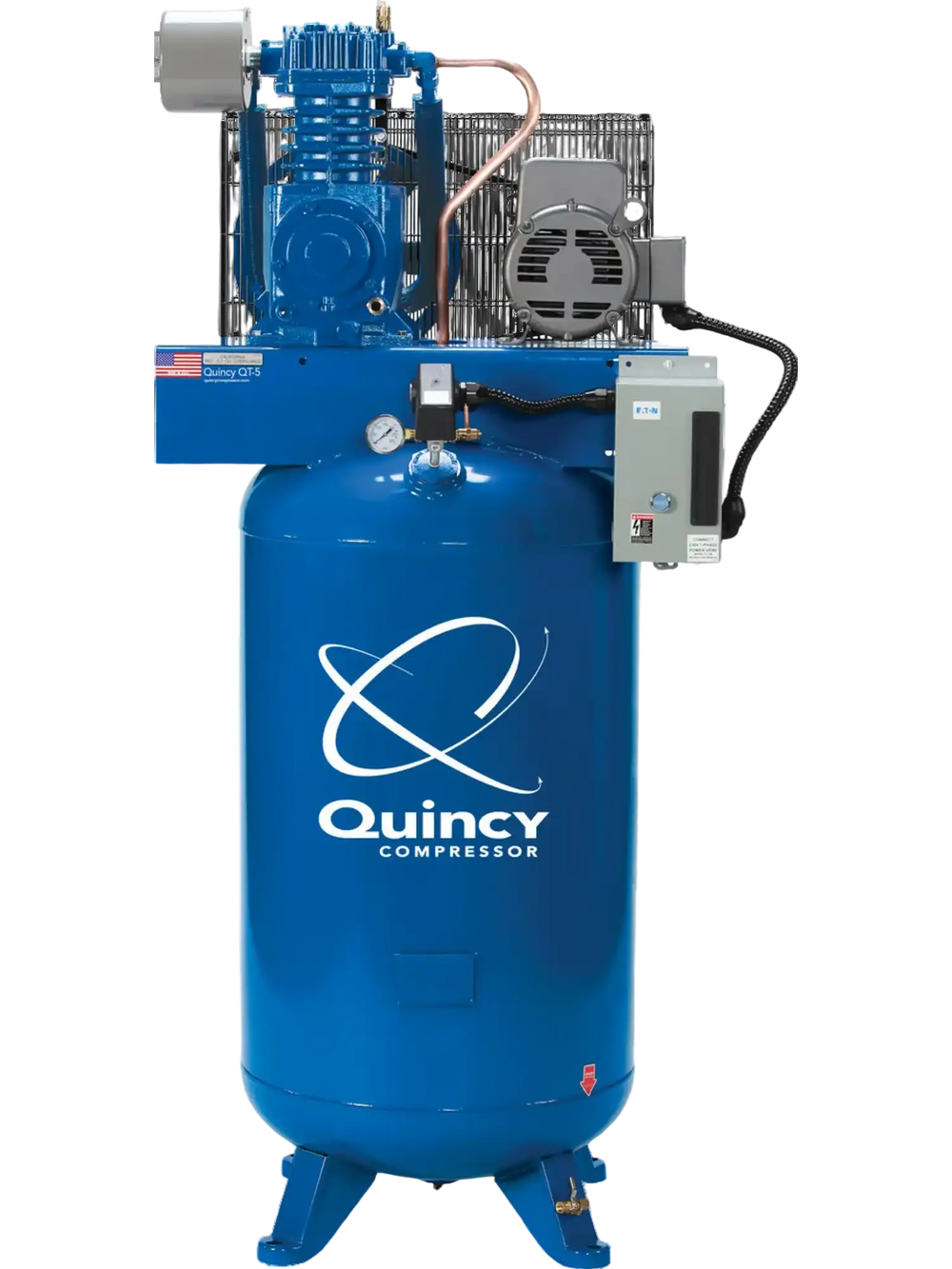

Quincy Compressor QT-5 Two Stage Piston Air Compressor 5 HP 80 Gallon Vertical 200V 3 Phase New
Product Overview
The Quincy Compressor QT-5 two-stage piston air compressor combines 5 HP with an 80-gallon vertical tank. This simplex unit has a capacity of 17.2 ACFM and a specified pressure of 175 PSI. The compressor uses splash lubrication. Electrical specifications are 200V, three-phase, 60 Hz. This configuration includes the Pro Plus package with motor overload protection, automatic tank drain, and low oil level shutdown.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Splash Lubricated
- Cast-iron Crankcase, Cylinders and Flywheel
- Stainless-Steel Reed Valves with Valve Bumpers
- Ductile Iron, Double Throw Crankshaft
- Industrial Ball Bearings
- Two-Piece Aluminum Connecting Rods
- Fin and Tube Intercooler
- Automotive Style Inlet Filter/Silencer
- Motor Overload Protection
- Automatic Tank Drain
- Automatic Start/Stop
- Low Oil Level Shutdown
Specifications
| Configuration | Simplex |
|---|---|
| Horsepower | 5 HP |
| Capacity | 17.2 ACFM |
| Package | Pro Plus |
| Tank Size and Orientation | 80 gallon, vertical |
| Voltage | 200/3/60 |
|---|---|
| Pressure | 175 PSI |
Warranty
This item comes with a 1 year factory warranty.
