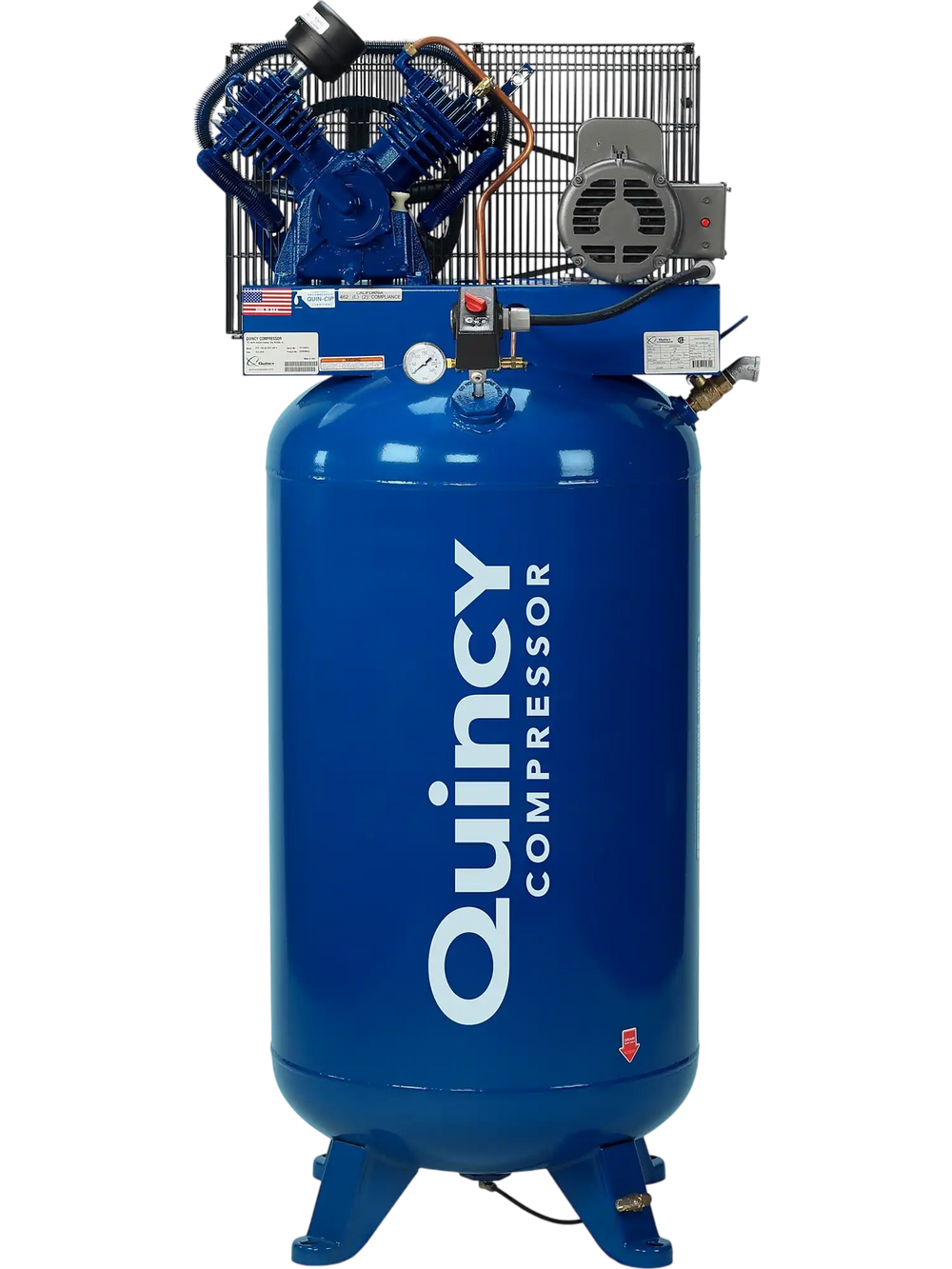

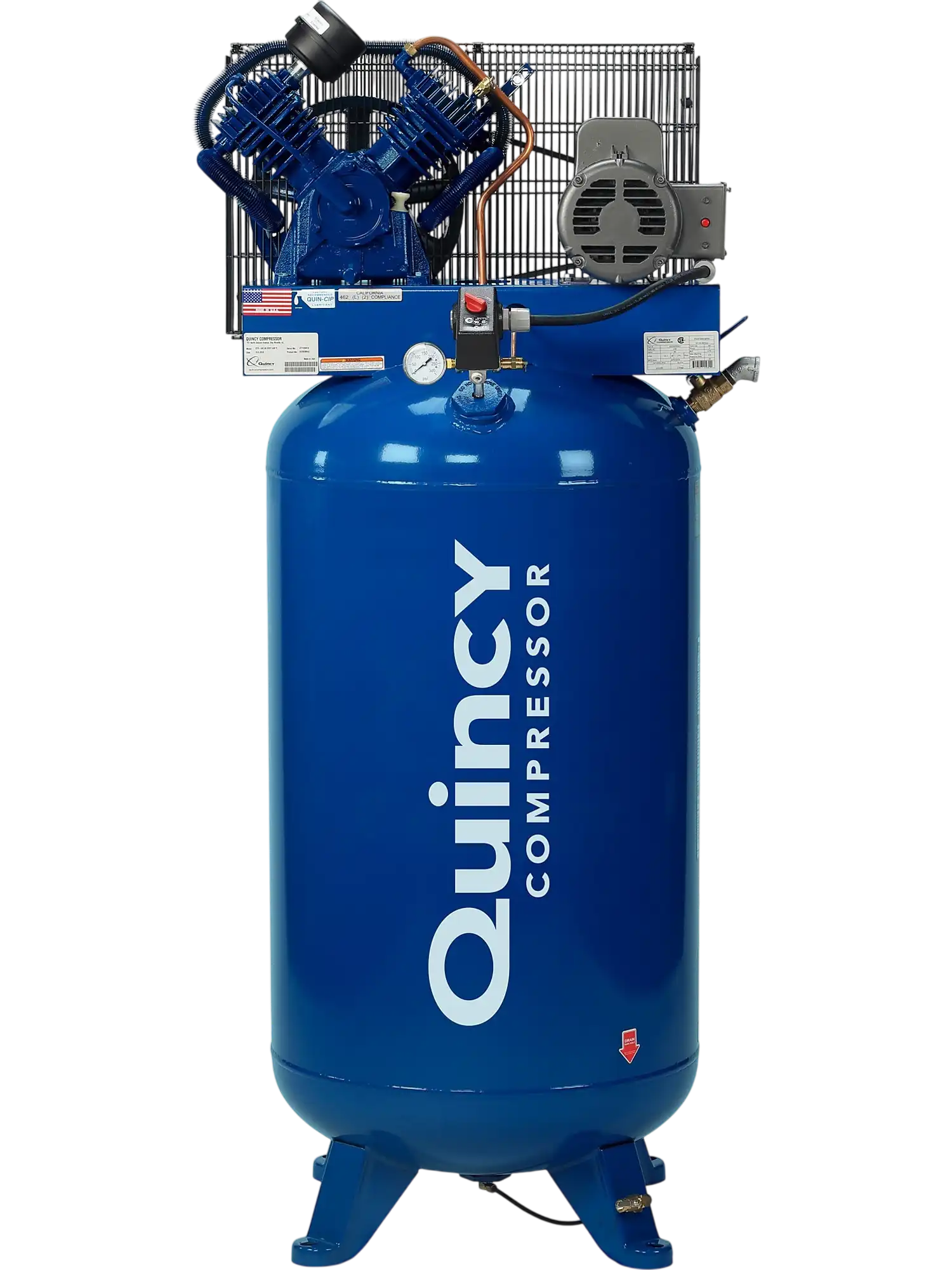

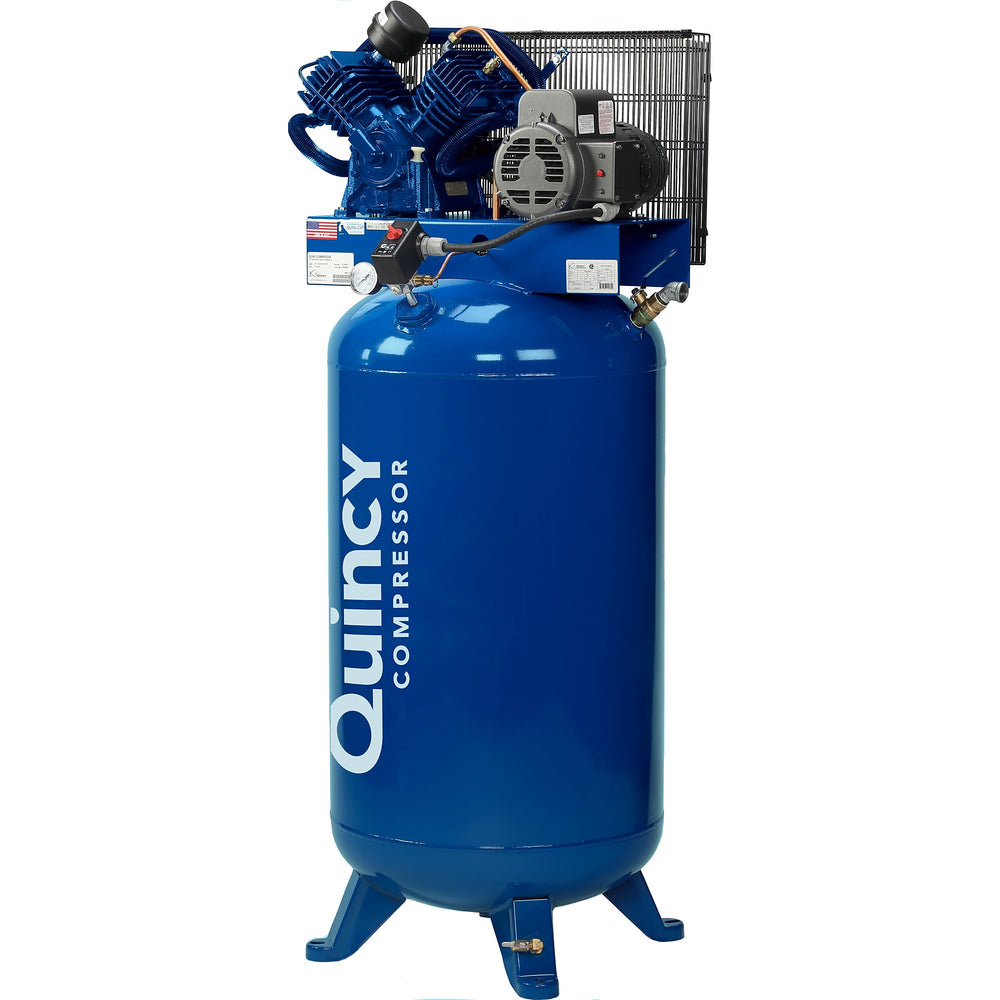

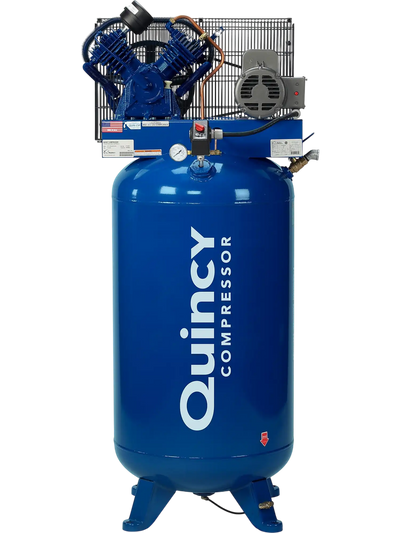

Quincy Compressor QT-54 Air Compressor 80-Gal., 230V, 5 HP New
Product Overview
The Quincy Compressor QT-54 air compressor pairs an 80-gal. vertical tank with a 5 HP, 230V single-phase Baldor motor made in the USA. Its belt-driven, four-cylinder cast iron two-stage pump uses splash lubrication and has a 50,000-hour pump life rating. Delivering 15.4 CFM at 90 PSI, it operates at a working pressure of 135–175 PSI and supports a 100% duty cycle. A finned tube intercooler, aluminum head and extra-capacity oil reservoir help manage heat during operation. An easy-to-reach manual ball valve simplifies draining, and the compressor ships in a protective crate with oil already in the pump.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Heavy Duty Made in the USA Baldor Motor
- Less than 5 PPM oil carry-over (blow-by) rating
- 135-175 working PSI
- 50,000+ Hours Pump Life
- Heavy duty 4-cylinder cast iron two-stage pump design
- Splash lubricated
- Heavy-duty, easy-to-reach, manual ball valve
- 2-stage belt drive pump with solid cast iron cylinder
- Motor RPM: 3450
- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- ASME-coded pressure relief valves and steel tanks
- UL & CSA approval on all electrical components
- Ships in heavy-duty protective crate with oil in the pump.
- Quincy recommends a 50 Amp circuit breaker along with properly sized wire.
- Installations may vary but all electrical work should be done through a licensed electrician.
Specifications
| Brand | Quincy Compressor |
|---|---|
| Ship Weight | 417.0 LB |
| Horsepower | 5 HP |
| Air Tank Size | 80 Gal |
| Volts | 230 |
| CFM At 90 PSI | 15.4 |
| Max. PSI | 175 |
| Stage | 2 |
| Amps | 24 |
| Duty Cycle | 100 % |
| Motor RPM | 3,450 |
| Working Pressure | 135-175 PSI |
| Engine Start Type | Electric |
| Motor Phase | 1 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
| Pump Drive | Belt |
| Air Outlet Size | 1/2 in. NPT |
|---|---|
| CFM At 40 PSI | 15.6 |
| CFM At Max. PSI | 15.2 |
| Noise Level | 80 dB |
| Oil Required | Yes |
| Lubrication System | Splash |
| Tank Fill Time | 6.5 min |
| Air Dryer | None |
| Drain Type | Manual |
| Tank Orientation | Vertical |
| Product Weight | 395 lb |
| Dimensions L X W X H (in.) | 25.69 x 31.29 x 68.75 in |
Package Contents
(1) QUINCY QT-54 80GAL-230V RECIP AIR COMPRESSOR
Warranty
This item comes with a 1 year limited warranty.
