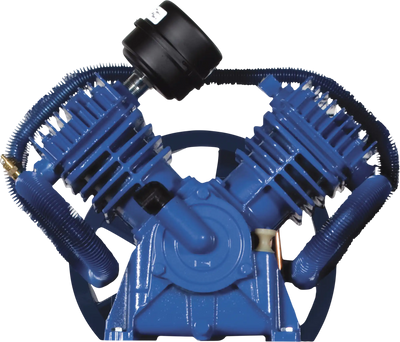

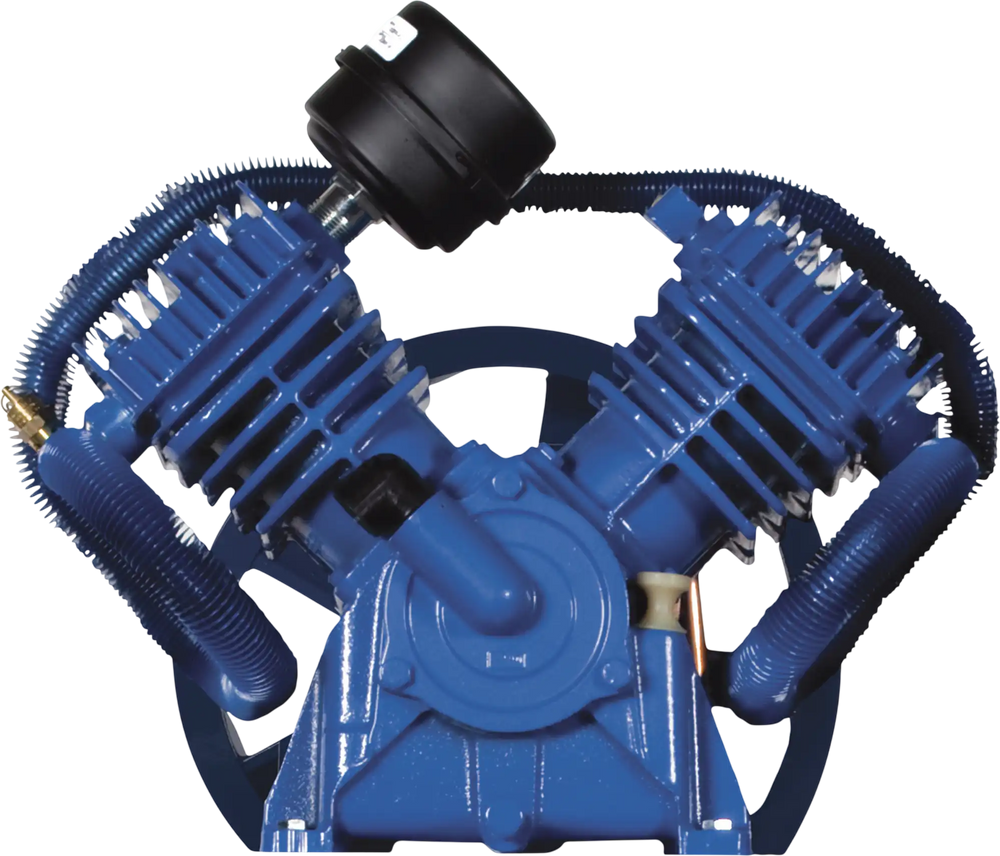

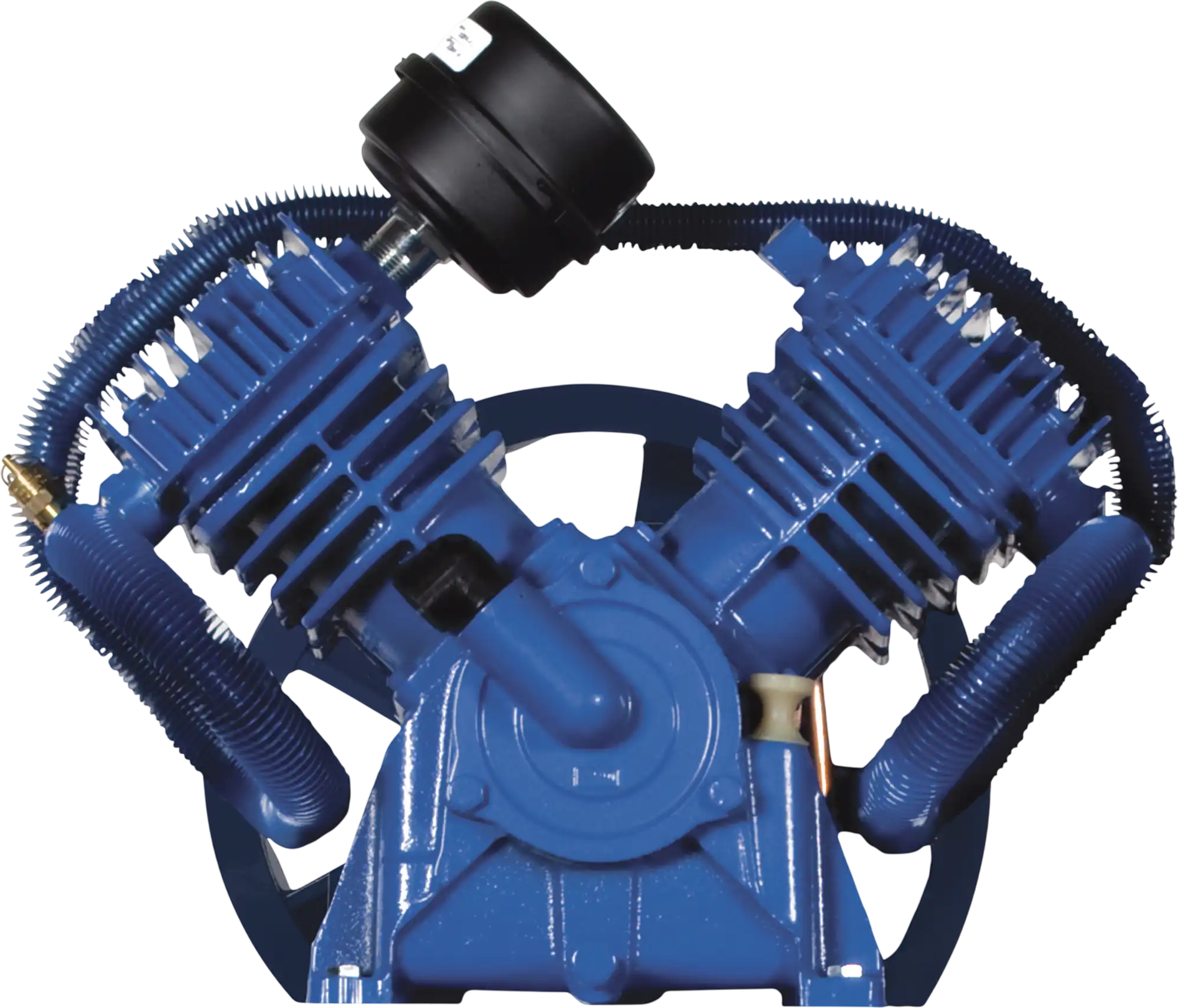

Quincy Compressor QT-54 Air Compressor Pump 3 & 5 HP, Two-Stage, Splash-Lubricated New
Product Overview
The Quincy Compressor QT-54 replacement air compressor pump fits 3 & 5 HP Quincy QT compressors and features a two-stage, splash-lubricated design. Cast iron construction and a balanced, counterweighted crankshaft support dependable, smooth operation, while industrial-class bearings promote long operating life. An extra-capacity oil reservoir helps keep oil temperatures low, and an aluminum head dissipates heat. The fan-type cast iron flywheel directs cooling air across the fin-and-tube intercooler, which reduces interstage air temperature to support performance and valve life. Output is rated at 6.4 CFM at 175 PSI and 550 RPM, or 15.2 CFM at 175 PSI and 1,310 RPM.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Two-stage, splash-lubricated cast iron pump
- For 3 & 5 HP Quincy QT compressors
- Delivers 6.4 CFM @ 175 PSI @ 550 RPM; 15.2 CFM @ 175 PSI @ 1,310 RPM
- Cast iron construction for dependability and smooth operation
- Extra capacity oil reservoir assures low oil temperature
- Industrial-class bearings ensure long operating life
- Cast iron cylinders maintain rigid tolerances for high efficiency
- Graphite cylinder and head gaskets for positive sealing integrity
- ASME-code interstage pressure relief valves
- Aluminum head for strength and optimum heat dissipation
- Valve design provides high volumetric efficiency, using stainless steel valves for maximum strength
- Fan type cast iron flywheel delivers a powerful flow of air across the intercooler for excellent cooling and smooth operation
- Balanced counterweighted crankshaft for smooth, troublefree operation
- High-efficiency fin and tube intercooler reduces interstage air temperature for maximum performance and increased valve life
Specifications
| Brand | Quincy Compressor |
|---|---|
| Ship Weight | 135.0 LB |
| Stage | 2 |
| Max. Horsepower | 5 |
| Max. PSI | 175 |
| Dimensions L X W X H (in.) | 13.0 x 18.0 x 15.0 in |
|---|
Package Contents
(1) Compressor pump
Warranty
This item comes with a 1 year limited warranty.
