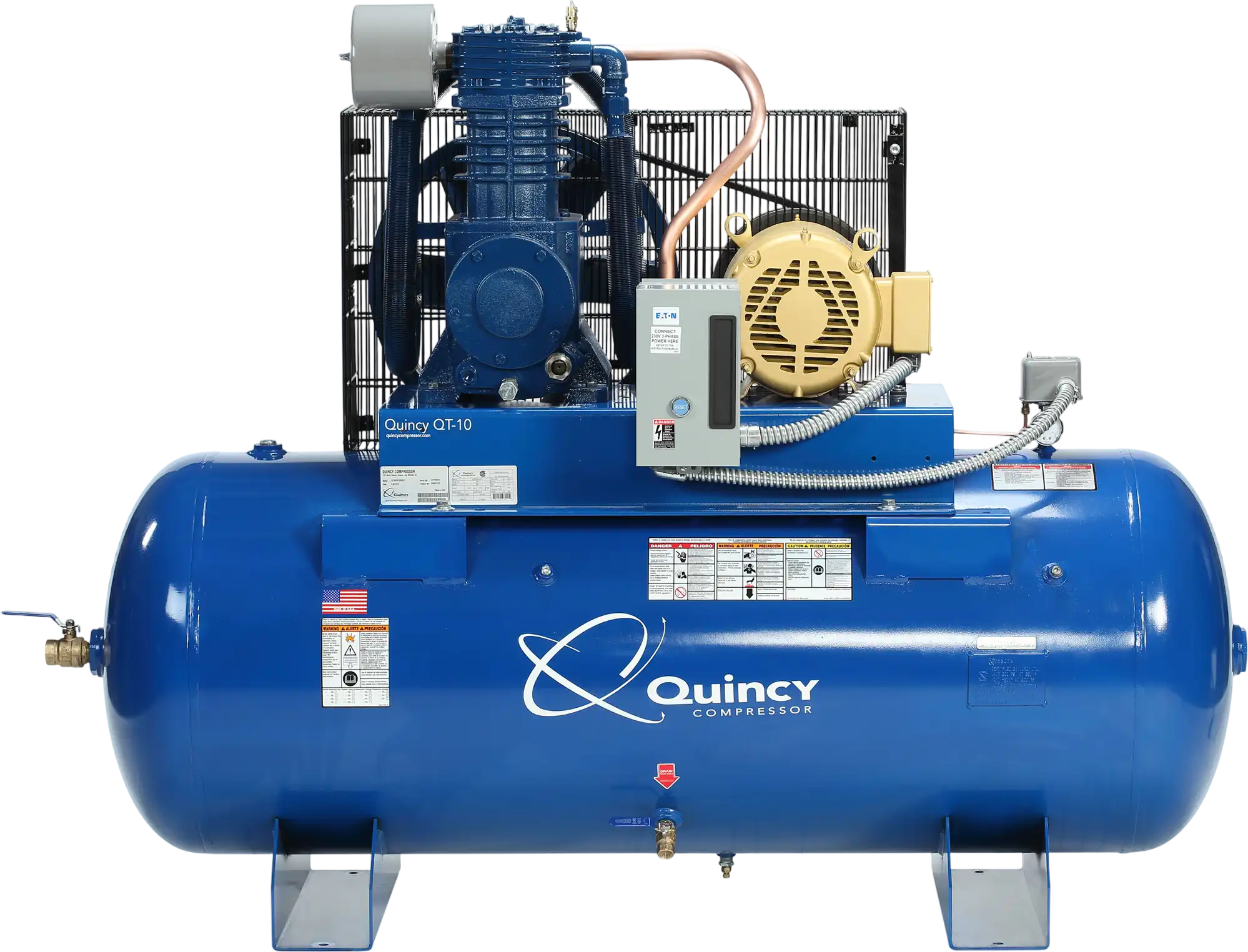

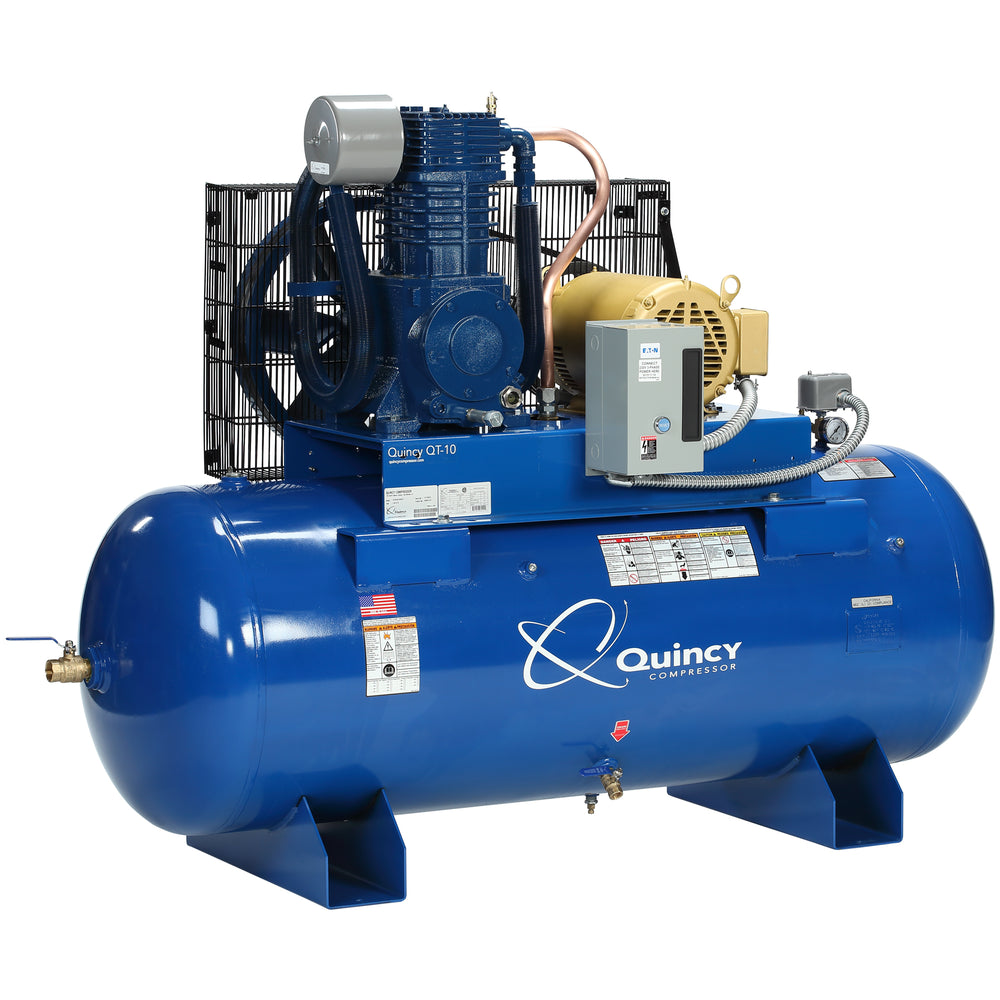

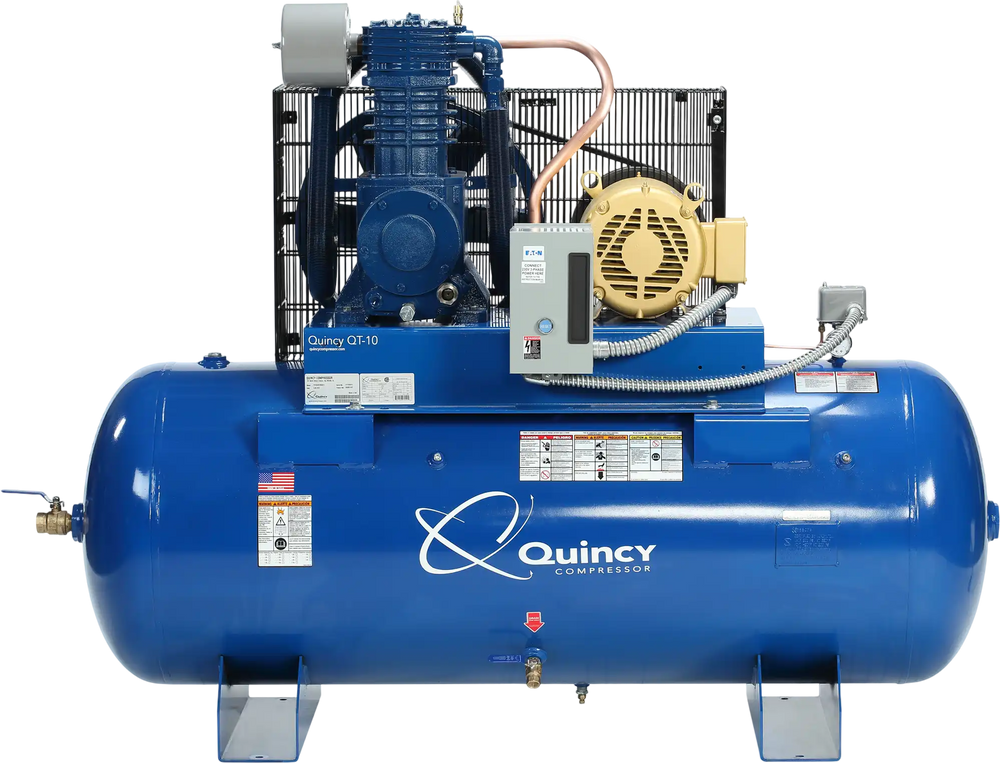

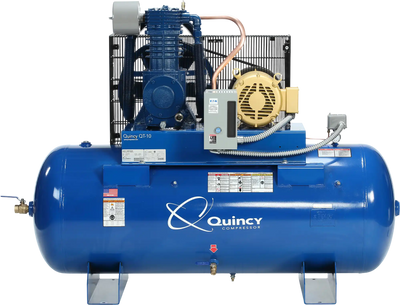

Quincy Compressor QT Air Compressor 10 HP, 120-Gal. Tank, 200V, 3-Phase New
Manufacturer: Quincy Compressor
SKU: 2020040874
QTY
or
(888) 999-1522
$ 8,244.08
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Quincy Compressor QT Air Compressor 10 HP, 120-Gal. Tank, 200V, 3-Phase New
Product Overview
Built for industrial applications, this Quincy Compressor QT air compressor pairs a 10 HP, 200V, 3-phase motor with a 120-gal. tank. It delivers 36 CFM at 90 PSI and 35 CFM at its maximum pressure of 175 PSI, with a 100% duty cycle for continuous operation. The two-stage, belt-driven pump features a four-cylinder design, solid cast iron cylinder and splash lubrication, with a rated pump life of 50,000 hours. A finned tube intercooler helps cool the compressed air and extend valve life, while an aluminum head dissipates heat. A mounted and wired magnetic starter, pressure gauge and easy-to-reach manual ball valve provide practical equipment control and maintenance access.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Heavy-duty industrial motor
- Industrial-duty general-purpose mounted and wired magnetic starter
- Less than 5 PPM oil carry-over (blow-by) rating
- 145-175 working PSI
- Pump RPM: 682
- 4-cylinder pump design
- Heavy-duty, easy-to-reach, manual ball valve
- 2-stage belt drive pump with solid cast iron cylinder
- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- Splash lubrication
- UL & CSA approval on all electrical components
- ASME-coded pressure relief valves and tanks
- Made in U.S.A
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 1025.0 LB |
| Horsepower | 10 HP |
| Air Tank Size | 120 Gal |
| Volts | 200 |
| CFM At 90 PSI | 36 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 32.2 |
| Duty Cycle | 100 % |
| Motor RPM | 682 |
| Working Pressure | 135-175 PSI |
| Engine Start Type | Electric |
| Motor Phase | 3 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
|---|---|
| Air Outlet Size | 1 in. NPT |
| CFM At Max. PSI | 35 |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Electronic Drain Valve | No |
| After Cooler Included | No |
| Drain Type | Manual |
| Tank Orientation | Vertical |
| Product Weight | 979.0000 lb |
| Dimensions L X W X H (in.) | 42.0 x 30.0 x 78.0 in |
Package Contents
(1) Quincy QT-2, 10-HP 120 Gallon Two-Stage Air Compressor (200V-3-Phase) Horizontal PRO, Model # 4103DS12HCB20
Warranty
This item comes with a 1 year limited warranty.
