Quincy Compressor QT Air Compressor 10 HP, 120-Gal. Tank, 230V, 3-Phase New
Product Overview

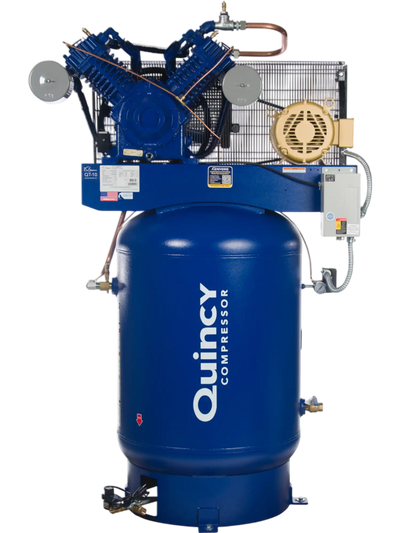

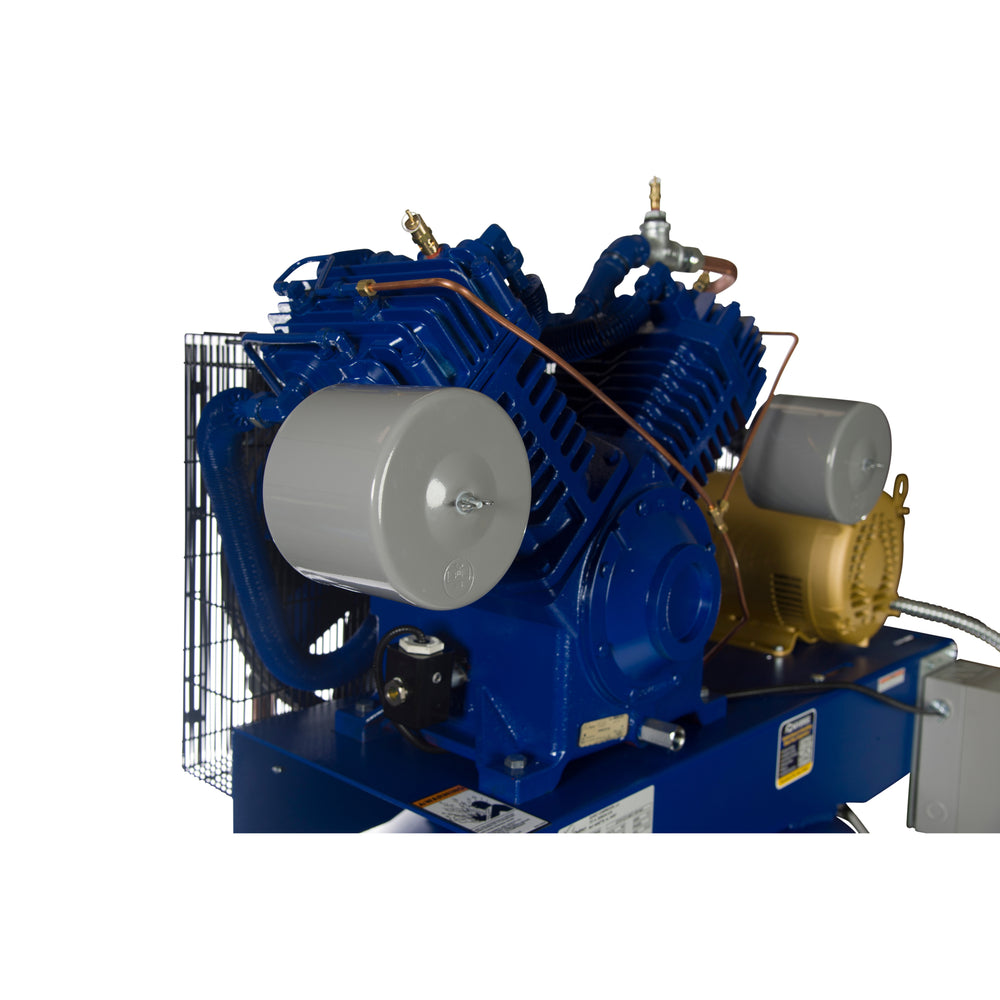

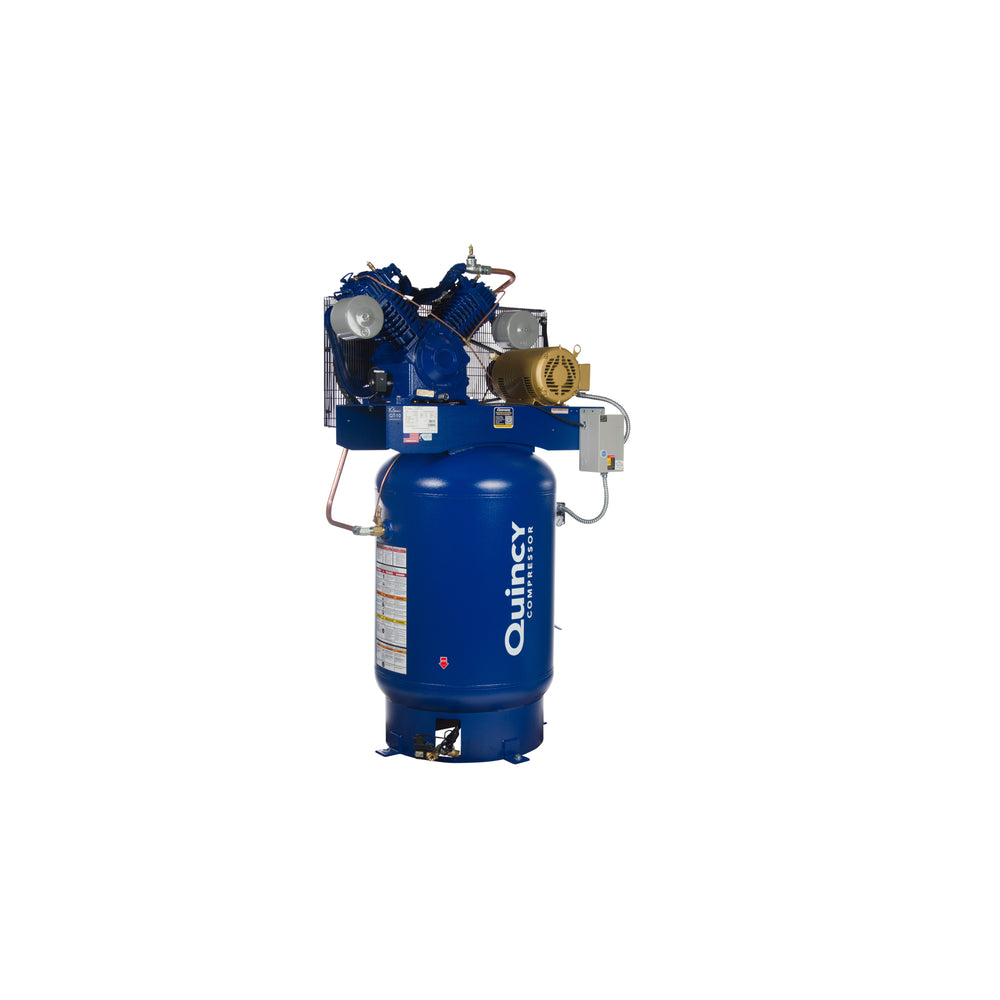

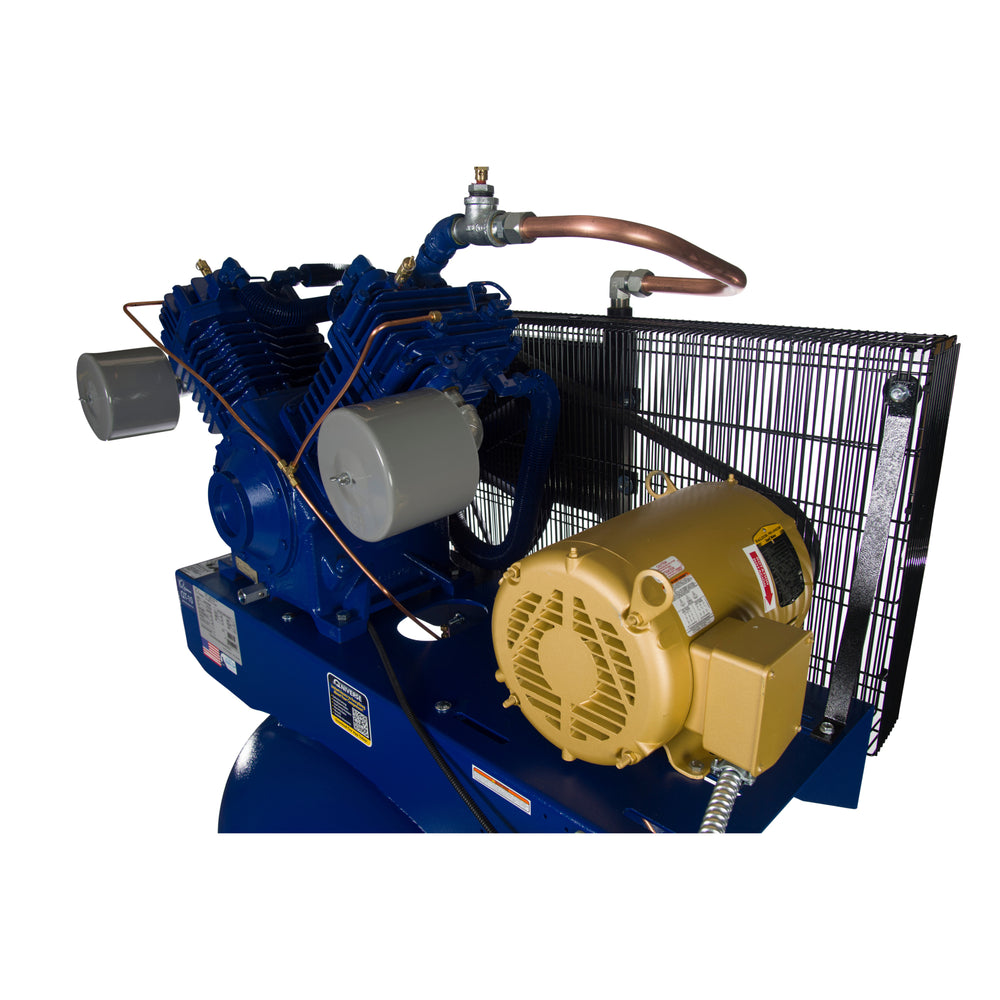

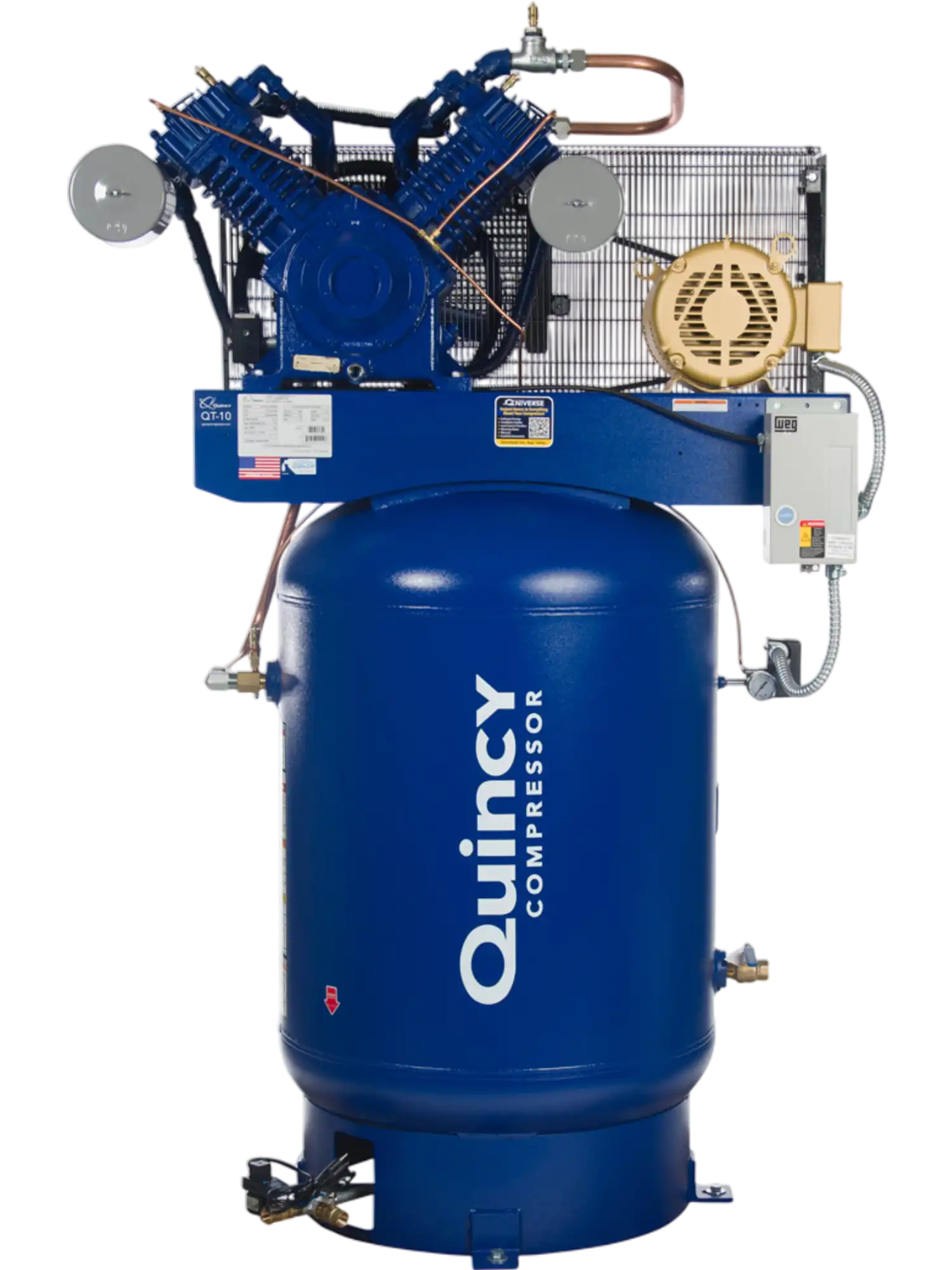

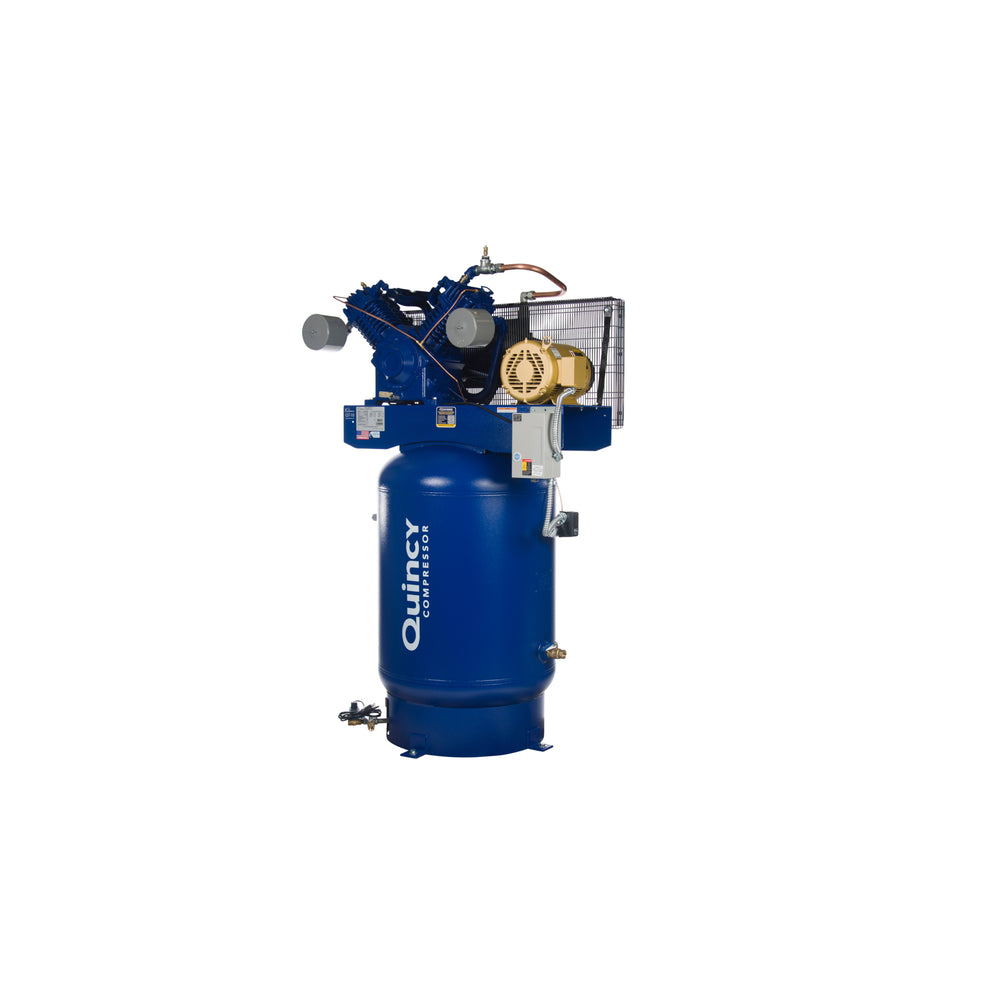

The Quincy Compressor QT two-stage air compressor pairs a 10 HP motor with a 120-gallon vertical tank for industrial applications using 230V, three-phase power. It delivers 37 CFM at 90 PSI and 36 CFM at its maximum pressure of 175 PSI, with a 100% duty cycle. The cast iron pump has a 50,000-hour life rating and uses splash lubrication, while low oil shutdown provides added protection. A finned tube intercooler and aluminum head help dissipate heat, and a heavy-duty aftercooler is included. The MAX configuration also includes an automatic tank drain, and the magnetic starter comes mounted and wired.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- Heavy-duty industrial motor
- Industrial-duty general-purpose mounted and wired magnetic starter
- Less than 5 PPM oil carry-over (blow-by) rating
- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- Splash lubrication
- Low oil shutdown
- Heavy-duty aftercooler
- UL & CSA approval on all electrical components
- ASME-coded pressure relief valves and tanks
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 960.0 LB |
| Horsepower | 10 HP |
| Air Tank Size | 120 Gal |
| Volts | 230 |
| CFM At 90 PSI | 37 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 28 |
| Duty Cycle | 100 % |
| Motor RPM | 682 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
| Air Outlet Size | 1 in. NPT |
|---|---|
| CFM At Max. PSI | 36 |
| Oil Required | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| After Cooler Included | Yes |
| Drain Type | Automatic |
| Tank Orientation | Vertical |
| Product Weight | 900.0000 lb |
| Dimensions L X W X H (in.) | 49.0 x 34.0 x 78.0 in |
Package Contents
(1) Quincy QT 10-HP 120 Gallon Two-Stage Air Compressor (230V-3-Phase) Vertical MAX
Warranty
This item comes with a 1 year limited warranty.
