Quincy Compressor QT Air Compressor 15 HP, 120-Gal. Tank, 2-Stage, 460V 3-Phase New
Manufacturer: Quincy Compressor
SKU: 2020040888
QTY
or
(888) 999-1522
$ 11,363.04
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

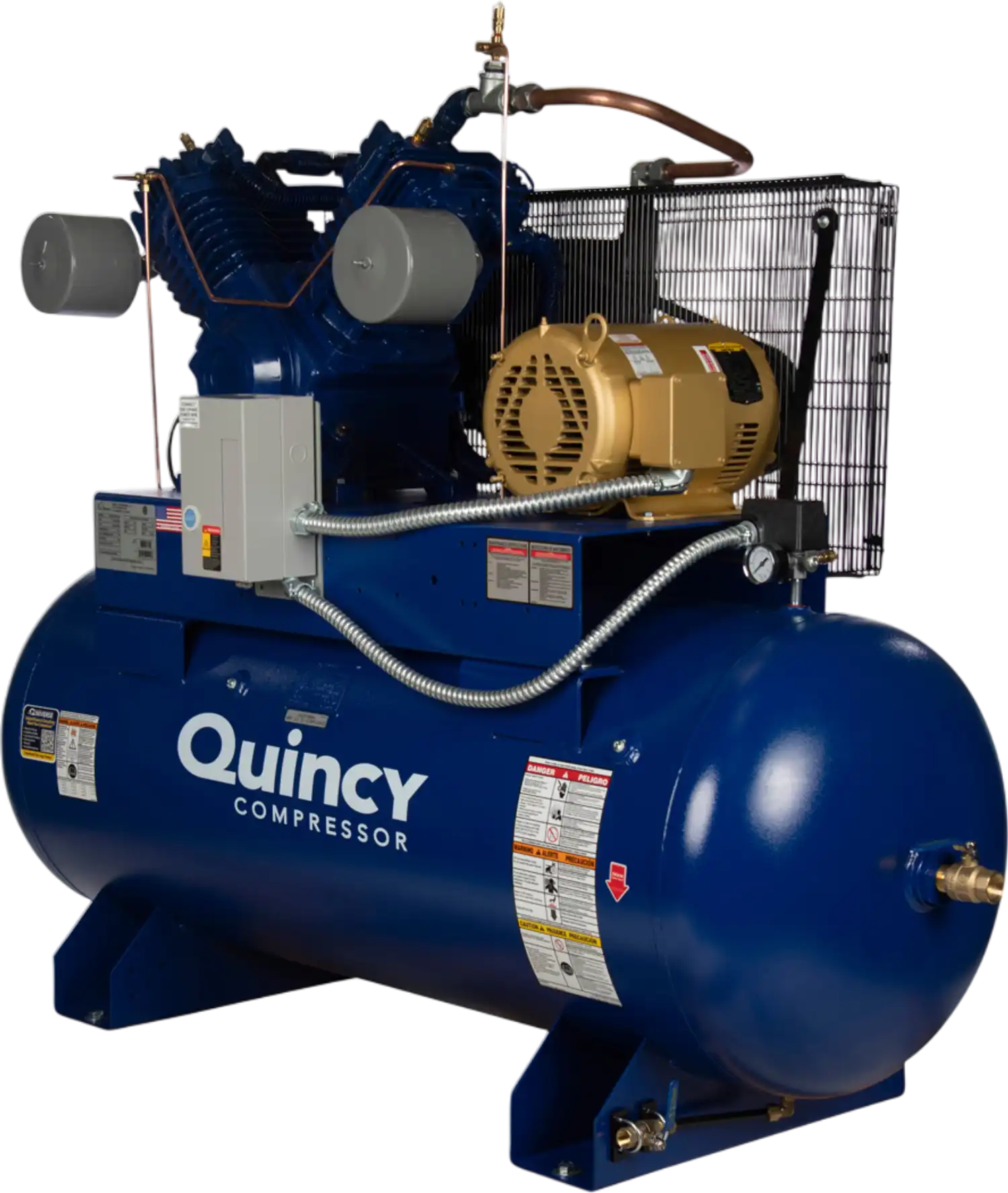

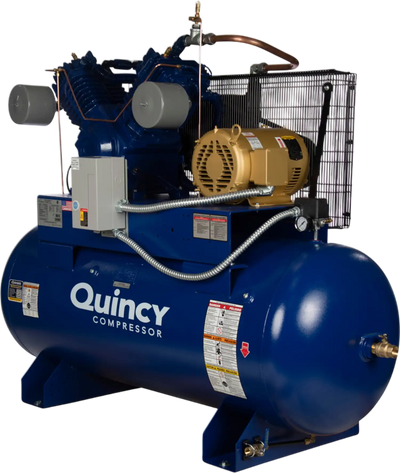

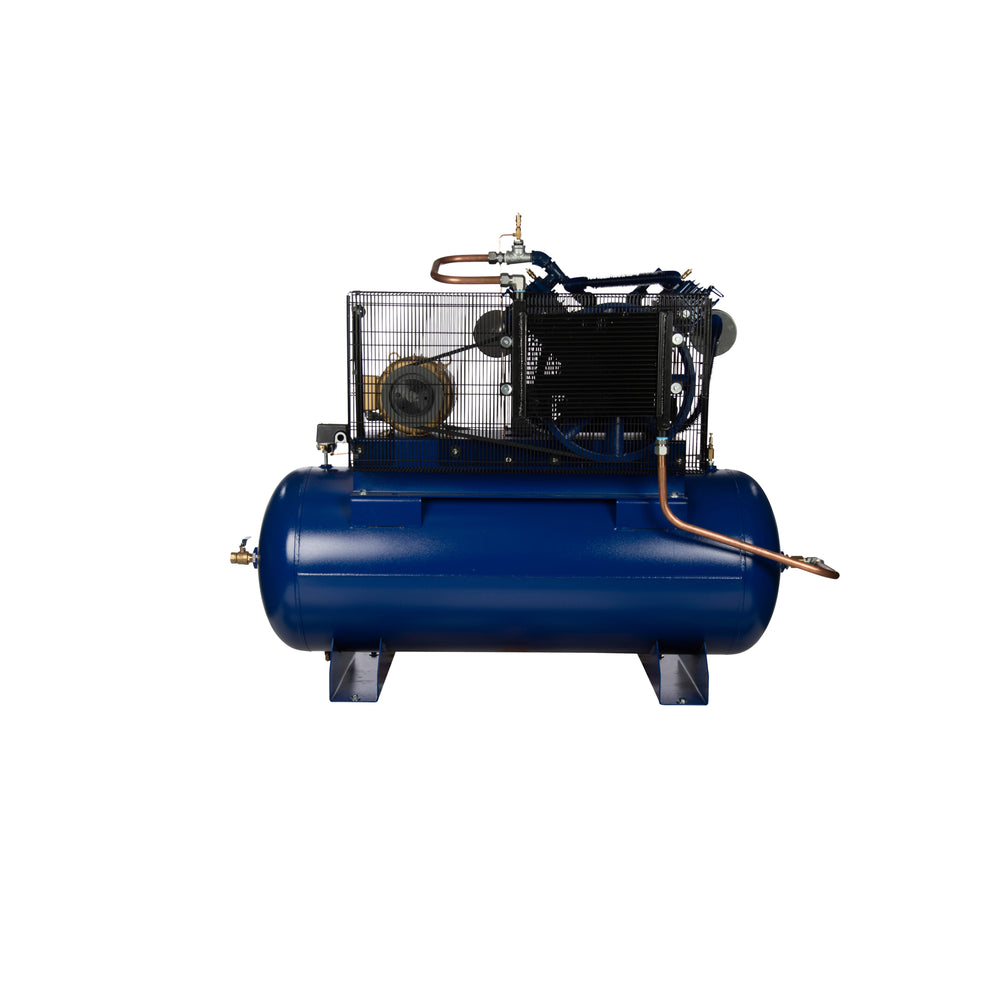

Quincy Compressor QT Air Compressor 15 HP, 120-Gal. Tank, 2-Stage, 460V 3-Phase New
Product Overview
Built for industrial applications, this Quincy QT two-stage air compressor pairs a 15 HP motor with a 120-gallon horizontal tank and requires 460V three-phase power. It delivers 54.4 CFM at 90 PSI and 51 CFM at its maximum pressure of 175 PSI, with a 100% duty cycle for continuous operation. The four-cylinder, belt-driven pump features cast iron cylinders, splash lubrication and a 50,000-hour pump life rating. A finned-tube intercooler, aluminum head and extra-capacity oil reservoir help dissipate heat and keep oil temperatures low. A mounted and wired magnetic starter, pressure gauge and easy-to-reach manual ball valve round out this U.S.A.-made compressor.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Heavy-duty industrial motor
- Industrial-duty general-purpose mounted and wired magnetic starter
- Less than 5 PPM oil carry-over (blow-by) rating
- 145-175 working PSI
- Pump RPM: 932
- 4-cylinder pump design
- Heavy-duty, easy-to-reach, manual ball valve
- 2-stage belt drive pump with solid cast iron cylinder
- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- Splash lubrication
- UL & CSA approval on all electrical components
- ASME-coded pressure relief valves and tanks
- Made in U.S.A
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 1045.0 LB |
| Horsepower | 15 HP |
| Air Tank Size | 120 Gal |
| Volts | 460 |
| CFM At 90 PSI | 54.4 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 21 |
| Duty Cycle | 100 % |
| Motor RPM | 932 |
| Working Pressure | 135-175 PSI |
| Engine Start Type | Electric |
| Motor Phase | 3 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
|---|---|
| Air Outlet Size | 1 in. NPT |
| CFM At Max. PSI | 51 |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Electronic Drain Valve | No |
| After Cooler Included | No |
| Drain Type | Manual |
| Tank Orientation | Horizontal |
| Product Weight | 995.0000 lb |
| Dimensions L X W X H (in.) | 72.0 x 28.0 x 54.0 in |
Package Contents
(1) Quincy QT-2, 15-HP 120 Gallon Two-Stage Air Compressor (460V-3-Phase) Horizontal PRO, Model # 4153DS12HCA46
Warranty
This item comes with a 1 year limited warranty.
