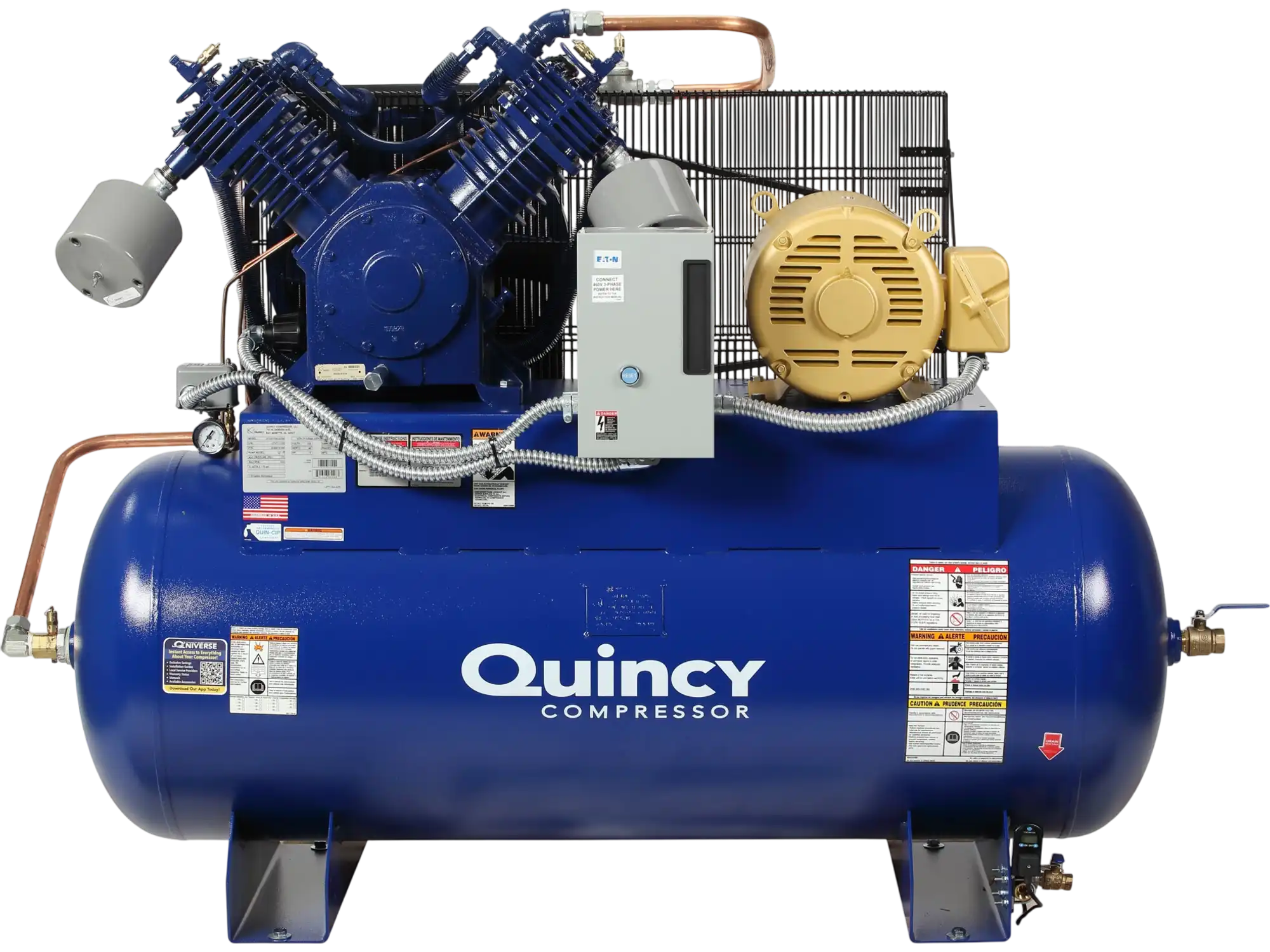

Quincy Compressor QT Air Compressor 15 HP, 120-Gal. Tank, 200V, 3-Phase, 2-Stage New
Product Overview
The Quincy Compressor QT two-stage air compressor pairs a 15 HP motor with a 120-gal. horizontal tank for industrial applications. Powered by 200V, three-phase electricity, it delivers 54.1 CFM at 90 PSI and 51 CFM at its maximum pressure of 175 PSI, with a 100% duty cycle for continuous operation. The cast iron pump features splash lubrication and a 50,000-hour pump life rating, while low oil shutdown helps protect it when oil levels drop. A finned tube intercooler, aluminum head and heavy-duty aftercooler help manage heat during operation. The MAX configuration also includes an automatic tank drain, and a mounted, wired magnetic starter is supplied for motor control.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- Heavy-duty industrial motor
- Industrial-duty general-purpose mounted and wired magnetic starter
- Less than 5 PPM oil carry-over (blow-by) rating

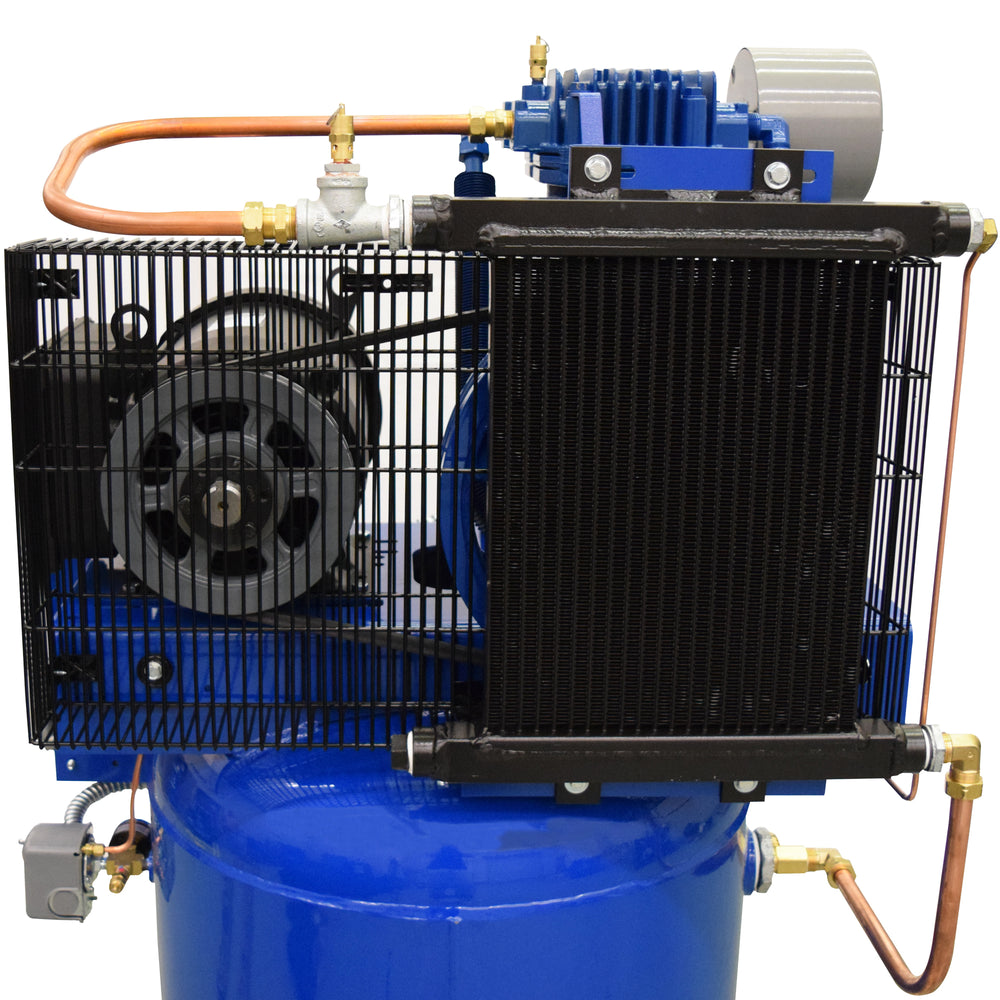

- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- Splash lubrication
- Low oil shutdown
- Heavy-duty aftercooler
- UL & CSA approval on all electrical components
- ASME-coded pressure relief valves and tanks
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 1035.0 LB |
| Horsepower | 15 HP |
| Air Tank Size | 120 Gal |
| Volts | 200 |
| CFM At 90 PSI | 54.1 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 48.3 |
| Duty Cycle | 100 % |
| Motor RPM | 932 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 3 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
| Air Outlet Size | 1 in. NPT |
|---|---|
| CFM At Max. PSI | 51 |
| Oil Required | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| After Cooler Included | Yes |
| Drain Type | Automatic |
| Tank Orientation | Horizontal |
| Product Weight | 995.0000 lb |
| Dimensions L X W X H (in.) | 71.0 x 30.0 x 55.0 in |
Package Contents
(1) Quincy QT 15-HP 120 Gallon Two-Stage Air Compressor (200V-3-Phase) Horizontal MAX
Warranty
This item comes with a 1 year limited warranty.
