Quincy Compressor QT Air Compressor 5 HP, 80-Gal. Tank, 2-Stage, 460V 3-Phase New
Product Overview

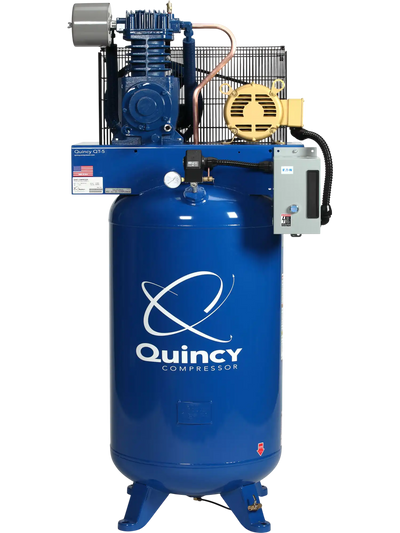

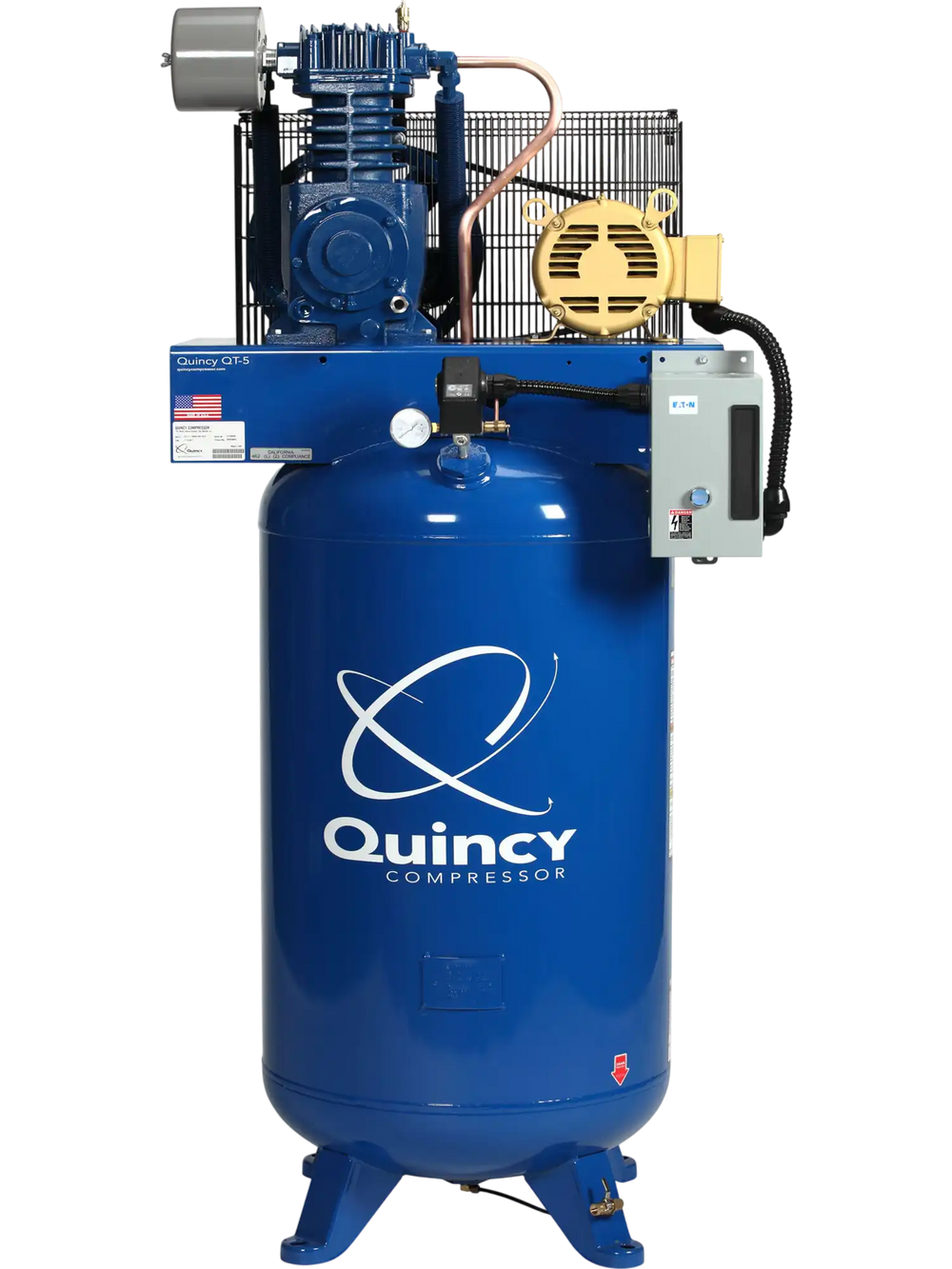

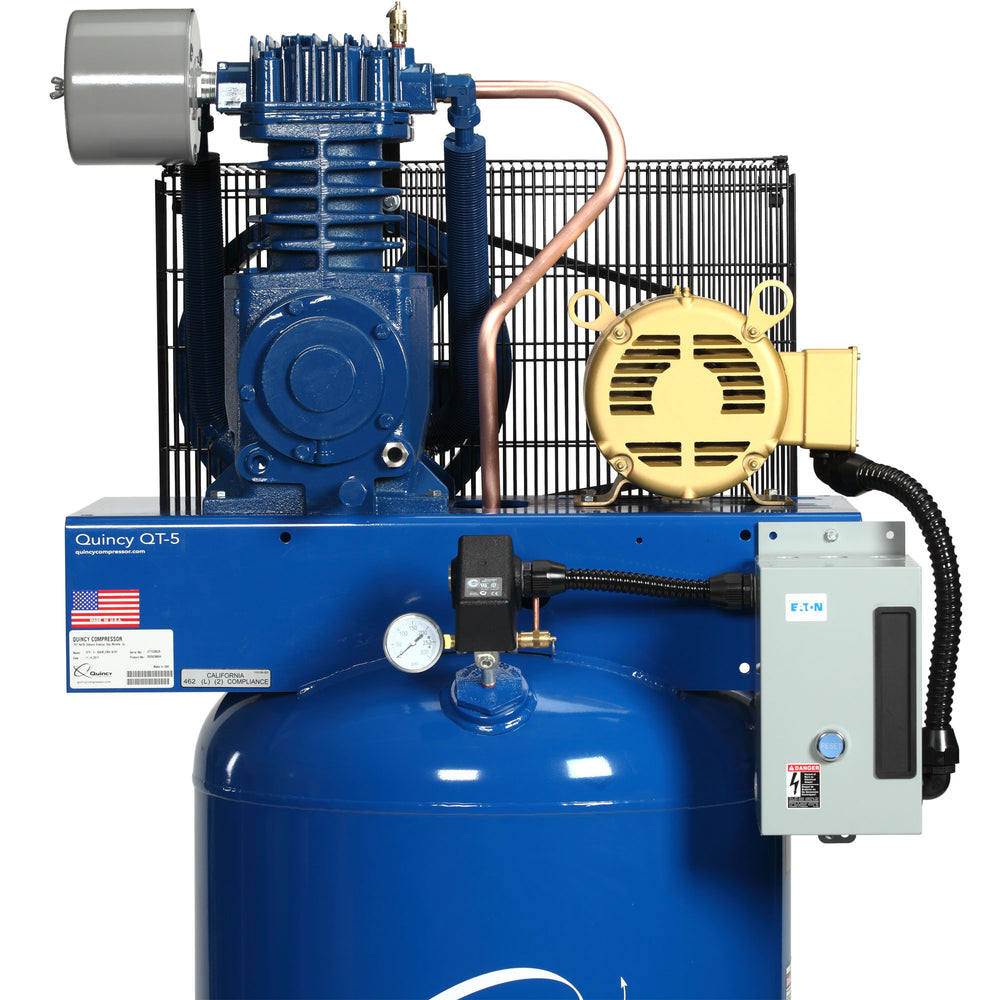

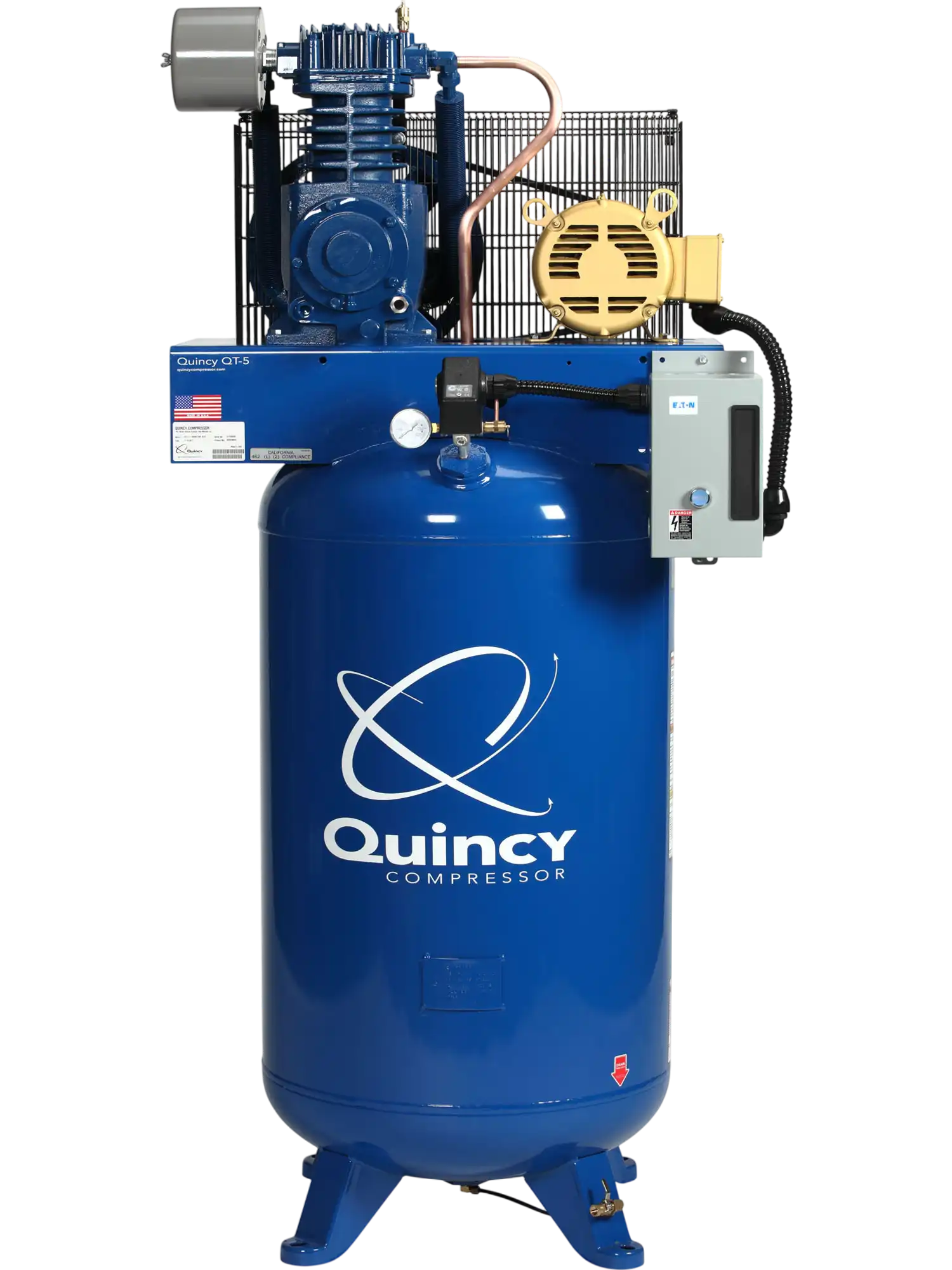

Built for industrial applications, this Quincy Compressor QT-1 two-stage air compressor pairs a 5 HP motor with an 80-gal. vertical tank and requires 460V three-phase power. It delivers 18 CFM at 90 PSI and operates at a working pressure of 135–175 PSI, with a 100% duty cycle for continuous operation. The belt-driven, two-cylinder pump features cast iron construction, splash lubrication and a 50,000-hour pump life rating. A finned tube intercooler and aluminum head help dissipate heat, while an extra-capacity oil reservoir helps keep oil temperatures low. Made in the U.S.A., it includes an industrial-duty U.S.-made motor, a mounted and wired magnetic starter, and an easy-to-reach manual ball valve.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- Industrial-duty US-made motor

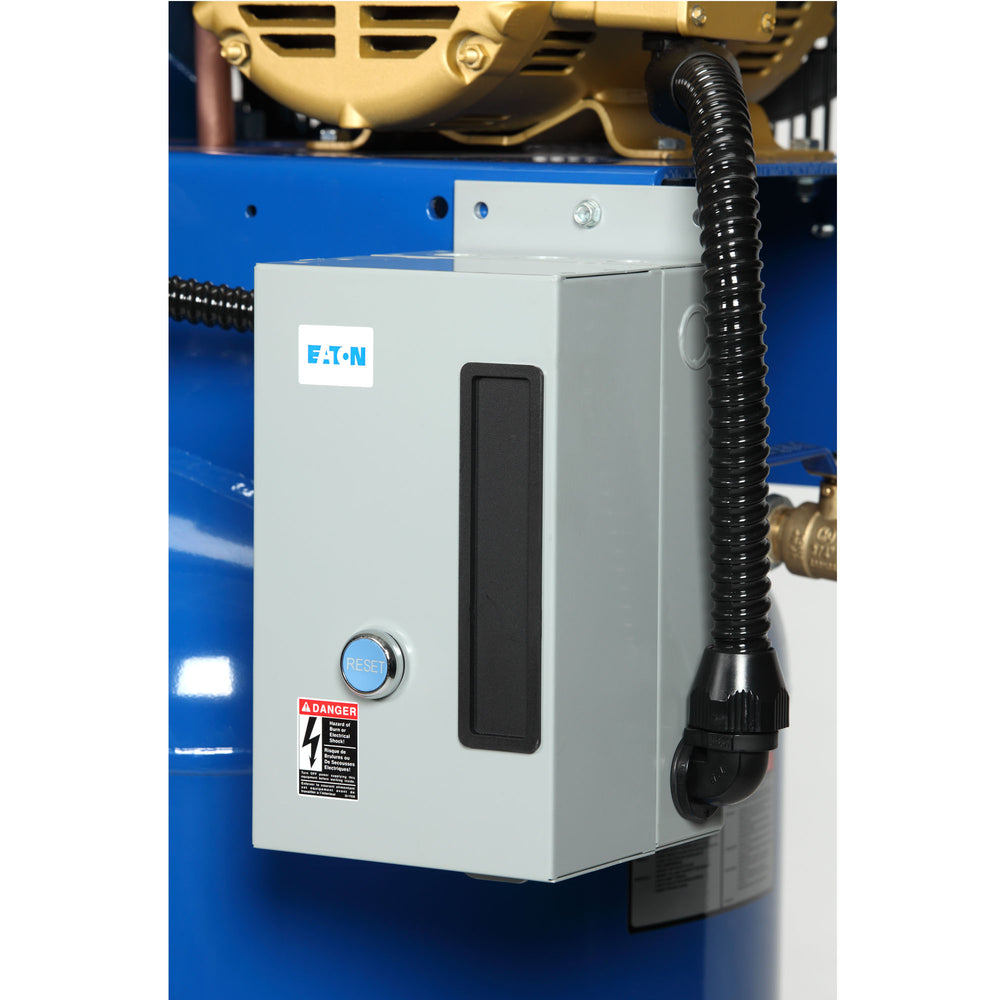

- Mounted and wired magnetic starter
- Less than 5 PPM oil carry-over (blow-by) rating
- 135-175 working PSI
- Pump RPM: 685
- 2-cylinder pump design
- Heavy-duty, easy-to-reach, manual ball valve
- 2-stage belt drive pump with solid cast iron cylinder
- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- Splash lubrication
- UL & CSA approval on all electrical components
- ASME-coded pressure relief valves and tanks
- Ships in heavy-duty protective crate with oil in the pump
- Made in U.S.A
Specifications
| Ship Weight | 601.0 LB |
|---|---|
| Horsepower | 5 HP |
| Air Tank Size | 80 Gal |
| Volts | 460 |
| CFM At 90 PSI | 18 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 28 |
| Duty Cycle | 100 % |
| Motor RPM | 1,725 |
| Working Pressure | 135-175 PSI |
| Engine Start Type | Electric |
| Motor Phase | 3 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
| Air Outlet Size | 3/4 in. NPT |
| CFM At Max. PSI | 17.4 |
|---|---|
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Electronic Drain Valve | No |
| After Cooler Included | No |
| Tank Fill Time | 7.3 min |
| Air Dryer | None |
| Drain Type | Manual |
| Tank Orientation | Vertical |
| Product Weight | 561.0000 lb |
| Dimensions L X W X H (in.) | 35.0 x 28.0 x 77.0 in |
Package Contents
(1) Quincy QT 5-HP 80 Gallon Two-Stage Air Compressor (460V-3-Phase) Vertical PRO, Model # 453DS80VCB46
Warranty
This item comes with a 1 year limited warranty.
