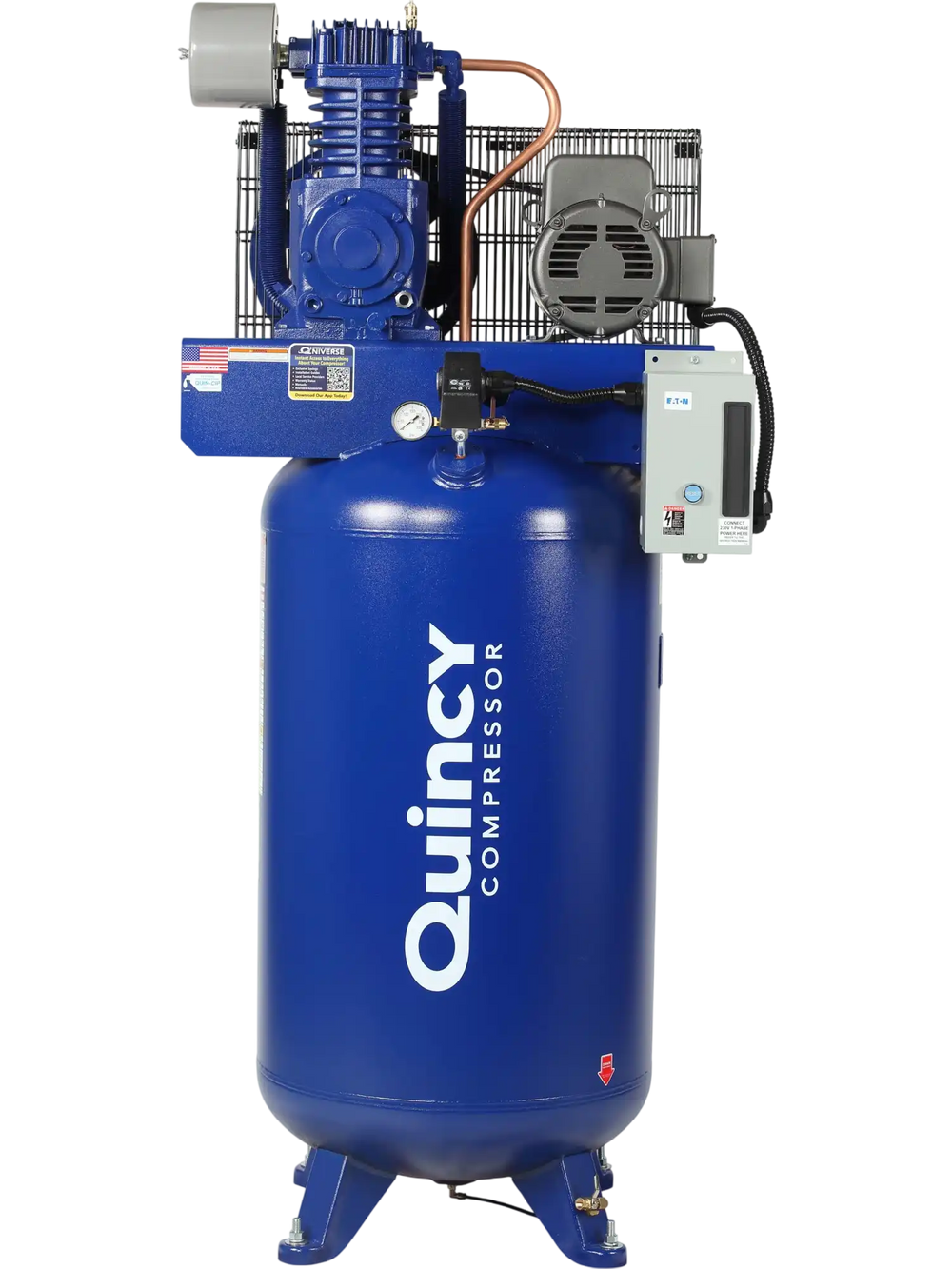

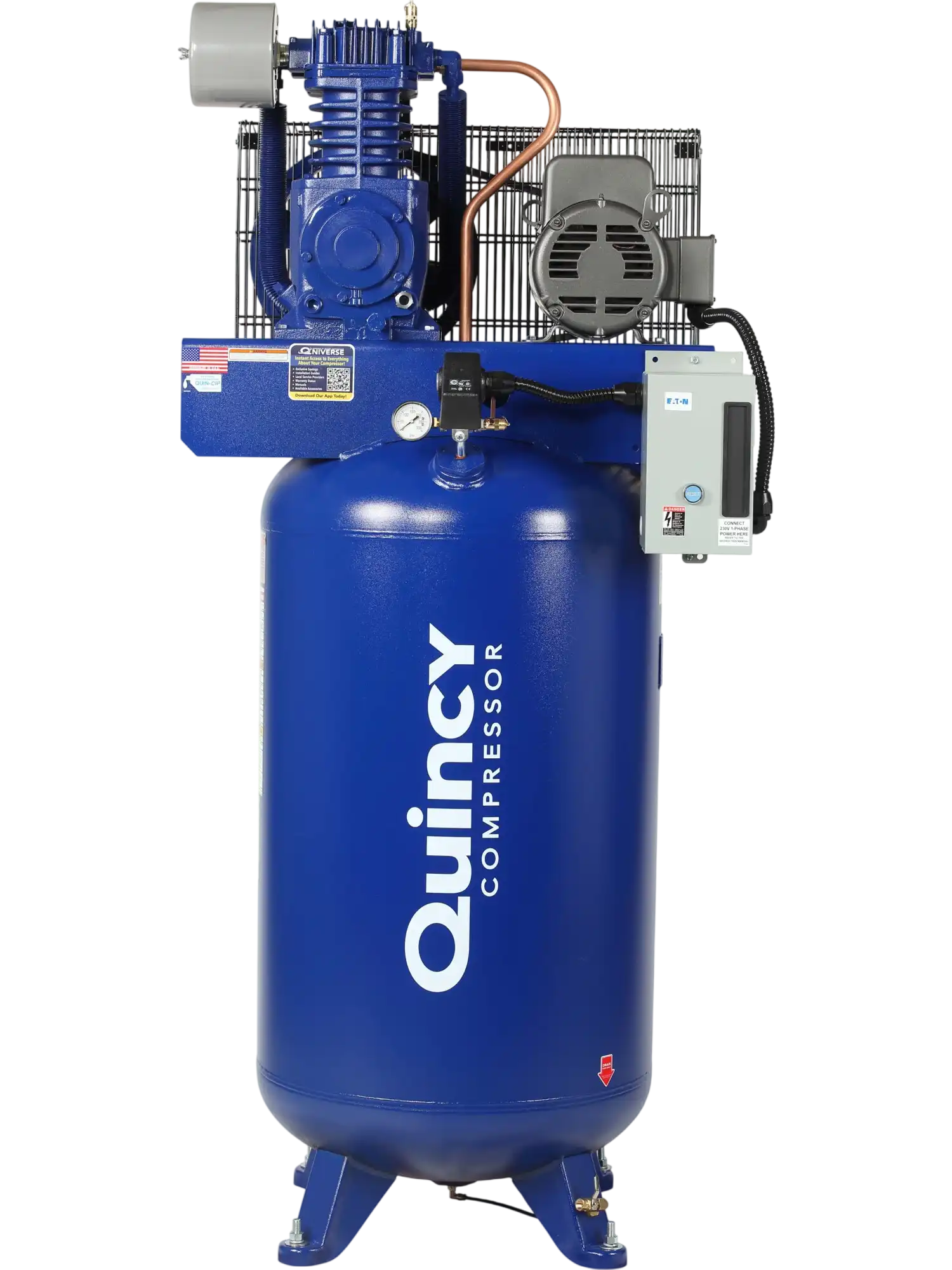

Quincy Compressor QT Air Compressor 5 HP, 80-Gallon Tank, 2-Stage, 230V, 3-Phase New
Manufacturer: Quincy Compressor
SKU: 2020040702
QTY
or
(888) 999-1522
$ 4,899.44
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Quincy Compressor QT Air Compressor 5 HP, 80-Gallon Tank, 2-Stage, 230V, 3-Phase New
Product Overview

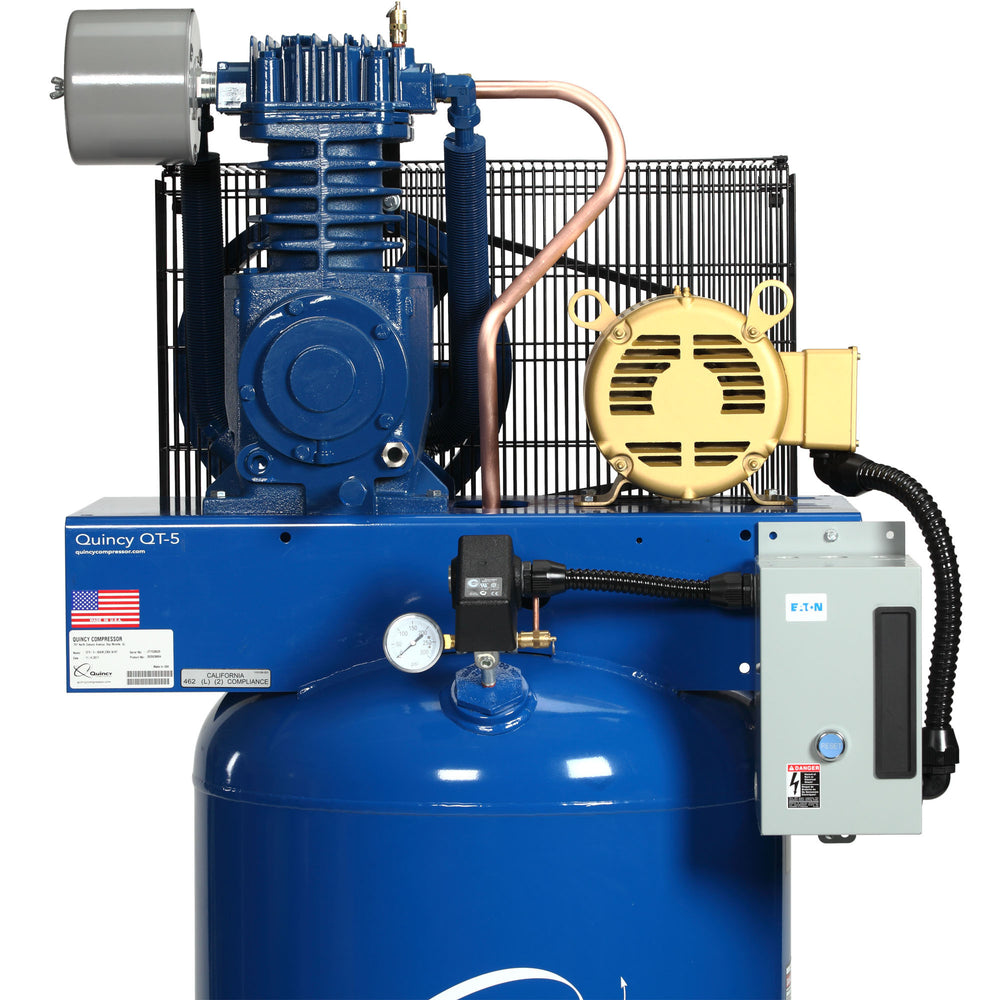

Built for industrial applications, this Quincy Compressor QT air compressor pairs a 5 HP, 230V, 3-phase motor with an 80-gallon vertical tank. Its two-stage, belt-driven cast iron pump delivers 18 CFM at 90 PSI and 17.4 CFM at its maximum pressure of 175 PSI, with a 100% duty cycle for continuous operation. A finned tube intercooler, aluminum head and extra-capacity oil reservoir help manage heat during use. The industrial-duty, U.S.-made motor comes with a mounted and wired magnetic starter, while a pressure gauge and easy-to-reach manual ball valve support routine operation. Made in the U.S.A., the compressor features splash lubrication and a pump rated for 50,000 hours of life.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- Industrial-duty US made motor

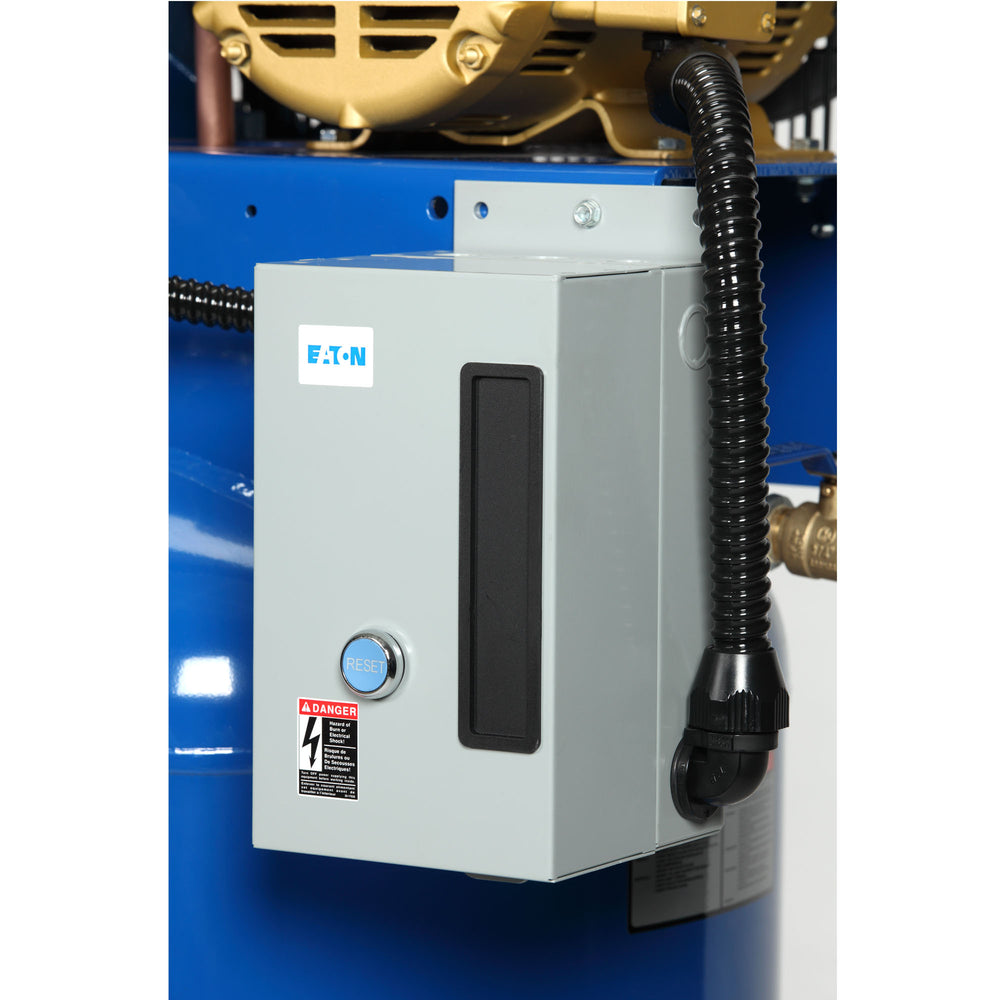

- Mounted and wired magnetic starter
- Less than 5 PPM oil carry-over (blow-by) rating
- 135-175 working PSI
- Pump RPM: 658
- 2-cylinder pump design
- Heavy-duty, easy-to-reach, manual ball valve
- 2-stage belt drive pump with solid cast iron cylinder
- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- Splash lubrication
- UL & CSA approval on all electrical components
- ASME-coded pressure relief valves and tanks
- Ships in heavy-duty protective crate with oil in the pump
- Made in U.S.A
Specifications
| Brand | Quincy Compressor |
|---|---|
| Ship Weight | 601.0 LB |
| Horsepower | 5 HP |
| Air Tank Size | 80 Gal |
| Volts | 230 |
| CFM At 90 PSI | 18 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 28 |
| Duty Cycle | 100 % |
| Motor RPM | 1,725 |
| Working Pressure | 135-175 PSI |
| Engine Start Type | Electric |
| Motor Phase | 3 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
| Air Outlet Size | 3/4 in. NPT |
|---|---|
| CFM At Max. PSI | 17.4 |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Electronic Drain Valve | No |
| After Cooler Included | No |
| Drain Type | Manual |
| Tank Orientation | Vertical |
| Product Weight | 561.0000 lb |
| Dimensions L X W X H (in.) | 35.0 x 28.0 x 77.0 in |
Package Contents
(1) Quincy QT-1, 5-HP 80 Gallon Two-Stage Air Compressor (230V-3-Phase) Vertical PRO, Model # 453DS80VCB23
Warranty
This item comes with a 1 year limited warranty.
