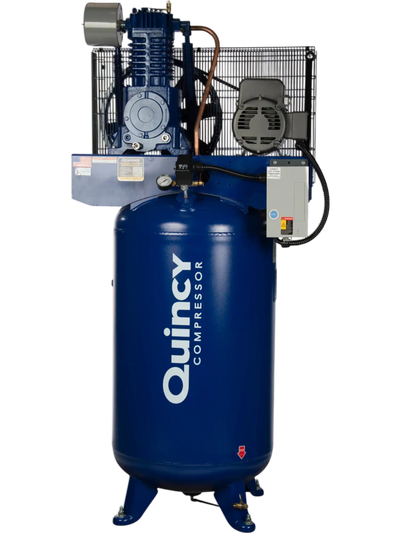

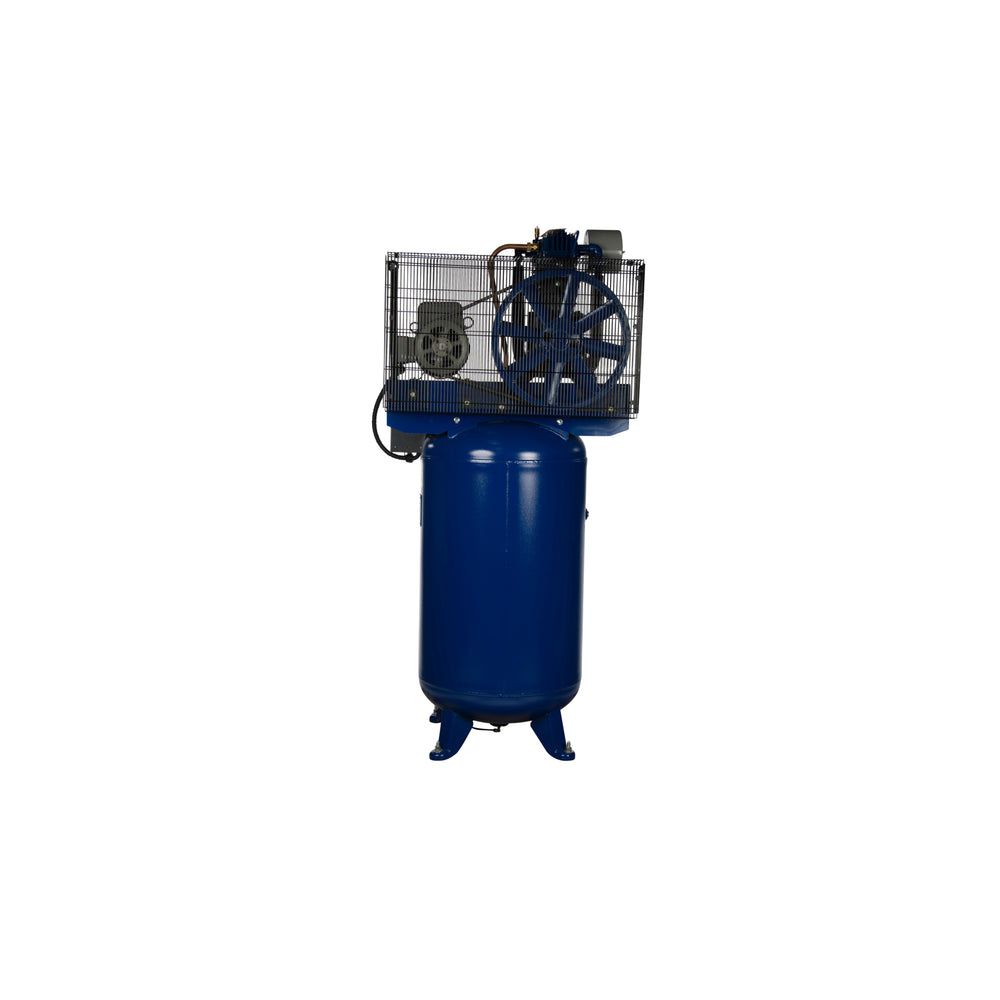

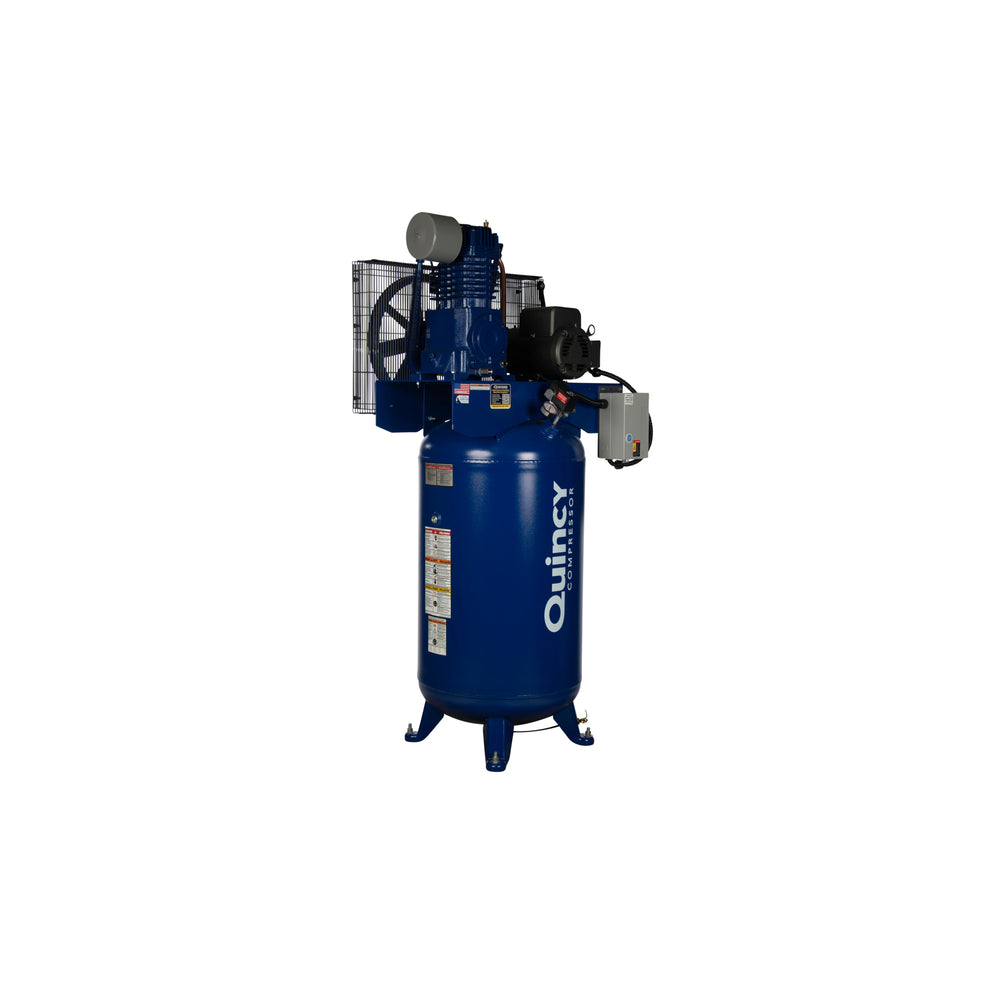

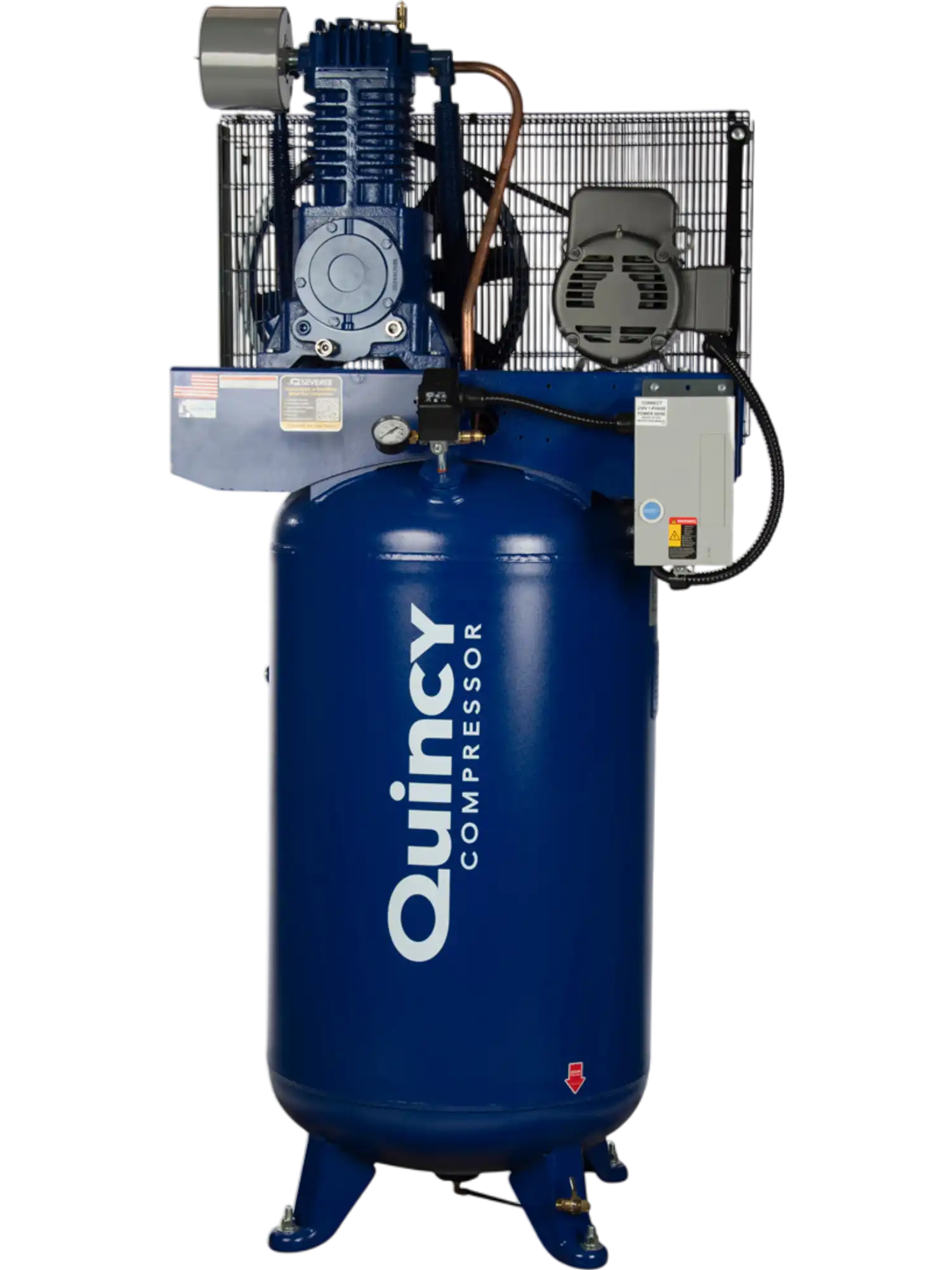

Quincy Compressor QT Air Compressor 7.5 HP, 80-Gal. Tank, 200V, 3-Phase, 2-Stage New
Product Overview
Built for industrial applications, this Quincy Compressor two-stage air compressor pairs a 7.5 HP motor with an 80-gal vertical tank. It operates on 200V, 3-phase power and delivers 23.6 CFM at 90 PSI and 22.6 CFM at its maximum pressure of 175 PSI. The belt-driven pump features a solid cast iron cylinder, splash lubrication and a 100% duty cycle for continuous operation. A finned tube intercooler, aluminum head and extra-capacity oil reservoir help manage heat during use. Made in the U.S.A., it includes a mounted and wired magnetic starter, a pressure gauge and an easy-to-reach manual ball valve for draining.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- Industrial-duty USA made motor
- Mounted and wired magnetic starter
- Less than 5 PPM oil carry-over (blow-by) rating
- 135-175 working PSI
- Pump RPM: 896
- 2-cylinder pump design
- Heavy-duty, easy-to-reach, manual ball valve
- 2-stage belt drive pump with solid cast iron cylinder
- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- Splash lubrication
- UL & CSA approval on all electrical components
- ASME-coded pressure relief valves and tanks
- Made in U.S.A
Specifications
| Ship Weight | 643.0 LB |
|---|---|
| Horsepower | 7.5 HP |
| Air Tank Size | 80 Gal |
| Volts | 200 |
| CFM At 90 PSI | 23.6 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 40 |
| Duty Cycle | 100 % |
| Motor RPM | 1,725 |
| Working Pressure | 135-175 PSI |
| Engine Start Type | Electric |
| Motor Phase | 3 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
| Air Outlet Size | 3/4 in. NPT |
| CFM At Max. PSI | 22.6 |
|---|---|
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Electronic Drain Valve | No |
| After Cooler Included | No |
| Air Dryer | None |
| Drain Type | Manual |
| Tank Orientation | Vertical |
| Product Weight | 593.0000 lb |
| Dimensions L X W X H (in.) | 35.0 x 28.0 x 77.0 in |
Package Contents
(1) Quincy QT 7.5-HP 80 Gallon Two-Stage Air Compressor (200V-3-Phase) Vertical PRO, Model # 473DS80VCB20
Warranty
This item comes with a 1 year limited warranty.
