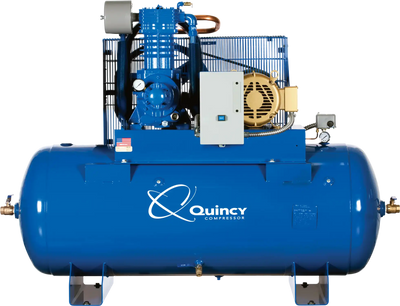

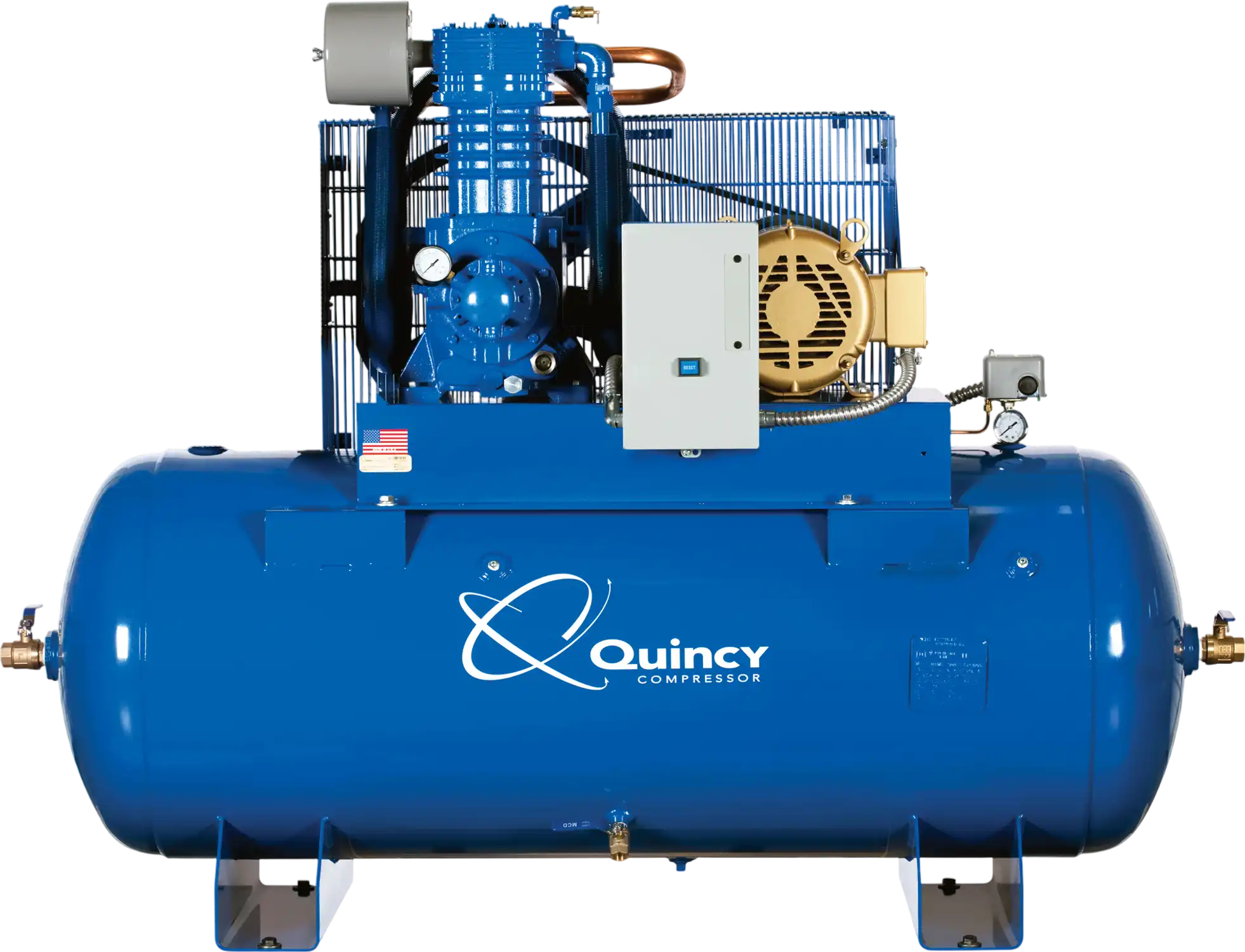

Quincy Compressor QT Air Compressor 7.5 HP, 80-Gal. Tank, Two-Stage, 230V, 1-Phase New
Product Overview
The Quincy Compressor QT two-stage air compressor pairs a 7.5 HP motor with an 80-gallon horizontal tank for industrial applications. Operating on 230V single-phase power, it delivers 24.4 CFM at 90 PSI and 23.6 CFM at its maximum pressure of 175 PSI. A cast iron pump with splash lubrication carries a 50,000-hour pump life rating, while the 100% duty cycle supports continuous operation. Low-oil shutdown and motor overload protection help protect the equipment during use. The MAX configuration includes an automatic tank drain and air-cooled aftercooler, with isolator pads included for the horizontal setup.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- ODP Motor
- Motor Overload Protection
- Automatic Tank Drain
- Automatic Start/Stop 5 to 7.5 hp
- Dual Control on 10-15 hp
- Low Oil Level Shutdown
- Air Cooled Aftercooler
- Isolator pads on horizontals
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 750.0 LB |
| Horsepower | 7.5 HP |
| Air Tank Size | 80 Gal |
| Volts | 230 |
| CFM At 90 PSI | 24.4 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 40 |
| Duty Cycle | 100 % |
| Motor RPM | 896 |
| Working Pressure | 135-175 PSI |
| Motor Phase | 1 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
| Air Outlet Size | 3/4 in. NPT |
|---|---|
| CFM At Max. PSI | 23.6 |
| Oil Required | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| After Cooler Included | Yes |
| Drain Type | Automatic |
| Tank Orientation | Horizontal |
| Product Weight | 720.0000 lb |
| Dimensions L X W X H (in.) | 67.0 x 30.0 x 49.0 in |
Package Contents
(1) Quincy QT 7.5-HP 80 Gallon Two-Stage Air Compressor (230V-1-Phase) Horizontal MAX
Warranty
This item comes with a 1 year limited warranty.
