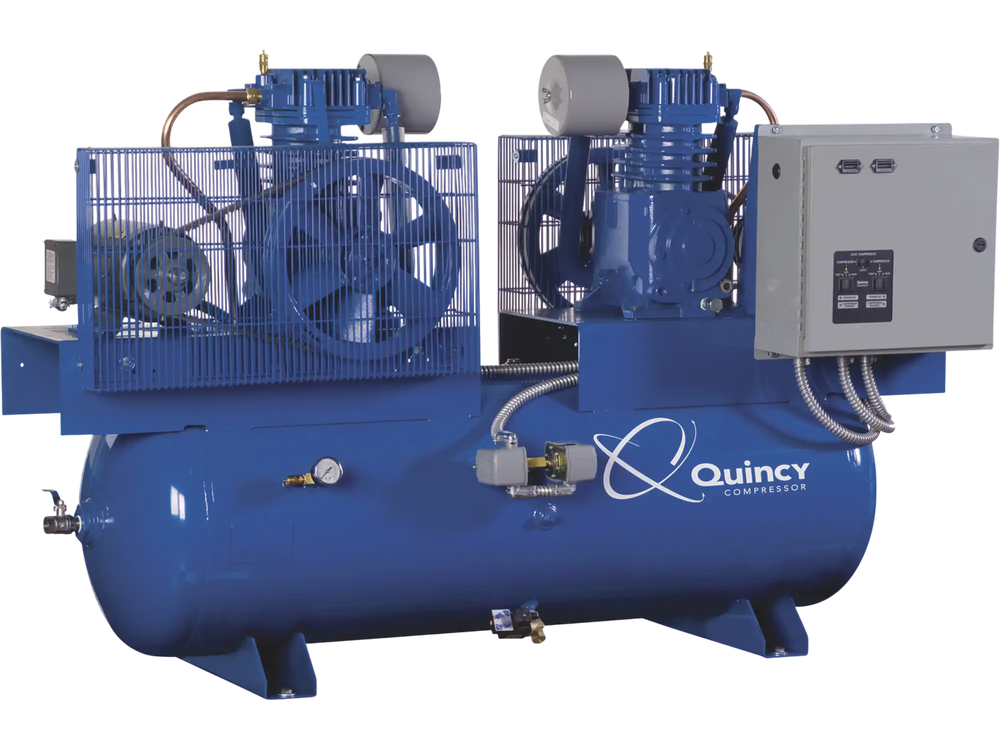

Quincy Compressor QT Duplex Air Compressor 7.5 HP, 460 Volt, 3-Phase, 120-Gallon Horizontal, Splash Lubricated New
Manufacturer: Quincy Compressor
SKU: 2020040935
QTY
or
(888) 999-1522
$ 13,582.40
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

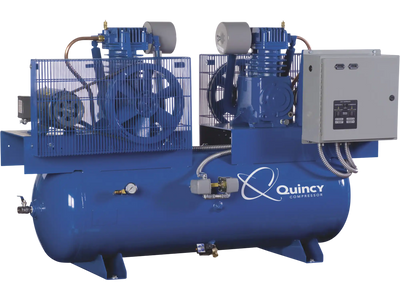

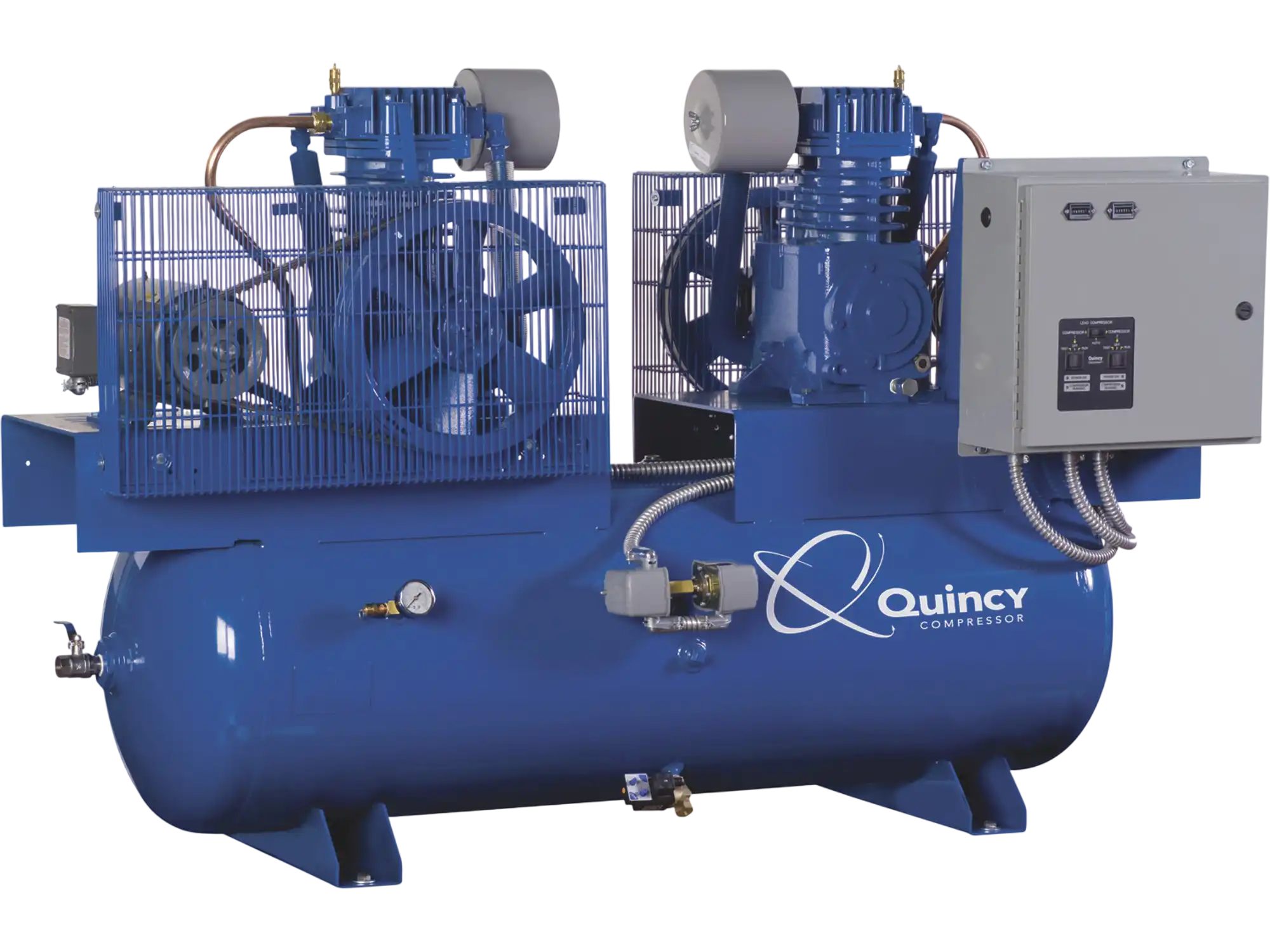

Quincy Compressor QT Duplex Air Compressor 7.5 HP, 460 Volt, 3-Phase, 120-Gallon Horizontal, Splash Lubricated New
Product Overview
The Quincy Compressor QT duplex air compressor combines two splash-lubricated compressors and two motors on a 120-gallon horizontal ASME tank. Its two-stage system features cast iron pumps, 7.5 HP motors and 460V, 3-phase power, with support for applications ranging from intermittent use to a 100% duty cycle. Run the systems independently or together to match air demand, with both operating to deliver 45.2 CFM at pressures up to 175 PSI. Automatic lead/lag alternation, thermal overload protection, hour meters and motor fault indicators help simplify operation and monitoring. The compressor pumps come filled with oil for hookup, and a single-point incoming power connection simplifies electrical installation.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- 7.5 HP motor
- 460 (240)V, 3 Phase
- 120-gallon tank
- QT splash-lubricated pump
- Provides up to 175 PSI and delivers 45.2 CFM when both pump/motor systems are operating
- 50,000-hour pump life
- Solid-state circuitry control panel with two I.E.C.-rated magnetic starters and auxiliary contacts
- Thermal overload protection
- One 120 VAC control transformer
- Automatic alternation with lead/lag
- Green LED Power On indicators
- Compressor Run indicators
- Test/off/run rocker switches
- Lead select/auto switch
- Hour meters
- Red LED motor fault indicators
- Fault/shutdown alarm contacts for start/stop operation
- Single point incoming power connection
- Comes with oil in the compressor pumps, ready for hookup
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 12 months parts/12months labor |
| Ship Weight | 1310.0 LB |
| Horsepower | 7.5 HP |
| Air Tank Size | 120 Gal |
| Volts | 460 |
| CFM At 90 PSI | 30 |
| Max. PSI | 175 |
| Stage | 2 |
| Duty Cycle | 100 % |
| Motor Phase | 3 |
|---|---|
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
| CFM At Max. PSI | 45.2 |
| Oil Required | Yes |
| Dimensions L X W X H (in.) | 78.0 x 28.0 x 55.0 in |
Package Contents
(1) Quincy Compressor, QNCY 7.5 HP DUPLEX THREE PHASE, Horsepower 7.5 HP, Air Tank Size 120 Gal, Volts 460 Model# 473DC12DC46
Warranty
This item comes with a 1 year limited warranty.
