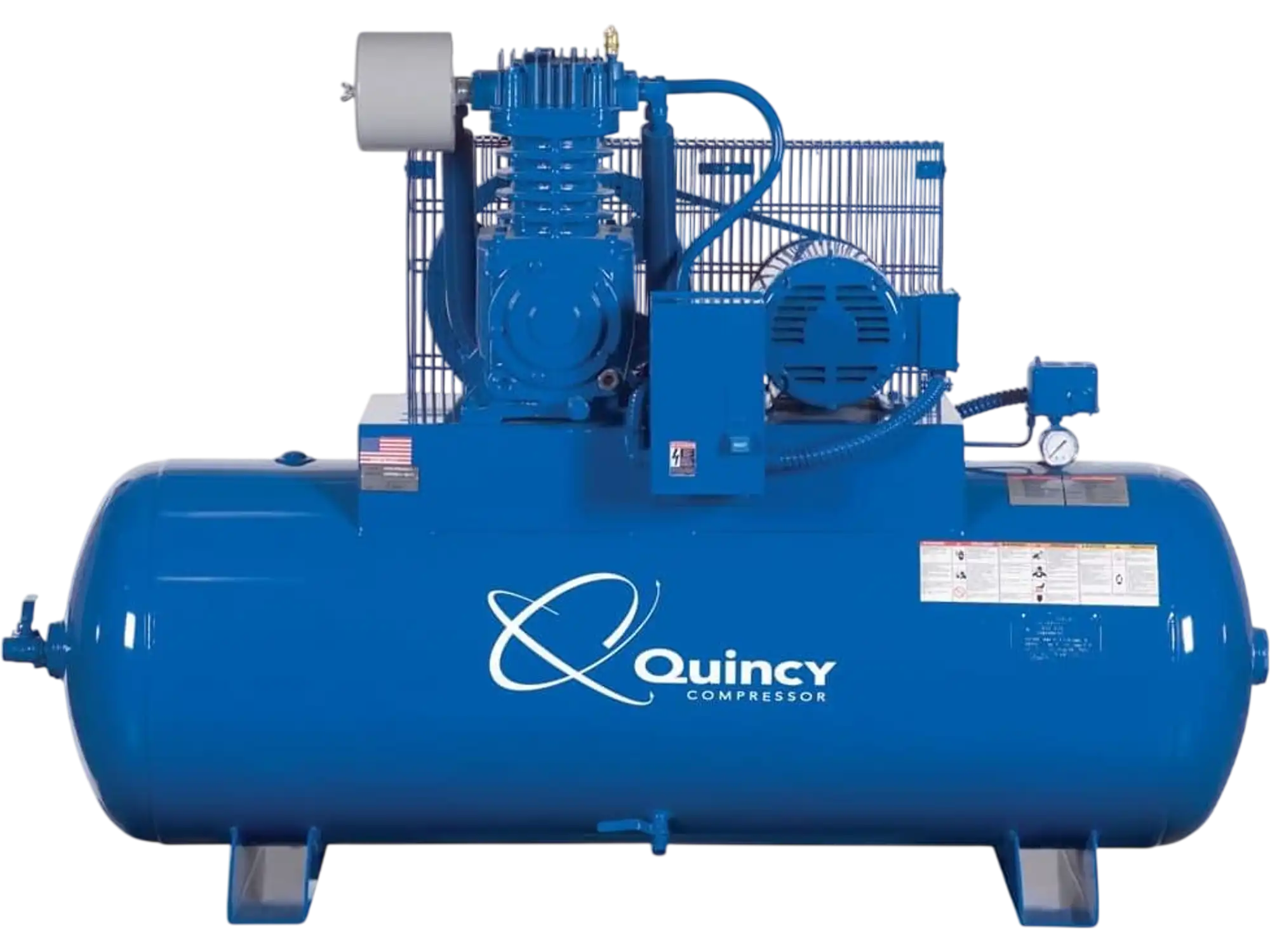

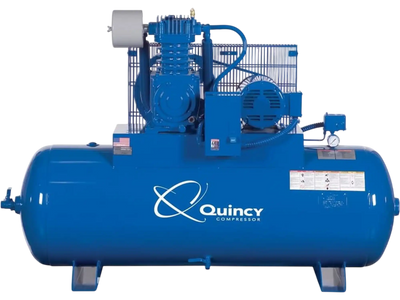

Quincy Compressor QT Pro Reciprocating Air Compressor 5 HP 80 Gal 175 Max PSI 230 Volt 3 Phase New
Product Overview
The Quincy Compressor 453DS80HCB23 is a commercial-grade, two-stage reciprocating air compressor with a 5 HP motor and stationary configuration. Its 80-gallon horizontal tank pairs with an air delivery rating of 17.2 CFM at 175 PSI, which is also its maximum operating pressure. The belt-driven unit runs on 230-volt, three-phase electrical power and uses a magnetic starting system. The pump features an aluminum head, cast iron construction and splash lubrication, with an oil sight glass for checking the oil level. A 3/4" tank outlet provides the air connection, and the compressor carries ASME, CSA and UL certifications.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer

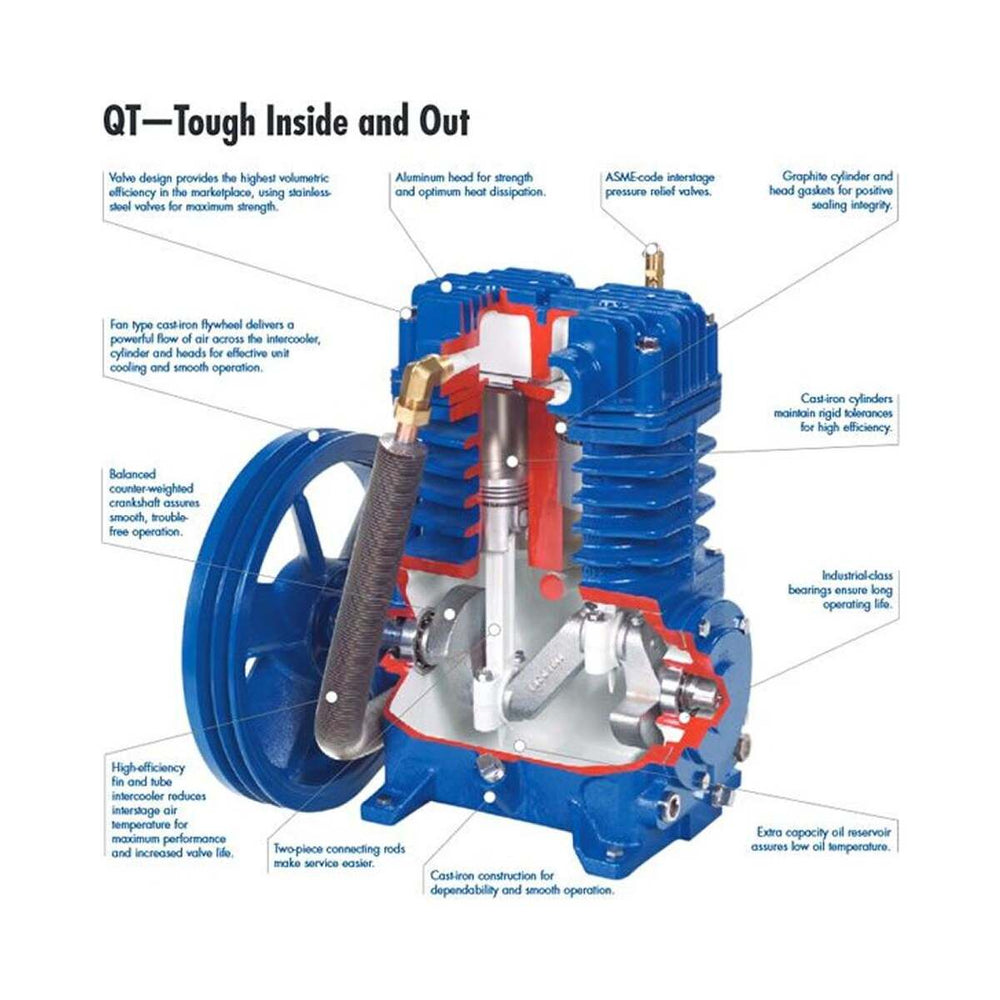

Features
- Oil Sight Glass Included
- Splash Lubricated
- Cast-iron Crankcase, Cylinders and Flywheel
- Stainless-Steel Reed Valves with Valve Bumpers
- Ductile Iron, Double Throw Crankshaft
- Industrial Ball Bearings
- Two-Piece Aluminum Connecting Rods
- Fin and Tube Intercooler
- Automotive Style Inlet Filter/Silencer
Specifications
| CFM | 17.2 |
|---|---|
| Height | 47 in. |
| Length | 70 in. |
| Product Weight | 660 lbs. |
| Width | 23 in. |
| After Cooler Included | No |
| Air Dryer Included | No |
| CFM Rated @ | 175 PSI |
| Electronic Drain Valve Included | No |
| Lubrication Type | Oil Lubricated |
| Mounting Type | Stationary |
| Oil Sight Glass Included | Yes |
| Oil System Type | Splash Lubricated |
| Pump Low Oil Shutdown | No |
| Pump Material | Aluminum Head, Cast Iron |
| Tank Orientation | Horizontal |
| Tank Outlet Size | 3/4" |
| Tank Size | 80 |
|---|---|
| Tank Type | Hot Dog |
| Amperage | 15.2 |
| Drive Type | Belt Drive |
| Electrical Phases | 3 |
| Fuel Type | Electric |
| Grade | Commercial |
| Horsepower | 5 |
| Maximum Operating Pressure (PSI) | 175 |
| Stages | Two-Stage |
| Starting System | Magnetic Start |
| Voltage | 230 |
| Certifications | ASME, CSA, UL |
Warranty
This item comes with a 1 year factory warranty.
