Quincy Compressor QT Pro Two-Stage Air Compressor 5 HP, 80-Gallon, 200V 3-Phase New
Product Overview

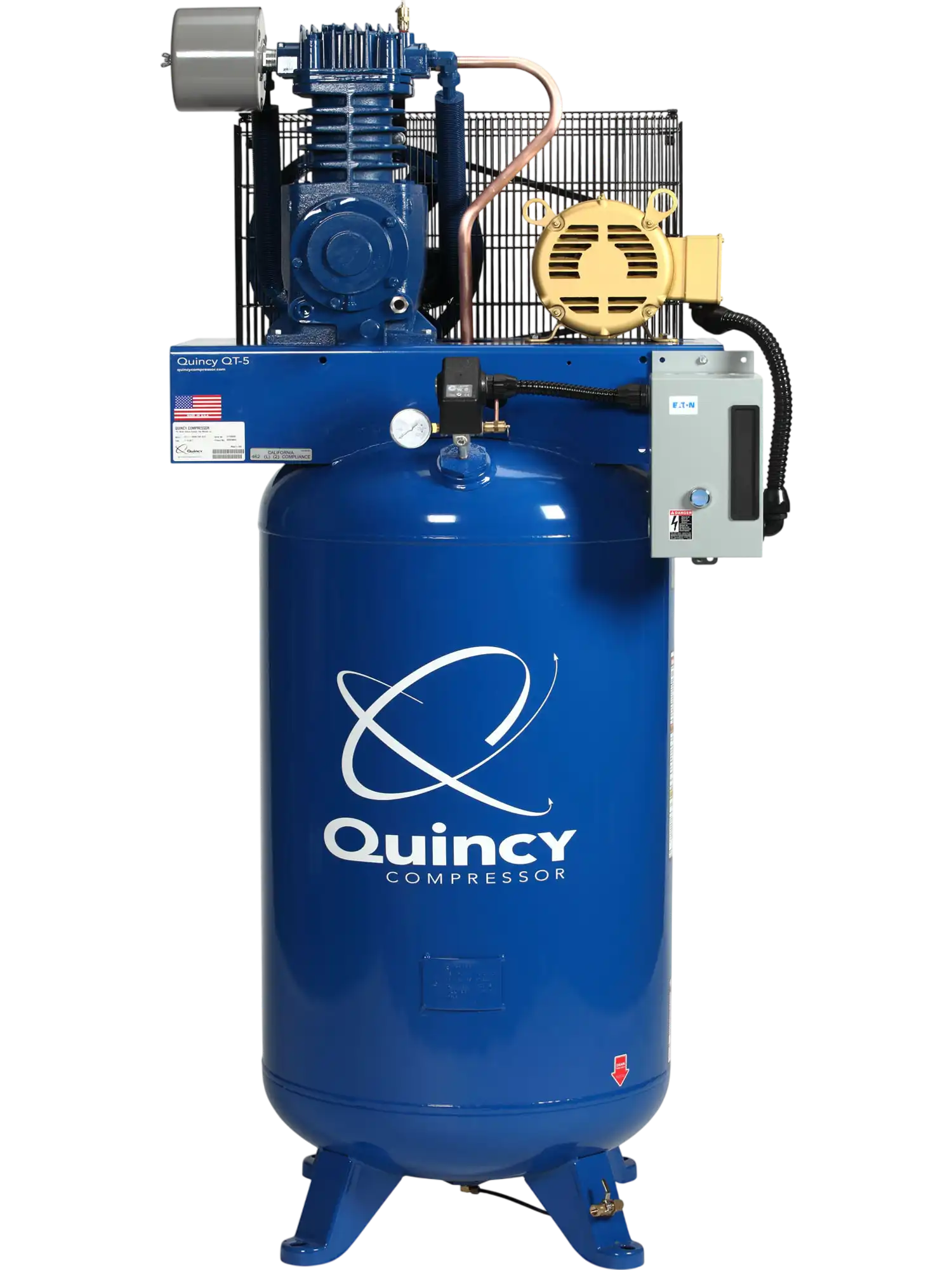

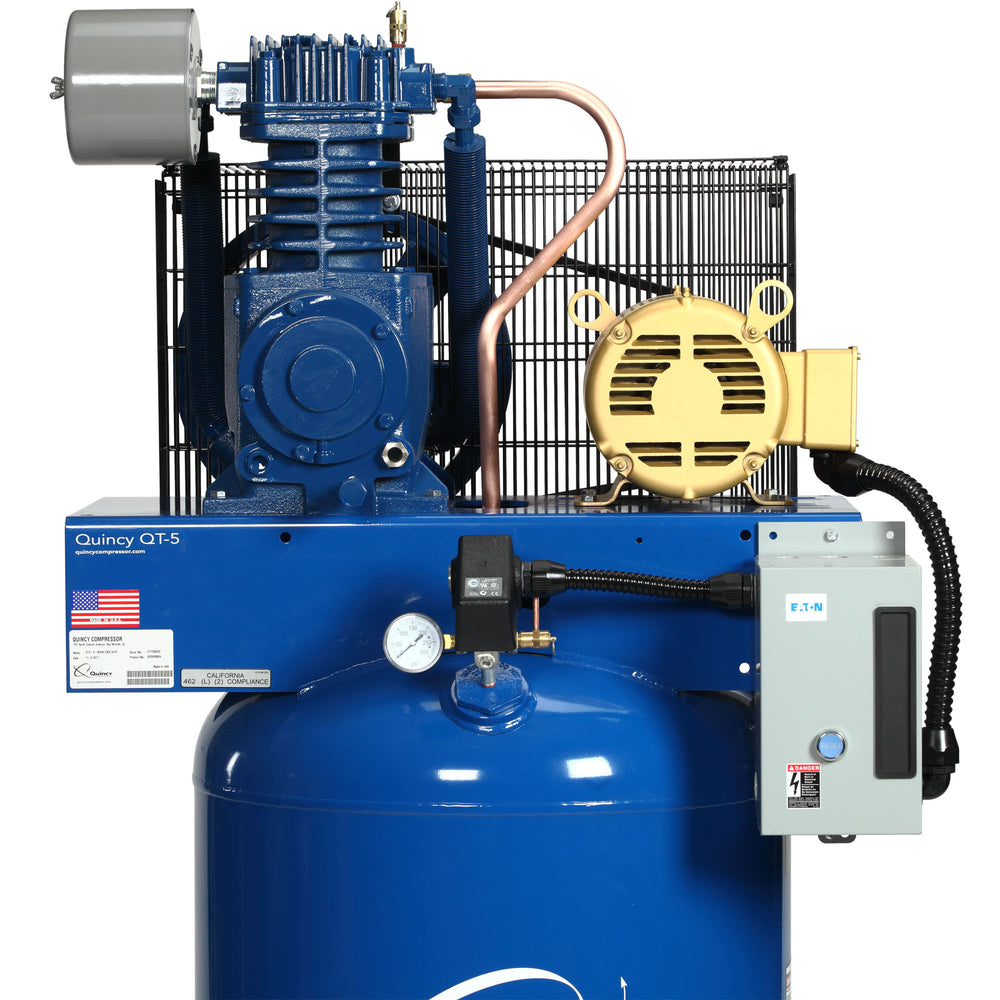

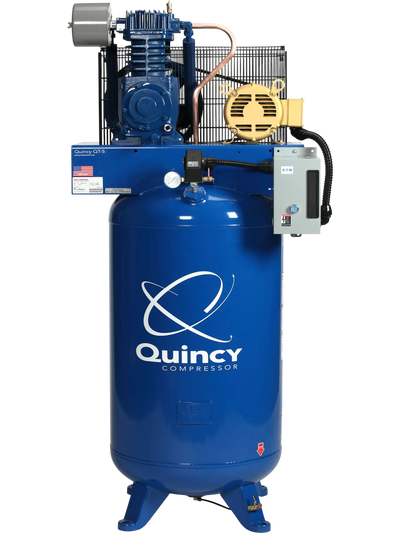

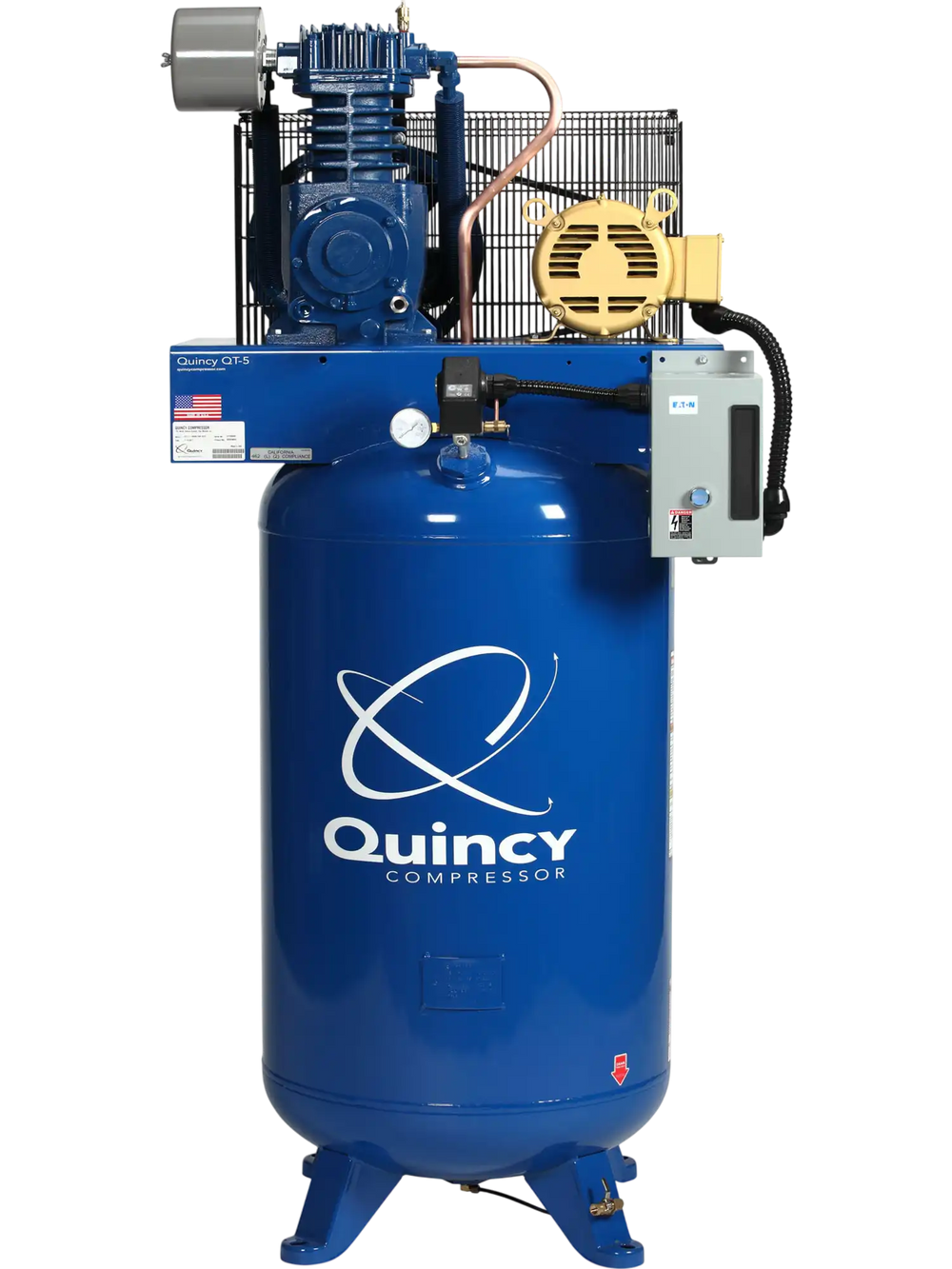

The Quincy Compressor QT Pro two-stage air compressor pairs a 5 HP industrial-duty motor with an 80-gallon vertical tank and 200V three-phase power. It delivers 18 CFM at 90 PSI and 17.4 CFM at its maximum pressure of 175 PSI, with a 100% duty cycle for continuous operation. The belt-driven, two-cylinder pump features cast iron construction and splash lubrication, with a 50,000-hour pump life rating. A finned tube intercooler, aluminum head and extra-capacity oil reservoir help manage heat during operation. A mounted and wired magnetic starter, pressure gauge and easy-to-reach manual ball valve round out this U.S.A.-made compressor.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
- Industrial-duty motor

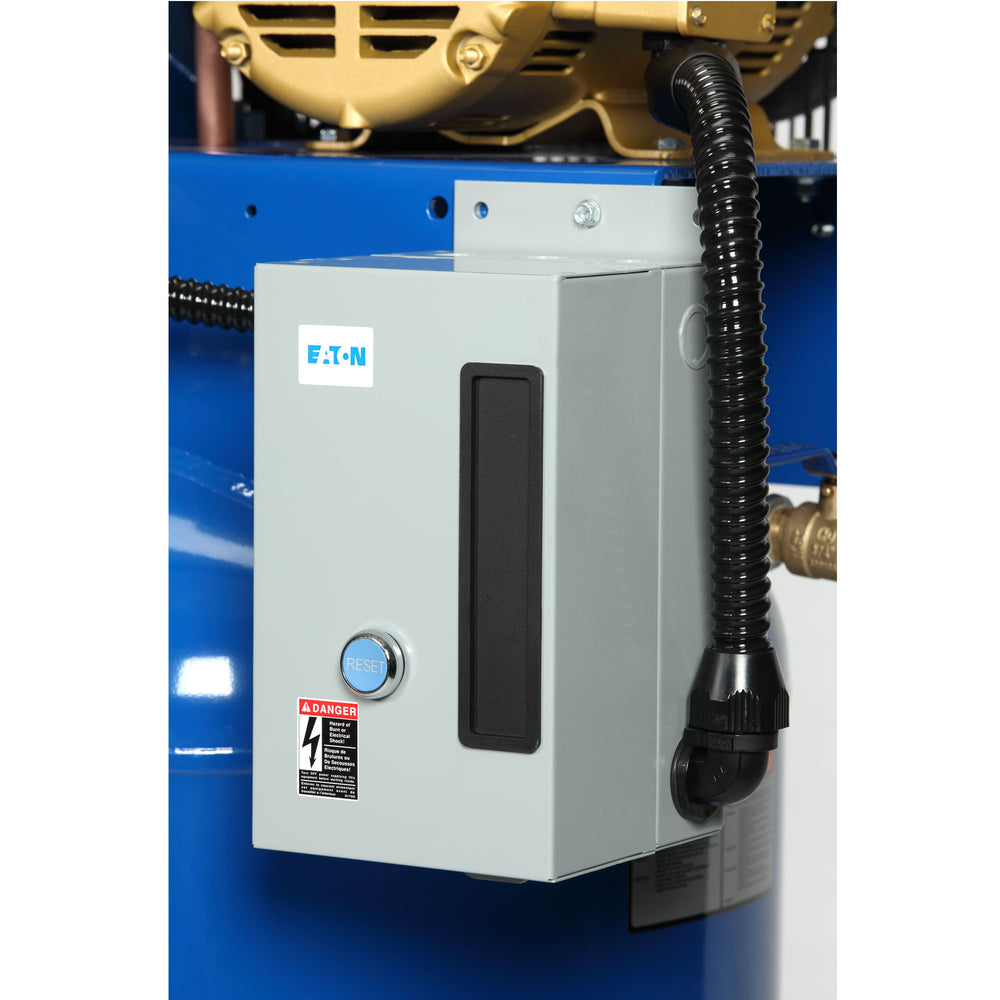

- Industrial-duty general-purpose mounted and wired magnetic starter
- Less than 5 PPM oil carry-over (blow-by) rating
- 145-175 working PSI
- Pump RPM: 658
- 2-cylinder pump design
- Heavy-duty, easy-to-reach, manual ball valve
- 2-stage belt drive pump with solid cast iron cylinder
- Finned tube intercooler for maximum cooling and increased valve life
- Aluminum head for heat dissipation
- Extra-capacity oil reservoir for low oil temperatures
- Cast iron fly wheel for energy efficiency and durability
- 100% duty cycle
- Splash lubrication
- UL & CSA approval on all electrical components
- ASME-coded pressure relief valves and tanks
- Ships in heavy-duty protective crate with oil in the pump
- Made in U.S.A
Specifications
| Ship Weight | 715.0 LB |
|---|---|
| Horsepower | 5 HP |
| Air Tank Size | 80 Gal |
| Volts | 200 |
| CFM At 90 PSI | 18 |
| Max. PSI | 175 |
| Stage | 2 |
| Air Outlets (qty.) | 1 |
| Amps | 30 |
| Duty Cycle | 100 % |
| Motor RPM | 658 |
| Working Pressure | 135-175 PSI |
| Engine Start Type | Electric |
| Motor Phase | 3 |
| Pump Life | 50,000 hr |
| Pump Material | Cast Iron |
| Air Outlet Size | 3/4 in. NPT |
|---|---|
| CFM At Max. PSI | 17.4 |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Pressure Gauge | Yes |
| Electronic Drain Valve | No |
| After Cooler Included | No |
| Drain Type | Manual |
| Tank Orientation | Vertical |
| Product Weight | 680.0000 lb |
| Dimensions L X W X H (in.) | 31.0 x 24.0 x 72.0 in |
Package Contents
(1) Quincy QT Pro 5-HP 80 Gallon Two-Stage Air Compressor
Warranty
This item comes with a 1 year limited warranty.
