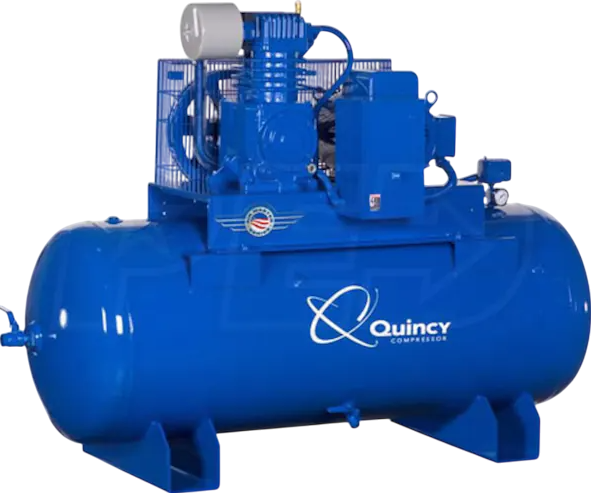

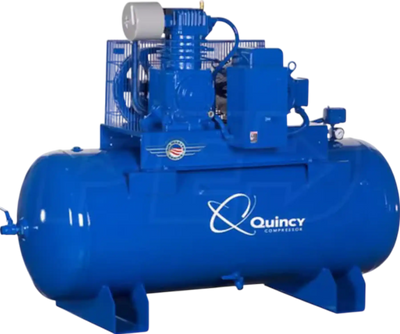

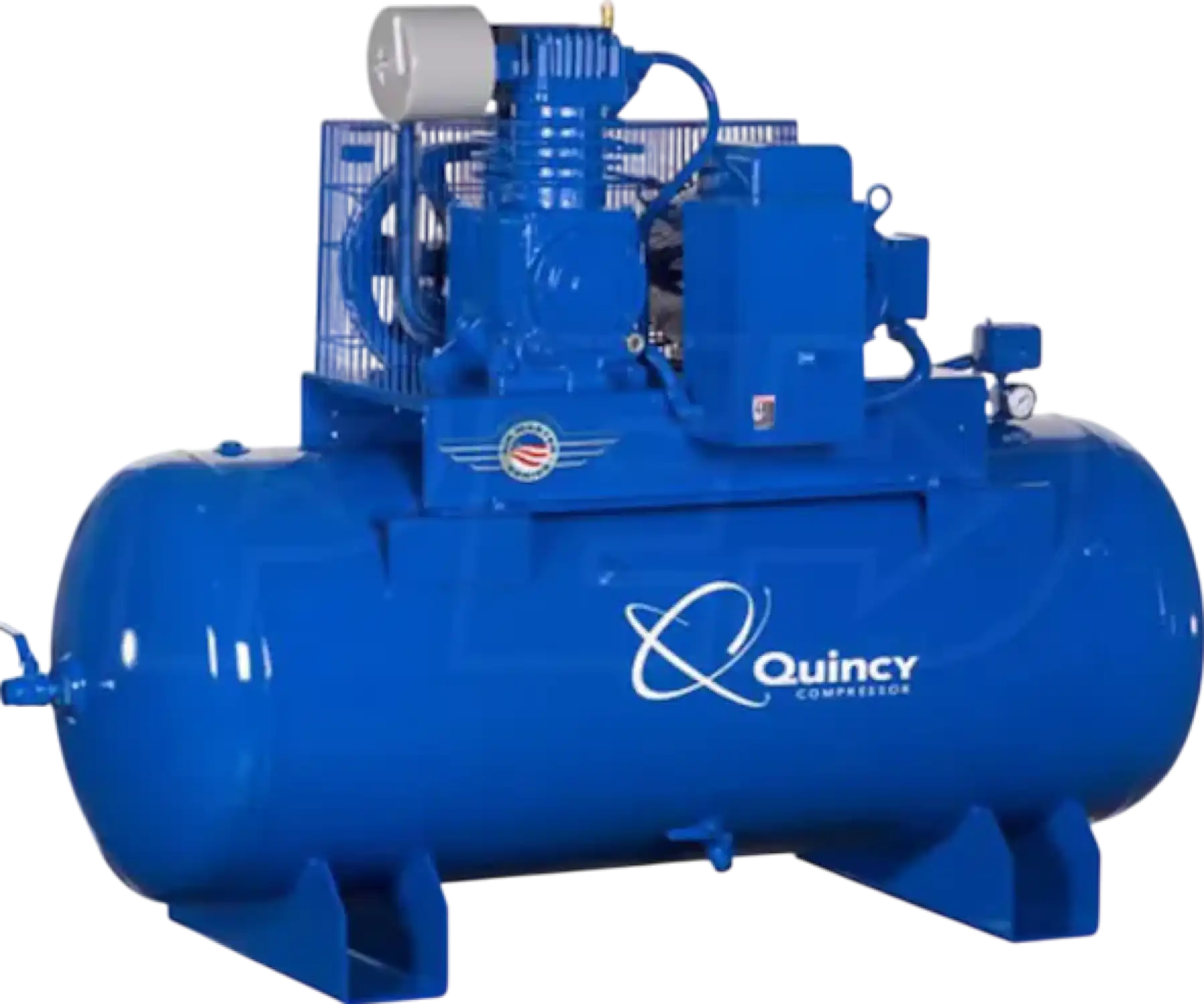

Quincy QP Pro Plus Air Compressor 10 HP 120 Gallon Two Stage 3-Phase 460V 4103DS12HCB46P New
Manufacturer: Quincy Compressor
SKU: 2020040880
QTY
(888) 999-1522
$ 6,149.95
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 3-10 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Sort:
Filter:
Price
Brand
Product Overview
The Quincy QP Pro Plus 10 HP Two-Stage Air Compressor offers a durable cast-iron pump with a 50,000-hour lifespan, delivering 35 CFM at 175 PSI for reliable industrial performance. Upgraded with an electronic drain and low oil protection for enhanced convenience and safety, it features a 120-gallon ASME-certified horizontal tank, a 1725 RPM motor, and a magnetic starter for efficient, continuous operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Heavy-Duty Industrial: 50,000 or more hour pump life; Splash lubricated, cast-iron pump for dependability. 1725 RPM industrial motor to continuously run your business. Extra capacity oil reserve with low oil protection for added safety.
- High-Efficiency Finned Intercooler: Reduces air temperature for maximum performance.
- Magnetic Starter: Provides thermal overload protection for the motor.
- Electronic Drain: Automatically removes condensation to reduce maintenance and prolong tank life.
- 2-Piece Connection Rods: Fewer moving parts increase reliability.
- ASME Certified; UL & CSA Approved: Pressure relief valve, discharge and receiver tank for safety.
Specifications
| Model # | 4103DS12HCB46P |
| Voltage | 460 Volt AC |
| Phase | 3-Phase |
| Magnetic Starter | Yes |
| Amp Draw | 14 |
| Recommended Breaker | Consult Certified Electrician |
| HP | 10 |
| CFM | 35 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
| Tank Size | 120 Gallons |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Horizontal |
| Air Dryer | No |
| Product Category | Air Compressor - Stationary |
| Weight | 850 Pounds |
| Certification | ASME. UL, CSA |
| Product Length | 78 Inches |
| Product Width | 28 Inches |
| Product Height | 55 Inches |
| Power Type | Electric |
| UPC | 791326113511 |
Package Contents
Quincy QP Pro Plus Air Compressor 10 HP 120 Gallon Two Stage 3-Phase 460V
User Manual
Warranty
This item comes with a 1 year factory warranty.
