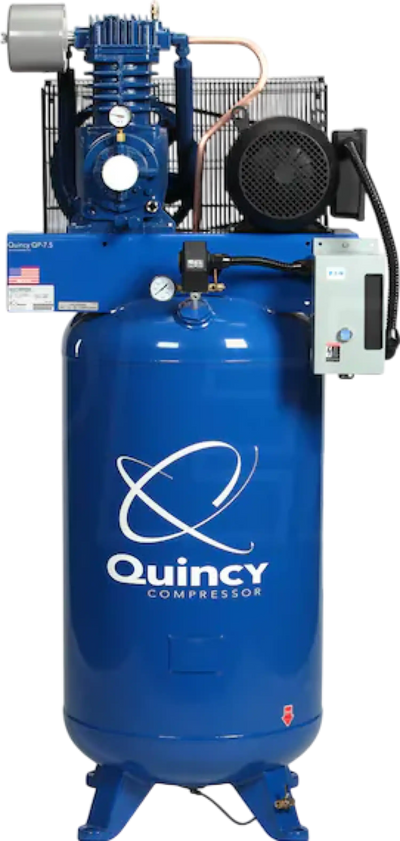

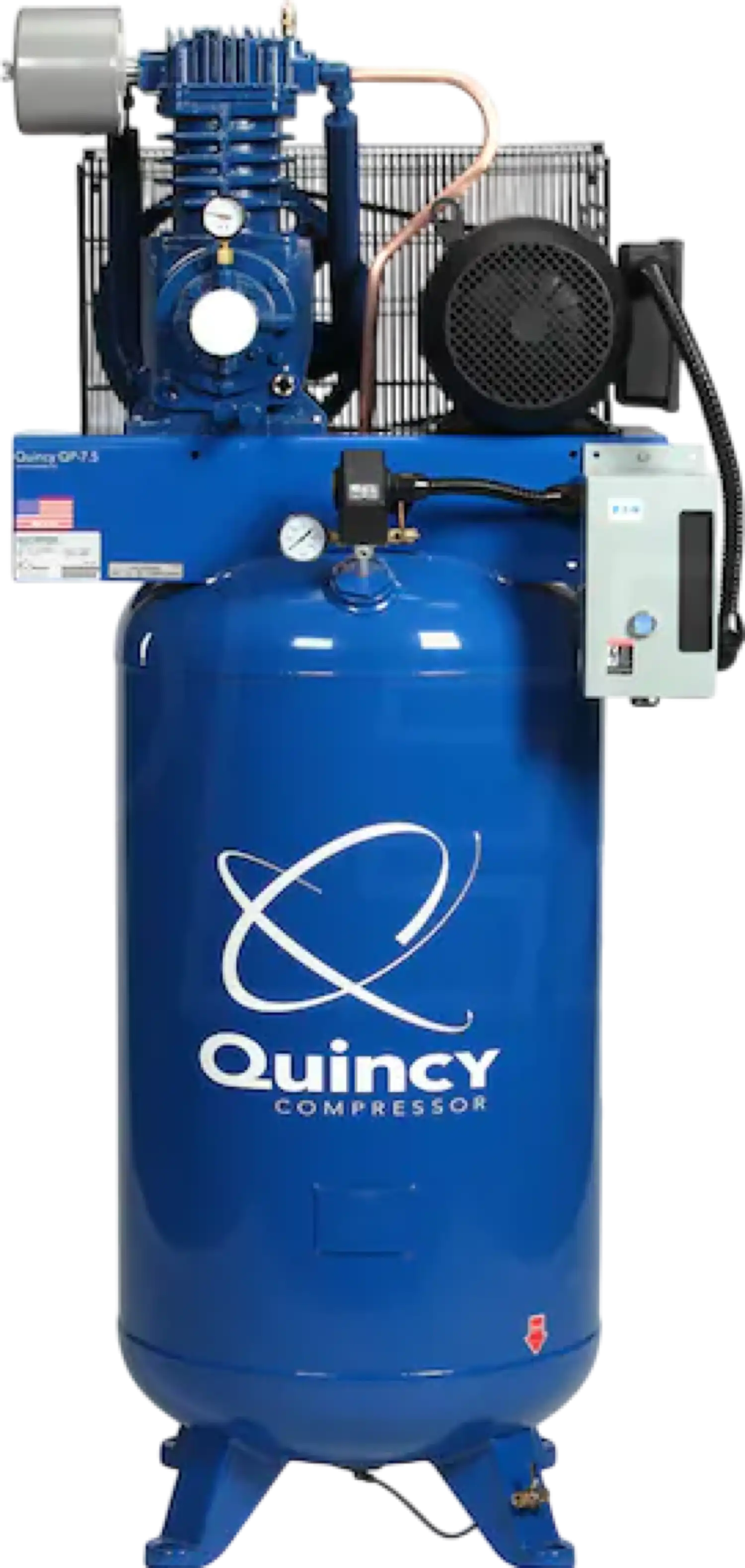

Quincy QP Pro Plus Air Compressor 7.5 HP 80 Gallon Two Stage 1-Phase 230V 571CS80VCAP New
Manufacturer: Quincy Compressor
SKU: 2020040751
QTY
(888) 999-1522
$ 5,709.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 3-10 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Sort:
Filter:
Price
Brand
Product Overview
The Quincy QP Pro Plus 7.5 HP Two-Stage Air Compressor features a fully pressure-lubricated system with a Gerotor oil pump, ensuring smooth, continuous operation and extending component life by up to 15% compared to splash-lubricated units. Equipped with an 80-gallon ASME-certified tank, cast iron construction, stainless steel reed valves, a balanced flywheel for efficient cooling, and low oil protection, it delivers 22.6 CFM at 175 PSI for reliable industrial performance with enhanced durability and protection.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Pro Plus Fully Pressure Lubricated 2-Stage Compressor: Ensures smooth, continuous operation with reduced wear on critical components, extending the compressor’s lifespan.
- Gerotor Positive Displacement Oil Pump: Provides pressurized lubrication to the crankshaft, bearings, and rods, offering up to 15% longer life compared to splash-lubricated units.
- Spin-On Oil Filter: Improves reliability and extends the life of the compressor by ensuring clean oil flow.
- Stainless Steel Reed Valves with Valve Bumpers: Offers maximum strength and enhanced volumetric efficiency for improved performance.
- Graphite Cylinder & Head Gaskets: Ensure positive sealing integrity for consistent, efficient operation.
- Electronically Balanced Fan-Type Cast Iron Flywheel: Optimized for powerful cooling of the intercooler, cylinder, and heads, ensuring maximum performance.
- Cast Iron Cylinders & High-Efficiency Fin & Tube Intercooler: Designed for rigid tolerances to maintain high efficiency and reduce interstage temperature for peak performance and durability.
- Low Oil Protection: Automatically shuts down the compressor if oil levels are too low to prevent damage to internal components.
Specifications
| Model # | 571CS80VCAP |
| HP | 7.5 |
| Voltage | 230 Volt AC |
| Phase | 1-Phase |
| Magnetic Starter | Yes |
| Amp Draw | 40 |
| Recommended Breaker | 80 Amp Breaker |
| CFM | 22.6 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Full Pressure Lubrication |
| Pump Low Oil Shut-off | Yes |
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Vertical |
| Air Dryer | No |
| Product Category | Air Compressor - Stationary |
| Weight | 720 Pounds |
| Certification | ASME. UL, CSA |
| Product Length | 37 Inches |
| Product Width | 24 Inches |
| Product Height | 74 Inches |
| Power Type | Electric |
| UPC | 791326112880 |
Package Contents
Quincy QP Pro Plus Air Compressor 7.5 HP 80 Gallon Two Stage 1-Phase 230V
User Manual
Warranty
This item comes with a 1 year factory warranty.
