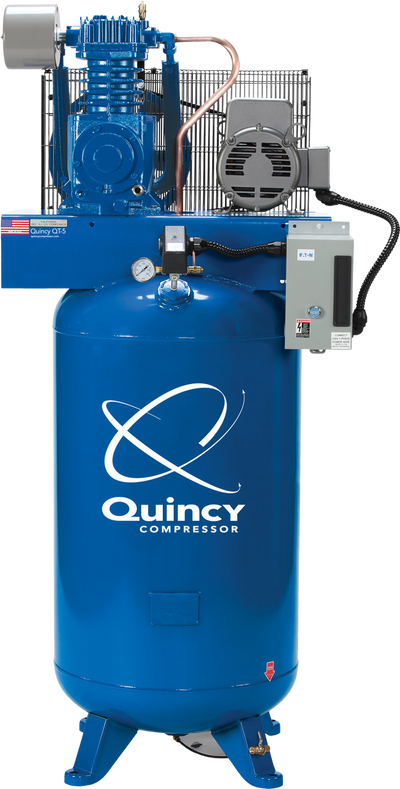

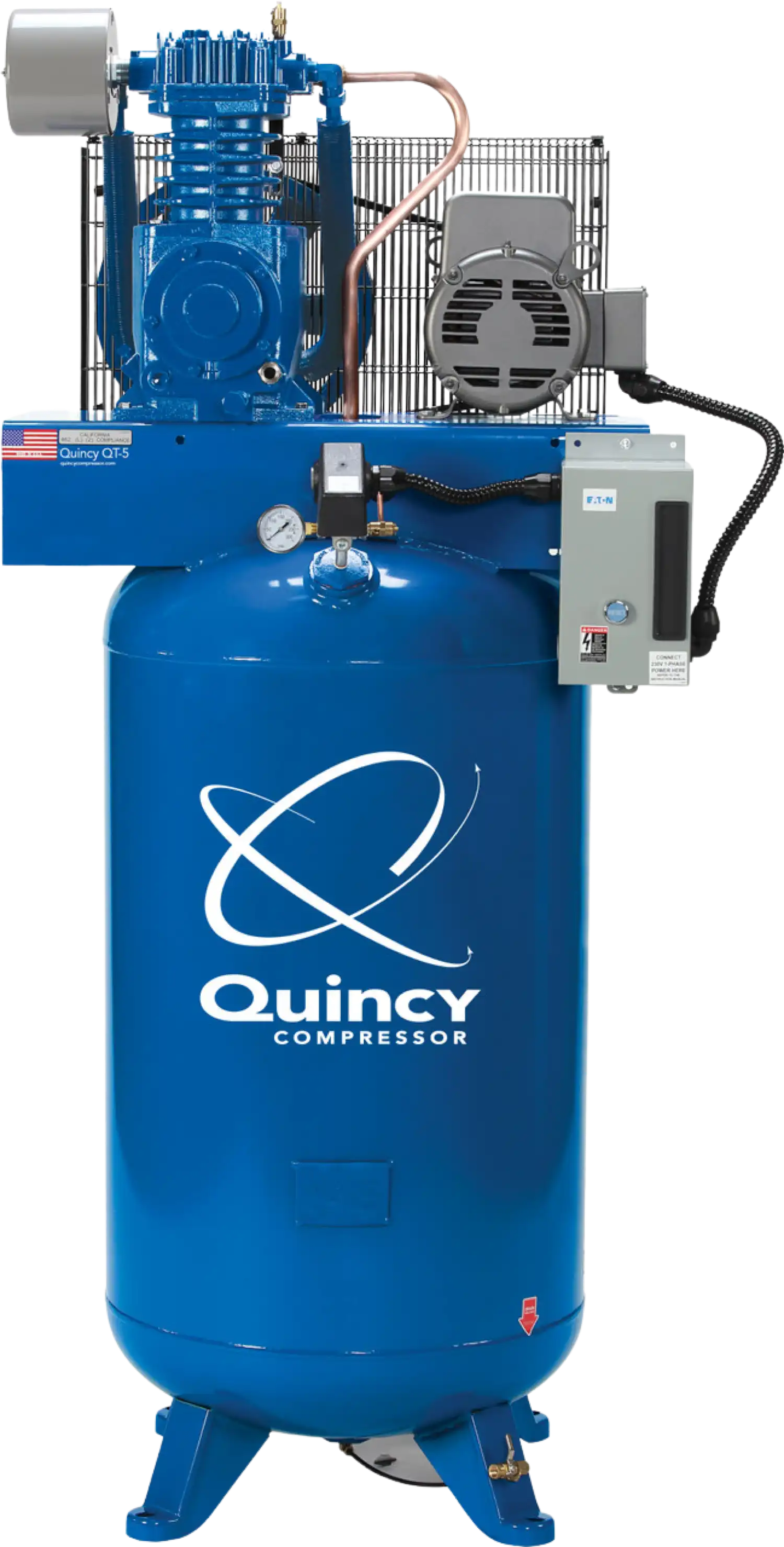

Quincy QT-5 Pro Air Compressor 5 HP 80 Gallon Two Stage Single Phase 230V New
Manufacturer: Quincy Compressor
SKU: 2020040701
QTY
or
(888) 999-1522
$ 3,399.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $20 off at checkout
SHIPS IN (EST) 3-10 BUSINESS DAYS
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Quincy QT-5 Pro Air Compressor 5 HP 80 Gallon Two Stage Single Phase 230V New
Product Overview
The Quincy QT reciprocating piston air compressor is more than just your typical splash-lubricated two-stage. The highly efficient, robust QT delivers more air (CFM) per brake horsepower while consuming less energy. It features cast-iron where it’s needed for strength and durability, and aluminum where it’s needed for optimum cooling and long life. With an industry-leading 50,000+ hour pump life, this air compressor is proudly made in the USA and built to last.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor: Engineered for efficiency and lower operating costs. Produces more compressed air at a lower horsepower. Proudly built in the USA.
- High Performance Cast Iron QT-5 Belt Drive Pump: Industry leading 50,000+ hour pump life. Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency. Aluminum head for strength and optimum heat dissipation.
- High-Efficiency Finned Tube Intercooler: Provides maximum cooling & increased valve life. Eliminates carbon build-up in the head and increases valve life. 2-piece connecting rods for less moving parts & minimized downtime.
- 2-Cylinder Cast Iron Design: Cast iron cylinders maintain rigid tolerances for high efficiency. Graphite cylinder and head gaskets for positive sealing and improved performance.
- Large Balanced Cast Iron Fly Wheel: Smoother operation, angled for maximum cooling. Balanced counter-weighted crankshaft assures smooth, trouble-free operation.
- Heavy-Duty Industrial Motor: Capacitor start motor with built-in thermal overload. Runs at a slower RPM, runs cooler, and cost less to operate. UL & CSA approval on all electrical components.
Specifications
| Voltage | AC 230V |
| Phase | Single Phase |
| Amp Draw | 28 |
| Recommended Breaker | 60 Amp Breaker |
| Horsepower | 5 HP |
| CFM @ 100PSI | 17.7CFM |
| CFM @ 175PSI | 17.2 CFM |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max Pressure | 175 PSI |
| Oil Sight Glass | Yes |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
| Drain Type | Manual |
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4" |
| Tank Orientation | Vertical |
| Pump Lifespan | 50,000 Hours |
| Product Dimensions | 37" x 24" x 74" |
| Shipping Weight | 680 lbs. |
Package Contents
Quincy QT-5 Pro 5HP 80 Gal. Air Compressor 230V
User Manual
Warranty
This item comes with a 1 year factory warranty.
