Product Overview

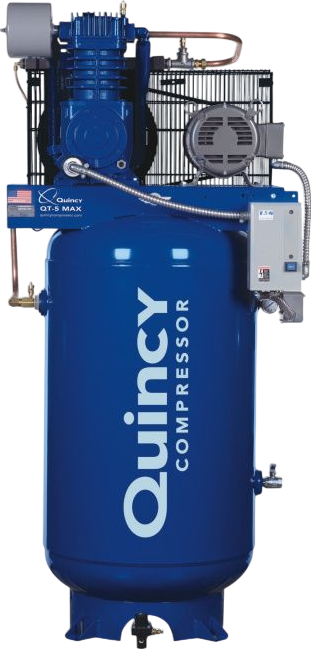

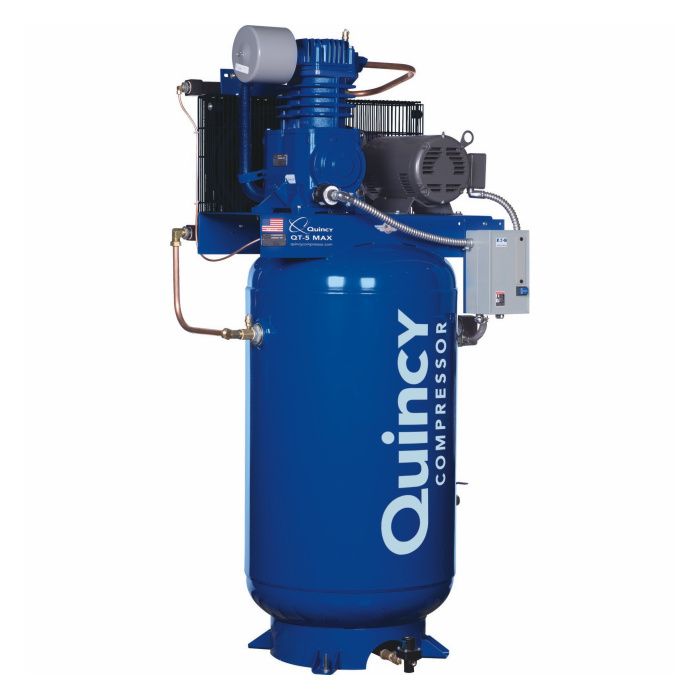

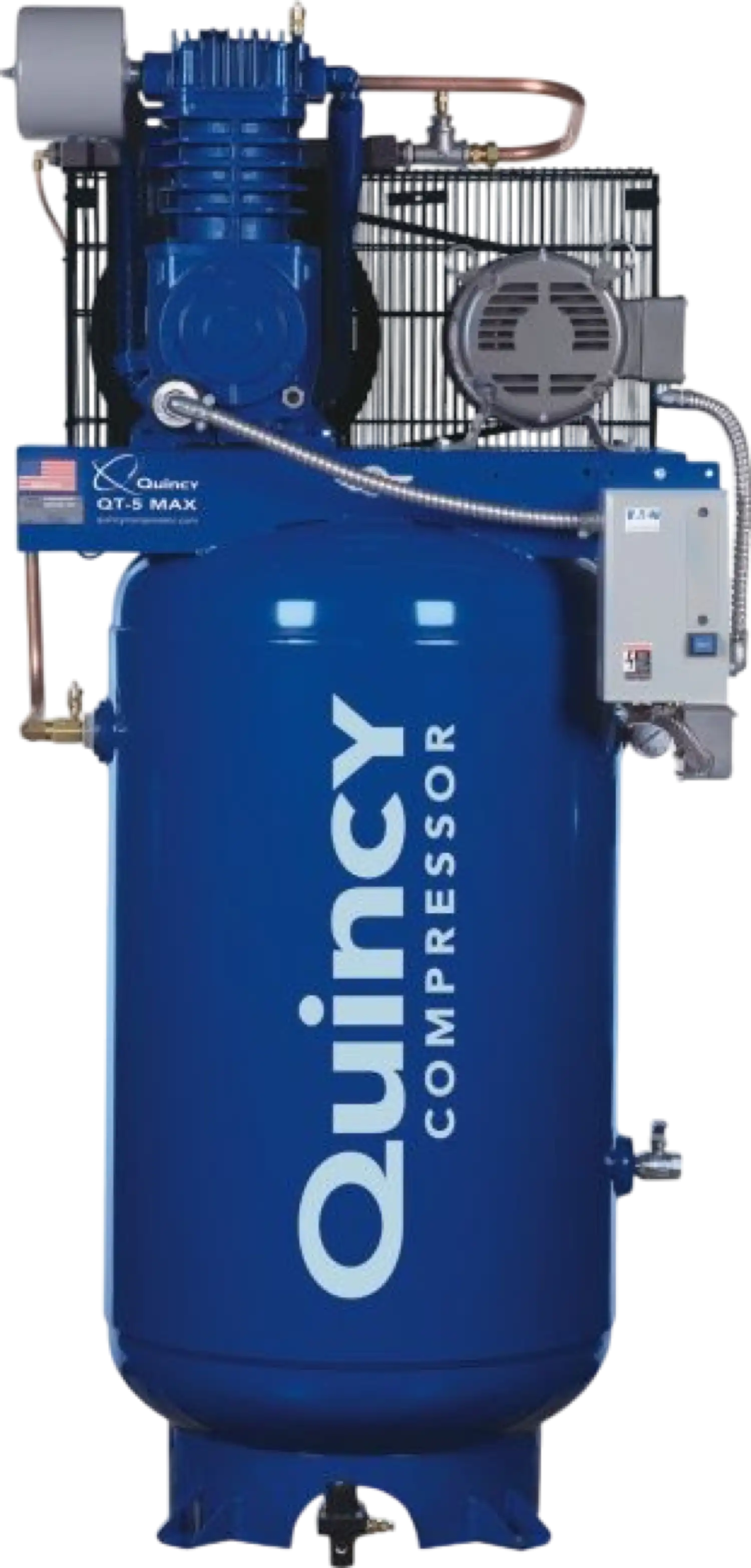

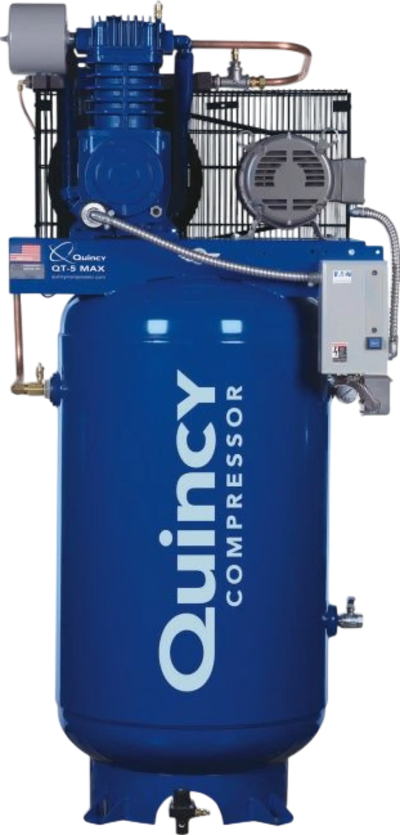

The Quincy QT Max 5 HP Two-Stage Air Compressor is a heavy-duty industrial unit, with a cast-iron pump designed for a 50,000-hour lifespan. Featuring an 80-gallon ASME-certified tank, and a magnetic starter for thermal protection, it delivers 17.2 CFM at 175 PSI for reliable operation in demanding applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Heavy Duty Industrial Unit - Proudly Built in the US: 50,000 hour-or more- pump life; Splash lubricated, cast-iron pump for dependability. Industrial motor to continuously run your business. Extra capacity oil reserve & low oil protection.
- High-Efficiency Finned Intercooler: Reduces air temperature for maximum performance.
- Magnetic Starter: Provides thermal overload protection for the motor.
- 2-Piece Connection Rods: Fewer moving parts increases reliability.
- ASME Certified Air Tank: Pressure relief valve, discharge and receiver tank for safety.
- Automatic Tank Drain: Less maintenance and prolongs tank life.
- Air-Cooled Aftercooler: Allows use with a refrigerated air dryer (sold separately).
Specifications
| Model # | 451CS80VCBM |
| HP | 5 |
| Voltage | 230 Volt AC |
| Phase | 1-Phase |
| Magnetic Starter | Yes |
| Amp Draw | 28 |
| Recommended Breaker | Consult Certified Electrician |
| CFM | 17.2 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Vertical |
| Air Dryer | No |
| Product Category | Air Compressor - Stationary |
| Weight | 680 Pounds |
| Certification | ASME. UL, CSA |
| Product Length | 37 Inches |
| Product Width | 24 Inches |
| Product Height | 74 Inches |
| Power Type | Electric |
| UPC | 791326030023 |
Package Contents
Quincy QT Max Air Compressor 5 HP 80 Gallon Two Stage 1-Phase 230V
User Manual
Warranty
This item comes with a 1 year factory warranty.
