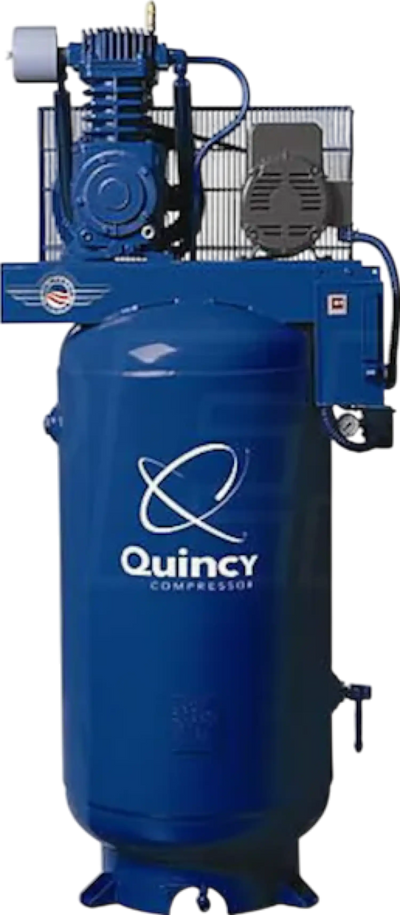

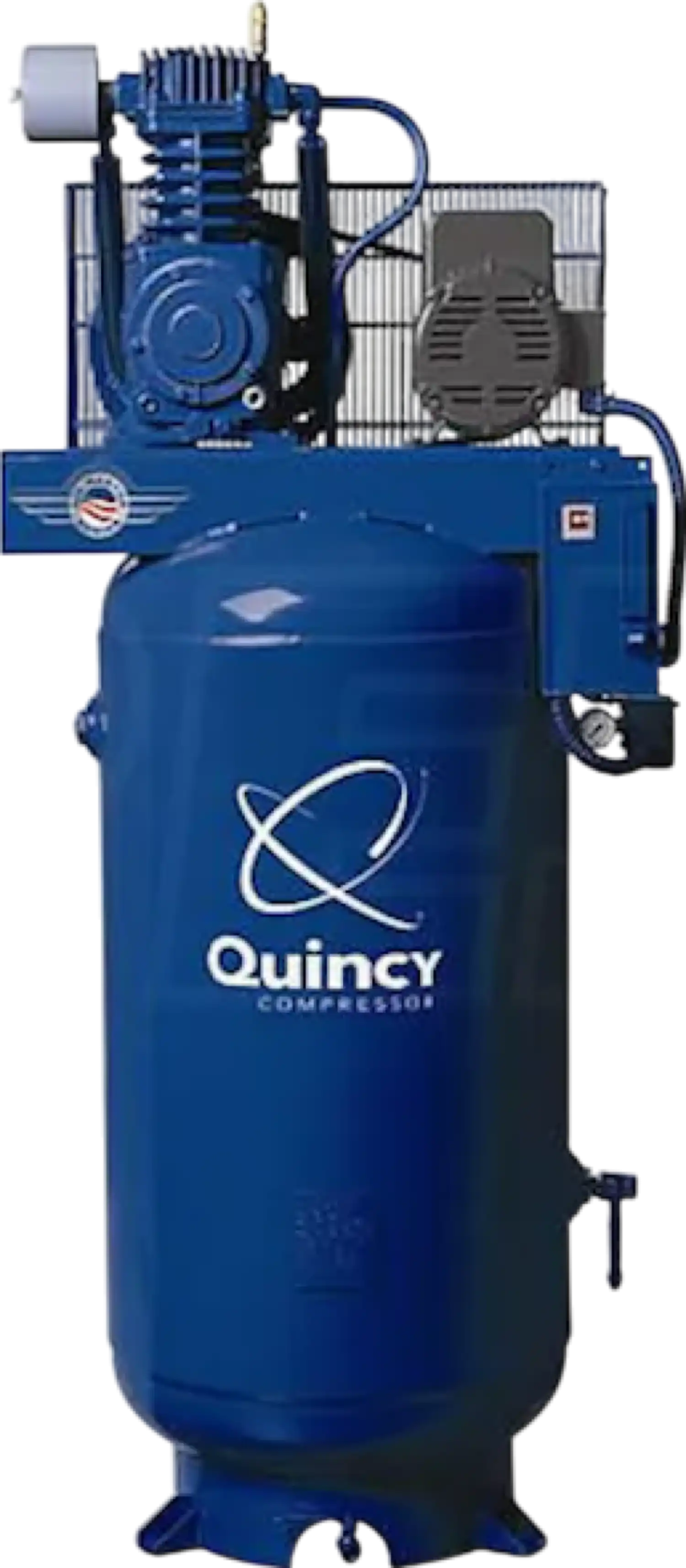

Quincy QT Pro Plus Air Compressor 7.5 HP 80 Gallon Two Stage 1-Phase 230V 471CS80VCBP New
Manufacturer: Quincy Compressor
SKU: 2020040721
QTY
(888) 999-1522
$ 4,499.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 3-10 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Sort:
Filter:
Price
Brand
Product Overview
The Quincy QT Pro Plus 7.5 HP Two-Stage Air Compressor features a cast iron QT-7.5 pump with a 50,000+ hour lifespan, delivering 22.6 CFM at 175 PSI for reliable performance. Upgraded with an electronic drain and low oil protection for enhanced convenience and safety, it also includes a splash-lubricated system, aluminum head for heat dissipation, and stainless-steel reed valves for maximum durability and cooling.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor: Engineered for efficiency and lower operating costs. Produces more compressed air at a lower horsepower. American Pride; Proudly built in the U.S.A. Equipped with low oil protection for enhanced safety and reliability.
- High Performance Cast Iron QT-7.5 Belt Drive Pump: Industry-leading 50,000+ hour pump life. Aluminum head for strength and optimum heat dissipation. Stainless-steel, corrosion-resistant reed valves with controlled lift for maximum efficiency.
- 2-Cylinder Cast-Iron Design: Cast-iron cylinders maintain rigid tolerances for high efficiency. Industrial-class bearings ensure extended piston life. Graphite cylinder and head gaskets for positive sealing and improved performance.
- Large Balanced Cast Iron Fly Wheel: Smoother operation, angled for maximum cooling. Offers better energy efficiency and durability. Balanced counter-weighted crankshaft assures smooth, trouble-free operation.
- High-Efficiency Finned Tube Intercooler: Provides maximum cooling & increased valve life. Eliminates carbon build-up in the head and increases valve life. 2-piece connecting rods for fewer moving parts & minimized downtime.
- Heavy-Duty Industrial Motor: Capacitor start motor with built-in thermal overload. Runs at a slower RPM, runs cooler, and costs less to operate. UL & CSA approval on all electrical components.
- Electronic Drain: Automatically removes condensation from the tank, reducing maintenance and prolonging tank life.
Specifications
| Model # | 471CS80VCBP |
| Voltage | 230 Volt AC |
| Phase | 1-Phase |
| Magnetic Starter | Yes |
| Amp Draw | 40 |
| Recommended Breaker | 80 Amp Breaker |
| HP | 7.5 |
| CFM | 22.6 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Vertical |
| Air Dryer | No |
| Product Category | Air Compressor - Stationary |
| Weight | 720 Pounds |
| Certification | ASME. UL, CSA |
| Product Length | 37 Inches |
| Product Width | 24 Inches |
| Product Height | 74 Inches |
| Power Type | Electric |
| UPC | 791326114518 |
Package Contents
Quincy QT Pro Plus Air Compressor 7.5 HP 80 Gallon Two Stage 1-Phase 230V
User Manual
Warranty
This item comes with a 1 year factory warranty.
