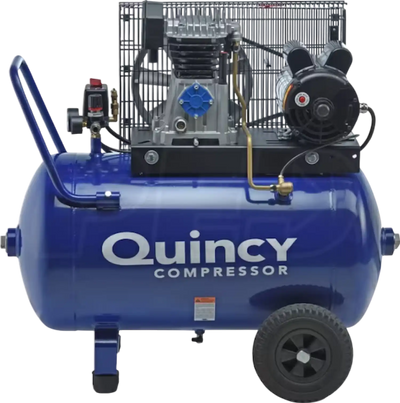

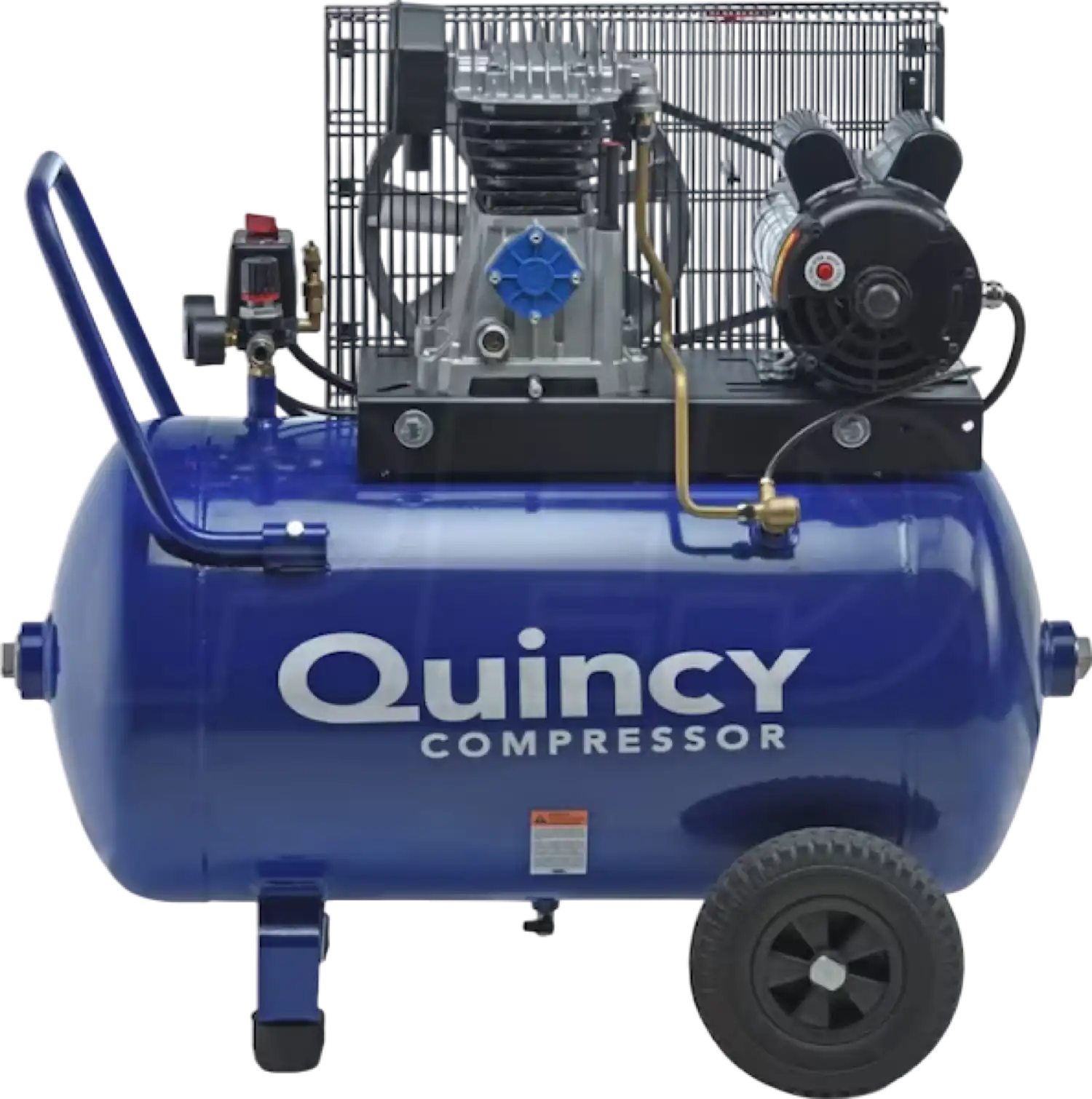

Quincy SS Air Compressor 2 HP 24 Gallon Single Stage 1-Phase 115V New
Product Overview
The Quincy Single Stage 24-Gallon Air Compressor is perfect for light commercial or DIY applications, delivering 8.3 CFM at 40 PSI and 7.4 CFM at 100 PSI to power a variety of air tools. Featuring a durable cast iron cylinder, valve plate, and crankshaft with an aluminum head for optimal heat dissipation, it ensures reliable, smooth operation with a 10,000+ hour pump rating.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Perfect For Light Commercial Or Do It Yourself Applications: Strong & durable single stage compressor that last. Perfect for larger projects, spray painting, HVLP spray gun and nail guns.
- Cast Iron Cylinder, Valve Plate & Crankshaft: Valve plate design provides efficiency & maximum strength. Assures smooth, trouble-free operation with 10,000+ hour pump rating.
- Aluminum Head & Special Fin Design: Helps dissipate heat; keeps compressor running cool. 100% factory tested at full pressure.
- 8.3 CFM @ 40 PSI; 7.4 CFM @ 100 PSI: Plenty of power to run a wide range of air tools. Tackle airbrushing, drilling, sanding and bolting/wrenching.
- 24-Gallon ASME Horizontal Tank: Compact design with sturdy tires for easy portability. Easy-access manual drain simplifies routine maintenance.
- Start-Stop Pressure Switch & Pressure Regulator: Automatically starts the compressor when system pressure drops. 1/4" pressure regulator lets you maintain constant air pressure.
Specifications
| Model # | Q12124PQ |
|---|---|
| HP | 2 |
| Voltage | 115 Volt AC |
| Phase | 1-Phase |
| Magnetic Starter | No |
| Amp Draw | 19 |
| Recommended Breaker | 30 Amp Breaker |
| CFM | 7.4 |
| CFM Rated @ | 100 PSI |
| CFM @ 40 PSI | 8.3 |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 135 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Single-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Pump Low Oil Shut-off | No |
| Tank Size | 24 Gallons |
| Tank Outlet | 1/4 Inch |
|---|---|
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
| Pressure Gauge | Yes |
| Air Dryer | No |
| Product Category | Air Compressor - Portable |
| Weight | 148 Pounds |
| Certification | ASME |
| Product Length | 36.4 Inches |
| Product Width | 16.7 Inches |
| Product Height | 22.6 Inches |
| Power Type | Electric |
| UPC | 791326110350 |
Package Contents
Quincy SS Air Compressor 2 HP 24 Gallon Single Stage 1-Phase 115V
User Manual
Warranty
This item comes with a 1 year factory warranty.
