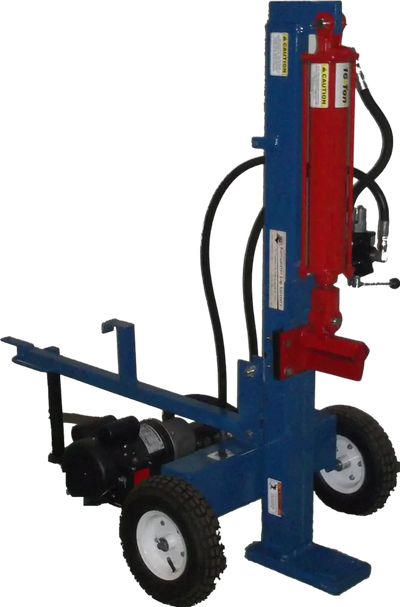

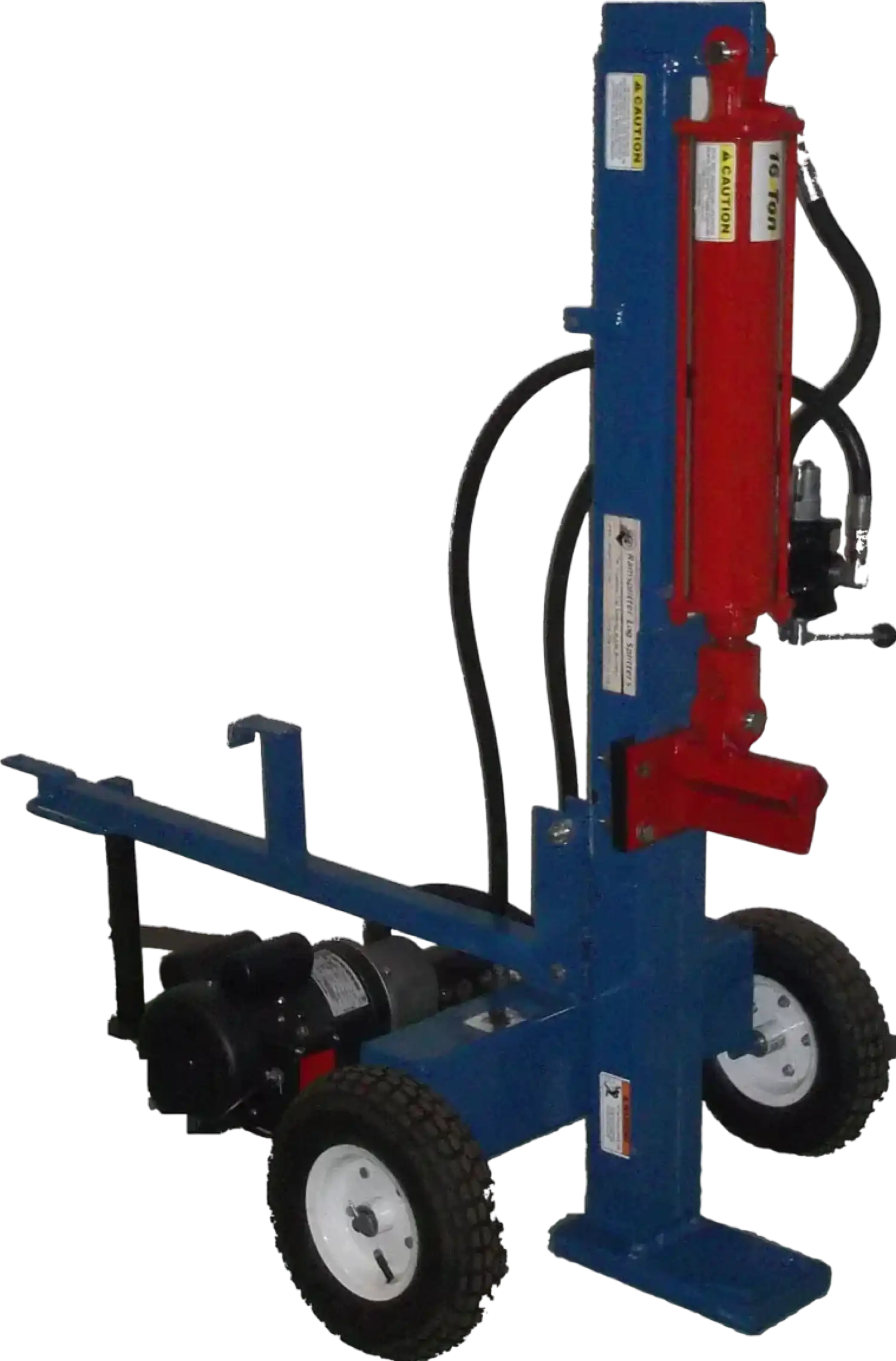

Ramsplitter HV16-4 Horizontal/Vertical Log Splitter 16 Ton with 1.5HP Electric Motor New
Manufacturer: Ramsplitter
SKU: HV16-4
Working Position:
QTY
$ 1,745.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 1-2 weeks
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year parts warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year parts warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Sort:
Filter:
Price
Brand
Product Overview
The Ramsplitter HV16-4 Log Splitter offers a versatile and powerful solution for residential log splitting needs. With its horizontal and vertical splitting capabilities, 16-ton ram force, and 18-inch stroke, this electric log splitter handles a wide range of logs effortlessly up to 20" long and 40" in diameter. The electric start system provides hassle-free startup every time. Whether you're preparing firewood for the winter or managing a small homestead, the HV16-4 delivers exceptional performance and dependability.
Brand new
1 year factory warranty
Manufacturer direct shipping from IL
Authorized Ramsplitter dealer
Features
- 1.5HP Electric Motor: Equipped with a 1.5 HP electric motor that runs at 1800 RPM, the HV16-4 ensures efficient and quiet operation. The electric start system provides hassle-free startup every time. The robust 16-ton ram force, combined with an 18-inch stroke, delivers a rapid 12-second cycle time, allowing you to split logs more efficiently.
- Durable Steel Construction: Built with a durable tube steel beam at a comfortable working height of 24 inches, the HV16-4 is designed for user convenience and efficiency. The hardened steel 8-inch wedge, along with the included slip-on 4-way wedge, guarantees precise and effective splitting every time.
- High-Performance Hydraulic System: The hydraulic system features an 11 GPM two-stage pump, a 2 spool valve, and wire hydraulic hoses, all backed by an 8-gallon hydraulic fluid tank. This combination ensures smooth, powerful performance and longevity.
- Portable Design: For added convenience, the HV16-4 is equipped with 13-inch pneumatic tires and garden tractor pin hitch enabling easy towing at speeds up to 35 mph. Weighing in at 350 lbs, this log splitter is both portable and powerful.
- Built to Last: Backed by a 1-year parts warranty, the Ramsplitter HV16-4 is a reliable and efficient choice for all your log splitting needs. The cylinder, measuring 3.5" x 18" with a 1.25" rod, adds to the splitter's robust build.
Specifications
| Ram Force | 16 Tons |
| Stroke | 18" |
| Cycle Time | 12 Seconds |
| Maximum Log Length | 20" |
| Maximum Log Diameter | 40" |
| Splitting Wedge | Single Wedge, Slip-on 4-Way Wedge |
| Wedge Type | Hardened Steel |
| Wedge Height | 8" |
| Beam Type | Tube Steel |
| Beam Working Height | 24" |
| Engine Type | Electric |
| Engine Speed | 1800 RPM |
| Engine Power | 1.5 HP |
| Starting System | Electric Start |
| Pump | 11 GPM, Two-Stage |
| Valve | 2 Spool Valve |
| Hoses | Wire Hydraulic Hoses |
| Hydraulic Fluid Tank Capacity | 8 Gallons |
| Cylinder Dimensions | Welded 3.5" x 18" with 1.25" Rod |
| Tongue Stand | Yes |
| Trailer Hitch Coupler | Garden Tractor Pin Hitch |
| Tires/Wheels | 13" Pneumatic |
| Max Tow Speed | 35 MPH |
| Assembled Dimensions | 60" x 32" x 40" |
| Product Weight | 350 lbs |
Package Contents
Ramsplitter HV16-4 Horizontal/Vertical 16 Ton Log Splitter
User Manual
Warranty
This item comes with a 1 year parts warranty.
