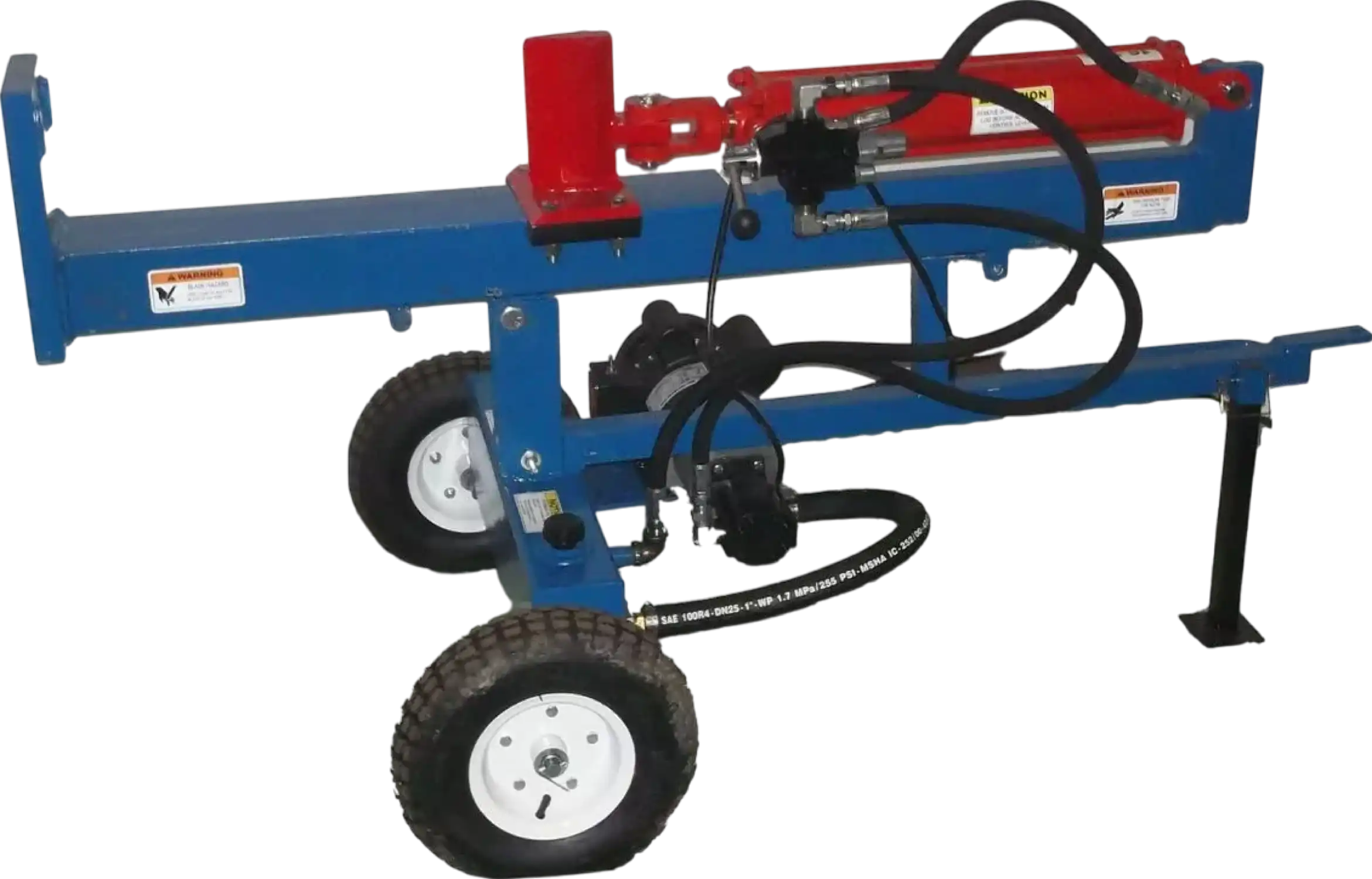

Ramsplitter HV20-3 Horizontal/Vertical Log Splitter 20 Ton 5.5 HP Honda GC160 Engine New
Manufacturer: Ramsplitter
SKU: HV20-3
QTY
$ 2,099.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 1-2 weeks
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year parts warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year parts warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Sort:
Filter:
Price
Brand
Customers Also Purchased
Product Overview

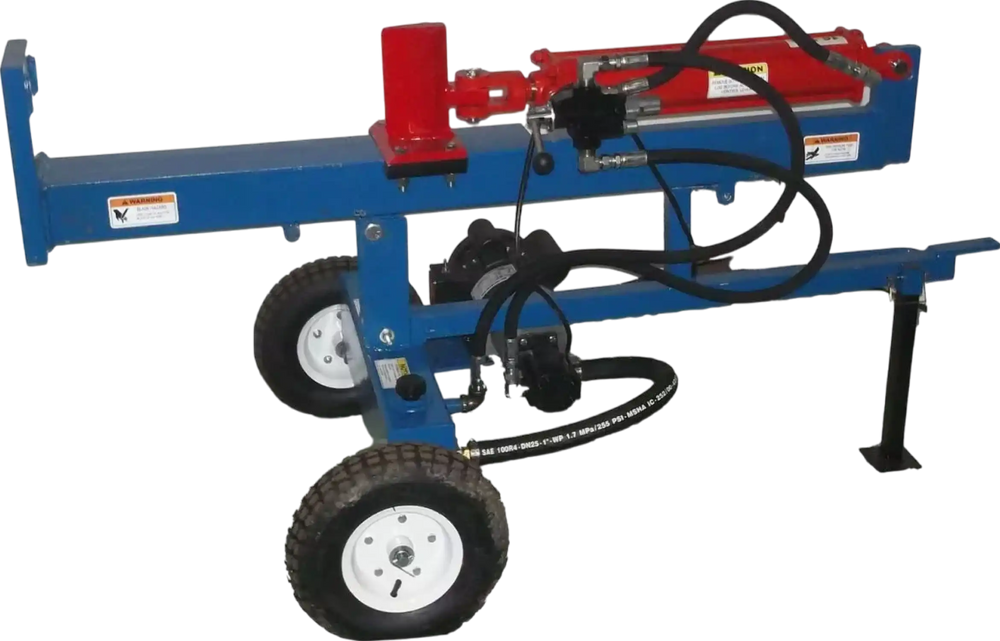

The Ramsplitter HV20-3 Log Splitter offers a versatile and powerful solution for residential log splitting needs. With its horizontal and vertical splitting capabilities, this log splitter handles a wide range of logs effortlessly. Equipped with a 5.5 HP gas engine, it reliably splits logs with 20 tons of force and a 13-second cycle time. Additionally, it comes with a complete tow package with 2" hitch coupler and is road-towable up to 35 mph.
Brand new
1 year factory warranty
Manufacturer direct shipping from IL
Authorized Ramsplitter dealer
Features
- Equipped with a reliable 160cc Honda GC160 engine.
- OHV design provides increased efficiency and optimal power transfer
- Split wood in horizontal or vertical positions
- Split smaller logs at comfortable waist height, or switch to vertical to save your back and roll large logs into place.
- 2-stage, 11 GPM hydraulic pump; 13-second cycle time with auto-return
- High-speed highway rated tires with 35 mph maximum towing speed
- Includes safety chains and 2" hitch coupler
Specifications
| Ram Force | 20 Tons |
| Stroke | 24" |
| Cycle Time | 13 Seconds |
| Maximum Log Length | 25" |
| Maximum Log Diameter | 40" |
| Splitting Wedge | Single Wedge |
| Wedge Type | Hardened Steel |
| Wedge Height | 8" |
| Beam Type | Tube Steel |
| Beam Working Height | 32" |
| Tongue Stand | Yes |
| Trailer Hitch | 2" Coupler |
| Engine Type | Honda GC |
| Engine Power | 5.5 HP |
| Pump | 11 GPM, Two-Stage |
| Valve | Detent Valve |
| Hoses | Wire Hydraulic Hoses |
| Hydraulic Fluid Tank Capacity | 5 Gallons |
| Cylinder Dimensions | Welded 4" x 24" with 2.5" Rod |
| Max Tow Speed | 35 MPH |
| Assembled Dimensions | 72" x 40" x 48" |
| Product Weight | 425 lbs |
Package Contents
Ramsplitter HV20-3 Horizontal/Vertical Gas Log Splitter 20 Ton
User Manual
Warranty
This item comes with a 1 year parts warranty.
