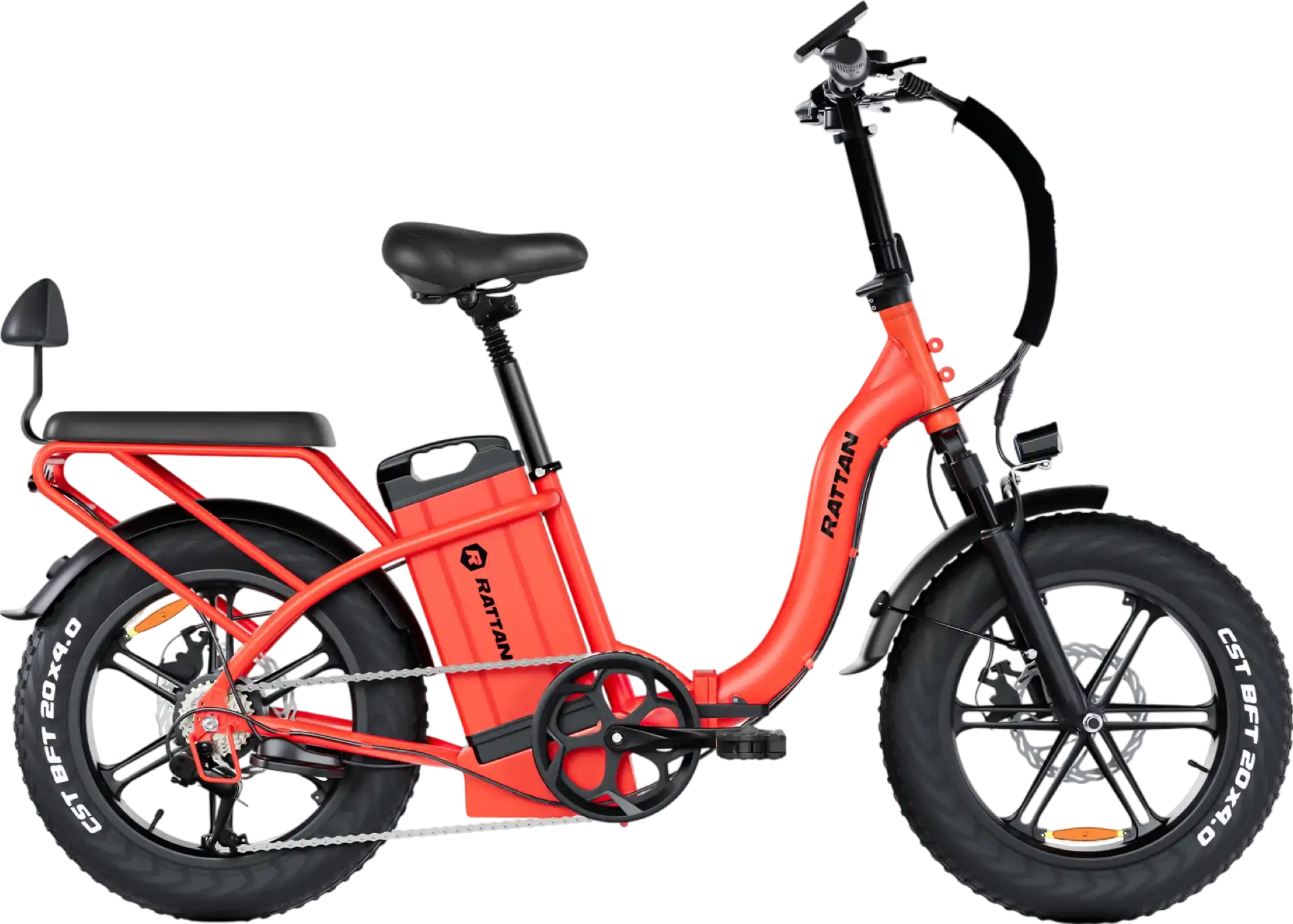

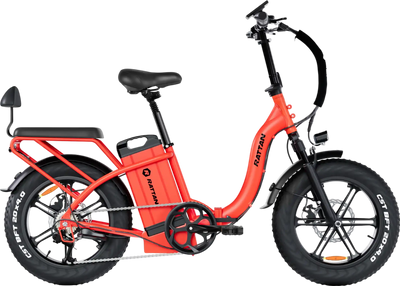

Rattan LF Ultra Foldable Electric Bicycle Step-Thru 32 MPH 120 Mile Range 1000W 48V 40.5Ah New
Manufacturer: Rattan
SKU: LFUT-RE
QTY
or
(888) 999-1522
$ 1,399.00
$ 1,289.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Rattan LF Ultra Foldable Electric Bicycle Step-Thru 32 MPH 120 Mile Range 1000W 48V 40.5Ah New
Product Overview
Unleash the power of endless exploration with the Rattan LF Ultra foldable electric bike, designed to take you up to 120 miles on a single charge. Perfect for daily commutes or weekend adventures, this e-bike combines long-lasting battery life, peak 1800W powerful motor, secure hydraulic disc brake, compact folding design, and a full suspension system to elevate your riding. The step-thru frame makes getting on and off the bike easier, and the frame can be folded up in just 15 seconds for easy storage.
Brand new in box
1 year limited warranty
Manufacturer direct shipping from CA
Authorized Rattan dealer
Features
- 1000W/1800W Peak Motor: With a peak 1800W motor, the LM Ultra delivers impressive speed and acceleration, reaching speeds up to 32 mph. Whether tackling hills or cruising city streets, the robust motor ensures a smooth and dynamic ride.
- Hydraulic Brake System: Compared to traditional mechanical brakes, the hydraulic brake can provide stronger braking force and faster response speed. Even during high-speed riding or emergency braking, they can still maintain precise control and quickly stop. The hydraulic mechanism greatly reduces vibration and noise for a more comfortable riding experience.
- 4.5A Fast and Safe Charger: The 4.5A charger can complete charging in a shorter time, greatly improving efficiency. Includes built-in safety protections such as overcharge, overcurrent, short circuit, and overheat protection.
- Safety BMS Protection: The Battery Management System accurately monitors various battery parameters, such as voltage, temperature, and charge/discharge status, to detect the health status of the battery in real time and avoiding battery damage.
- Full Suspension System: The front suspension effectively absorbs the impact force caused by uneven road surfaces, reduces the vibration of the front wheels, and improves handling stability. The rear seat suspension not only enhances support, but also alleviates the effect of road bumps on the frame and rider.
Specifications
| Throttle | Half-twist grip throttle |
| Max Speed | 32 MPH |
| Range | Up to 120 miles |
| Max Load | 300 lbs |
| Charge Time | 7-8 hours |
| Battery | 40.5Ah |
| Wheel Size | 20" x 4" |
| Wheelbase | 45.7" |
| Adjustable Seat Height | 33.5" - 39.4" |
| Adjustable Handlebar Height | 32.7" - 37.4" |
| Motor Power | 1000W Brushless Rear Hub Motor |
| Drive Mode | 5-Level Pedal Assist & Throttle |
| Cruise Control | Yes |
| Screen Display | LCD Display |
| Suspension | Front Fork suspension & Seat Post suspension |
| Frame | Folding Step-Thru Frame |
| Gearing | Shimano 7-Speed Gear Shift System |
| Brake System | Dual Hydraulic Disc Brake |
| Lights | Front Light & Taillight with brake light indicator functionality |
| Foldable Frame | Yes |
| Folded Dimensions | 38.2" x 5.7" x 33.5" |
| Product Dimensions | 69.3" (L) x 51.97" (H) |
| Weight | 70.5 lbs + 22 lbs (Battery) |
Package Contents
Rattan LF Ultra Foldable Electric Bicycle
Tool Kit
Charger
User Manual
Warranty
This product comes with a 1 year limited factory warranty.
