Reliance 310CRK Pro/Tran 2® 30 Amp 10 Circuit Manual Transfer Switch, Inlet Box, 10 ft. Cord New

The Pro/Tran 2 is the next generation of Loadside™ manual transfer switch by Reliance Controls. These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications. The 16-inch flexible conduit whip attaches easily to a knockout on the load center and all factory wires are clearly marked and colored for identification. Simply select the circuits needed in an emergency and connect them to the Pro/Tran 2 wire leads as instructed in the manual.
Pro/Tran 2 transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, and 1-inch interchangeable circuit breakers. The 1-inch breakers allow a larger circuit size (max of 1 x 30A double-pole), and installation of AFCI & GFCI breakers. All models include a hinged detachable cover to help protect and finish off the overall look of the product.

All models are UL Listed for most brands of 1-inch interchangeable circuit breakers and can be easily re-configured in the field for multiple double-pole circuits. The Pro/Tran 2 still utilizes non-defeatable (break-before-make) double-throw toggle switches. Many models feature new color-coded watt meters to help balance and manage the generator load.

Overview (Right Column)
Brand new in box
2 year factory warranty
Fast shipping from TX
Authorized Reliance dealer



 Outlets
  • (1) L14–30R
Features (Left Column)
  • ProTran 2 - Power Transfer Switch Kit (10 Circuit) - For portable generators w/ L14-30
  • Safest Way to Distribute Power - Eliminates dangerous backfeeds and electrical overloads
  • Pro/Tran 2 10-Circuit 120/240V Manual Transfer Switch - The next generation of Loadside manual transfer switches
  • (10) Total Circuits (1" Interchangeable Style) - (1) 20A 2-Pole, (2) 20A 1-Pole & (6) 15A 1-Pole
  • 30-Amp AND 20 Amp Compatible (30A Breaker Not Included) - A && B Circuits can be used for a 30A 2-Pole circuit (Owner Supplied)
Features (Right Column)
  • Color-Coded Built-In Wattage Meter - Helps you balance and manage generator load.
  • Powder-Coated Steel Cabinet for Indoor Installation - 18" flexible conduit with all factory wires clearly marked/colored.
  • 10' 30-Amp (L14-30) Power Cord - Heavy-Duty, rubber molded design rated up to 7500W @ 240V.
  • 30-Amp (L14-30) Power Inlet Box - Rain-tight design w/flip-lid keeps dirt & debris out.
  • Certified to UL Standard 1008 & Meets All Required 702 NEC ANSI/NFPA 70
Product Specifications (Left Column)
MAX. GENERATOR RUNNING WATTS 7500
PHASE SINGLE
MAX. SINGLE-POLE CIRCUITS
10
MAX. DOUBLE-POLE CIRCUITS 5
MAX. RATING PER CIRCUIT 2/30A, 8/20A
MAX. COMBINED LOAD @ 125 VAC 60
MAX. COMBINED LOAD @ 250 VAC 30
POWER INLET, NEMA L14-30
CORD SIZE (GAUGE) 10
RECOMMENDED CORD SIZE (GAUGE) 10
CONDUIT SIZE (INCHES) 1
Product Specifications (Right Column)
CONDUIT LENGTH (INCHES) 18
WATTMETERS YES
SHIPPING WEIGHT (LBS) 25
DIMENSIONS 11"H x 11.75"W x 4.5"D
CABINET TYPE, NEMA INDOOR, NEMA
CORD LENGTH (FEET) 10

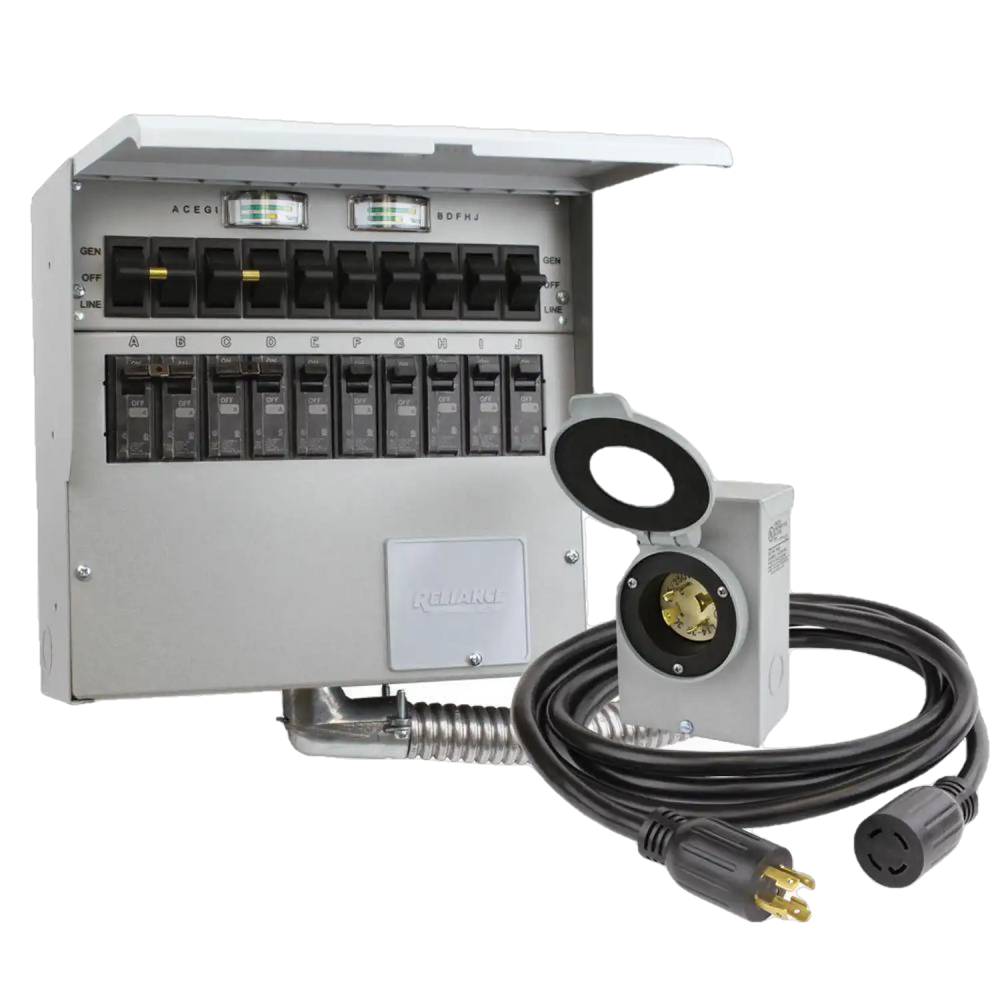

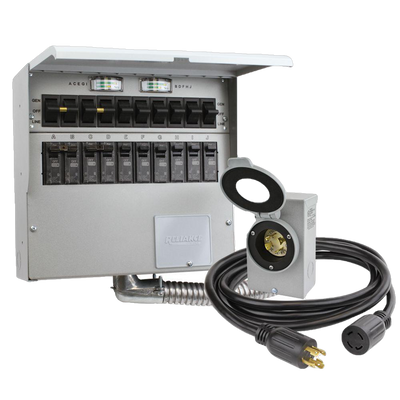

Package Contents:

  • Model 310C Ten-Circuit Prewired Transfer Switch
  • PC3010 Power Cord (10', 10 AWG, L14-30 Ends)
  • PB30 Outdoor Painted Steel Power Inlet Box (L14-30 Inlet)
WARRANTY

This item comes with a 2 year manufacturers warranty.

Manuals & Documentation

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Robert Hadden
Excellent Generator to House Connection

This transfer switch kit contains all the components that you need to connect your generator to your home electric box. The Reliance company provides several excellent video instructions about how to do the installation safely and correctly. I have just finished installing this transfer switch at my house, and it works great with my Firman generator. If you don't know electrical breaker boxes, then hire an electrician. If you are comfortable with doing the electric work yourself, then installing this transfer switch will be easy for you.

W
William Little

The unit is now installed and every thing is working properly.
