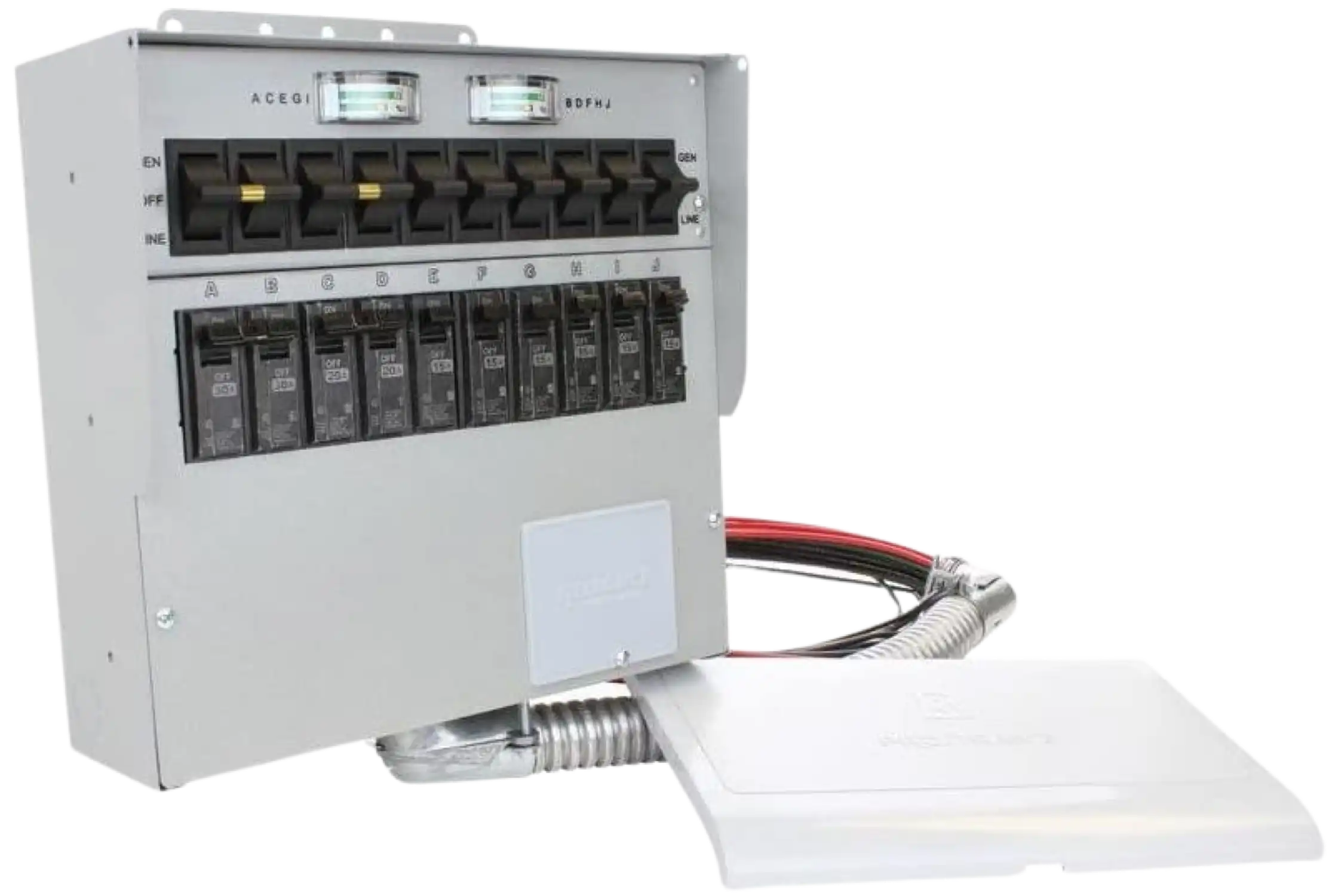

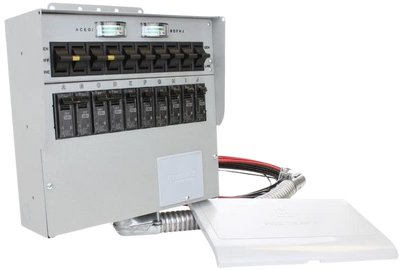

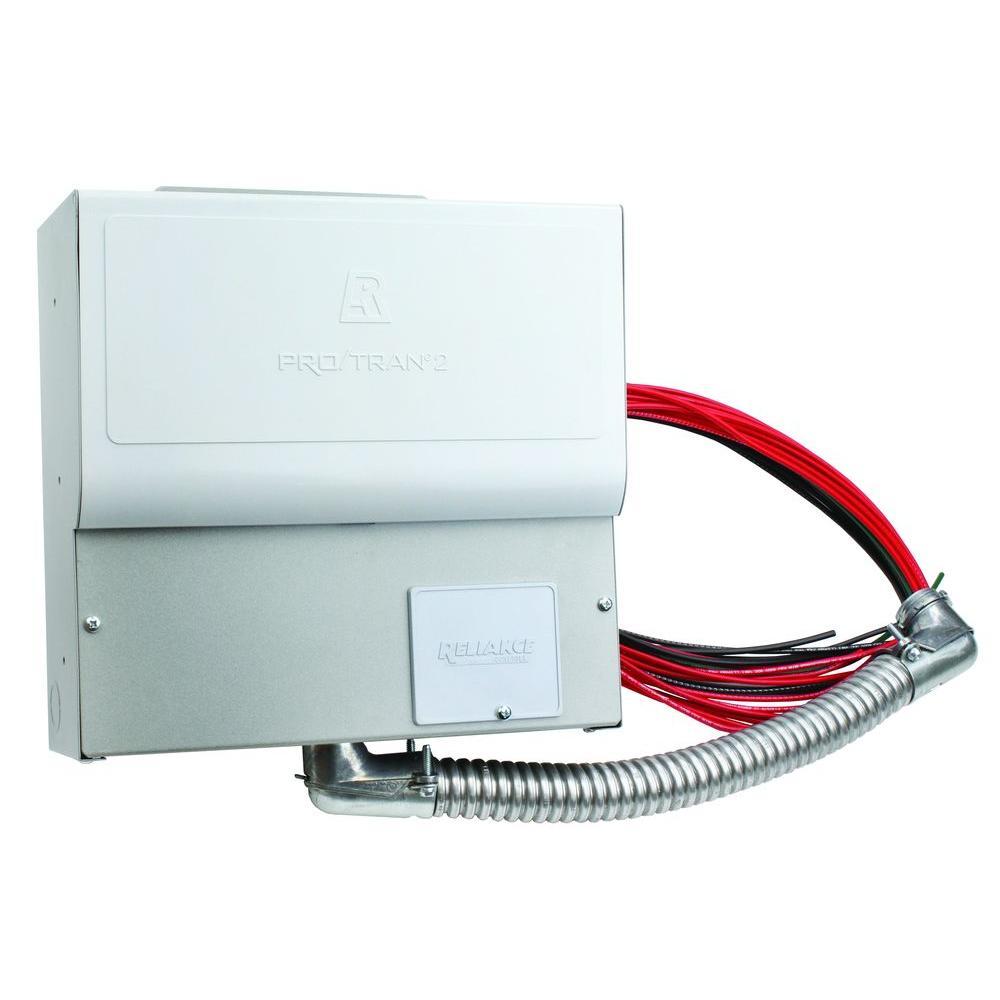

Reliance A510C Pro/Tran 2® 50 Amp 10 Circuit Manual Transfer Switch New

  • Manufacturer: Reliance
  • SKU: A510C
  •   Share
    X
  • Reliance A510C Pro/Tran 2® 50 Amp 10 Circuit Manual Transfer Switch New
  • Reliance A510C Pro/Tran 2® 50 Amp 10 Circuit Manual Transfer Switch New
Reliance A510C Pro/Tran 2® 50 Amp 10 Circuit Manual Transfer Switch New

$ 439.00
+
FREE Shipping
This item ships for free. Freight shipments include liftgate at no additional charge.
OR

bread
Pay Over Time

Select Bread as your payment at checkout


In Stock
Ships Same Day
If ordered by 3PM ET

Extended Warranty

Factory Warranty
$0 (
IncludedFactory Warranty
)

Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in! Please click add to cart.
  Exceptional Customer Service   Manufacturer Direct
FactoryPure BBB Business Review Shopper Award



To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.
  • Free Shipping Options Available
  • Price Match On Most Items
  • Manufacturer Direct

Reliance A510C Pro/Tran 2® 50 Amp 10 Circuit Manual Transfer Switch New
  Share
X
Overview
Features
Specifications
Warranty
Manuals
Reviews



The Pro/Tran 2 is the next generation of Loadside™ manual transfer switch by Reliance Controls. These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications. The 16-inch flexible conduit whip attaches easily to a knockout on the load center and all factory wires are clearly marked and colored for identification. Simply select the circuits needed in an emergency and connect them to the Pro/Tran 2 wire leads as instructed in the manual.


Pro/Tran 2 transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, and 1-inch interchangeable circuit breakers. The 1-inch breakers allow a larger circuit size (max of 1 x 30A double-pole), and installation of AFCI & GFCI breakers. All models include a hinged detachable cover to help protect and finish off the overall look of the product.

All models are UL Listed for most brands of 1-inch interchangeable circuit breakers and can be easily re-configured in the field for multiple double-pole circuits. The Pro/Tran 2 still utilizes non-defeatable (break-before-make) double-throw toggle switches. Many models feature new color-coded watt meters to help balance and manage the generator load.



*Note: Please make sure you have consulted with an electrician to verify the manual transfer switch is in fact the model and specification necessary for your situation. Doing so will help you avoid returning the item and incurring a 50% restock fee in addition to charges for shipping.
Overview (Right Column)
Brand new in box
2 year factory warranty
Fast shipping from TX
Authorized Reliance dealer



 Outlets
Features (Left Column)
  • Safest Way to Distribute Power - Eliminates dangerous backfeeds and electrical overloads
  • Pro/Tran 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch - The next generation of Loadside manual transfer switches
  • (10) Total Circuits (1" Interchangeable Style) - (1) 20A 2-Pole, (2) 20A 1-Pole & (6) 15A 1-Pole
  • Powder-Coated Steel Cabinet for Indoor Installation - 18" flexible conduit with all factory wires clearly marked/colored. (6) Combination 1/2" & 3/4" knockouts for easier installation.
Features (Right Column)
  • Hinged, Non-Metallic Cover - Protects toggle switches/breakers & provides a finished appearance.
  • Color-Coded Built-In Wattage Meter - Helps you balance and manage generator load.
  • *Note - Transfer Switch is Designed for Hardwired Installation - 50-Amp (PB50) power inlet box needed to connect power cord.
  • Certified to UL Standard 1008 & Meets All Required 702 NEC ANSI/NFPA 70
Product Specifications (Left Column)
MAX. GENERATOR RUNNING WATTS 12500
PHASE SINGLE
MAX. SINGLE-POLE CIRCUITS
 10
MAX. DOUBLE-POLE CIRCUITS 5
MAX. RATING PER CIRCUIT 2/30A, 8/20A
MAX. COMBINED LOAD @ 125 VAC 100
MAX. COMBINED LOAD @ 250 VAC 50
POWER INLET, NEMA NONE
RECOMMENDED CORD SIZE (GAUGE) 6
Product Specifications (Right Column)
CONDUIT SIZE (INCHES) 1
CONDUIT LENGTH (INCHES) 18
WATTMETERS YES
SHIPPING WEIGHT (LBS) 17
DIMENSIONS 11"H x 11.75"W x 4.5"D
CABINET TYPE, NEMA INDOOR, NEMA

Package Contents:

  • Model 510C Ten-Circuit Prewired Transfer Switch
WARRANTY

This item comes with a 2 year manufacturers warranty.
Manuals & Documentation

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joseph Benedetto

Great

L
Litsy Pittser

It works great thank you

M
Mark Miller
Adding to previous review

Delivery time was exceptional... two days in hand. That's valuable!

User picture
G
Glen Williams

Thanks for the fast service, was expecting it in two weeks like everyone said and it was here in two days!!!

R
Roger Dearing
Rely on Reliance transfer switches

The Reliance transfer switch was installed and hooked up in about 2 hours by a professional electrician. It is compact and easy to manually operate.
