Renogy Inverter Pure Sine Wave 1000W 12V with UPS Transfer Switch and Built-In Bluetooth New
Manufacturer: Renogy
SKU: RIV1210PU-126-US
Wattage Options
QTY
(888) 999-1522
$ 229.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Renogy Inverter Pure Sine Wave 1000W 12V with UPS Transfer Switch and Built-In Bluetooth New
Product Overview
The Renogy pure sine wave power inverter is an essential component for off-grid systems. It efficiently converts DC power stored in batteries into AC power, making it perfect for powering a wide range of electronic devices. With automatic switching between on-grid and off-grid, you can rest assured that your devices will continue to run smoothly, even during power outages.
1 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- UPS Powering: The inverter's connectivity to shore power ensures a continuous and dependable supply of electricity, even without a stable power source. This feature offers reassurance and operational efficiency, guaranteeing seamless backup power both on and off the grid.
- Instant Device Monitoring with Build-in Bluetooth: DC home app real-time monitoring, ensures safe and efficient operation.
- Whether in remote locations, RVs, marine environments, semi-trucks, or during temporary power outages, the inverter's ability to connect to shore power ensures that critical operations remain uninterrupted, safeguarding against any potential downtime.
- Easy to Use Remote Control: Operating your machine from the comfort of your chair.
Specifications
| Model | RIV1210PU-126 |
|---|---|
| Output Waveform | Pure Sine Wave |
| AC Terminals | (2) AC Sockets + Terminal Block |
| DC Terminals | M8-25 |
| Operating Temperature | -4°F ~ 113°F (-20℃ ~ 45℃) |
| Storage Temperature | -40°F ~ 158°F (﹣40℃～70℃) |
| Humidity | Max 95%, Non-condensing |
| Cooling | Thermally Controlled Fans |
| Enclosure Rating | IP20 |
| Continuous Output Power | 1000W |
| Continuous Output Current | 8.3A AC |
| Total Harmonic Distortion (THD) | ≤3% |
| Power Factor | 1.5A |
| Surge Rating | 2000W (@ 2s) |
| Output Voltage | 120V AC±3% |
| Output Frequency | 50/60Hz |
| Rated Battery Input Voltage | 12VDC |
| Battery Input Voltage Range | 11-15.5VDC |
| Maximum Continuous Battery Output Current | 83.3A |
| Inverter Efficiency | >92% |
| Full Load Efficiency | >90% |
|---|---|
| Power Consumption | <12W |
| Battery Overoltage Shutdown | 16.0VDC±0.3VDC |
| Battery Low Voltage Alarm | 11.0VDC±0.3VDC |
| Battery Low Voltage Shutdown | 10.5VDC±0.3VDC |
| Transfer Switch Rating | 10A |
| Wired Remote Length | 16.40 ft. |
| Remote Front Plate Dimensions | 4.3 x 2.6 x 1.3 in. (108 x 67 x 32 mm) |
| Regulatory and Safety Specifications | UL458,FCC Prat15 ClassB |
| Dimensions (L x W x H) | 15.3 × 8.1 × 3.8 in. (388.5 × 205.4 × 95.3 mm) |
| Weight | 7.5 lbs. (3.4 kg) |

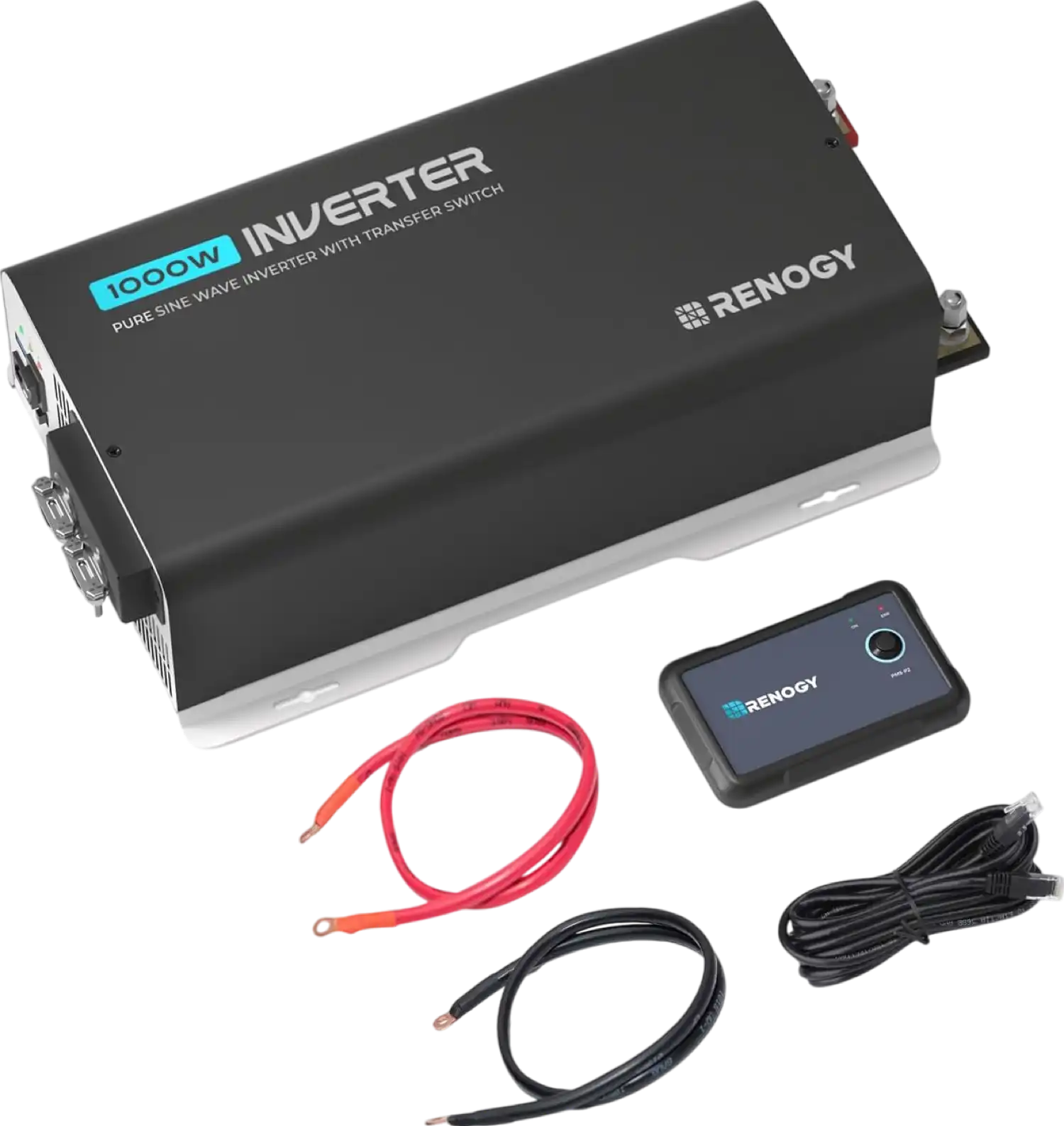

Package Contents
Renogy Pure Sine Wave Inverter 1000W 12V
Pair of 4AWG 3ft. Inverter Cables
Wired Remote Control
5m RJ12 Ethernet Cable
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 1 year material and workmanship warranty.
