Product Overview
This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first!

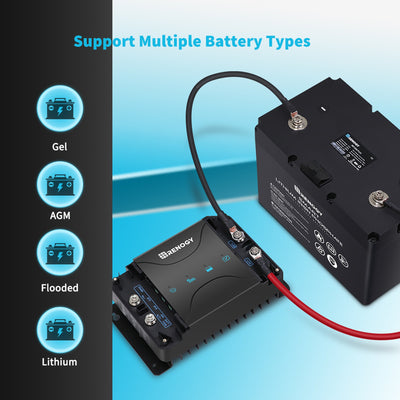

With multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.
2 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- Multi-input for Battery Charging- Renogy DC-DC On-Board Battery Charger is designed to charge service batteries from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit, offering multiple charging options and ensuring your battery stay fully charged.
- 3-phase MPPT Charging Technology- With Built-in Maximum Power Point Tracking (MPPT), Renogy DC-DC On-Board Battery Charger will charge your service batteries with maximized solar power, providing 3-phase charging (Bulk, Boost and Float) to regulate the whole charging and ensure the batteries will be accurately charged at the correct voltage levels to 100%.
- Multiple Protections- Renogy DC-DC On-Board Battery Charger has multiple intelligent protections includes battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection, guaranteeing charging safety and protecting your batteries.

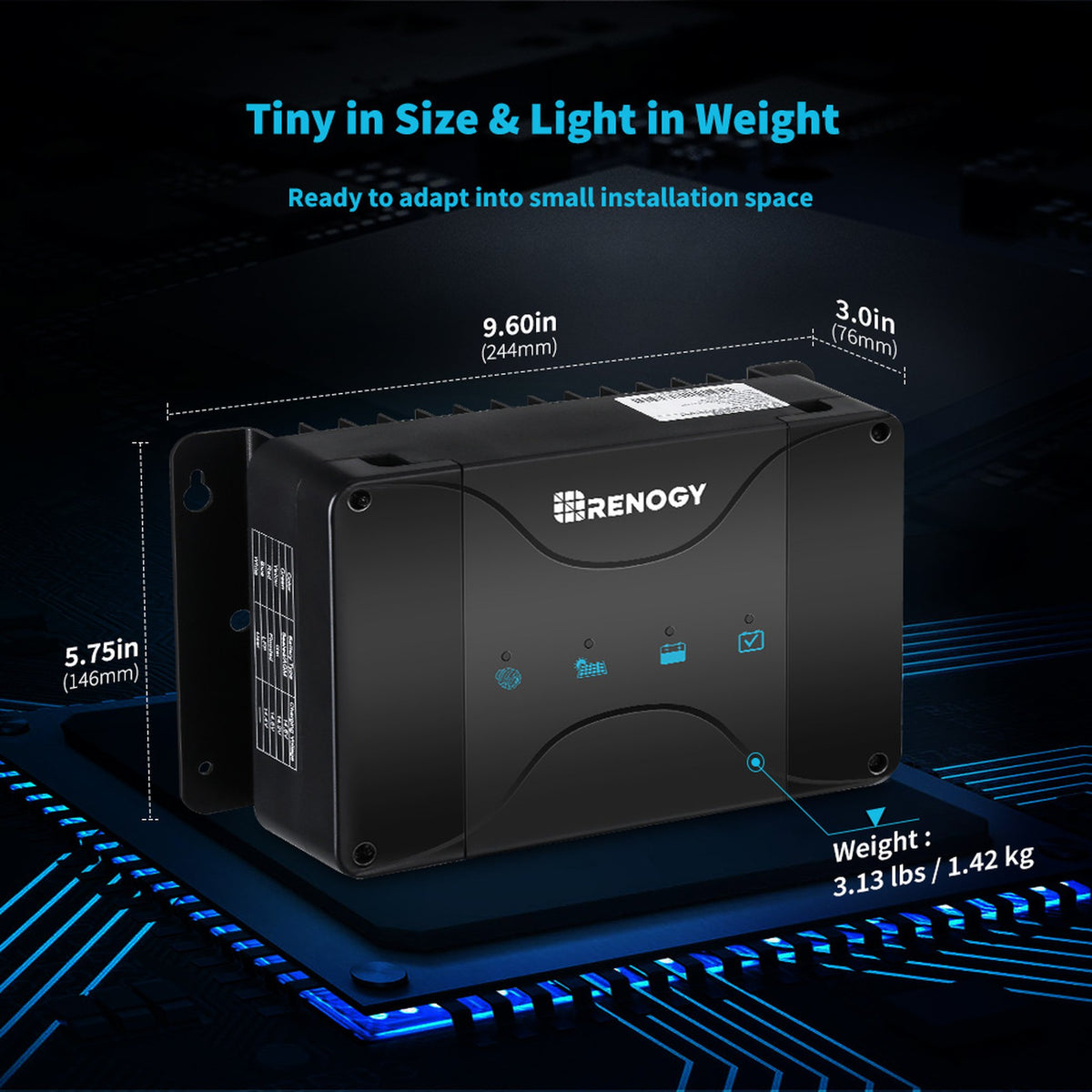

- Light & Small, Ready to be Set Up- With only 9.6in in length, 5.7in in height, and 3.13lbs in weight, Renogy DC-DC On-Board Battery Charger is ready to be installed and adapt to any tiny narrow installation space, resolving your concern from limited room in your vehicle.

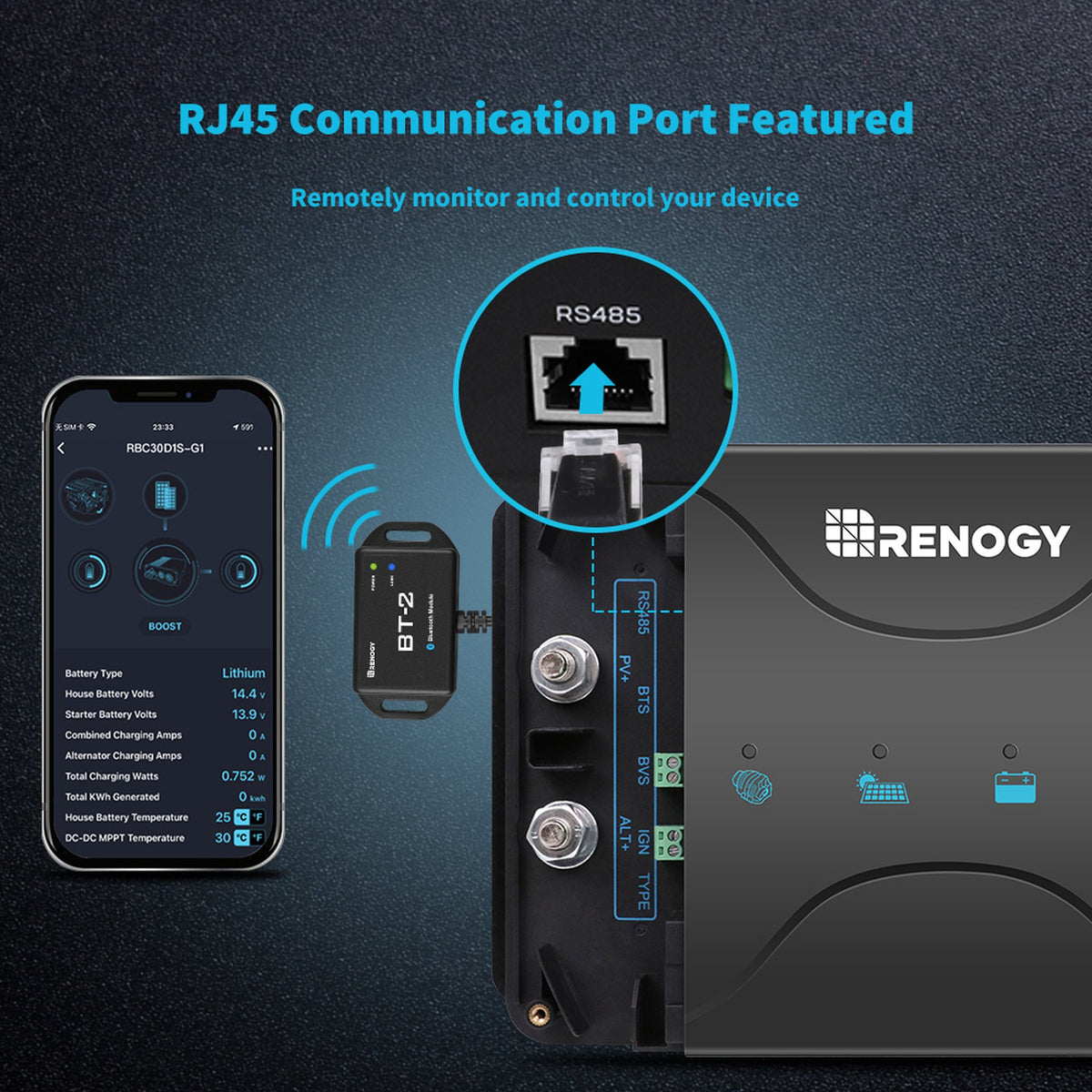

- RJ45 Communication Port Featured- Bluetooth Monitoring Ready! Exclusively available with the BT-2 Bluetooth Module accessory and Renogy DC Home App available on the IOS and Google Play Stores, you can monitor this device remotely and simply through your phone and stay constantly updated.
Specifications
| Electrical Parameters | |
| System Voltage | 12VDC |
| Battery voltage Range | 9-16VDC |
| Maximum Charging Current | 30A |
| Battery Types | SLD/AGM, GEL, FLD, LISER |
| Service Battery Charging Mode | MPPT |
| Charging Efficiency | Up to 97% |
| Max. Solar Input Voltage | 25V |
| Max. Solar Input Power | 400W |
| Alternator Input Voltage | Traditional Alternator |
| Max. Alternator Input Power | 400W |
| Self-consumption | 60mA |
| Mechanical Specifications | |
| Ground Type | Negative |
| Terminal Size | M8*1.25 - 10mm |
| Temperature Compensation | -3mV/C/2V |
| Operating Temperature Range | -31°F - 149°F |
| Storage Temperature Range | -40°F - 176°F |
| Operating / Storage Humidity | 0%-95%, No Condensation |
| Dimensions | 9.6x5.7x3.0in |
| Weight | 3.13Ibs |
| Communication Protocol | RS485 |
| Certifications | |
| CE | YES |
| ROHS | YES |
| FCC Part 15 class B | YES |
Package Contents
Battery Charger
Battery Temperature Sensor
IGN Signal Wire
RS485 Communication Cable
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 1 year material and workmanship warranty.
