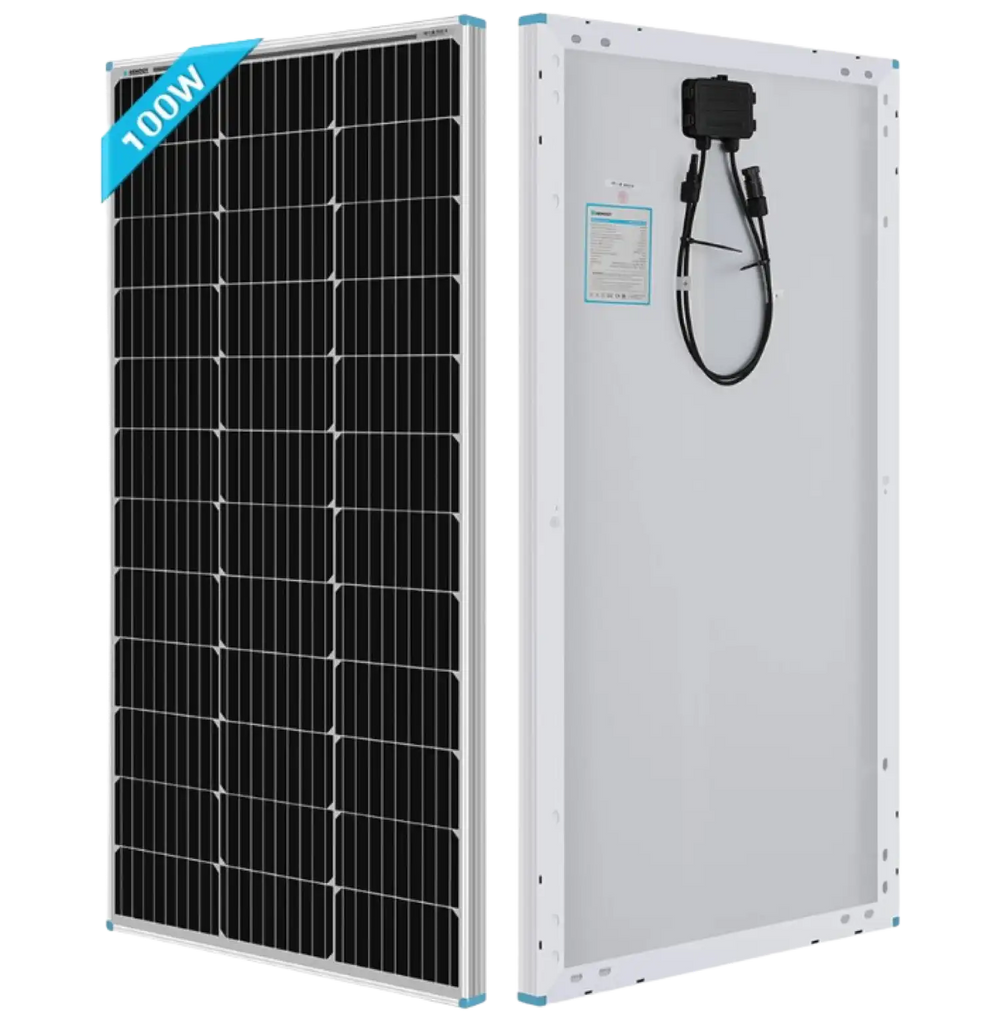

Renogy RNG-100D-SS-US 100 Watt 12 Volt Compact Monocrystalline Solar Panel New
Manufacturer: Renogy
SKU: RNG-100D-SS-US
QTY
(888) 999-1522
$ 124.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Renogy RNG-100D-SS-US 100 Watt 12 Volt Compact Monocrystalline Solar Panel New
Product Overview
High in power, compact in size, this Renogy 100 Watt 12 Volt Monocrystalline Solar Panel is the perfect option for any off-grid application. Ideal for RVs, motorhomes, cabins, marine areas, home backup power, and more.
The panels feature lightweight aluminum frames and shatter-resistant glass, making them perfect for outdoor applications. It comes with pre-drilled mounting holes, solar connector leads, and a junction box.
5 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- Reliable Power Output: Renogy's 100W monocrystalline solar panel can provide an average of 400-500 Watt-hours (Wh) or 33-41Amp-hours (Ah) of electricity per day (depending on sun availability).

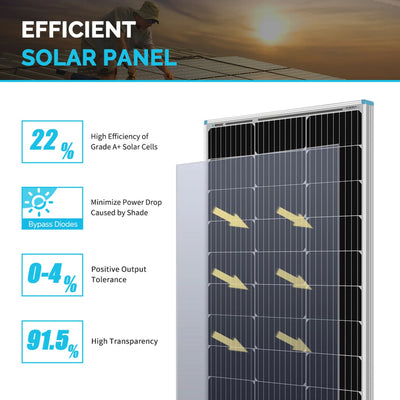

- Efficient Performance: Bypass diodes protect the solar cells from overheating and allow the solar panel to continue working during accidental shading by bypassing the underperforming cells.

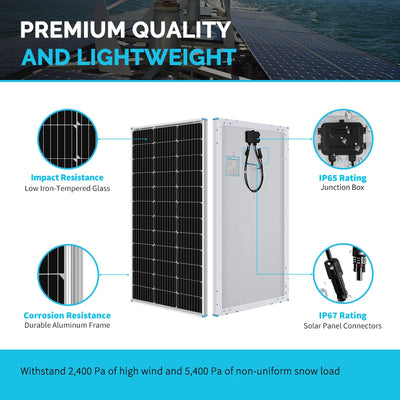

- Built to Last: Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP65 rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

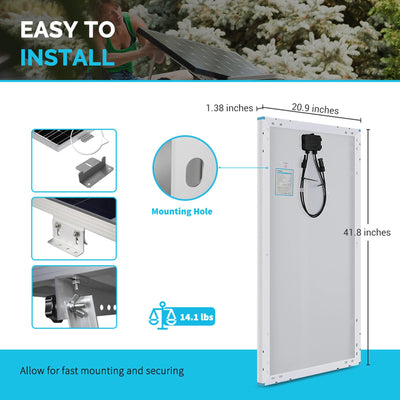

- Fast and Easy Installation: Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.

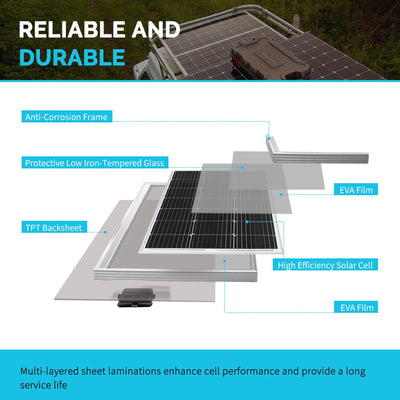

- Industry-Leading Technology: This Renogy 100W 12V Monocrystalline Panel is made from high purity silicon cells coated with advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide long-lasting durability.
Specifications
| Maximum System Voltage | 600V DC (UL) |
| Weight | 14.1lbs/6.4kg |
| Dimensions | 41.8 x 20.9 x1.4 in |
| Maximum Power at STC | 100W |
| Cell Efficiency | 22.00% |
| Optimum Operating Voltage (Vmp) | 20.4V |
| Open-Circuit Voltage (Voc) | 24.3V |
| Optimum Operating Current (Imp) | 4.91A |
| Short-Circuit Current (Isc) | 5.21A |
| Operating Temperature | -40°F to 176°F |
| Maximum Series Fuse Rating | 15A |
| Certifications | CE, ISO |
Package Contents
Compact Monocrystalline Solar Panel
User Manual
Warranty
This product comes with a 5 year material and workmanship warranty.
