Renogy RNG-BATT-AGM12-100-US Deep Cycle AGM Battery 12 Volt 100Ah New
Product Overview
Renogy’s 12V Deep Cycle AGM Battery is an excellent choice for standby or daily power needs. Built tough with a leak-proof design, this maintenance-free battery was designed with solar energy storage applications in mind and provides optimum performance even at freezing temperatures.
2 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features

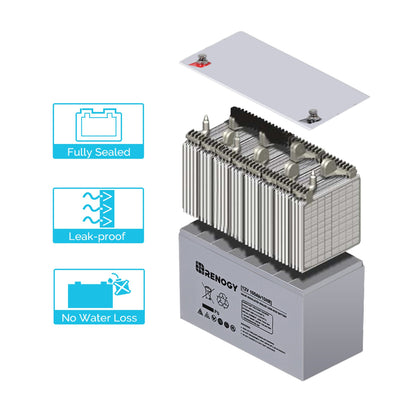

- Maintenance Free- Manufactured with thick absorbent glass mat (AGM) separators and advanced valve regulated technology, Renogy Deep Cycle AGM Batteries save you from acid leakage and frequent maintenance
- Excellent Discharge Performance- Proprietary quinary alloy plates and specially treated plate grids enable low internal resistance and high discharge currents of up to 10 times the battery rated capacity

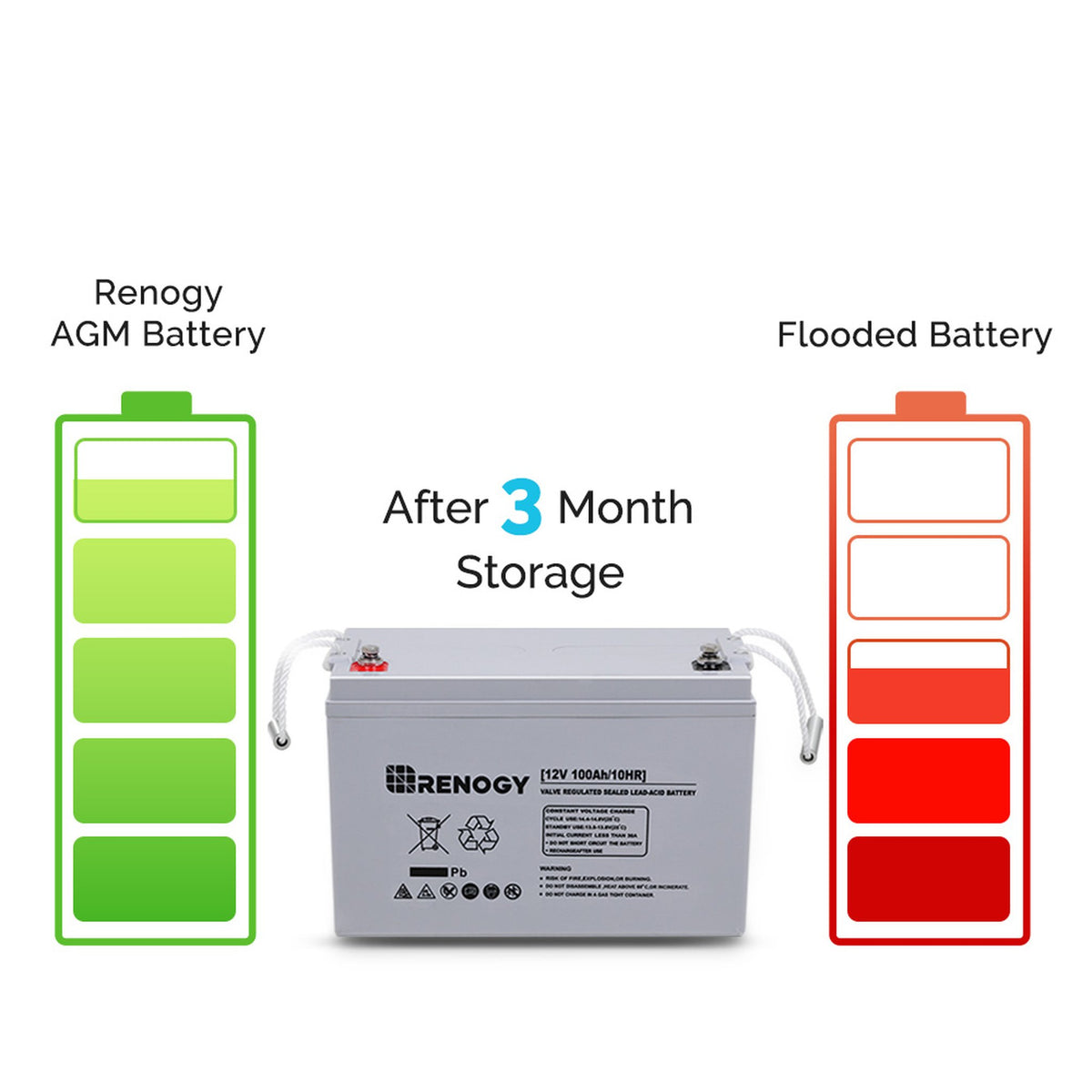

- Long Shelf Life- Made of high purity materials, Renogy Deep Cycle AGM Batteries reduce the monthly self-discharge rate below 3% at 77°F (25°C), which is 5 times lower than their flooded counterparts
- Wide Operation Temperature Range- Improved electrolyte formula ensures stable battery capacity and outstanding discharge performance at low temperatures below 32°F (0°C).
Specifications
| Self Discharge Rate | ＜3% / month (25°C / 77°F) |
| Terminal Bolt Size | M8 x 1.25 x 20 mm |
| Internal Resistance | Approx. 5.0mΩ |
| Container Material | ABS |
| Weight | 63.9 lb. / 29 kg |

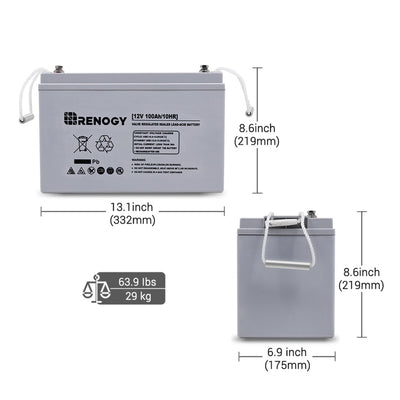

| Dimension | 13.1 x 6.9 x 8.6 inch / 332 x 175 x 219 mm |
| Recommended Terminal Torque | 109,8 inch·lb / 12.4 N·m |
| Nominal Voltage | 12V |
| Rated Capacity | 100Ah@10hr-rate to 10.5V (25°C / 77°F) |
| Float Charging Voltage | 13.5V~13.8V (25°C / 77°F); Temperature Compensation |
| Cycle Use Voltage | 14.4V~14.8V (25°C / 77°F); Temperature Compensation |
| Equalization Voltage | 14.4V~14.8V (25°C / 77°F) |

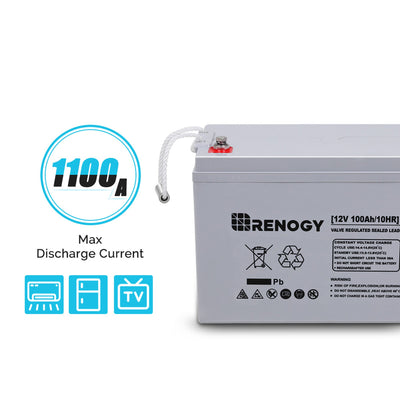

| Max Discharge Current | 1100A (5 seconds) |
| Max Charge Current | 30A |
| Normal Operating Temperature | 77°F±5.4°F / 25°C±3°C |
| Operating Temperature Range | Discharge |
| Storage Temperature Range | 5°F~104°F / -15°C~40°C |
Package Contents
RNG Deep Cycle AGM Battery 12V 100Ah
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 2 year material warranty.
